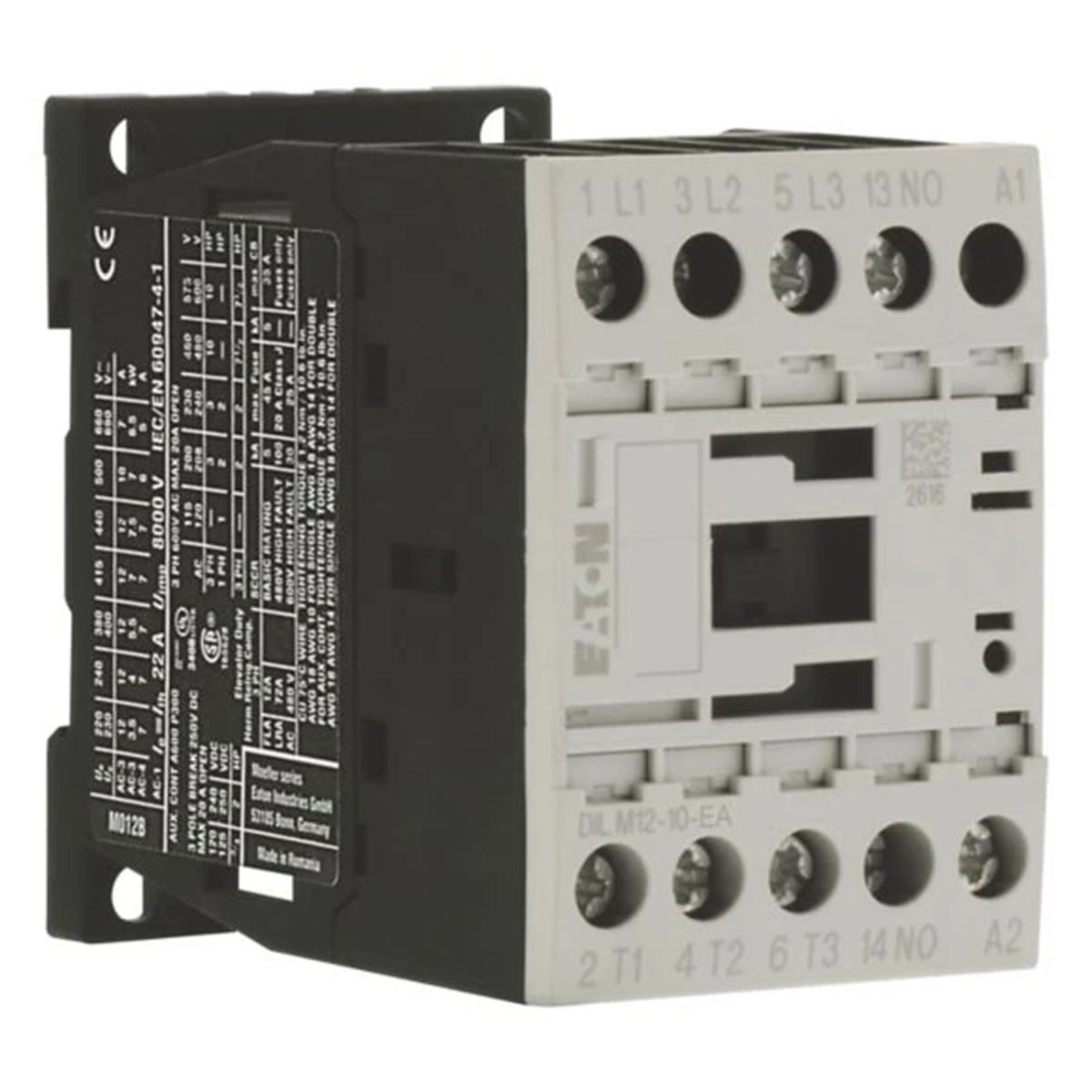

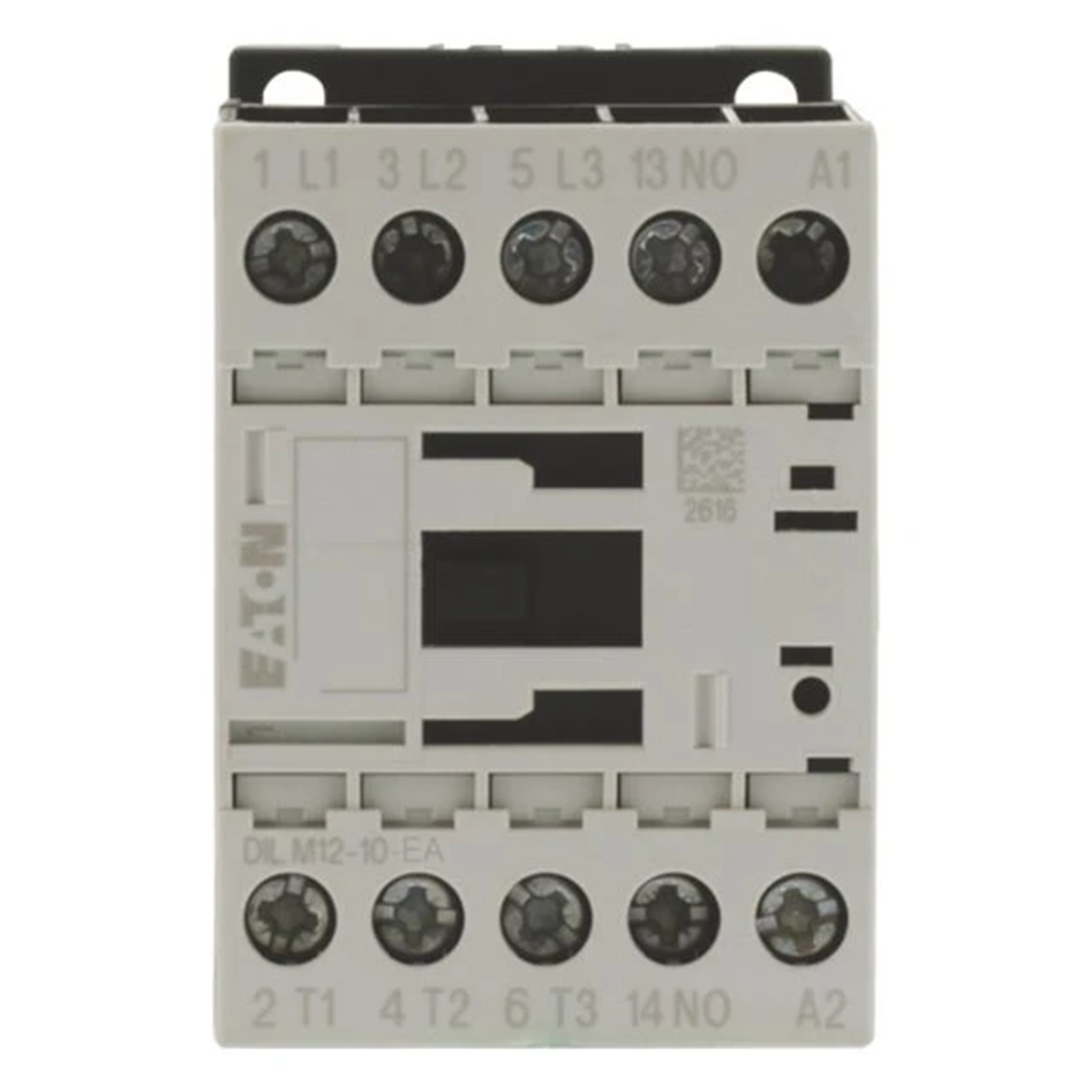

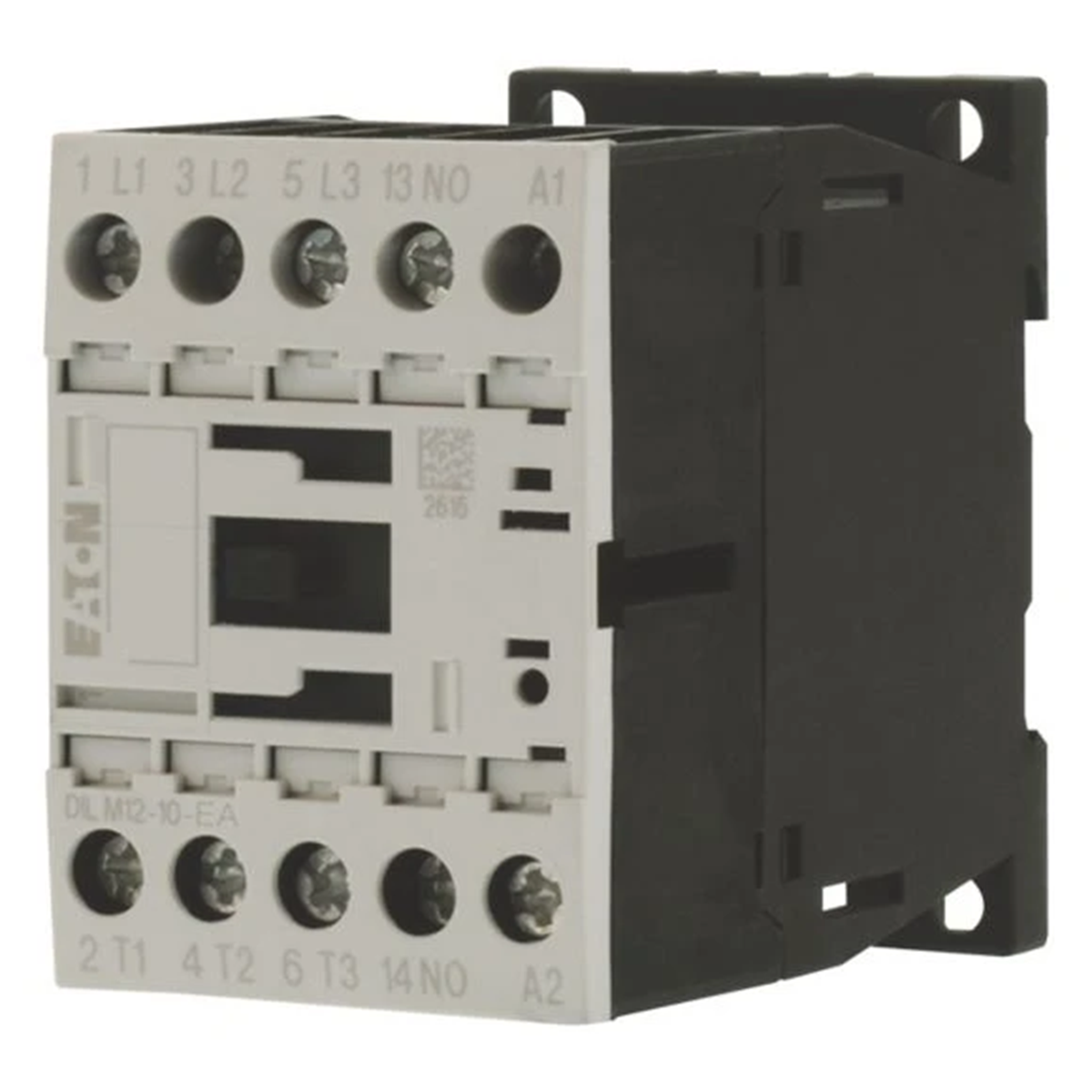

Contactor DILM12-10-EA 3P 5.5kW/400V IP00 24VDC 190034

Lokaler Index:
ATA004MOEL
Katalognummer:
190034
EAN-Code:
4015081880300
Hersteller: EATON
Number of main contacts NO: 3
Number of auxiliary contacts NO: 1
Overvoltage category: III
Verkaufsschlager
Preis:
147,75 zł
gross / stk.
(inklusive MwSt 23%)
Niedrigster Preis ab 30 Tage vor Ermäßigung: 134,32 zł gross
Herstellerpreis: 293,97 zł gross
Lieferung in 3h
Zugänglich 22 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.

Technische Daten

  • Number of main contacts NO
    3
  • Overvoltage category
    III
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    690
  • Degree of contamination
    3
  • Maximum operating voltage [V]
    690
  • Rated operating power at AC-3 400V [kW]
    5.5
  • Rated operational current Ie for AC-3 400V [A]
    12
  • Rated operating power at AC-4 400V [kW]
    3
  • Number of auxiliary contacts NO
    1
  • Number of poles
    3
  • DC control voltage [V]
    24
  • Level of security
    IP20
  • Mechanical durability [Number of connections]
    10000000
  • Rated surge voltage [V]
    8000
  • Rated operational current Ie for AC-1 400V [A]
    22
  • Rated operational current Ie for AC-4 400V [A]
    7

Weitere technische Daten

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated operation power at AC-4, 400 V
    3 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    12 A
  • Rated operation current Ie at AC-4, 400 V
    7 A
  • Rated operation power NEMA
    7.4 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Hersteller-Details

  • Hersteller
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Großpackungen

Eine Art Paket Skrzynia
Menge 1 stk.
Gewicht (kg) 0,312
Volumen (m3) 0,000
Breite (m) 0,046
Länge (m) 0,079
Tiefe (m) 0,070
