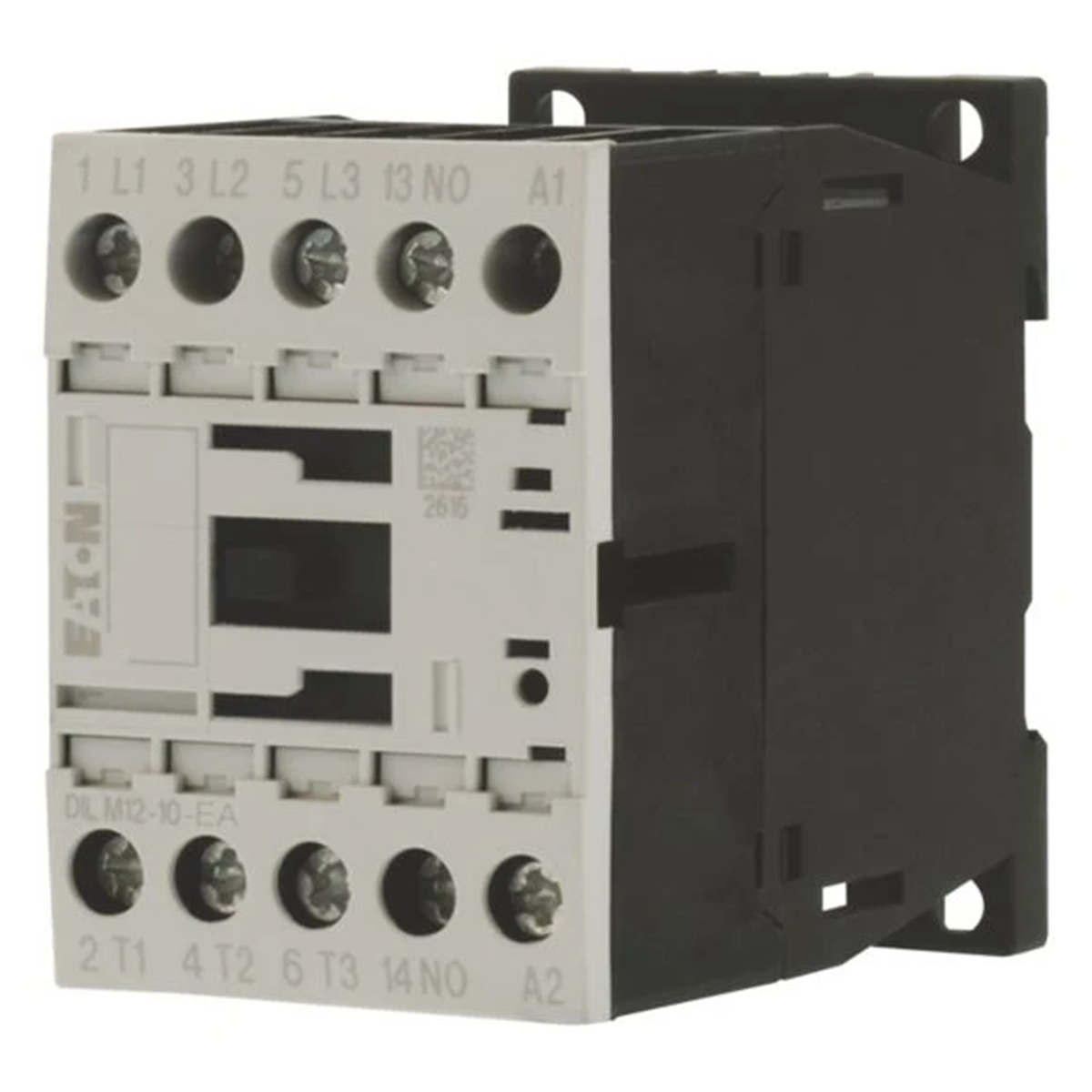

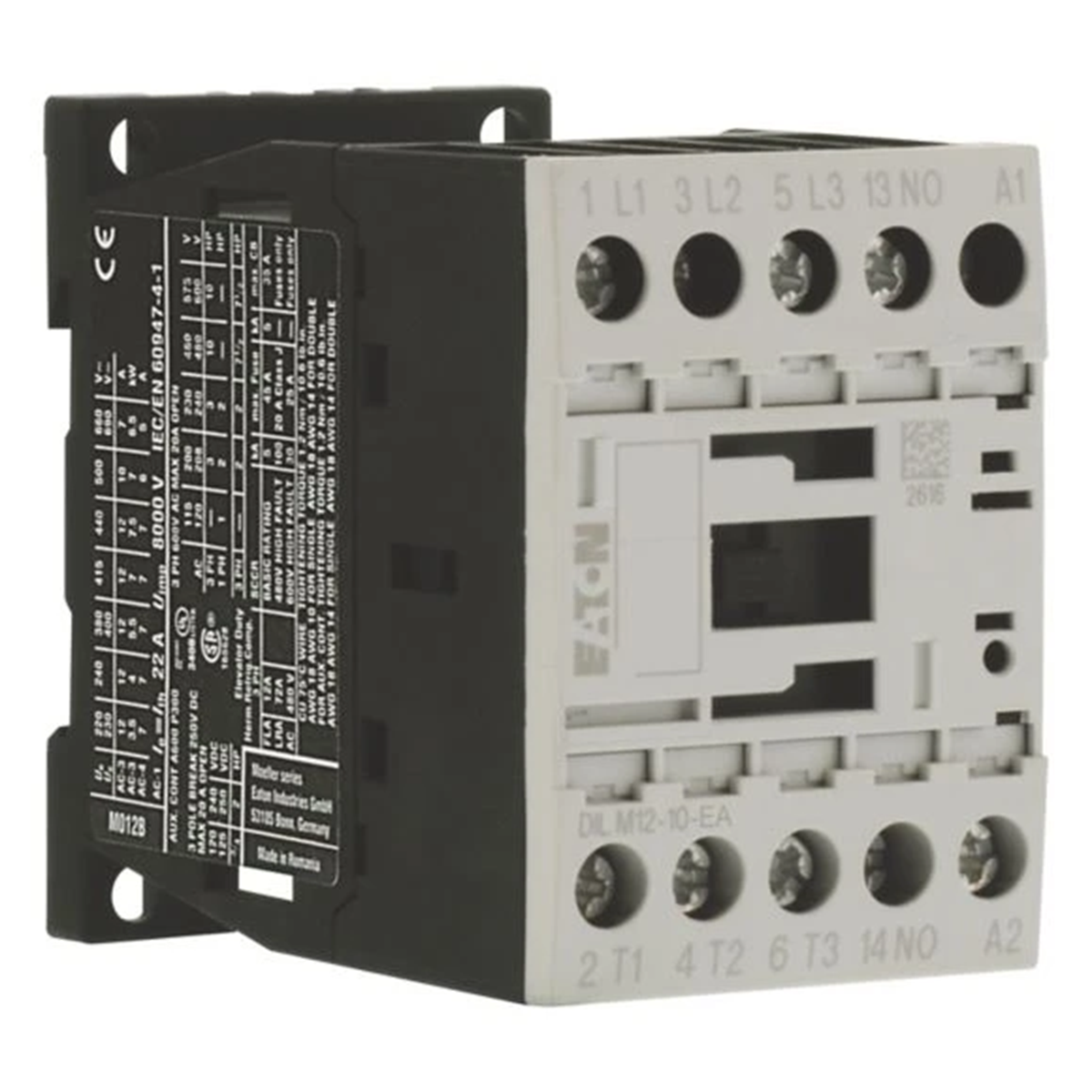

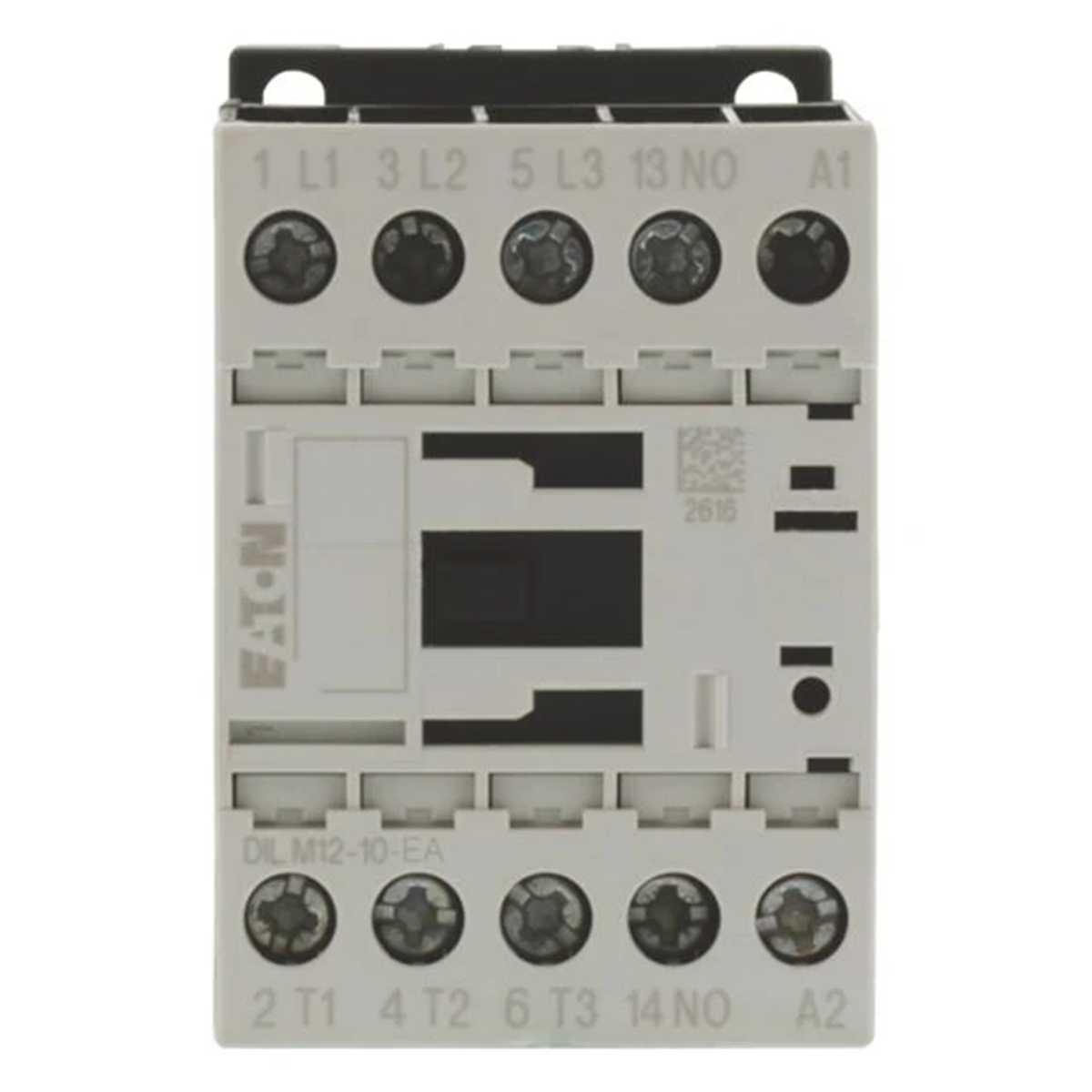

Contactor DILM12-10-EA 3P 5.5kW/400V IP00 230VAC 190033
local index:
ATA001MOEL
Catalog No:
190033
EAN code:
4015081880294
Manufacturer:
EATON
Number of main contacts NO: 3
Number of auxiliary contacts NO: 1
Overvoltage category: III
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Continuous operation requires highly reliable components .DILM contactors achieve not only the best durability parameters in the AC-3 category, but also great for heavy duty pulsed AC-4. This increases machine and plant safety also during the test and change phase.
Technical data
-
Number of main contacts NO3
-
Overvoltage categoryIII
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]690
-
Degree of contamination3
-
Maximum operating voltage [V]690
-
Rated operating power at AC-3 400V [kW]5.5
-
Rated operational current Ie for AC-3 400V [A]12
-
Rated operating power at AC-4 400V [kW]3
-
Number of auxiliary contacts NO1
-
Number of poles3
-
AC control voltage [V]230
-
Level of securityIP20
-
Mechanical durability [Number of connections]10000000
-
Rated surge voltage [V]8000
-
Rated operational current Ie for AC-1 400V [A]22
-
Rated operational current Ie for AC-4 400V [A]7
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Rated operation current Ie at AC-4, 400 V7 A
-
Rated operation power NEMA7.4 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,240 | 0,256 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,046 |
| Length (m) | 0,075 | 0,079 |
| Depth (m) | 0,068 | 0,070 |
