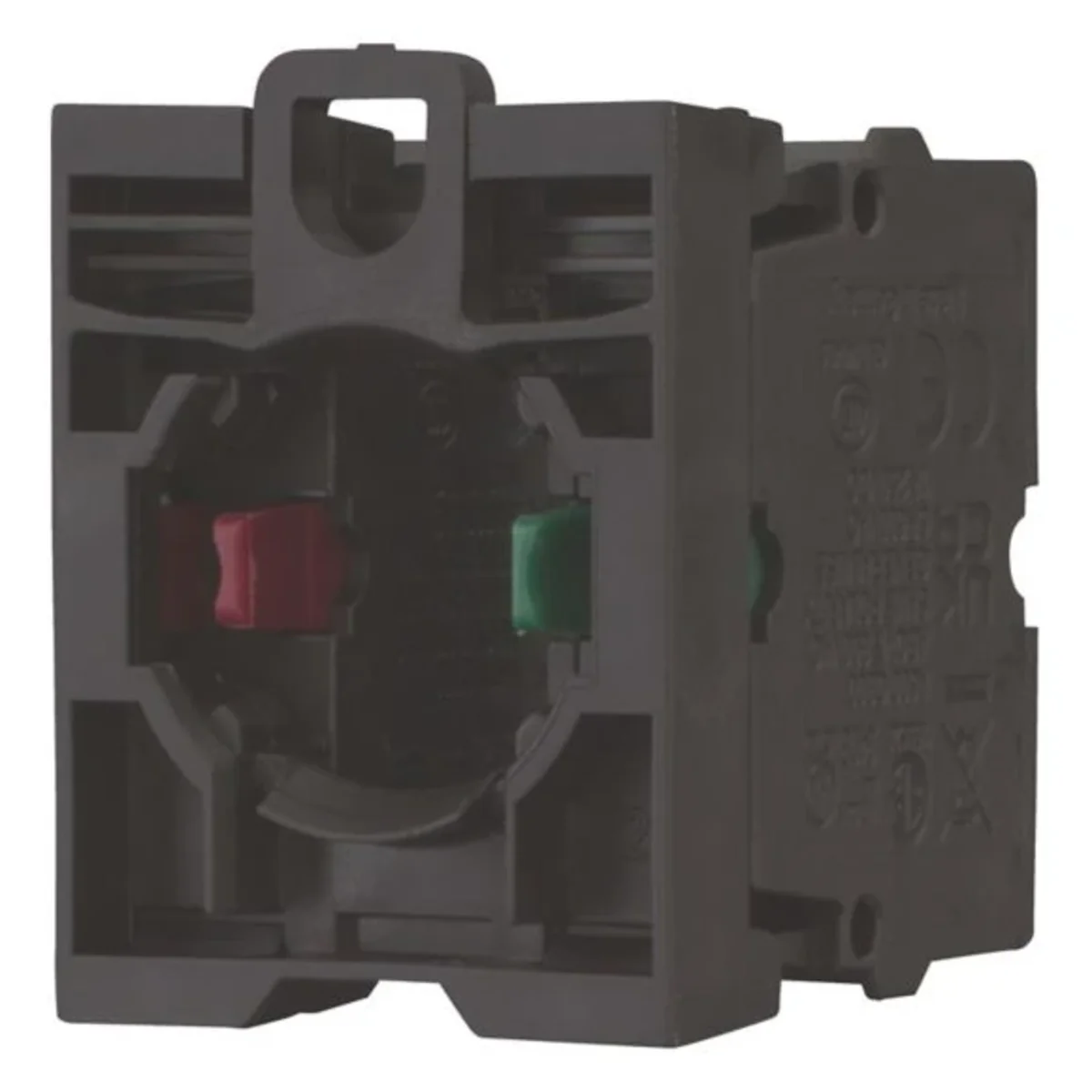

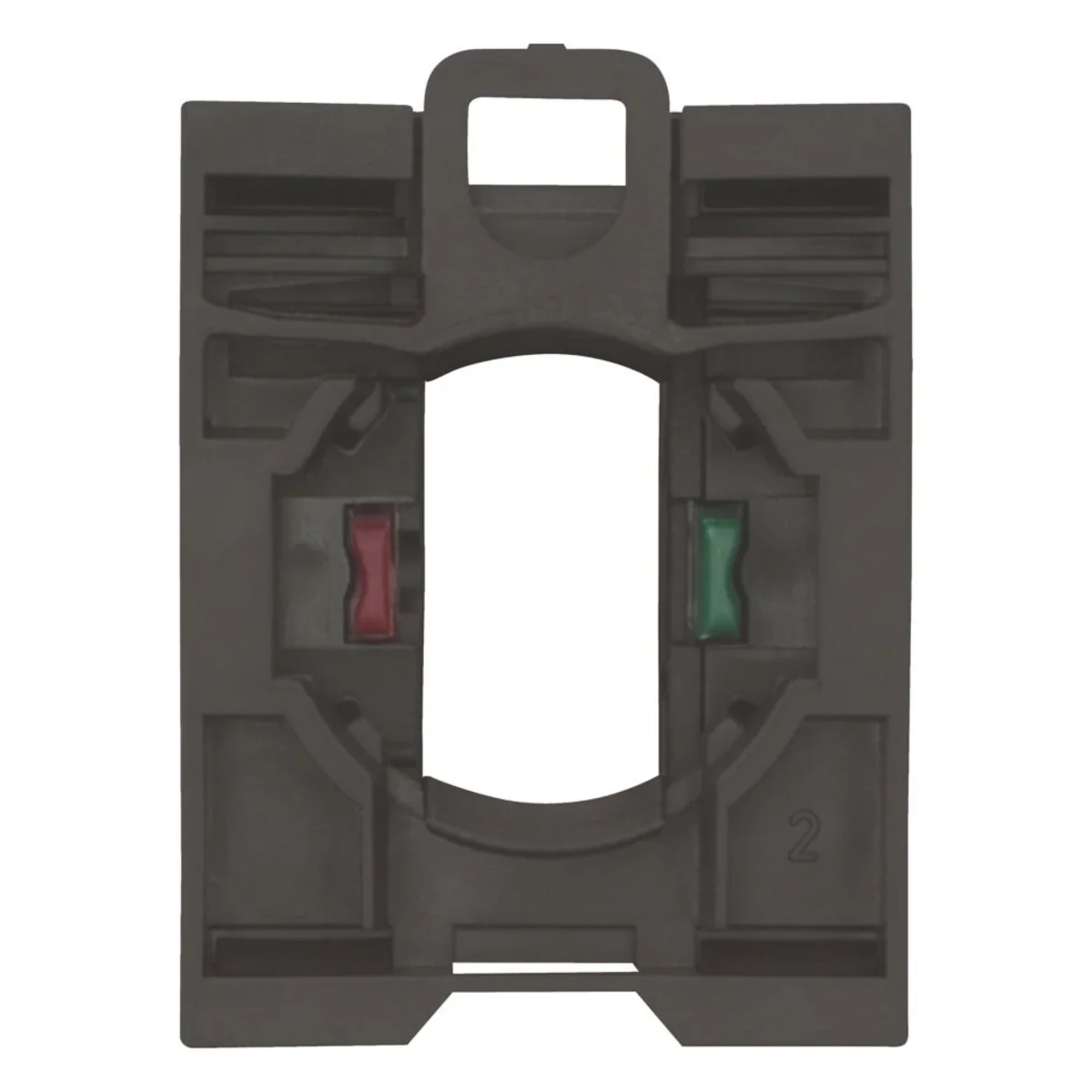

Contact element 1NO 1NC mounted for front plate, M22-AK11 216505

local index:
AKS190MOEL
Catalog No:
216505
EAN code:
4015082165055
Manufacturer: EATON
Clamps: Screw
Price:
11,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

Contact element 1NO 1NC mounted to the front panel

Technical data

  • Clamps
    Screw

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    1
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Model
    Clip-on
  • Lamp holder
    None
  • Number of contacts as normally open contact
    1
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Front fastening

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,027 0,133
Volume (m3) 0,000 0,000
Width (m) 0,042 0,090
Length (m) 0,037 0,075
Depth (m) 0,032 0,060
