SPAMEL

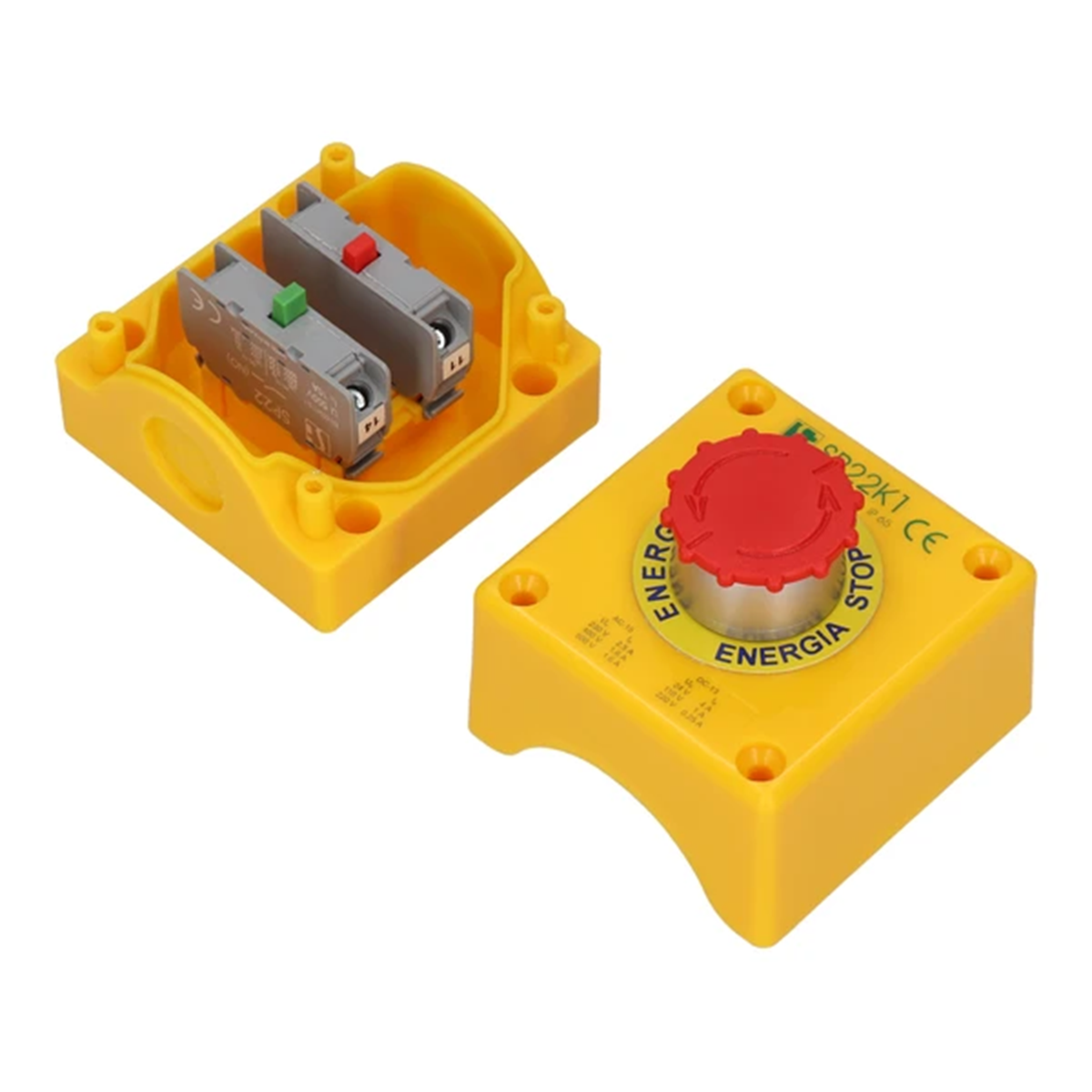

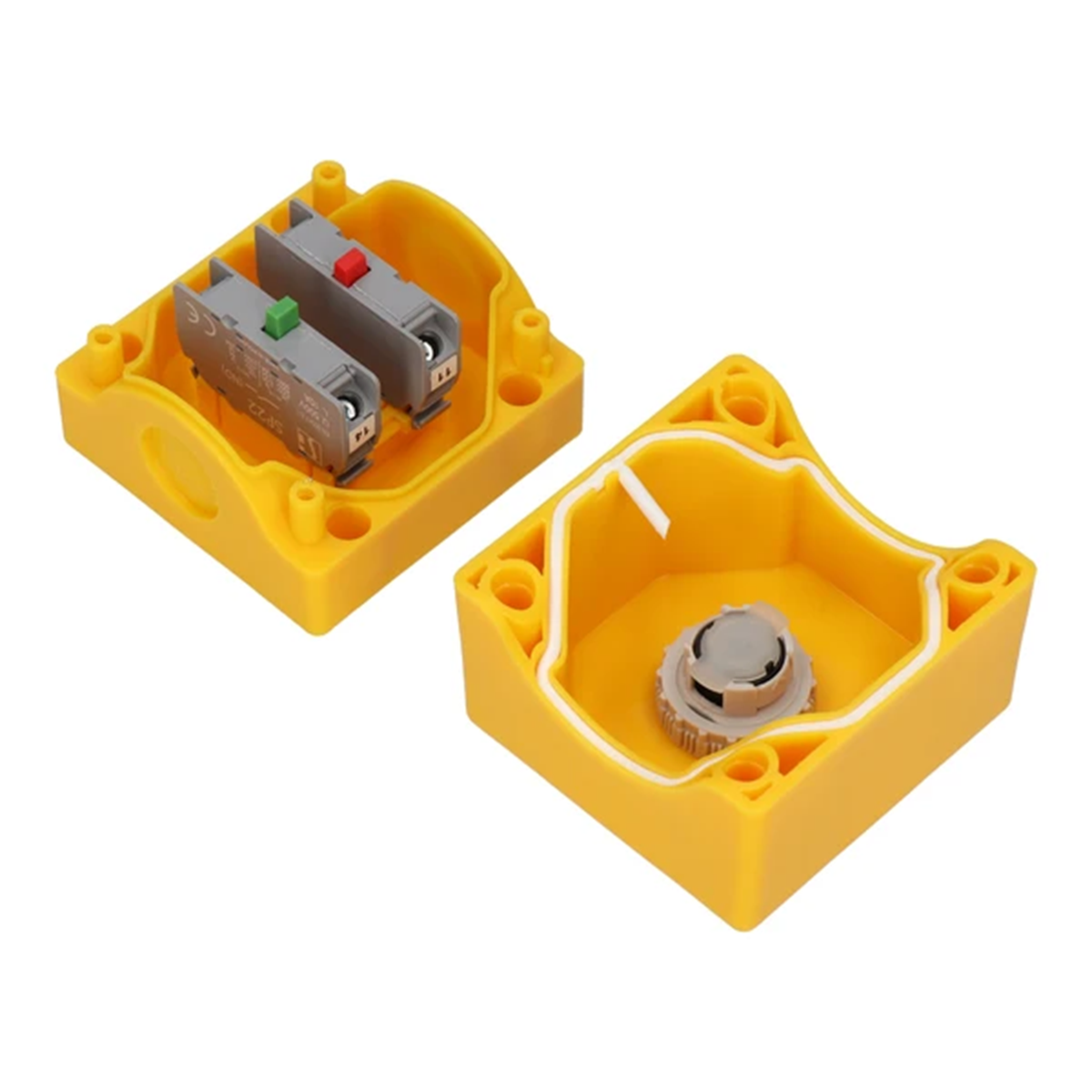

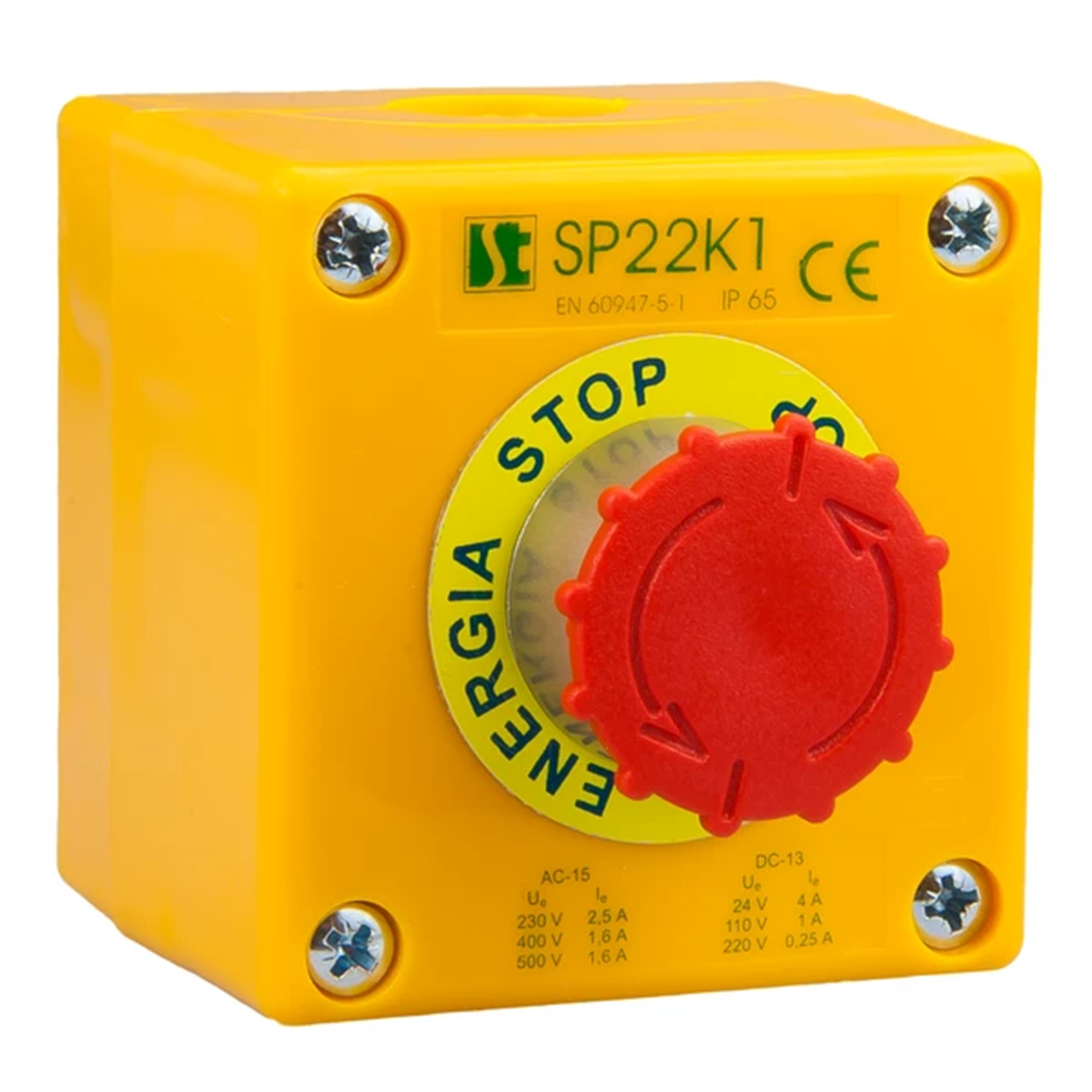

Complete single-hole cassette with push-button B with signal path, 1 M20 grommet SP22K1\08-1

local index:
AKK245SPAM
Catalog No:
SP22K1\08-1
EAN code:
5907723064553
Price:
22,19 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Complete single-hole cassette with push-button B with signal path, 1 M20 grommet

Technical data

  • Color
    Red
  • Level of security
    IP65
  • Housing material
    Plastic
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Number of indicator lights
    0
  • Number of selector switches
    1
  • Suitable for emergency stop
    yes
  • Rated control supply voltage DC
    24 ... 220 V
  • Housing material
    Plastic
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    IP65
  • Number of push buttons
    1
  • Number of key switches
    0
  • Number of mushroom-shaped push-buttons
    1
  • Rated control supply voltage AC 50 Hz
    230 ... 500 V
  • Colour housing cover
    Grey
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
