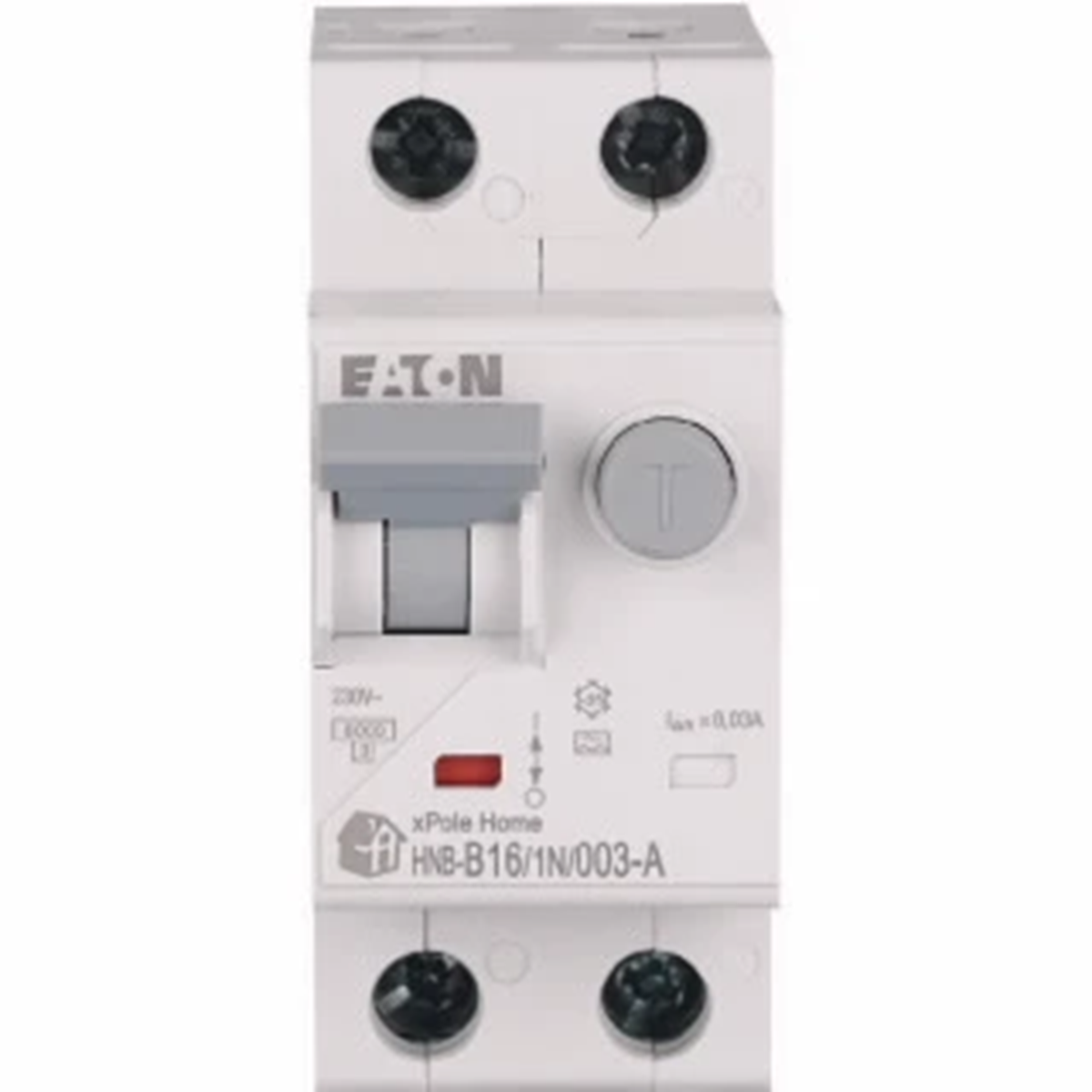

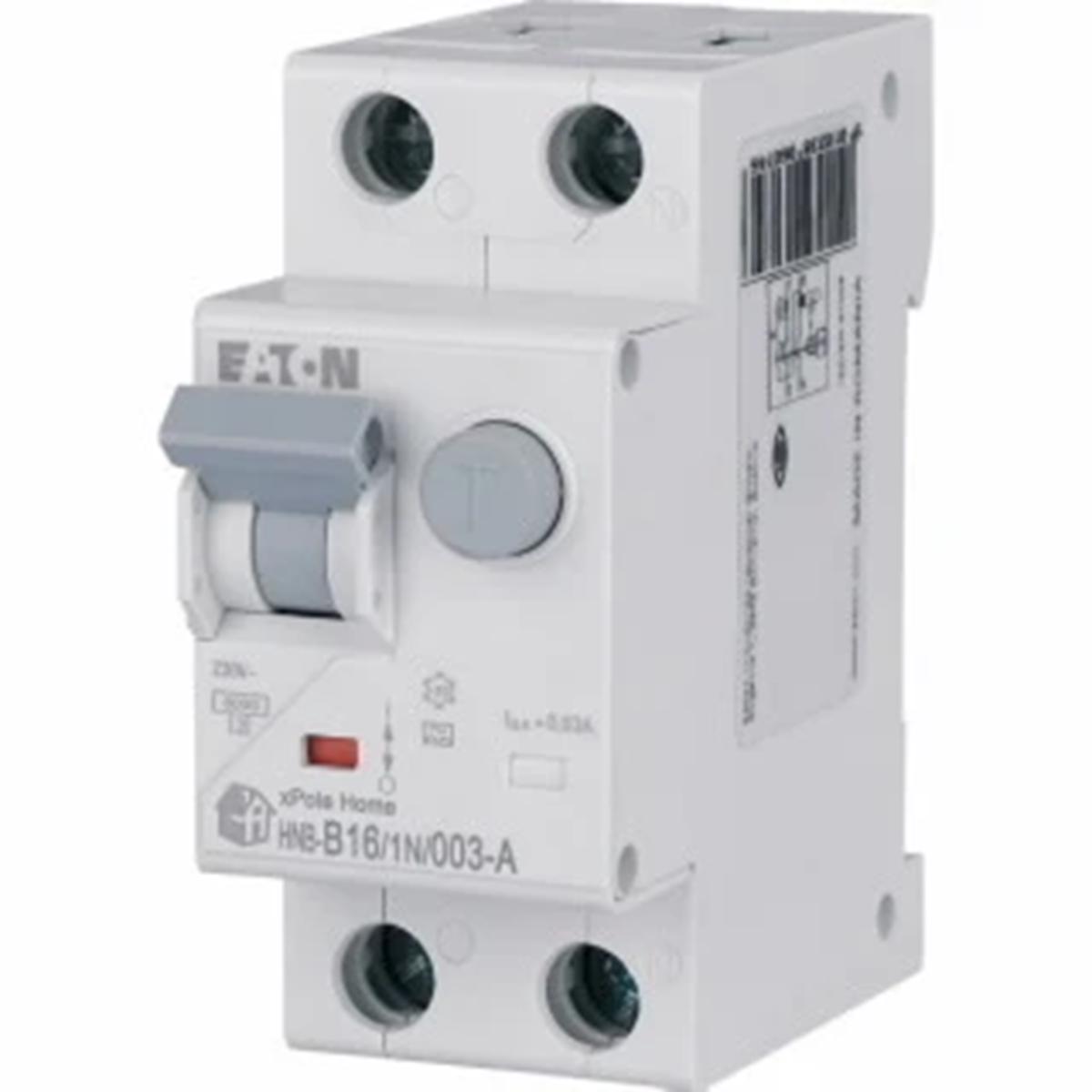

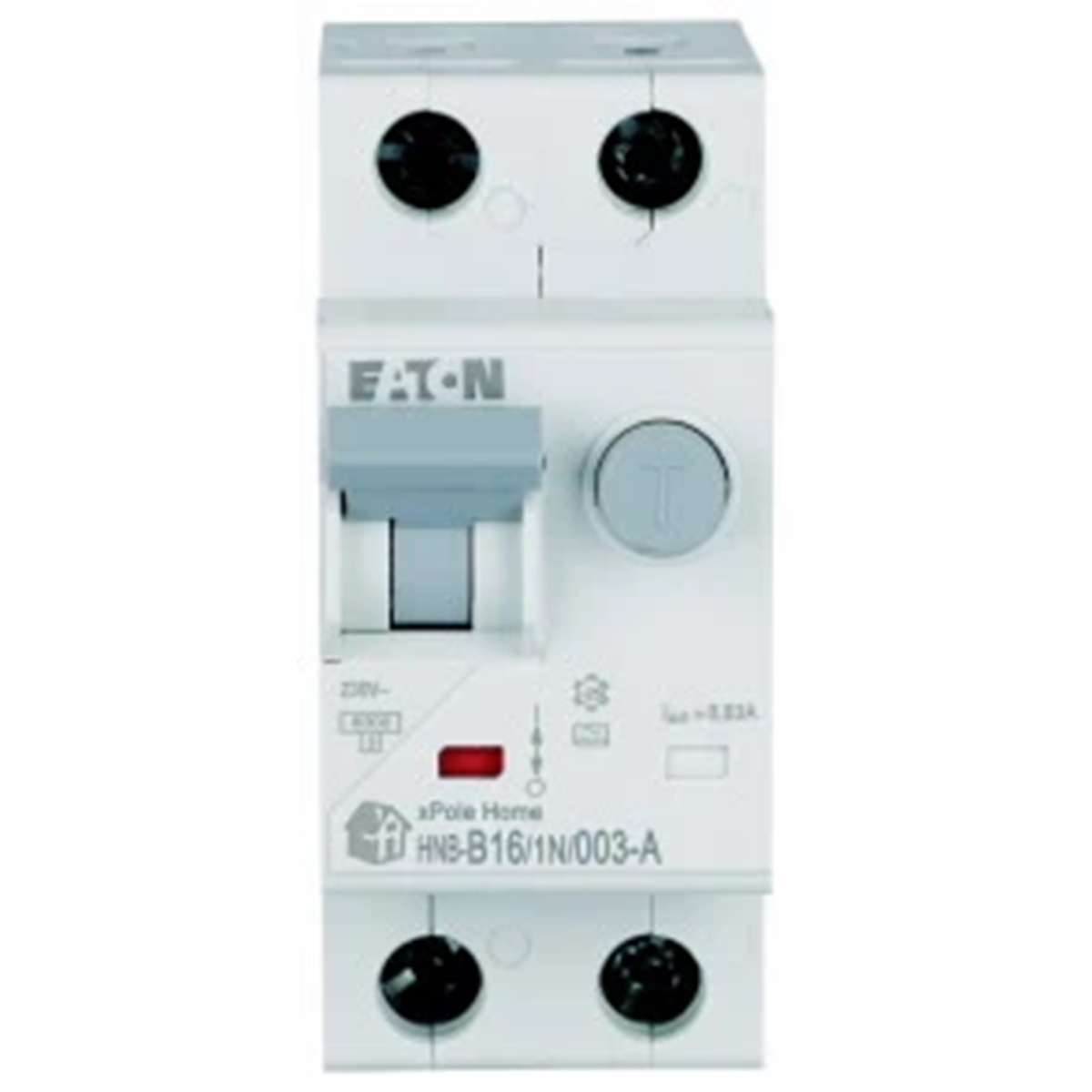

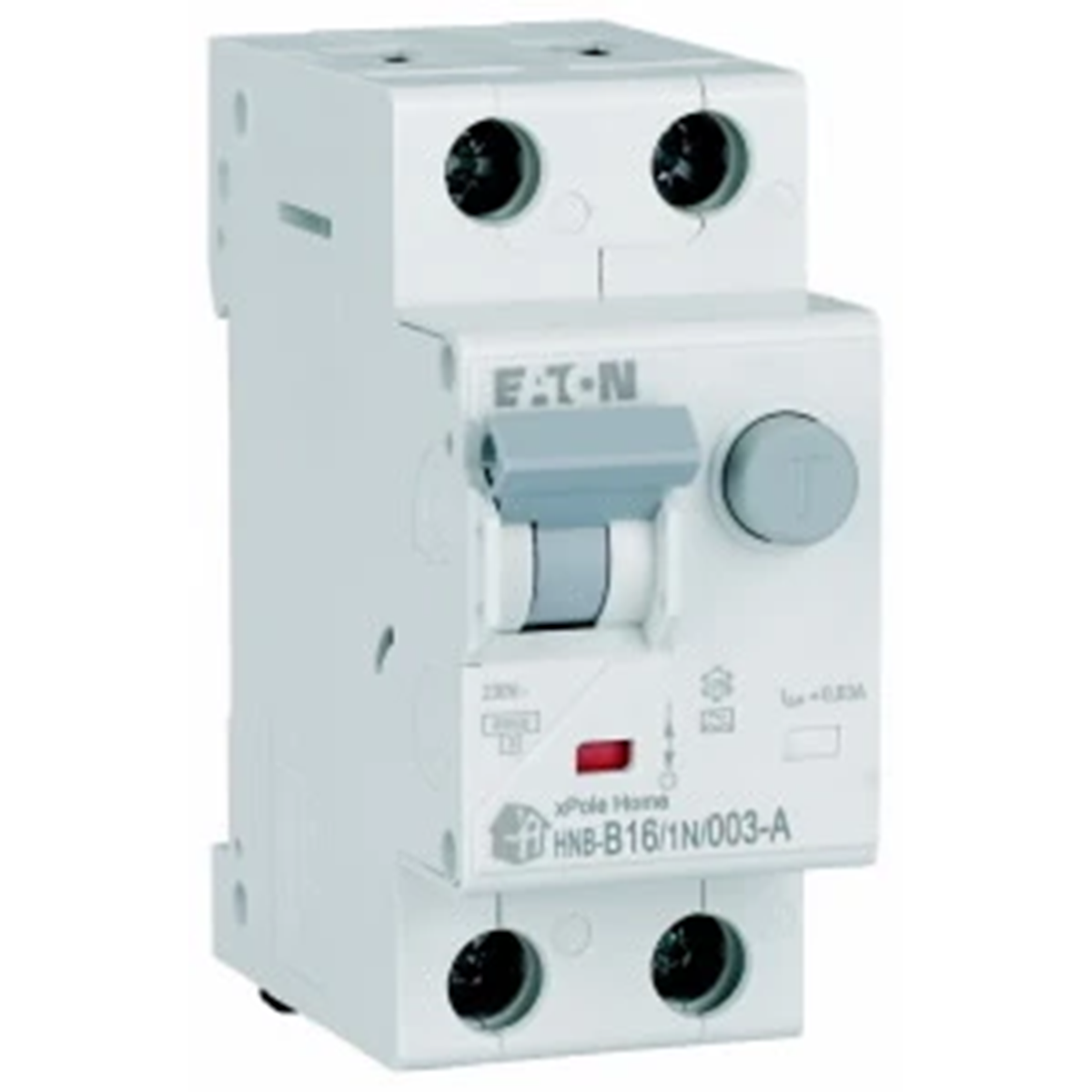

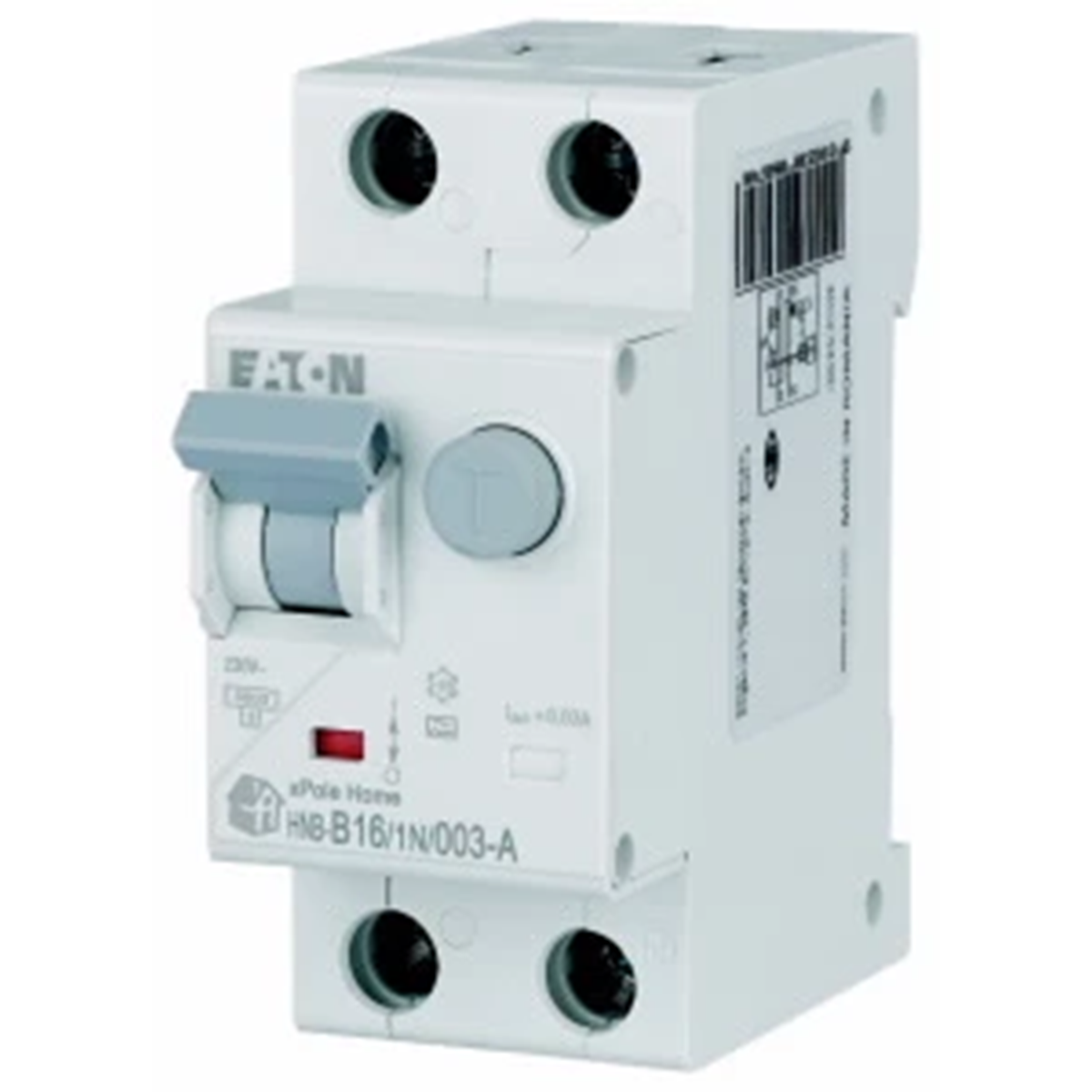

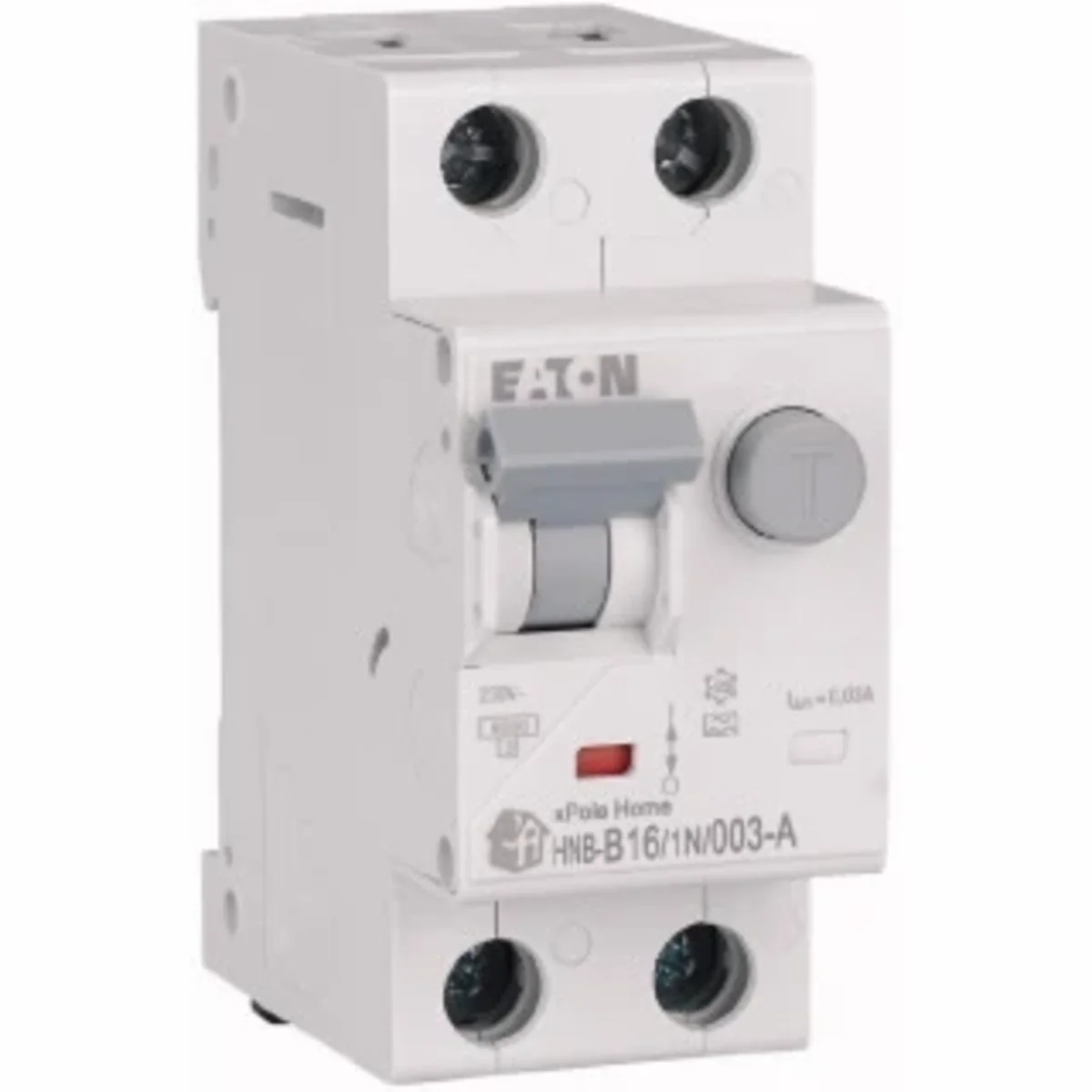

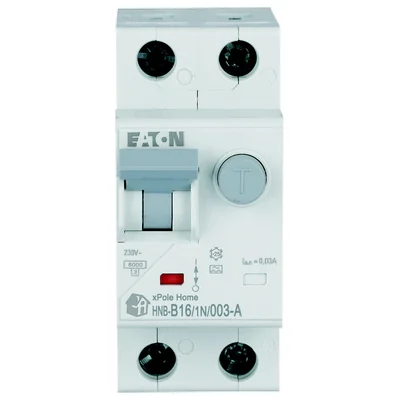

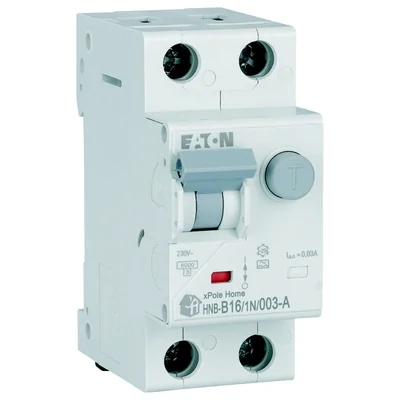

Combined circuit breaker HNB-B16/1N/003-A 16A 1+N 6kA B 230V IP20 type A 195133

Name: Combined circuit breaker HNB-B16/1N/003-A 16A 1+N 6kA B 230V IP20 type A
Brand: EATON
SKU: ARB100MOEL
Price: 86.63 PLN
Availability: InStock

local index:

ARB100MOEL

Catalog No:

195133

EAN code:

9010238060968

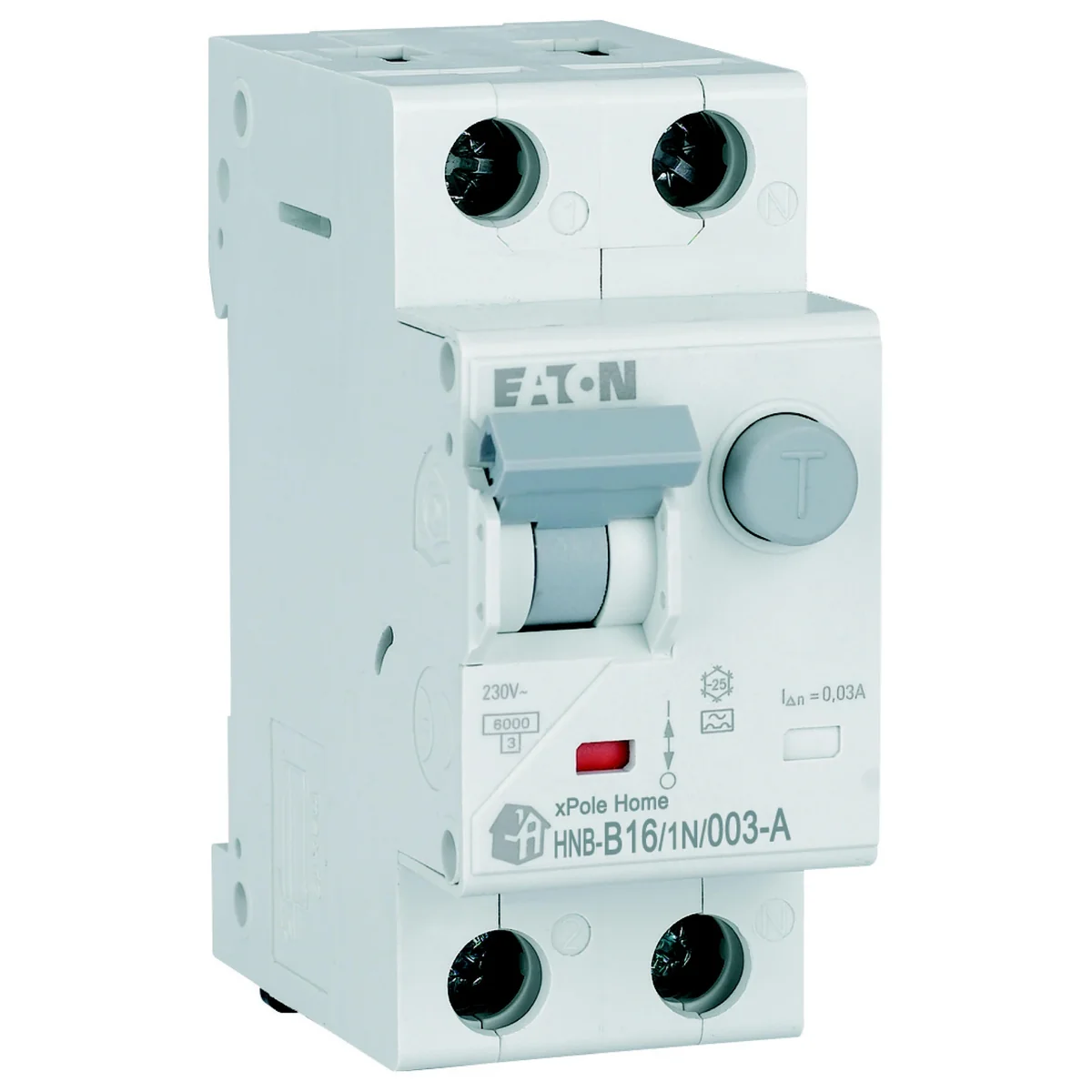

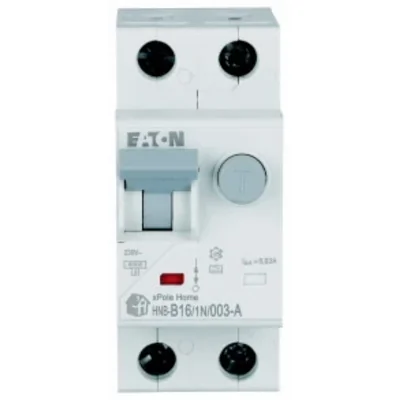

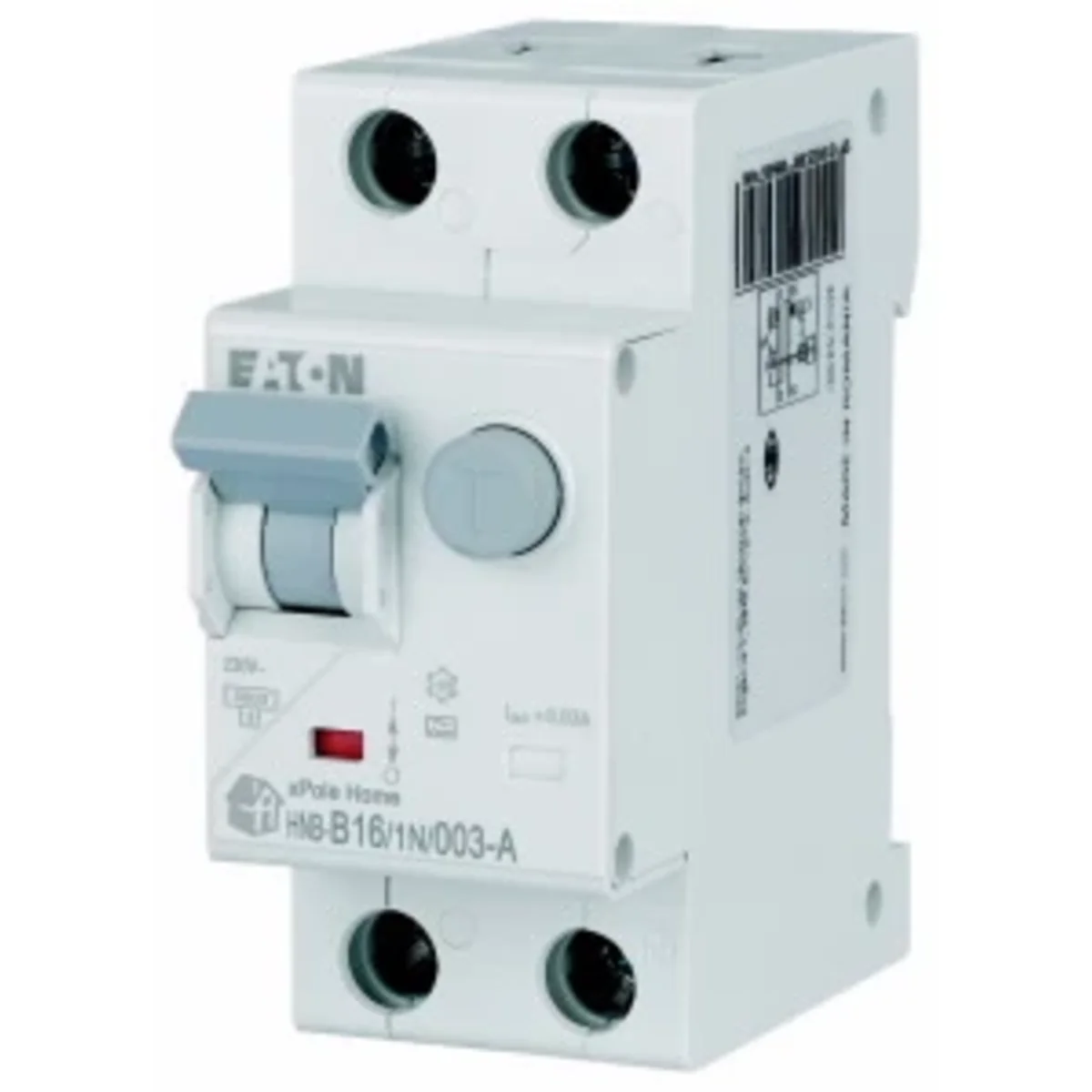

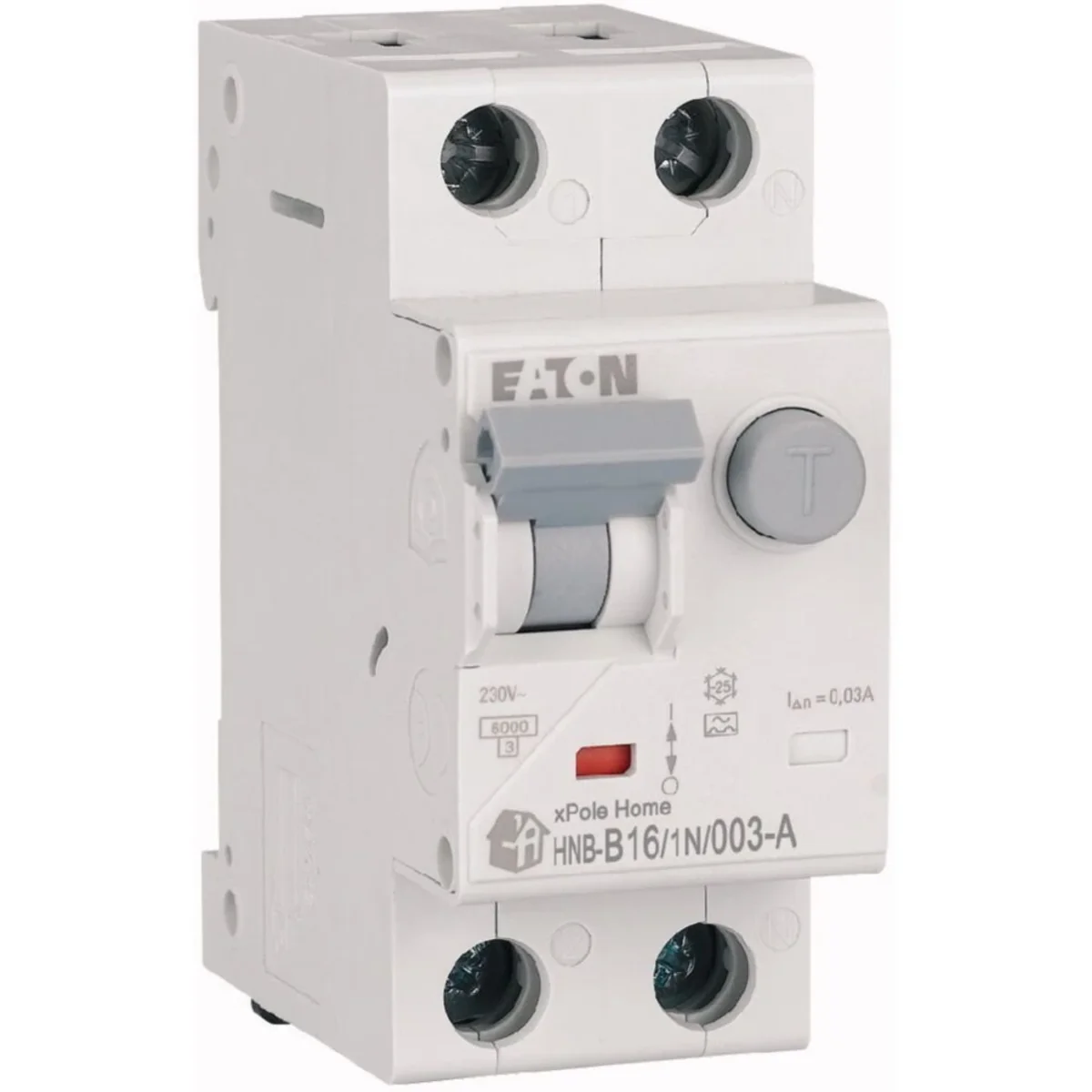

Combined circuit breaker HNB-B16/1N/003-A 16A 1+N 6kA B 230V IP20 type A

Click on the photo to enlarge

Manufacturer: EATON

Characteristic: b

Overvoltage category: 3

Energy limitation class: 3

See full description

Price:

86,63 €

gross / pcs.

(including VAT 23%)

Accessible 33 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, xPole Home devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technical data

Characteristic

b
Energy limitation class

3
Installation

On the TH-35 rail
Rated insulation voltage [V]

500
Level of security

IP20
Width [number of modules]

2
Rated switching capacity [kA]

6
Surge current strength [kA]

0.25
Voltage type

AC

Overvoltage category

3
Number of poles

1+N
Rated voltage [V]

230
Rated current [A]

16
Degree of contamination

2
Type

AND
Rated impulse voltage [kV]

4
Differential current [A]

0.03

Other technical data

Number of poles (total)

2
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

0 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

A
Rated short-circuit breaking capacity according to EN 61009

6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

69.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	60 pcs.
Weight (kg)	0,216	13,185
Volume (m3)	0,000	0,016
Width (m)	0,037	0,180
Length (m)	0,086	0,385
Depth (m)	0,075	0,230
