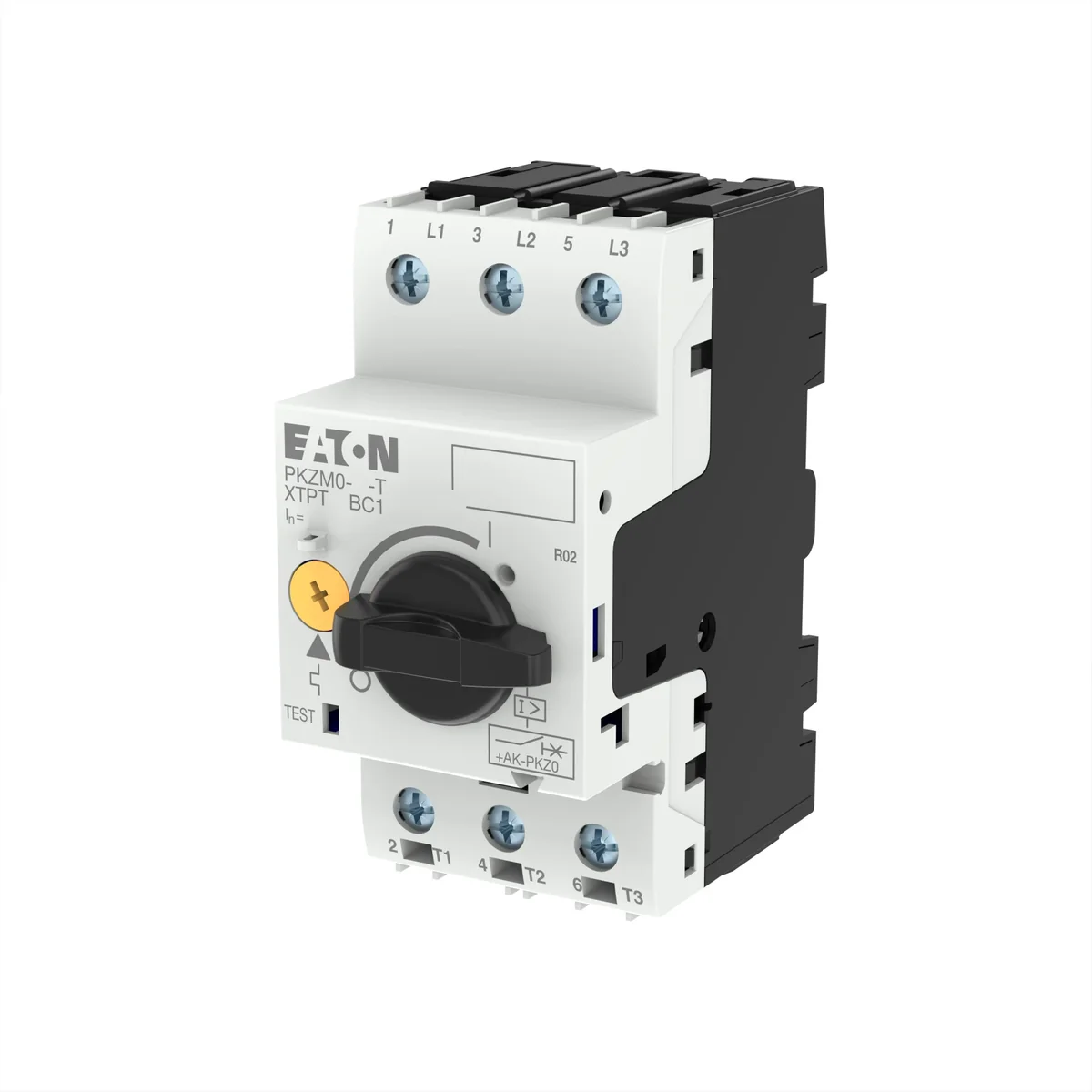

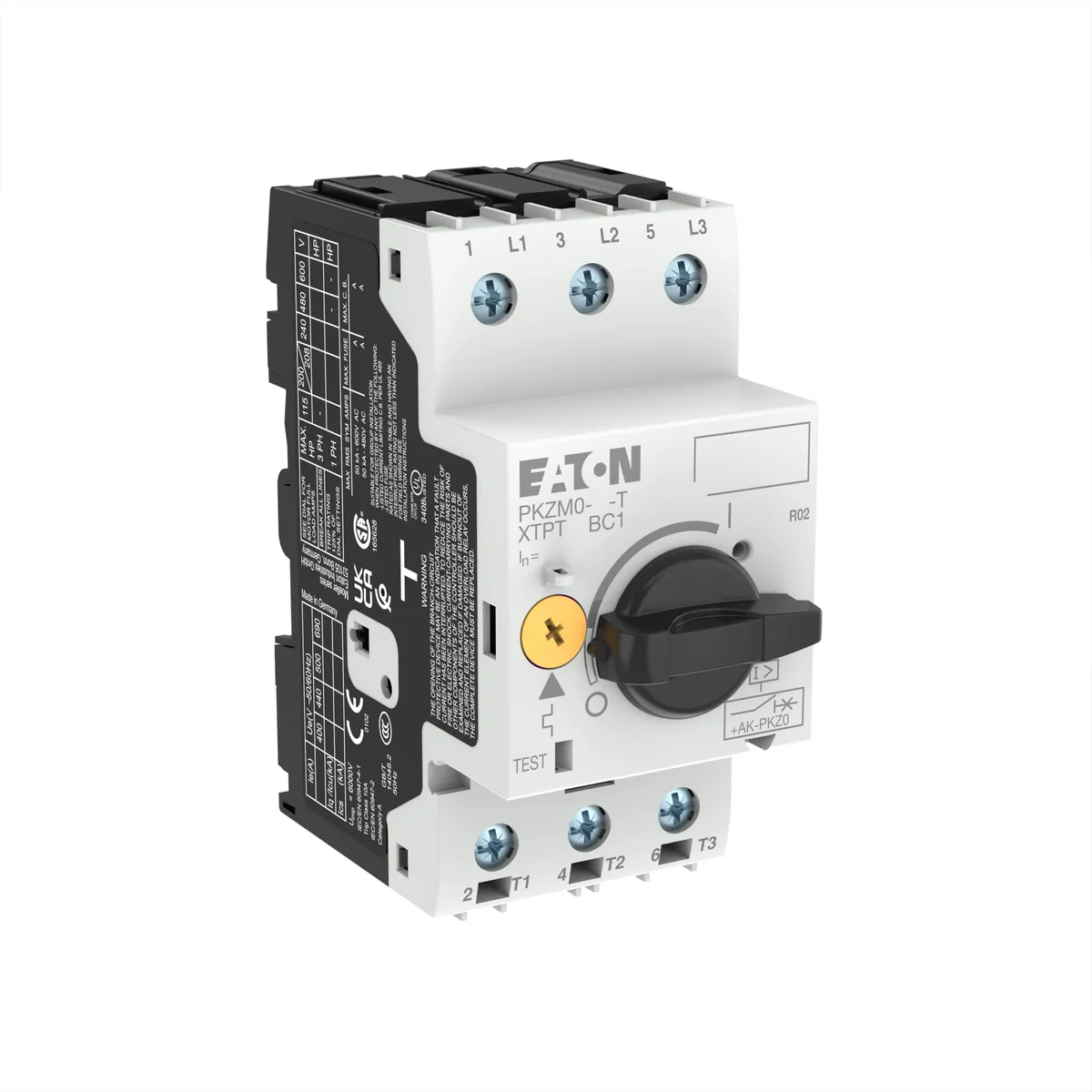

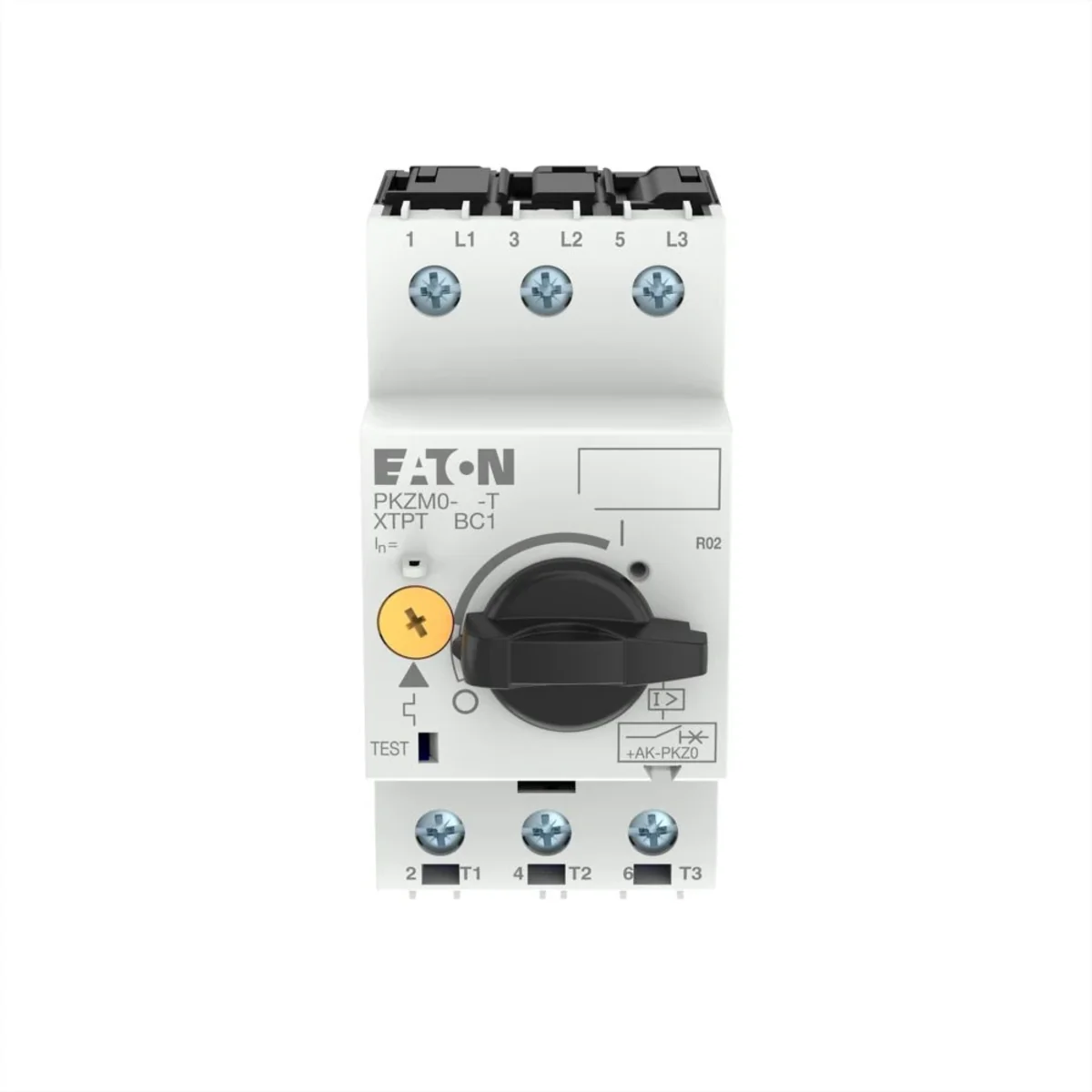

Circuit breaker Trafo 16A, PKZM0-16-T 088917
local index:
ASN130MOEL
Catalog No:
088917
EAN code:
4015080889175
Click on the photo to enlarge
Manufacturer:
EATON
Rated current [A]:
16
See full description
Price:
99,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Motor circuit breakers for starter systems. Circuit-breakers with short-circuit release, without overload protection.
Technical data
Rated current [A]
16
Other technical data
Rated permanent current Iu
16 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50 kA
Adjustment range short-term delayed short-circuit release
0 ... 0 A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
Yes
Number of poles
3
Type of control element
Turn button
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
690 ... 690 V
Overload release current setting
10 ... 16 A
Adjustment range undelayed short-circuit release
358 ... 358 A
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
With integrated under voltage release
No
Position of connection for main current circuit
Other
Complete device with protection unit
Yes
Motor drive optional
No
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,309
Volume (m3)
0,000
Width (m)
0,048
Length (m)
0,080
Depth (m)
0,097
