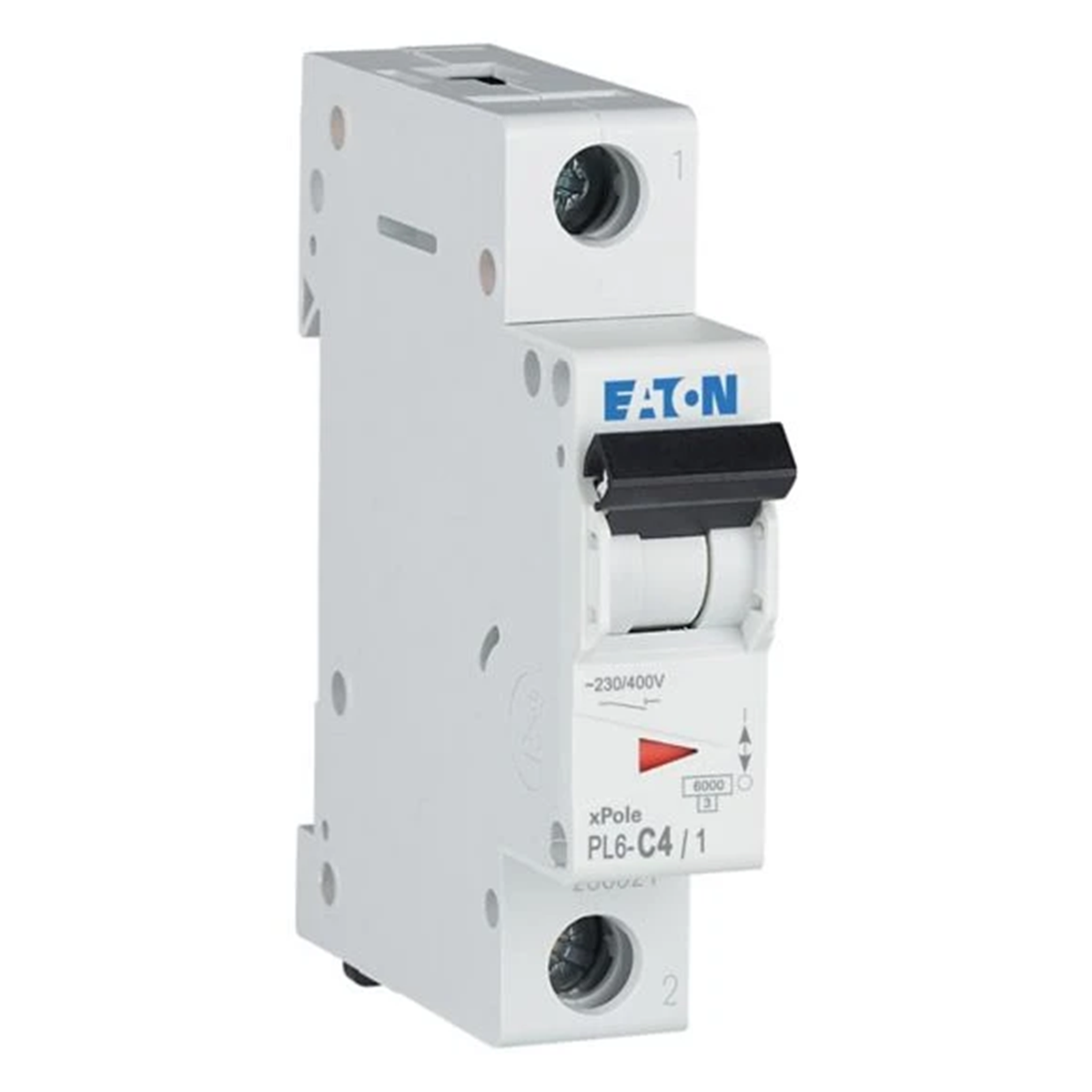

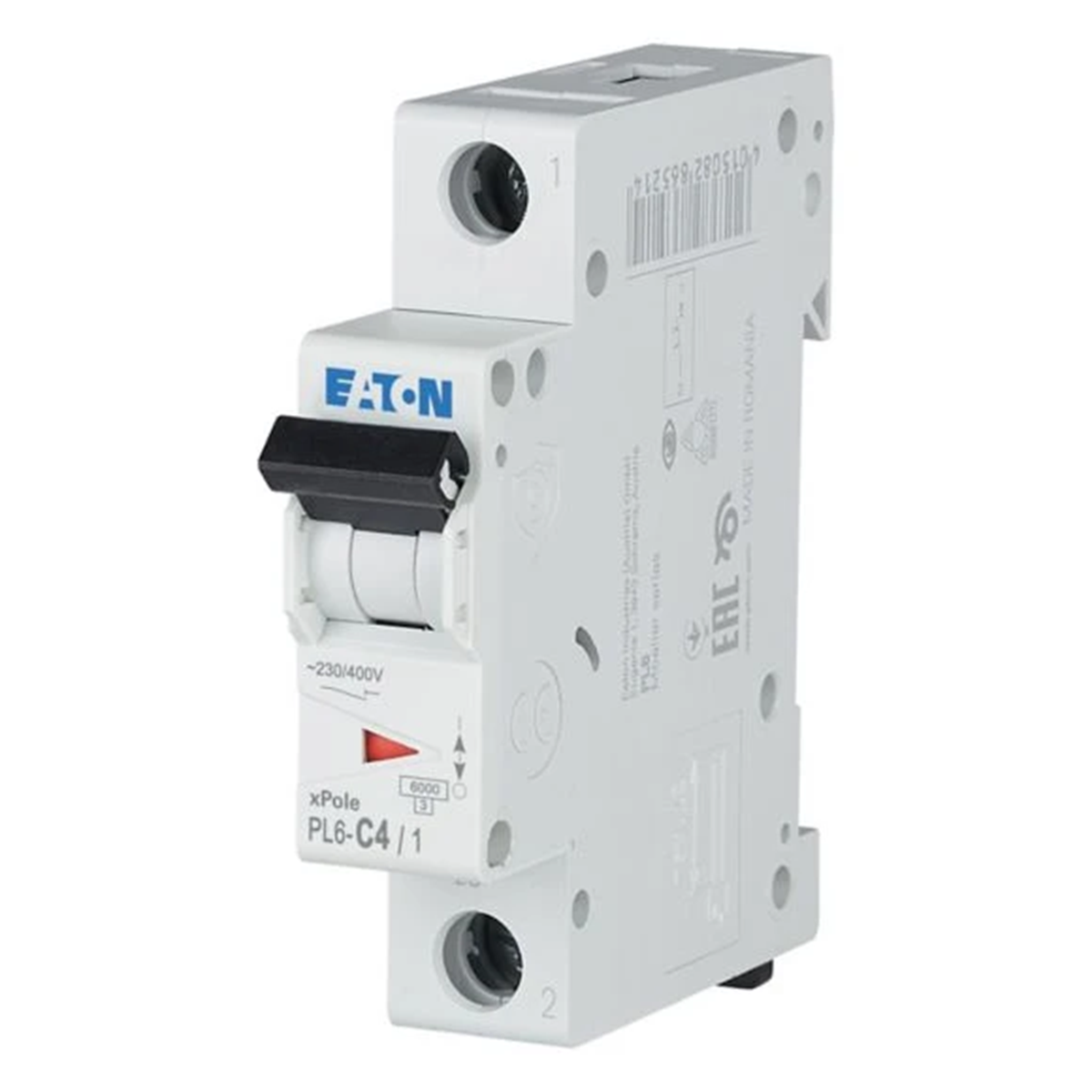

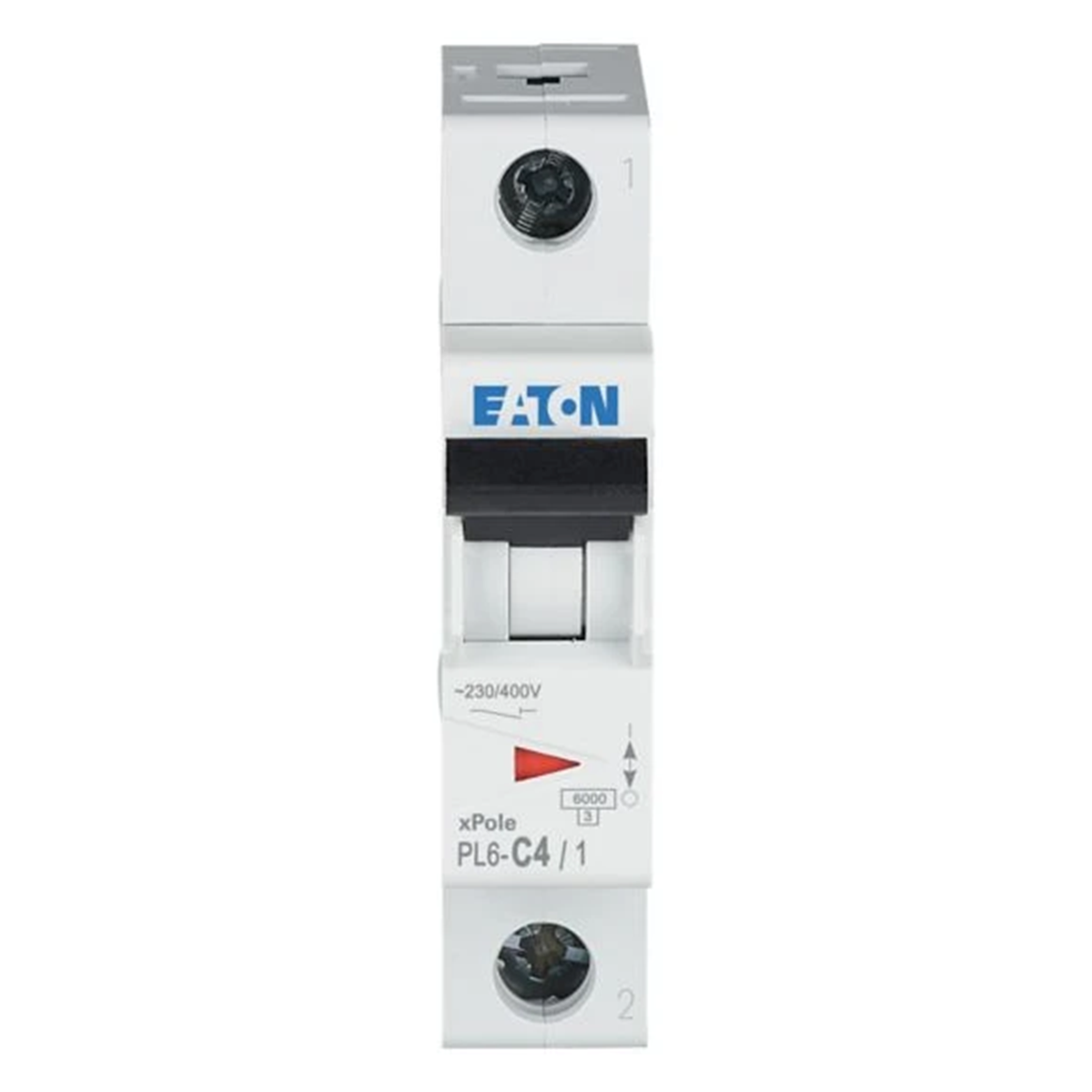

Circuit breaker PL6-C4/1 4A 1P 6kA C 230V IP20 286529

local index:
ABC274MOEL
Catalog No:
286529
EAN code:
4015082865290
Manufacturer: EATON
Characteristic: c
Overvoltage category: 3
Energy limitation class: 3
Price:
10,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Economic range of circuit breakers for short-circuit/residual current protection and additional protection.

Technical data

  • Characteristic
    c
  • Energy limitation class
    3
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    1
  • Voltage type
    AC
  • Overvoltage category
    3
  • Number of poles
    1
  • Rated voltage [V]
    230
  • Rated current [A]
    4
  • Degree of contamination
    2
  • Rated switching capacity [kA]
    6

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    4 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,125 1,495 15,055
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,086 0,180
Length (m) 0,087 0,218 0,385
Depth (m) 0,075 0,074 0,230
