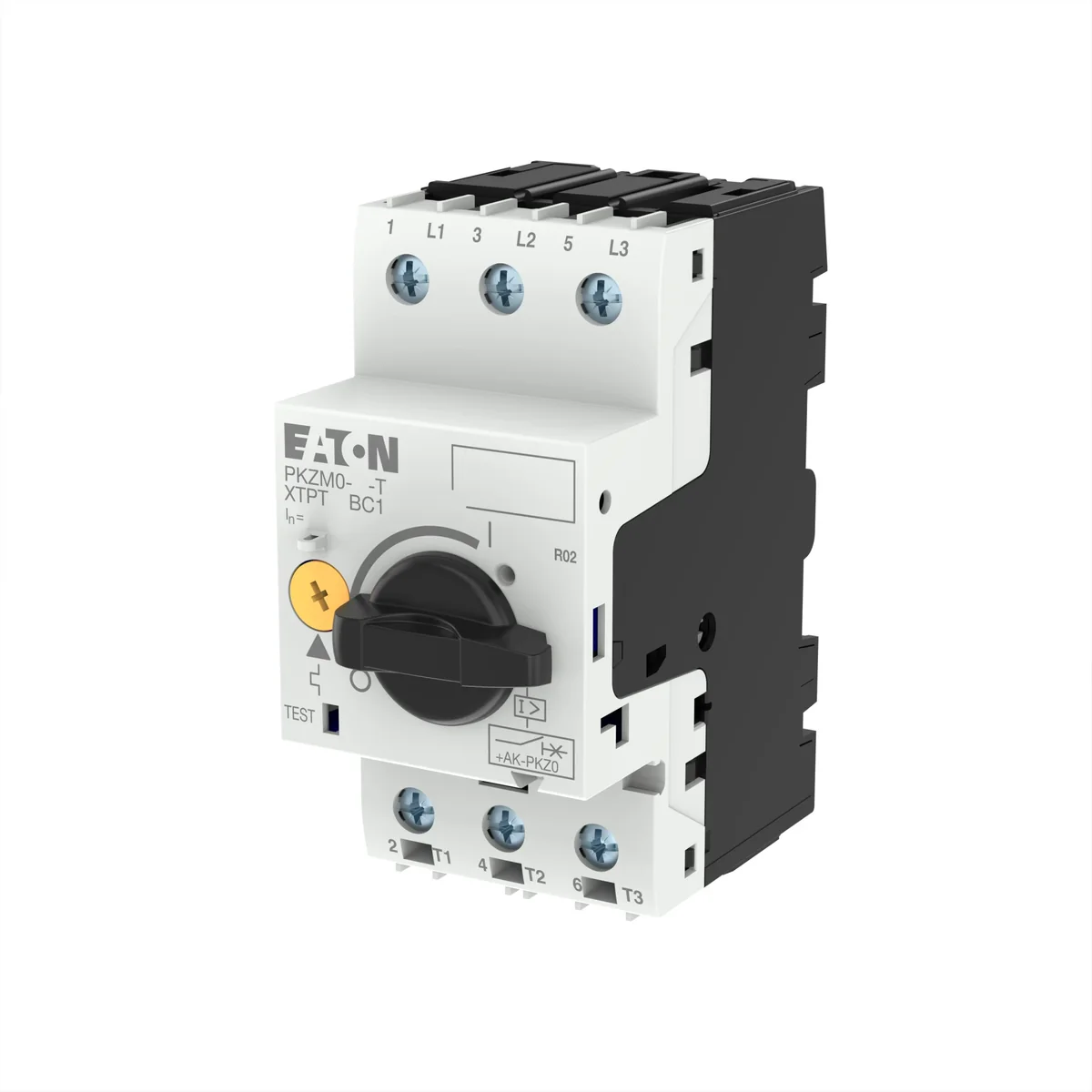

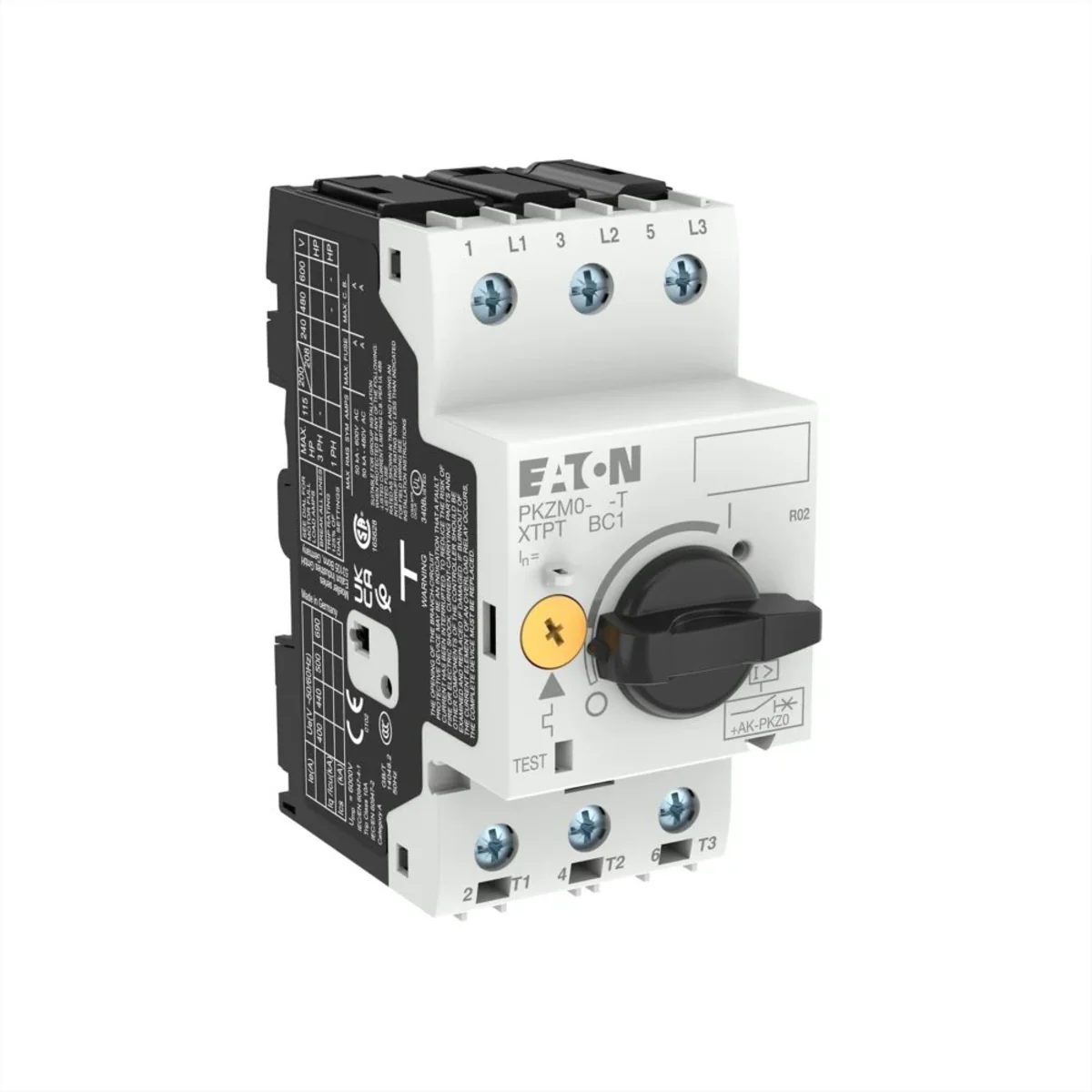

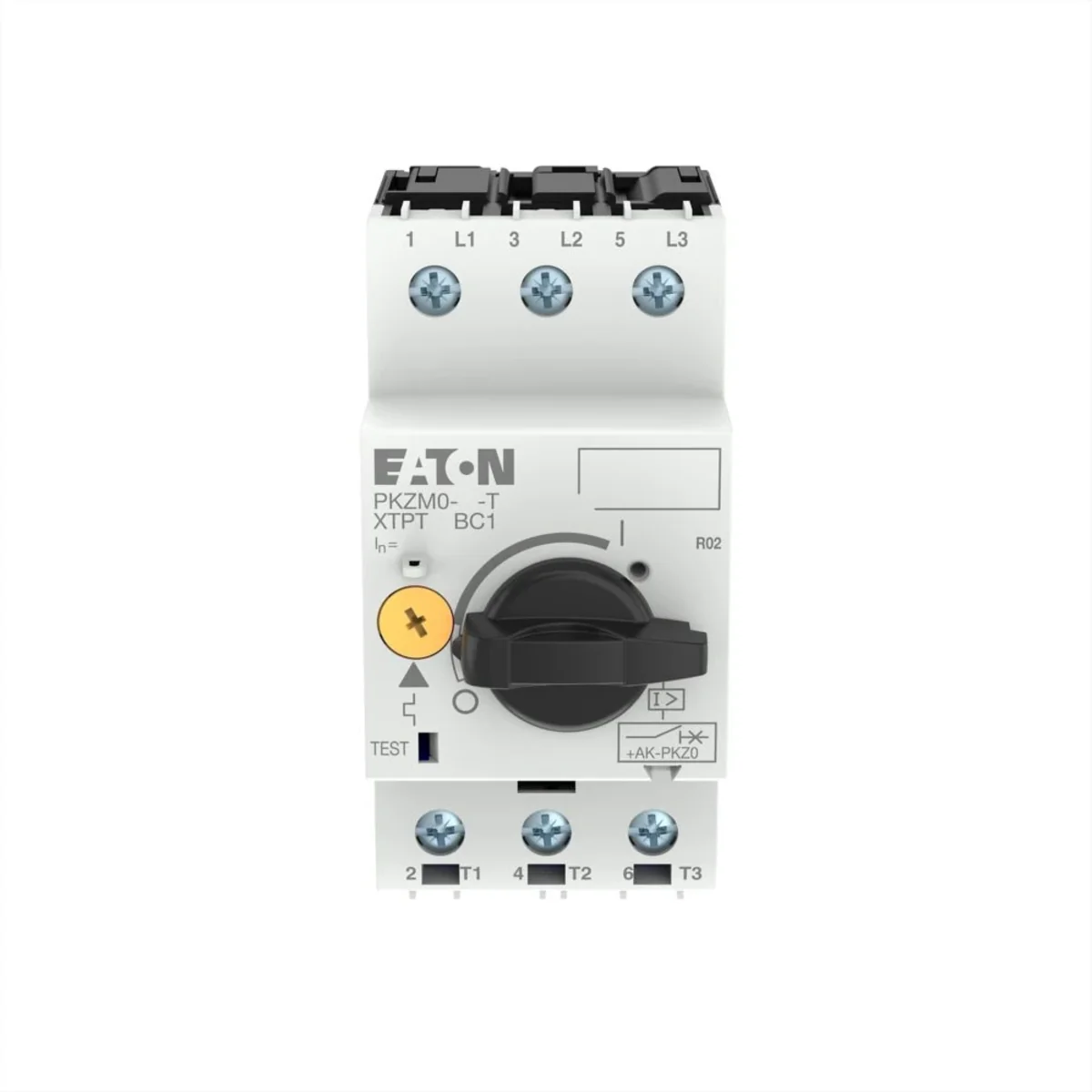

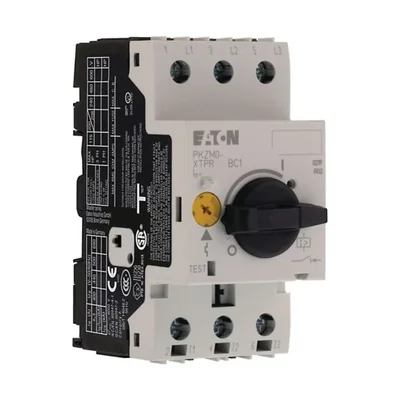

Circuit breaker, PKZM0-1, 6-T 088912

local index:
ASN002MOEL
Catalog No:
088912
EAN code:
4015080889120
Manufacturer: EATON
Rated current [A]: 1.6
Price:
75,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker, PKZM0-1, 6-T

Technical data

  • Rated current [A]
    1.6

Other technical data

  • Rated permanent current Iu
    1.6 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    Yes
  • Number of poles
    3
  • Type of control element
    Turn button
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    1 ... 1.6 A
  • Adjustment range undelayed short-circuit release
    32 ... 32 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Other
  • Complete device with protection unit
    Yes
  • Motor drive optional
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,298
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,080
Depth (m) 0,097
