Circuit breaker M-611 N 6, 3-10, 0 A 6112-420001
local index:
AST020LEGR
Catalog number:
6112-420001
Price:
521,25 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

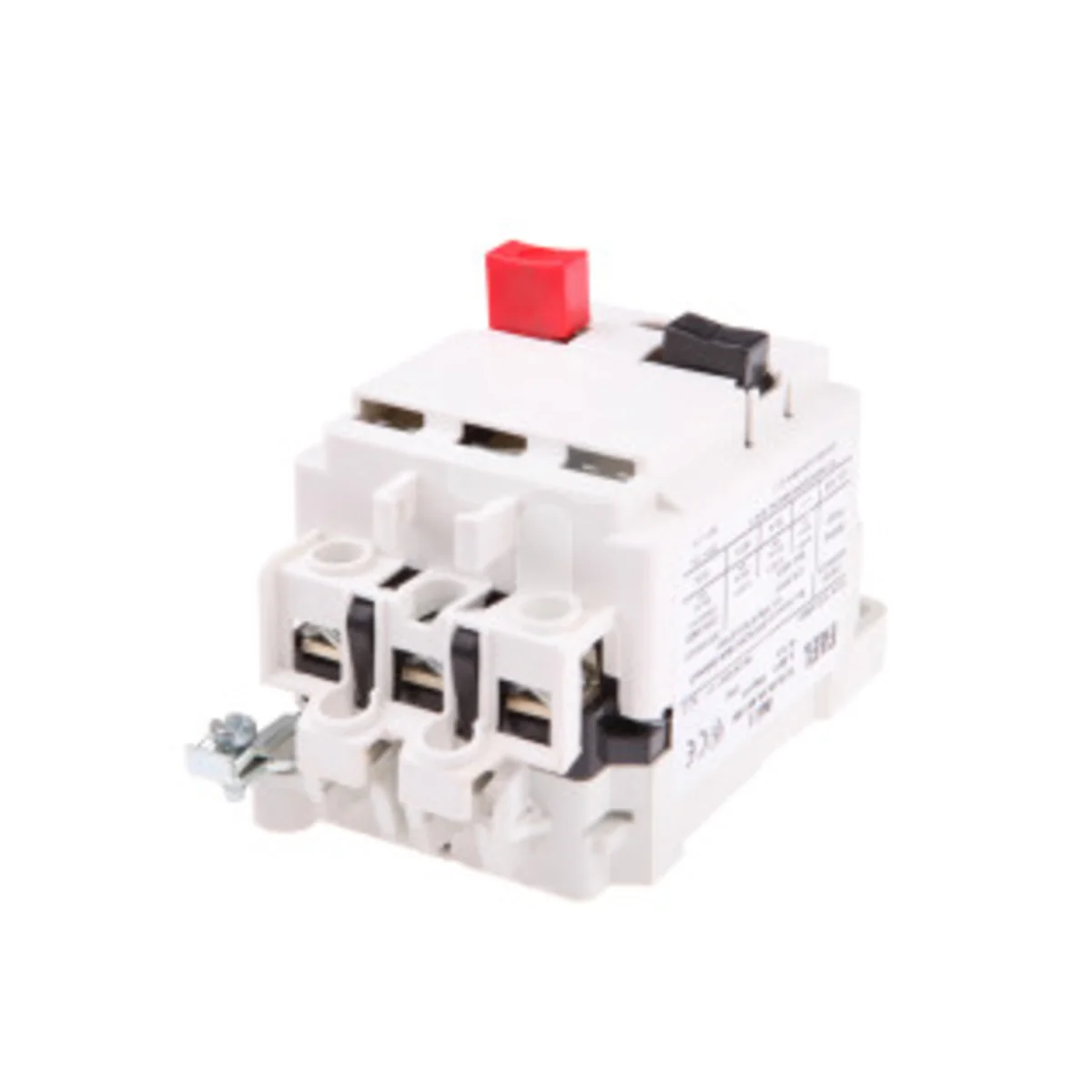

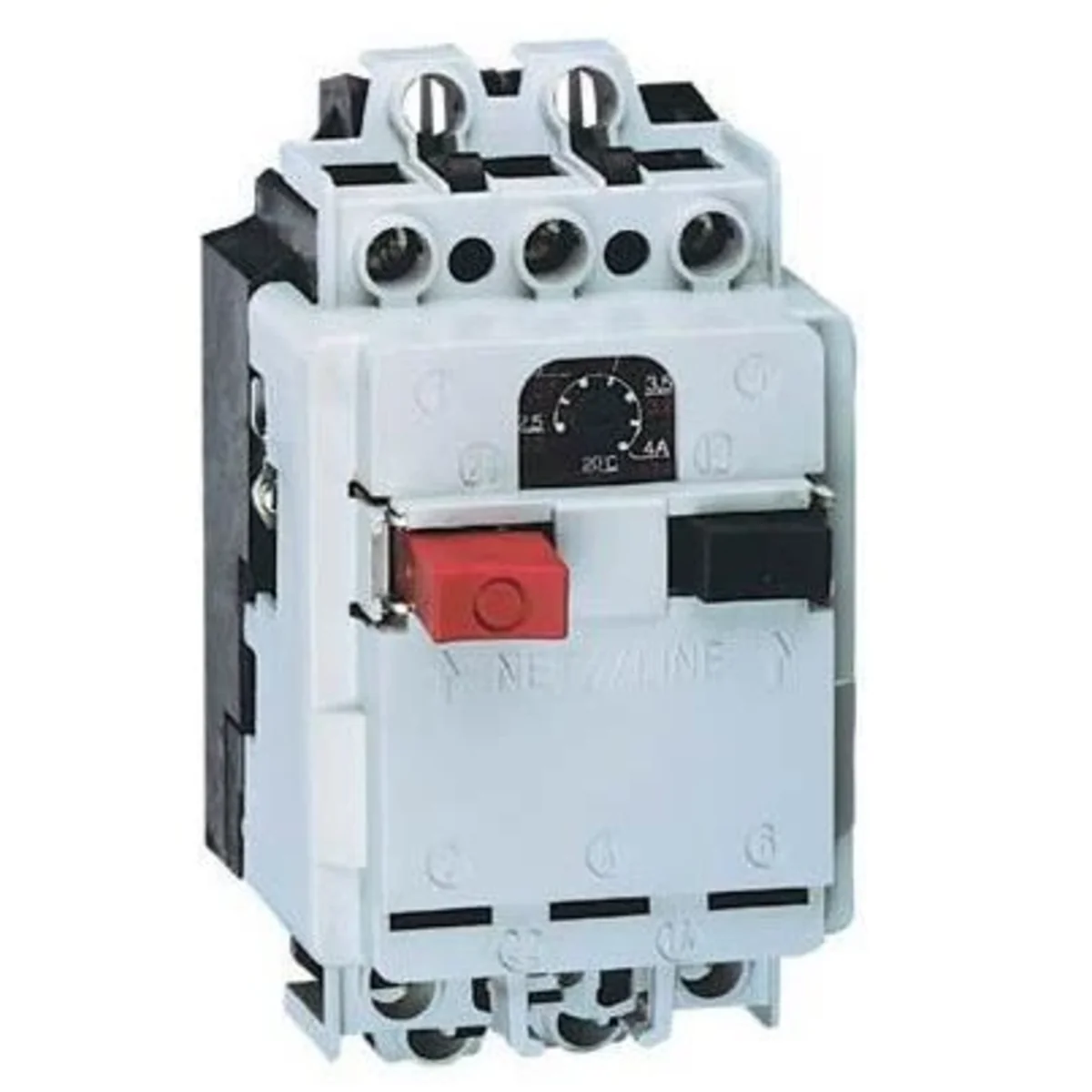

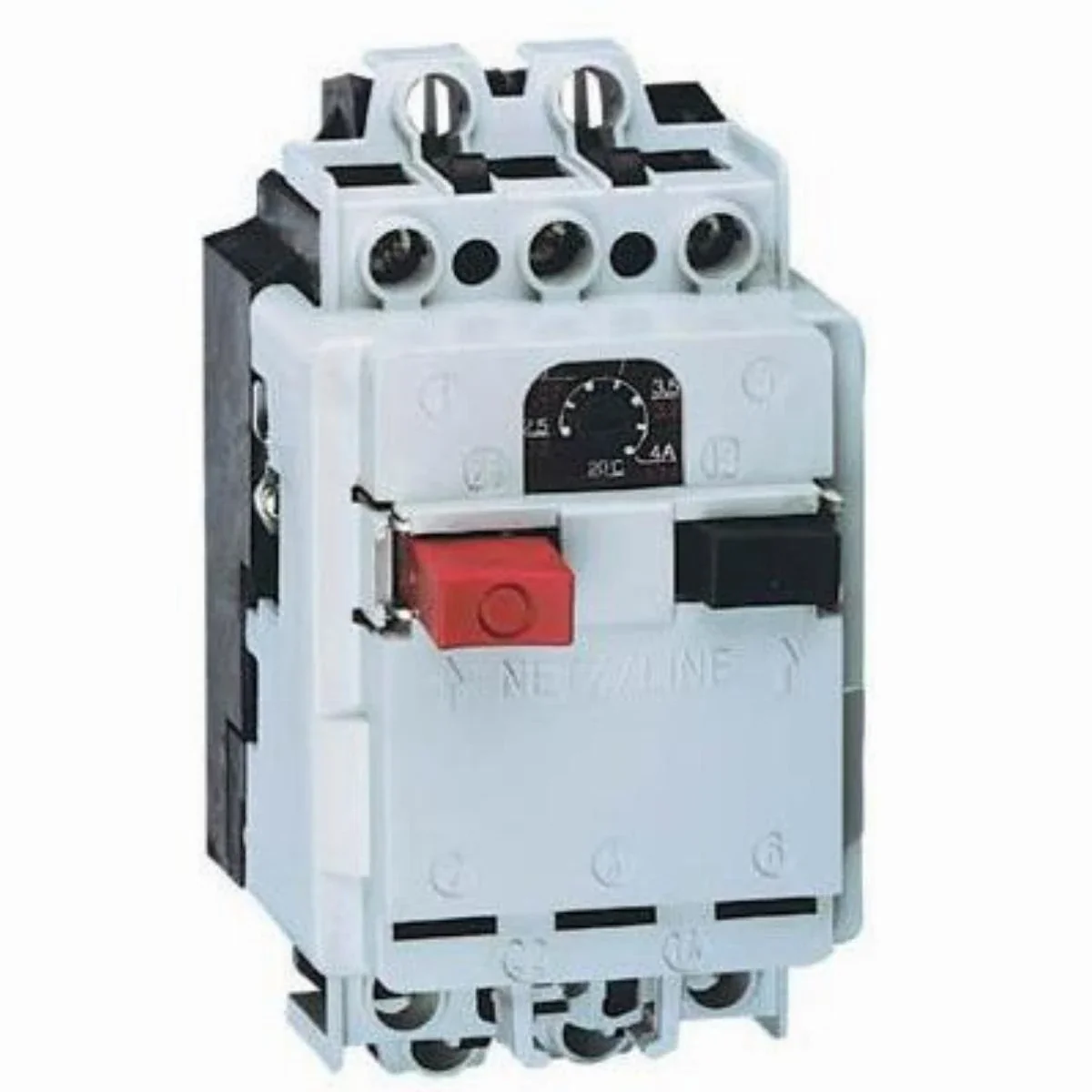

Circuit breaker M-611 N 6, 3-10, 0 A
Technical data
-
Current setting range [A] to10
-
PKWIU27.12.22.0
-
Current setting range [A] from6.3
Other technical data
-
Overload release current setting6.3 ... 10 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu10 A
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Degree of protection (IP)IP20
-
Width60 mm
-
Adjustment range undelayed short-circuit release170 ... 170 A
-
Phase failure sensitiveNo
-
Rated operating voltage400 ... 400 V
-
Rated operation power at AC-3, 230 V4.5 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC1.25 kA
-
Height75 mm
-
Depth105 mm
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
