Circuit breaker HN-C6/3 6A 3P 6kA C 230V IP20 type AC 194888

Name: Circuit breaker HN-C6/3 6A 3P 6kA C 230V IP20 type AC
Brand: EATON
SKU: ABC191MOEL
Price: 36.13 PLN
Availability: InStock

local index:

ABC191MOEL

Catalog No:

194888

EAN code:

9010238063723

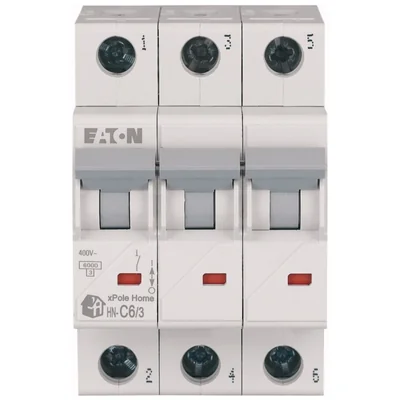

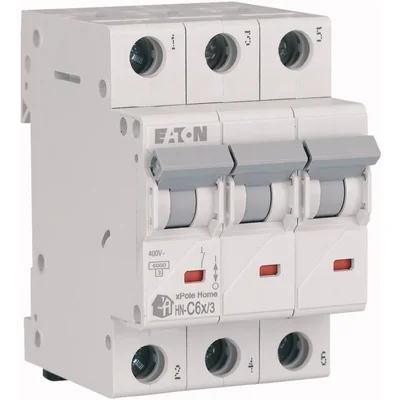

Circuit breaker HN-C6/3 6A 3P 6kA C 230V IP20 type AC

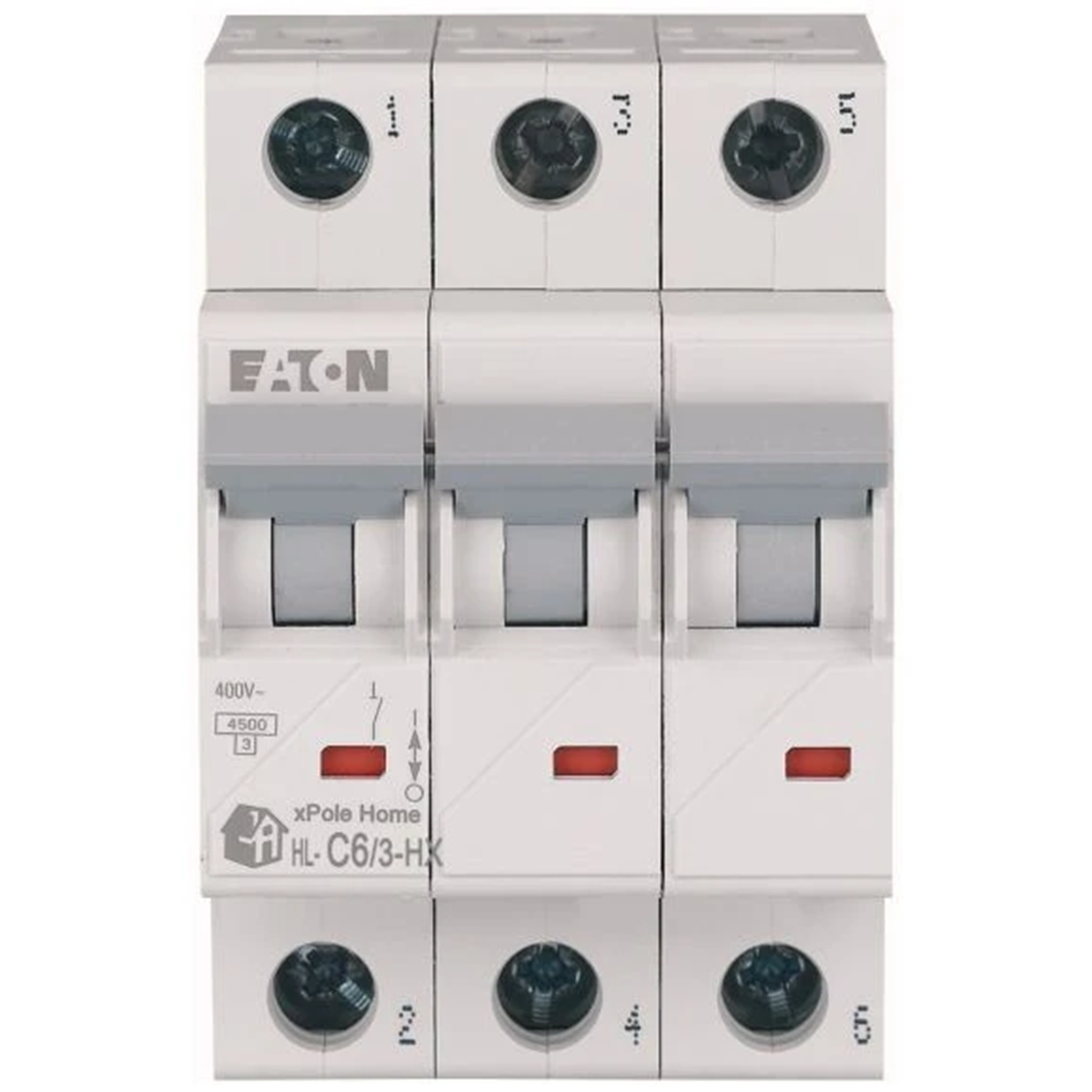

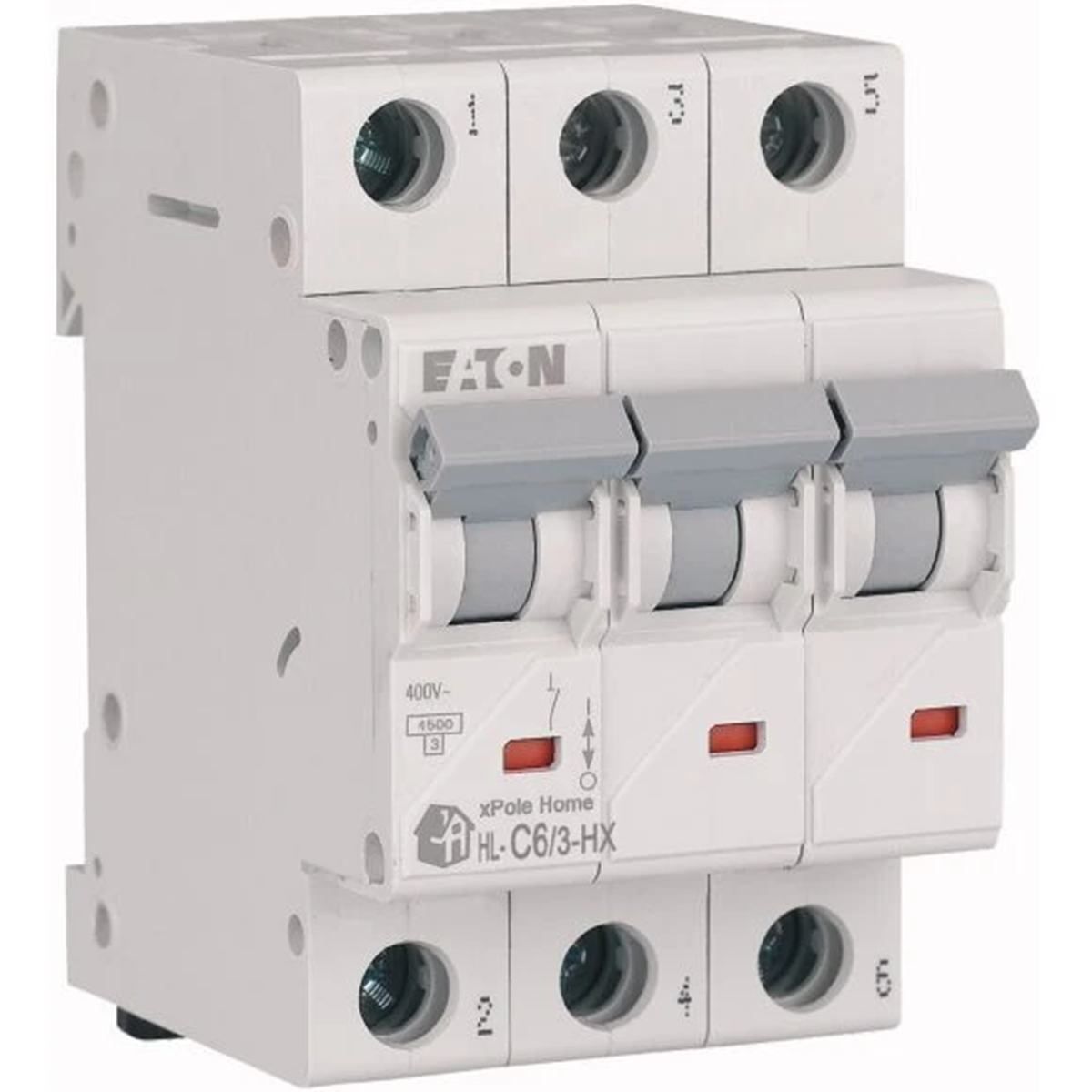

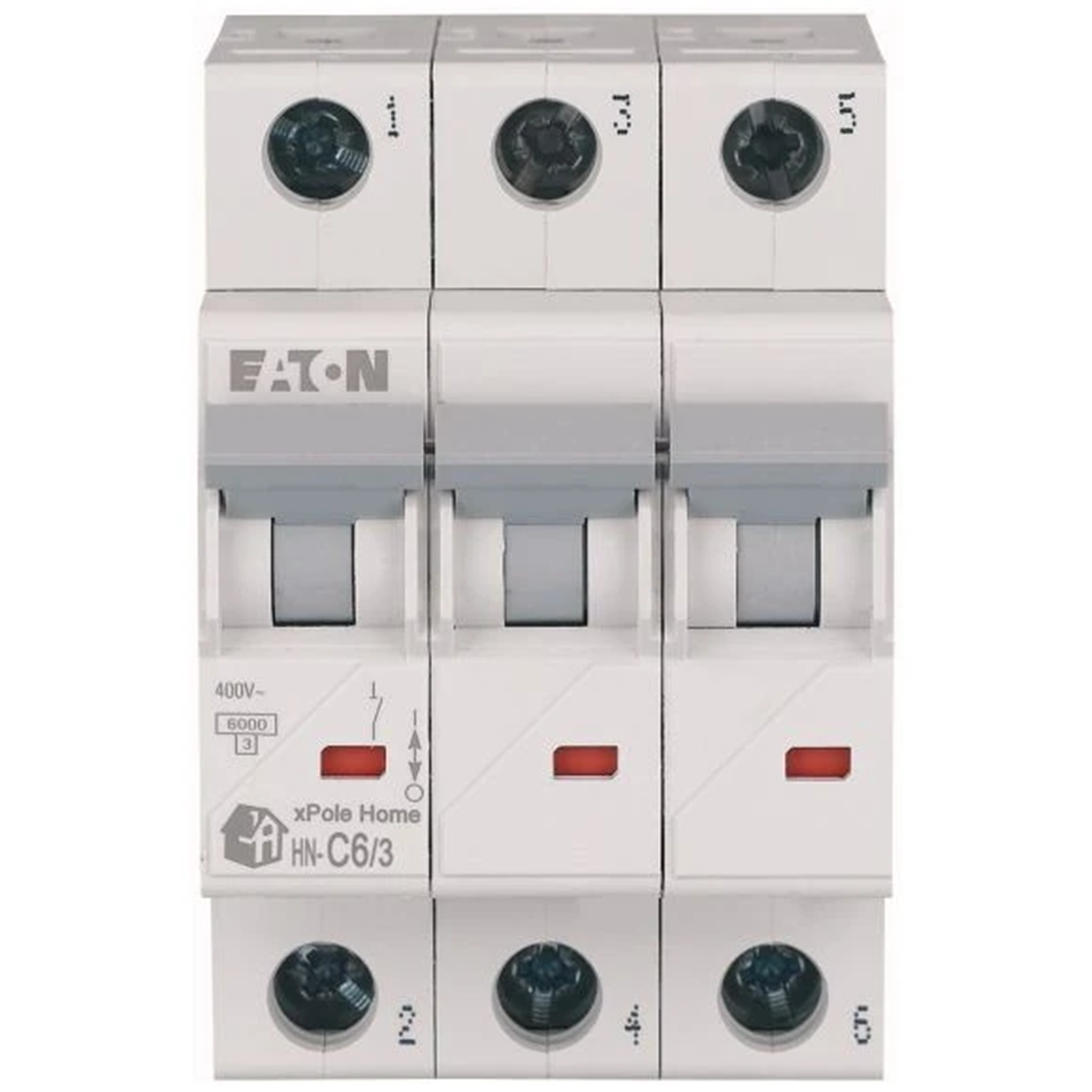

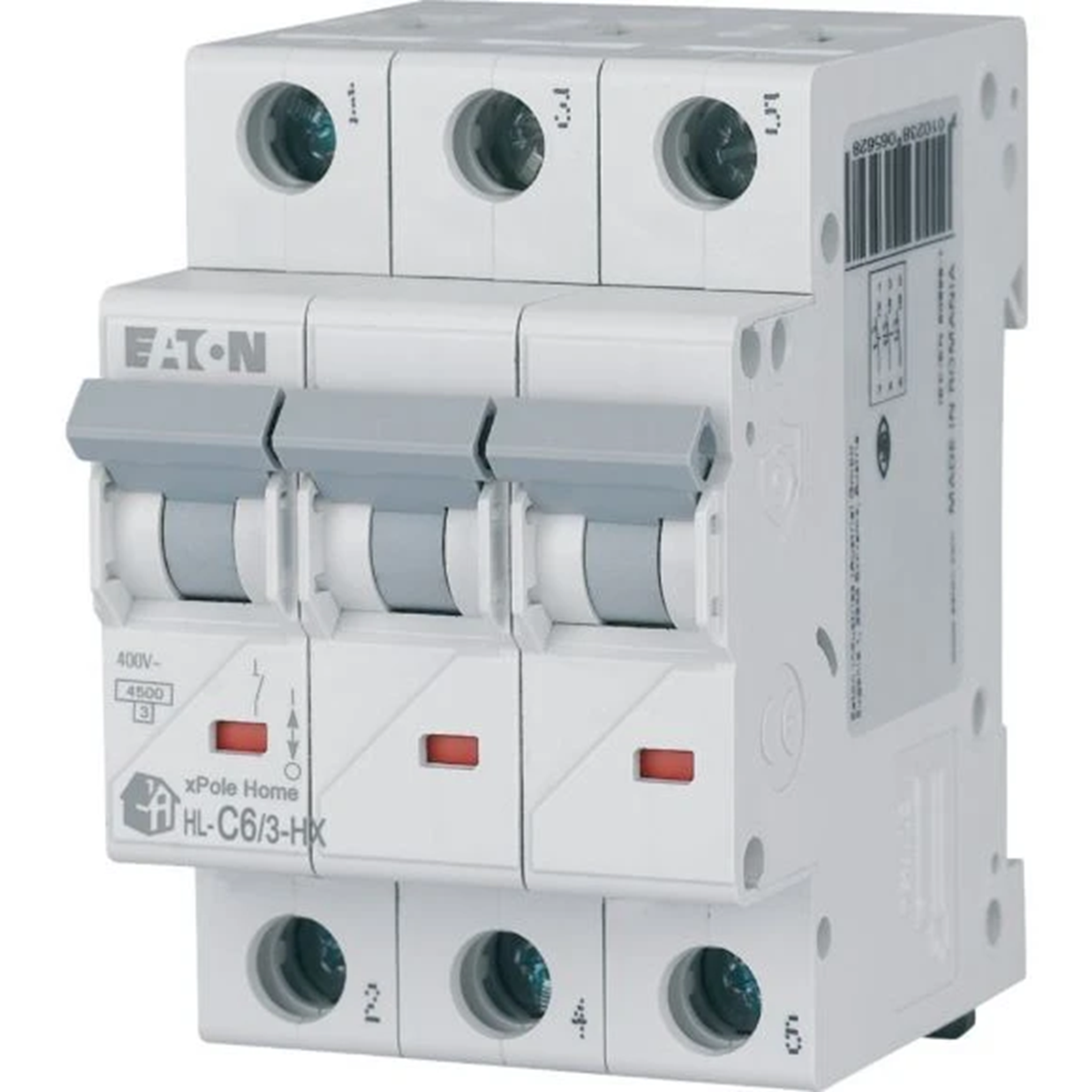

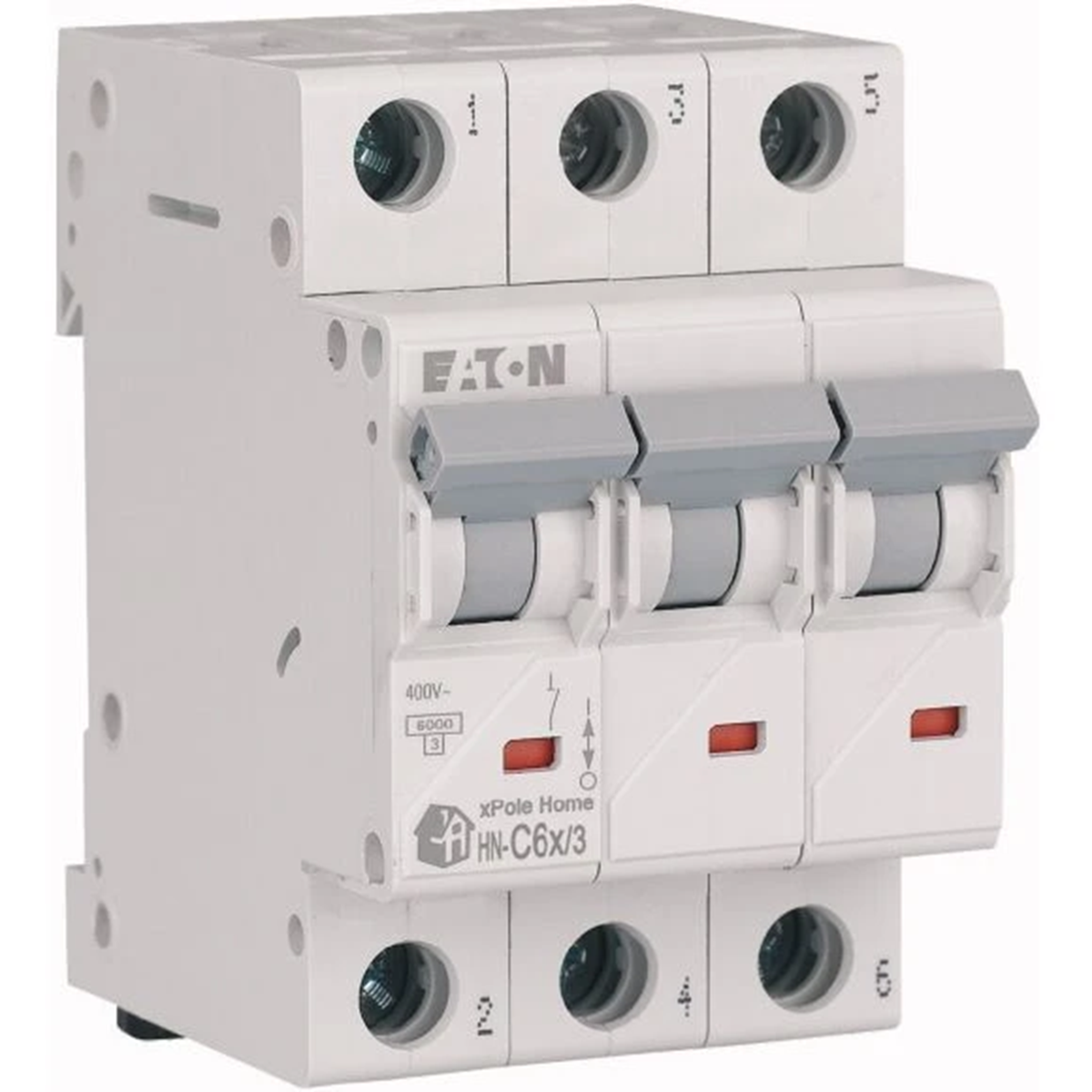

Click on the photo to enlarge

Manufacturer: EATON

Characteristic: c

Overvoltage category: 3

Energy limitation class: 3

See full description

Price:

36,13 €

gross / pcs.

(including VAT 23%)

Accessible 35 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technical data

Characteristic

c
Energy limitation class

3
Installation

On the TH-35 rail
Rated insulation voltage [V]

440
Level of security

IP20
Width [number of modules]

3
Rated switching capacity [kA]

6
Voltage type

AC

Overvoltage category

3
Number of poles

3
Rated voltage [V]

230
Rated current [A]

6
Degree of contamination

3
Type

AC
Rated impulse voltage [kV]

4

Other technical data

Built-in depth

44 mm
Number of poles (total)

3
Rated current

6 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	4 pcs.	40 pcs.
Weight (kg)	0,360	0,371	1,485	14,850
Volume (m3)	0,000	0,000	0,001	0,016
Width (m)	0,053	0,055	0,218	0,180
Length (m)	0,085	0,087	0,086	0,385
Depth (m)	0,073	0,075	0,075	0,230
