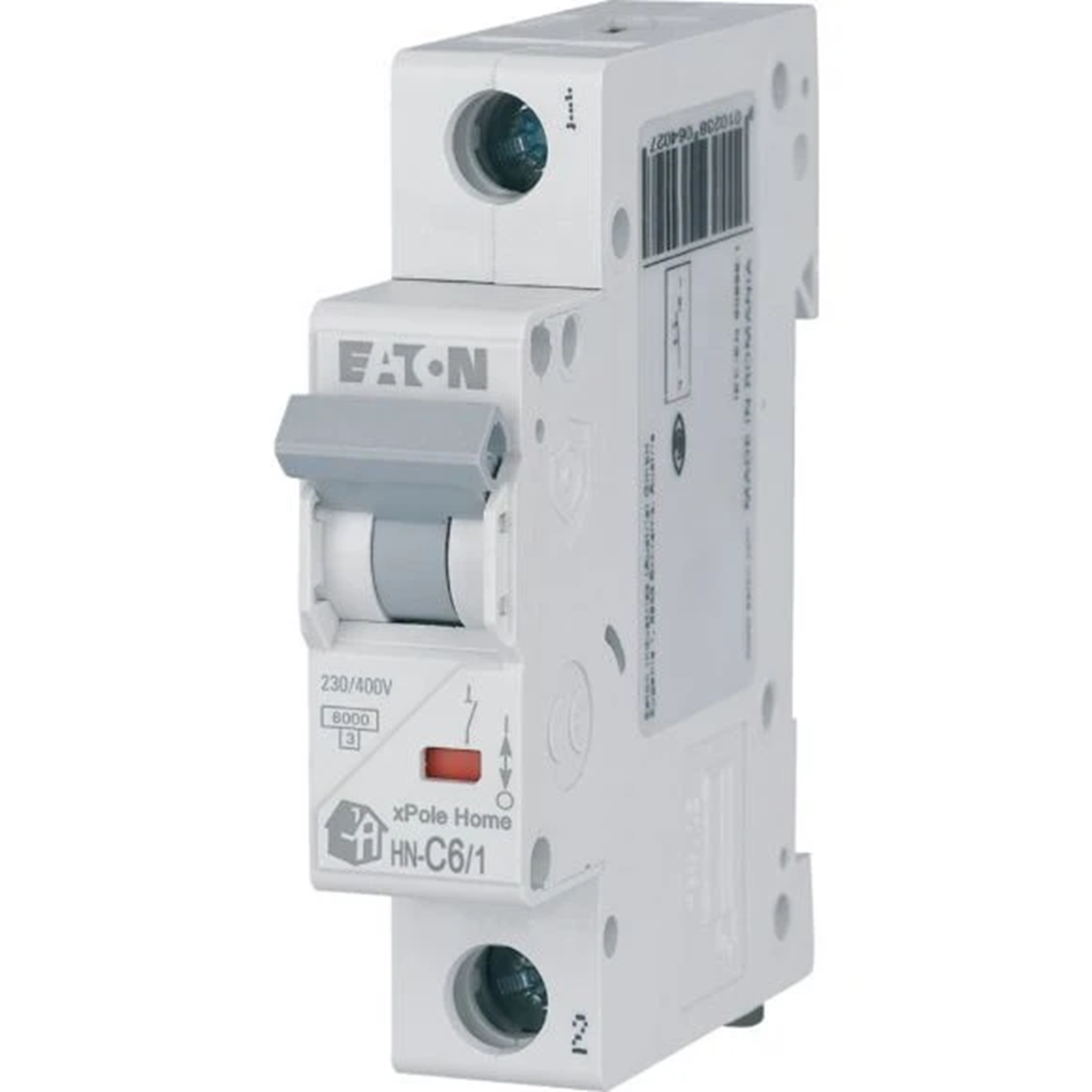

Circuit breaker HN-C6/1 6A 1P 6kA C 230V IP20 type AC 194828

Indice locale:
ABC275MOEL
Numero di catalogo:
194828
Codice EAN:
9010238063129
Produttore: EATON
Characteristic: c
Overvoltage category: 3
Energy limitation class: 3
Prezzo:
8,77 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 237 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Dati tecnici

  • Characteristic
    c
  • Energy limitation class
    3
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    1
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Overvoltage category
    3
  • Number of poles
    1
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Degree of contamination
    3
  • Type
    AC
  • Rated impulse voltage [kV]
    4

Altri dati tecnici

  • Built-in depth
    44 mm
  • Number of poles (total)
    1
  • Rated current
    6 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Dettagli del produttore

  • Produttore
    EATON ELECTRIC SP. Z O.O.
  • Indirizzo
    80-299 UL. GALAKTYCZNA 30
  • NIP
    5841022327

Imballaggio sfuso

Una specie di pacchetto Skrzynia Karton Karton
Quantità 1 pezzi 1 pezzi 12 pezzi 120 pezzi
Peso (kg) 0,120 0,137 1,640 16,400
Volume (m3) 0,000 0,000 0,001 0,016
Larghezza (m) 0,018 0,020 0,218 0,180
Lunghezza (m) 0,085 0,087 0,086 0,385
Profondità (m) 0,073 0,075 0,075 0,230
