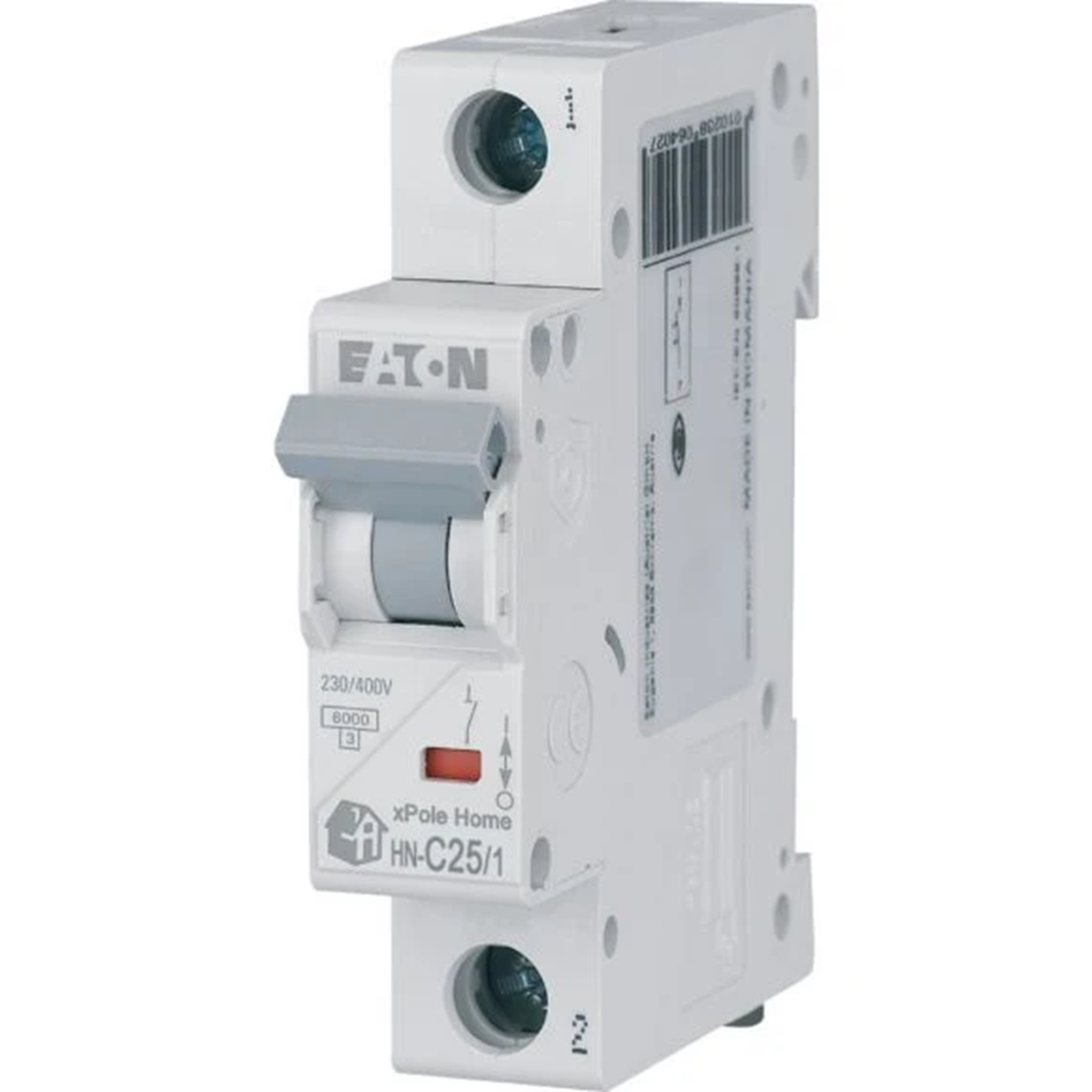

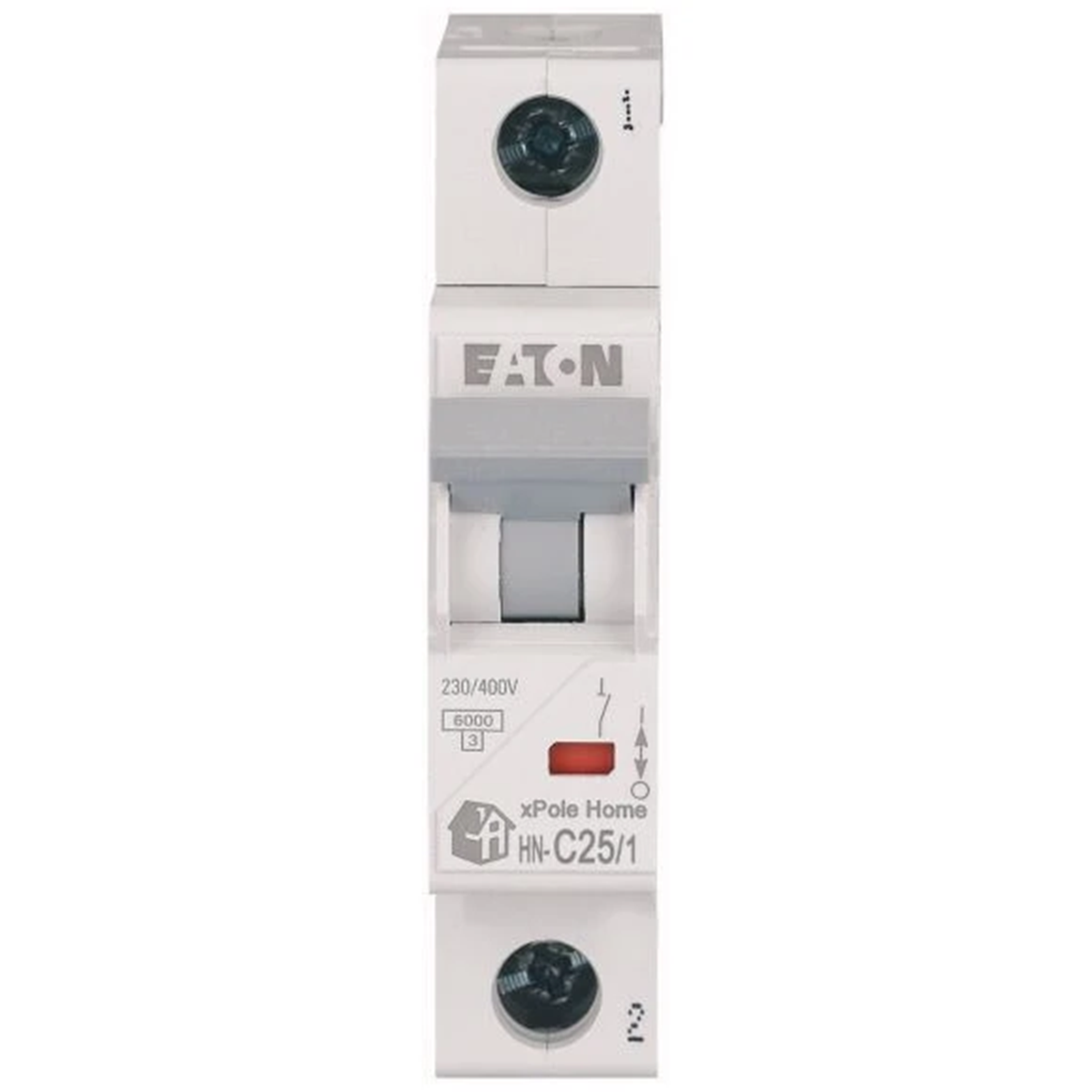

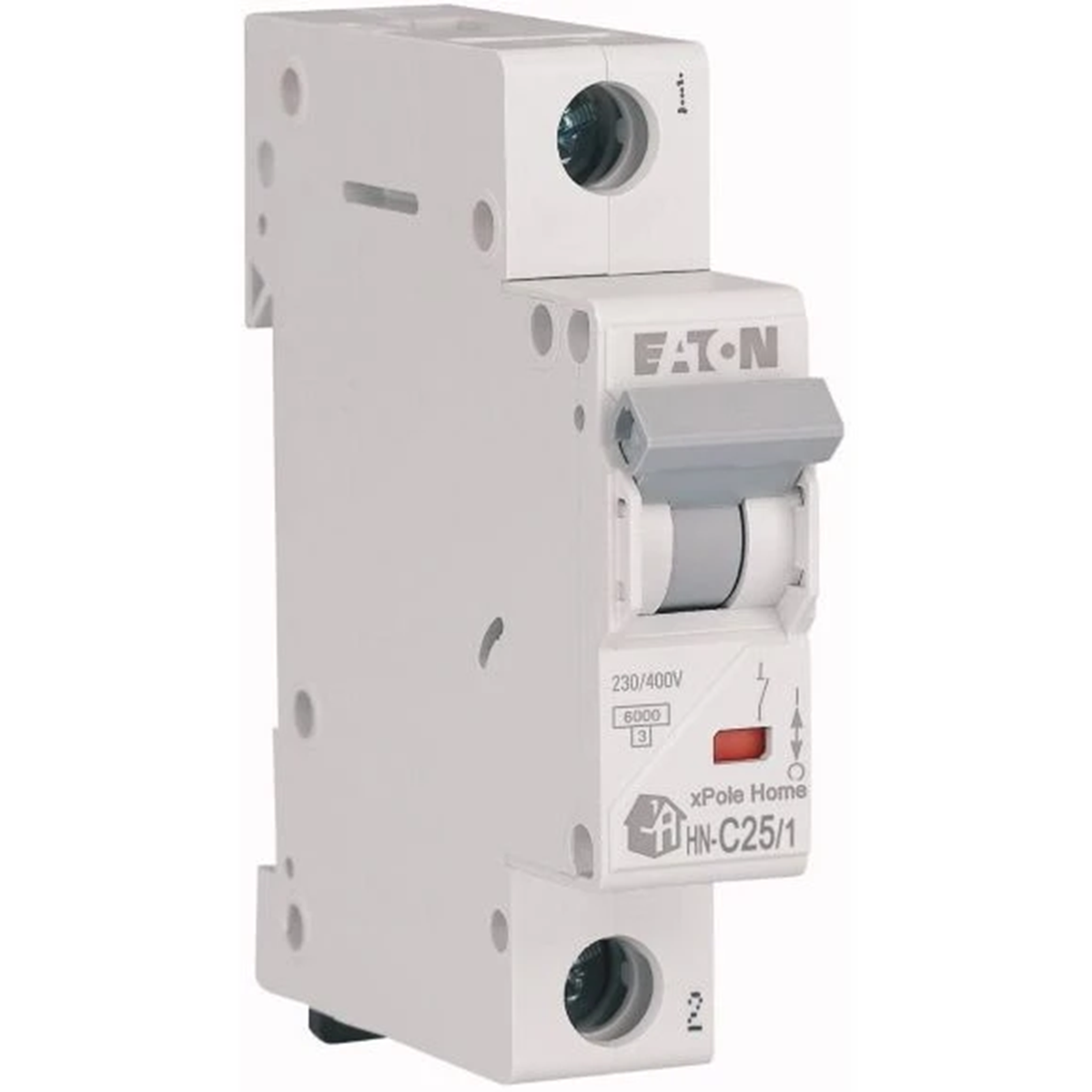

Circuit breaker HN-C25/1 25A 1P 6kA C 230V IP20 type AC 194833

Name: Circuit breaker HN-C25/1 25A 1P 6kA C 230V IP20 type AC
Brand: EATON
SKU: ABC232MOEL
Price: 7.01 PLN
Availability: InStock

local index:

ABC232MOEL

Catalog No:

194833

EAN code:

9010238063174

Circuit breaker HN-C25/1 25A 1P 6kA C 230V IP20 type AC

Click on the photo to enlarge

Manufacturer: EATON

Characteristic: c

Overvoltage category: 3

Energy limitation class: 3

See full description

Price:

7,01 €

gross / pcs.

(including VAT 23%)

Accessible 129 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technical data

Characteristic

c
Energy limitation class

3
Installation

On the TH-35 rail
Rated insulation voltage [V]

440
Level of security

IP20
Width [number of modules]

1
Rated switching capacity [kA]

6
Voltage type

AC

Overvoltage category

3
Number of poles

1
Rated voltage [V]

230
Rated current [A]

25
Degree of contamination

3
Type

AC
Rated impulse voltage [kV]

4
PKWIU

27.12.22.0

Other technical data

Built-in depth

44 mm
Number of poles (total)

1
Rated current

25 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Bulk packaging

A kind of package	Skrzynia	Karton	Karton
Quantity	1 pcs.	12 pcs.	120 pcs.
Weight (kg)	0,137	1,640	16,400
Volume (m3)	0,000	0,001	0,016
Width (m)	0,020	0,218	0,180
Length (m)	0,087	0,086	0,385
Depth (m)	0,075	0,075	0,230
