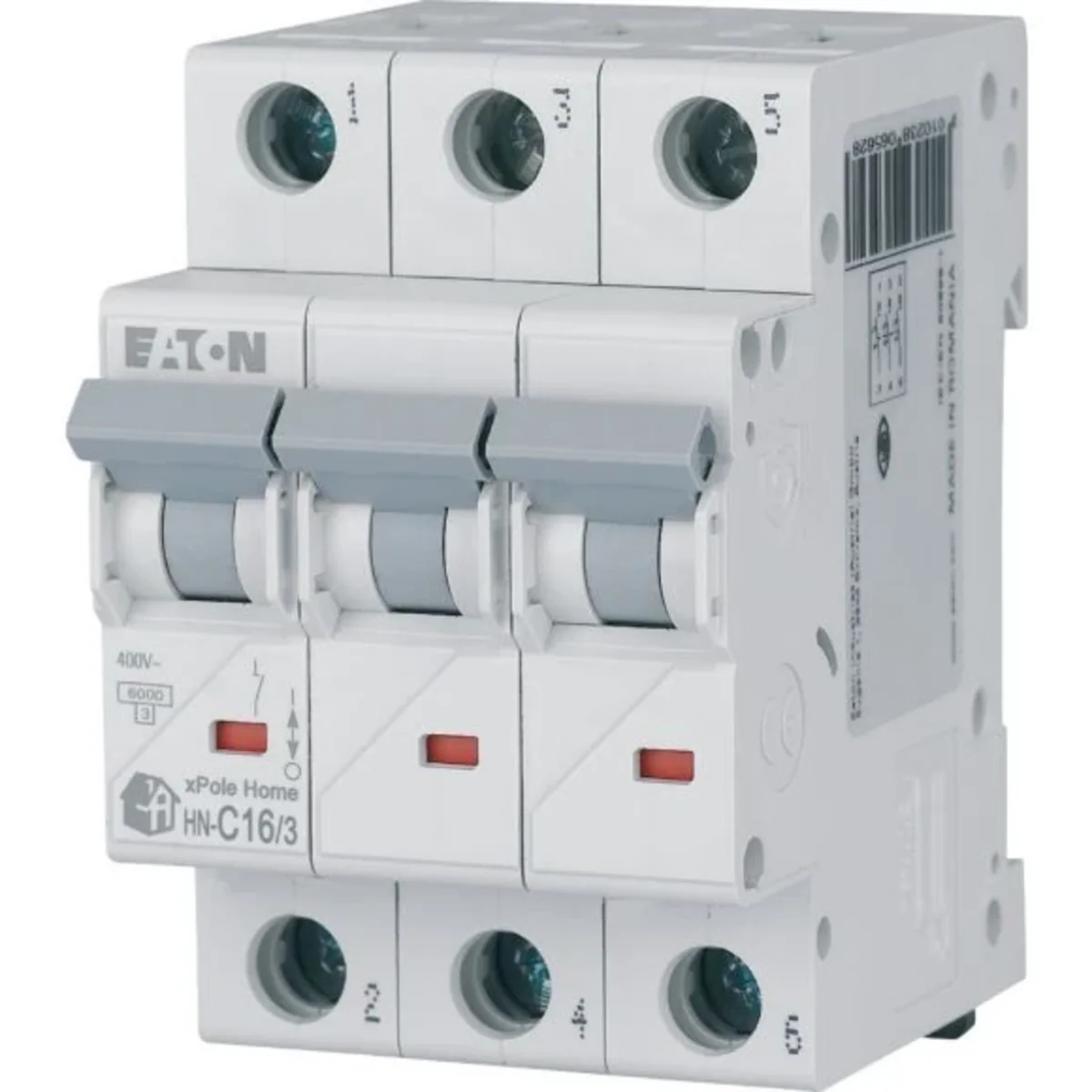

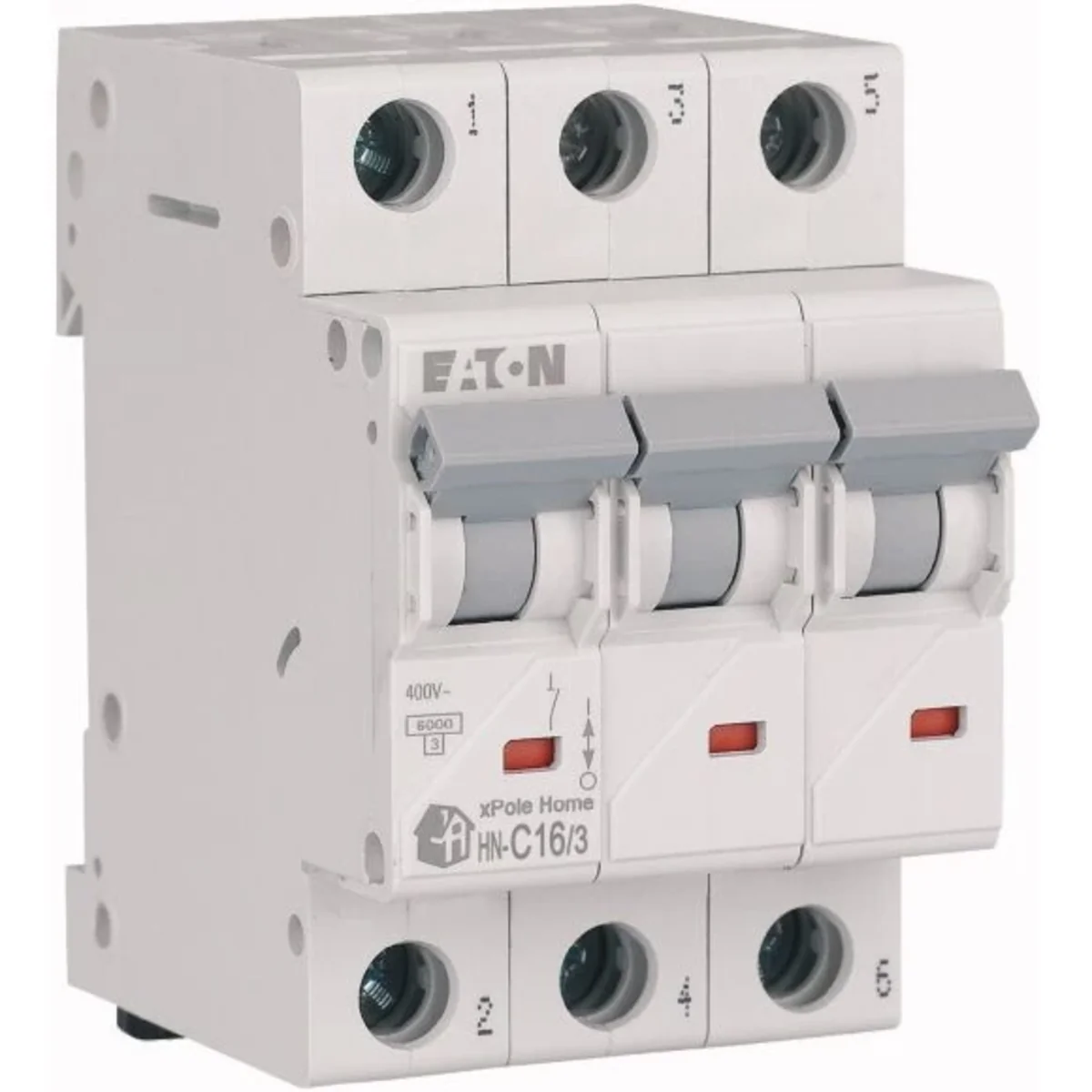

Circuit breaker HN-C16/3 16A 3P 6kA C 230V IP20 type AC 194891

Lokaler Index:
ABC210MOEL
Katalognummer:
194891
EAN-Code:
9010238063754
Hersteller: EATON
Characteristic: c
Depth [mm]: 45
Overvoltage category: 3
Verkaufsschlager
Preis:
12,96 €
gross / stk.
(inklusive MwSt 23%)
Niedrigster Preis ab 30 Tage vor Ermäßigung: 13,70 € gross -0,74 €
Grundpreis: 14,10 € gross
Lieferung in 3h
Zugänglich 136 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technische Daten

  • Characteristic
    c
  • Overvoltage category
    3
  • Number of poles
    3
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    3
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Maximum fuse [A]
    100
  • Depth [mm]
    45
  • Energy limitation class
    3
  • Fixing
    Clip
  • Rated voltage [V]
    400
  • Rated current [A]
    16
  • Degree of contamination
    3
  • Width [mm]
    52.5
  • Electrical endurance (number of cycles)
    >10000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1-25
  • PKWIU
    27.12.22.0

Weitere technische Daten

  • Built-in depth
    44 mm
  • Number of poles (total)
    3
  • Rated current
    16 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Power loss
    7.2 W
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Hersteller-Details

  • Hersteller
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Großpackungen

Eine Art Paket Skrzynia Karton Karton
Menge 1 stk. 4 stk. 40 stk.
Gewicht (kg) 0,371 1,485 14,850
Volumen (m3) 0,000 0,001 0,016
Breite (m) 0,055 0,218 0,180
Länge (m) 0,087 0,086 0,385
Tiefe (m) 0,075 0,075 0,230
