Circuit breaker HN-C16/1 16A 1P 6kA C 230V IP20 type AC 194831

Name: Circuit breaker HN-C16/1 16A 1P 6kA C 230V IP20 type AC
Brand: EATON
SKU: ABC220MOEL
Price: 3.43 PLN
Availability: InStock

Místní index:

ABC220MOEL

Katalogové číslo.:

194831

EAN kód:

9010238063150

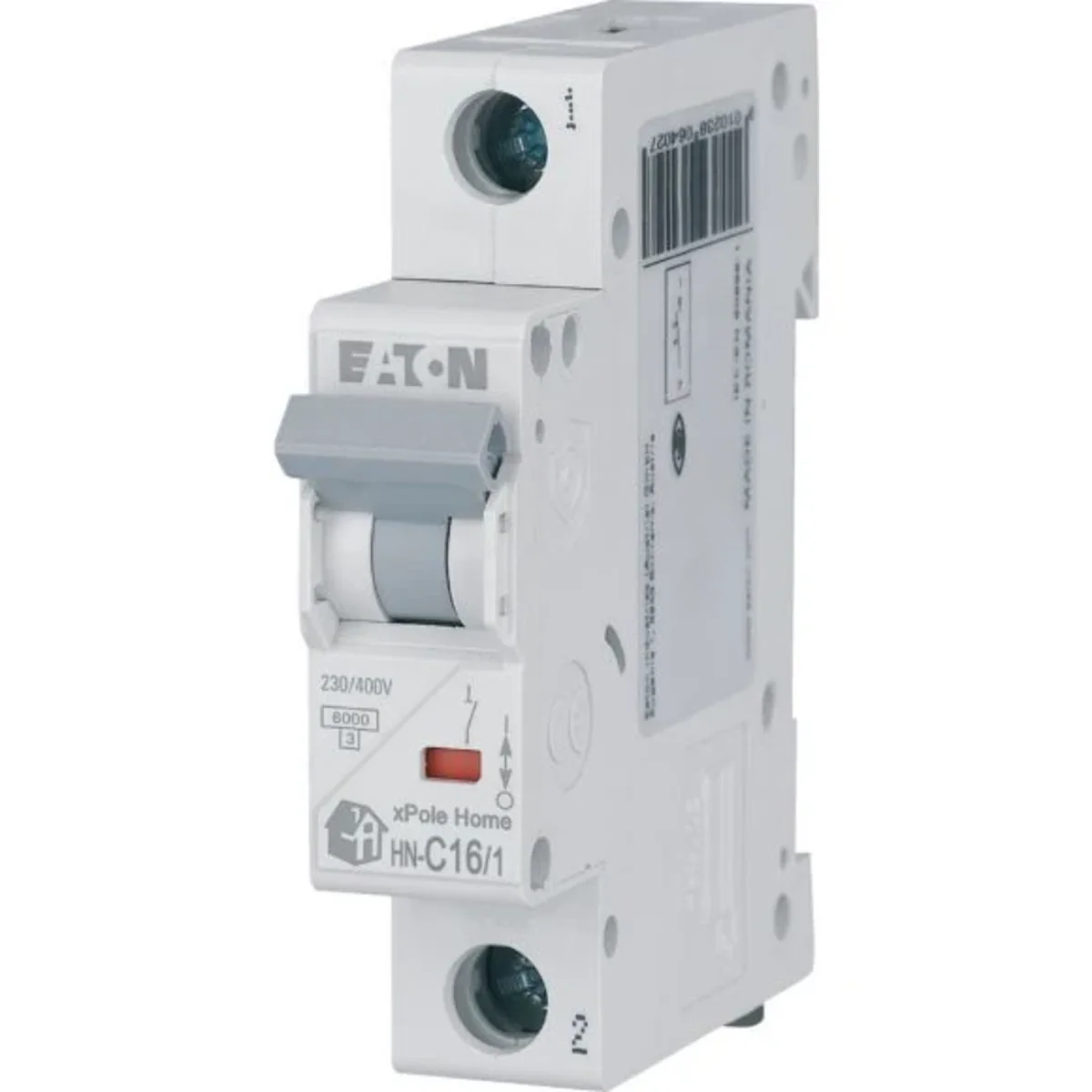

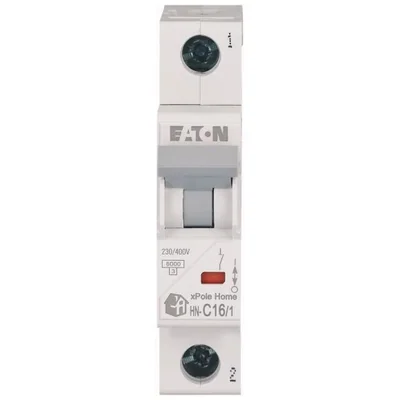

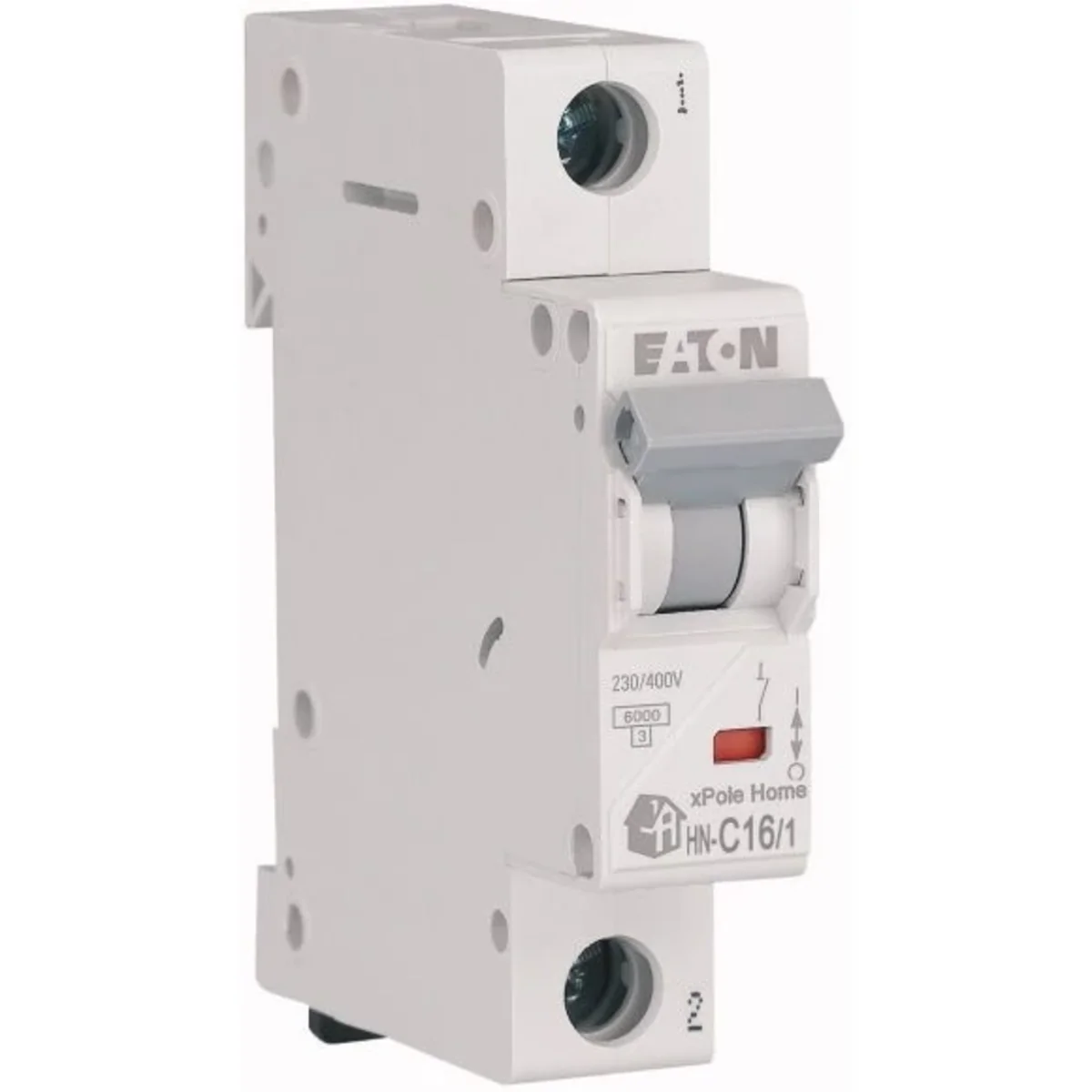

Circuit breaker HN-C16/1 16A 1P 6kA C 230V IP20 type AC

Kliknutím na obrázek jej zvětšíte

Výrobce: EATON

Characteristic: c

Depth [mm]: 45

Overvoltage category: 3

Zobrazit celý popis

Bestsellery

Cena:

3,43 €

gross / kusů.

(včetně DPH 23%)

Nejnižší cena od 30 dnů před slevou: 3,63 € gross -0,20 €

Základní cena: 3,74 € gross

k dispozici 412 kusů.

Množství kusů.

(vícenásobné:

)

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technické údaje

Characteristic

c
Overvoltage category

3
Number of poles

1
Installation

On the TH-35 rail
Rated insulation voltage [V]

440
Level of security

IP20
Width [number of modules]

1
Height [mm]

80
Mechanical durability (number of cycles)

>20000
Rated switching capacity [kA]

6
Voltage type

AC
Maximum fuse [A]

100

Depth [mm]

45
Energy limitation class

3
Fixing

Clip
Rated voltage [V]

230/400
Rated current [A]

16
Degree of contamination

3
Width [mm]

17.5
Electrical endurance (number of cycles)

>10000
Clamps

Elevator Rail
Rated impulse voltage [kV]

4
Terminal cross-section [mm²]

1-25
PKWIU

27.12.22.0

Další technické údaje

Built-in depth

44 mm
Number of poles (total)

1
Rated current

16 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Power loss

2.3 W
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Podrobnosti o výrobci

Výrobce

EATON Electric Sp. z o.o.
Adresa

80-299 Gdańsk ul. Galaktyczna 30
DIČ

5841022327

Velkoobjemová balení

Typ obalu	Skrzynia	Karton	Karton
Množství	1 kusů.	12 kusů.	120 kusů.
Hmotnost (kg)	0,137	1,640	16,400
Objem (m3)	0,000	0,001	0,016
Šířka (m)	0,020	0,218	0,180
Délka (m)	0,087	0,086	0,385
Hloubka (m)	0,075	0,075	0,230
