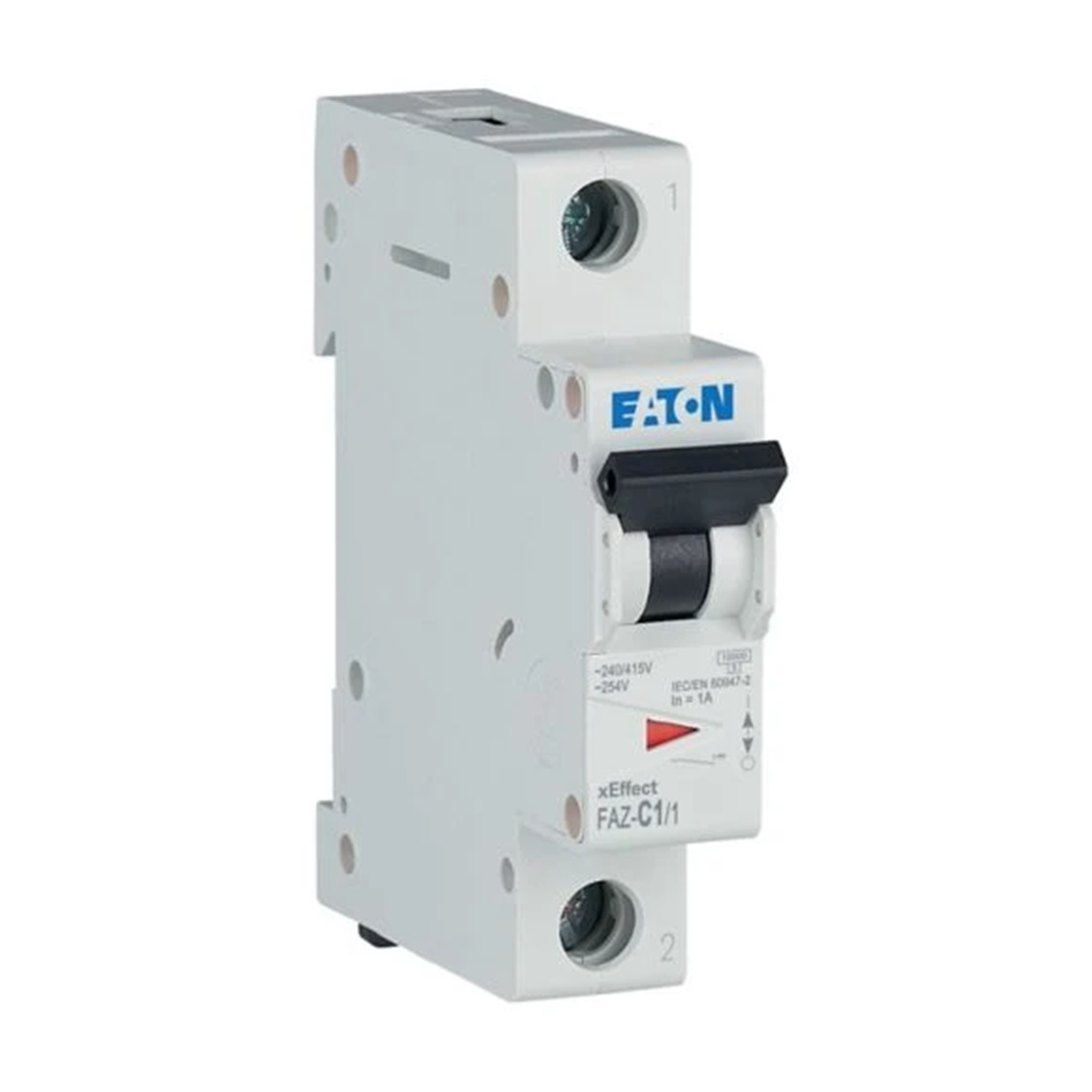

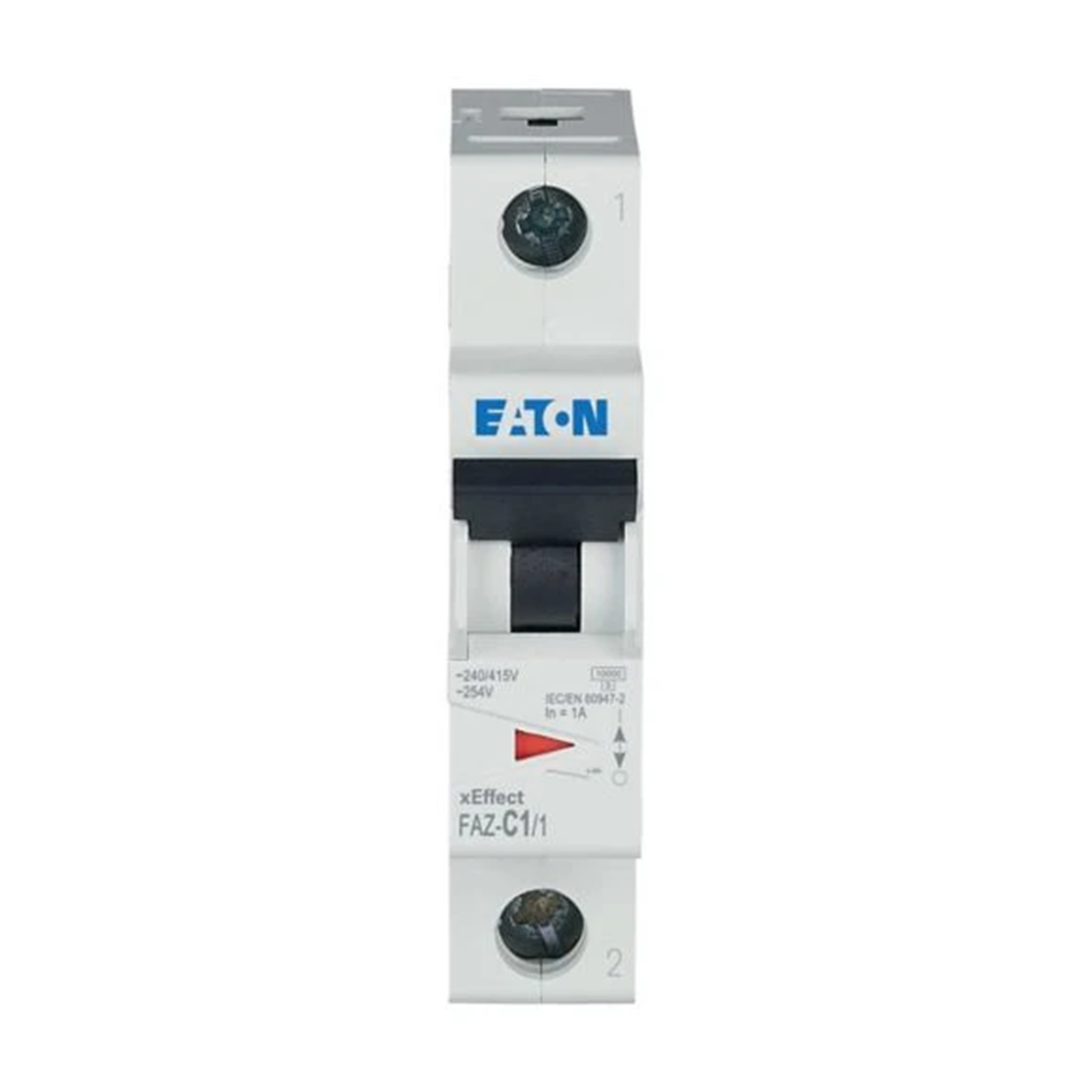

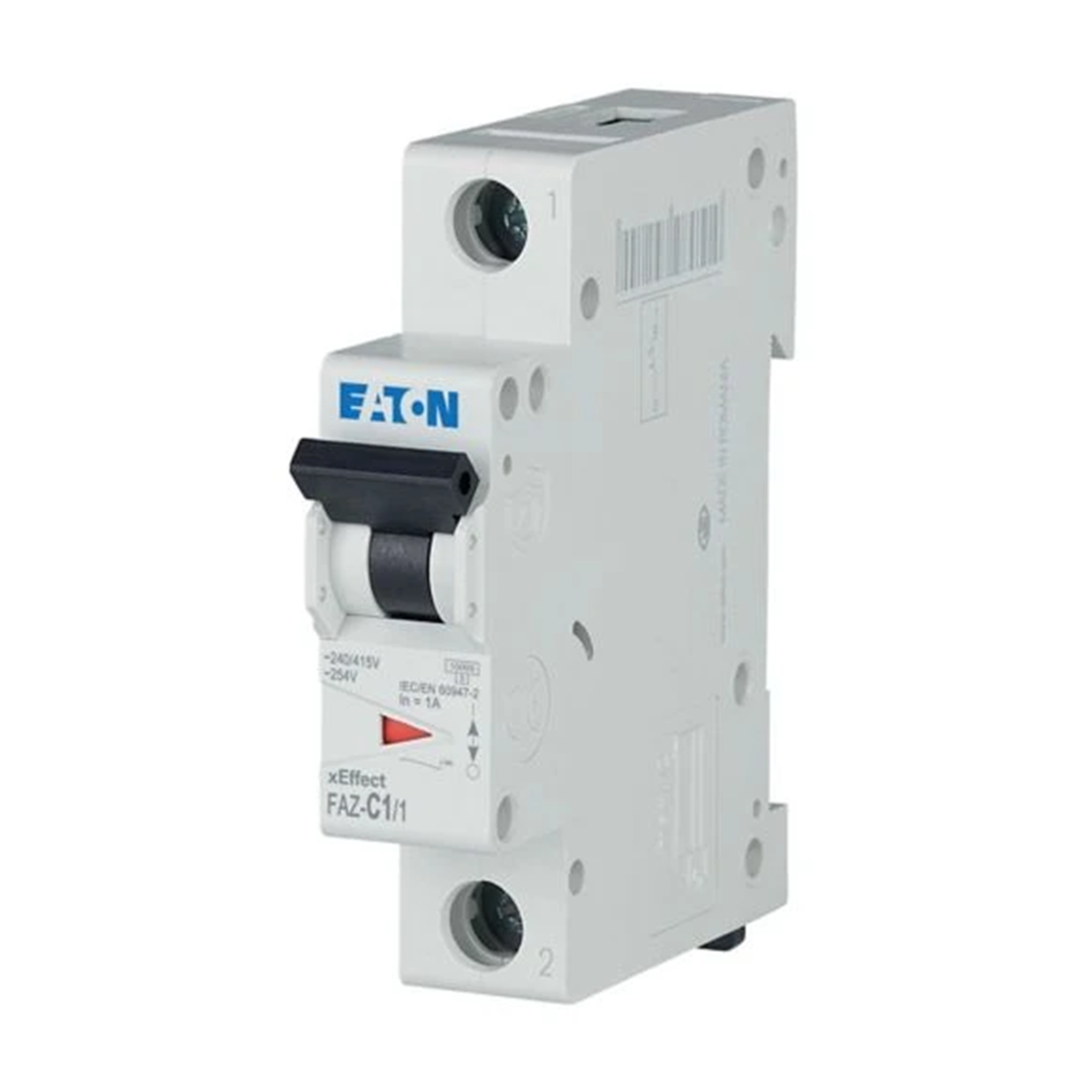

Circuit breaker, FAZ-C1/1 278546

Index local:
ABC065MOEL
Numéro de catalogue:
278546
Code EAN:
4015082785468
Producteur: EATON
Number of poles: 1
Rated current [A]: 1
Prix:
22,35 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
12
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Données techniques

  • Number of poles
    1
  • Rated current [A]
    1

Autres données techniques

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    1 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Emballage en vrac

Une sorte de paquet Skrzynia Karton Karton Skrzynia Karton Karton
Quantité 1 pcs. 12 pcs. 120 pcs. 1 pcs. 12 pcs. 120 pcs.
poids (kg) 0,115 1,380 13,996 0,115 1,380 13,996
Volume (m3) 0,000 0,001 0,016 0,000 0,001 0,016
Largeur (m) 0,020 0,218 0,180 0,020 0,218 0,180
Longueur (m) 0,082 0,086 0,385 0,082 0,086 0,385
Profondeur (m) 0,078 0,075 0,230 0,078 0,075 0,230
