el12
Electrical apparatus
fuses
Circuit breakers with "C" characteristic

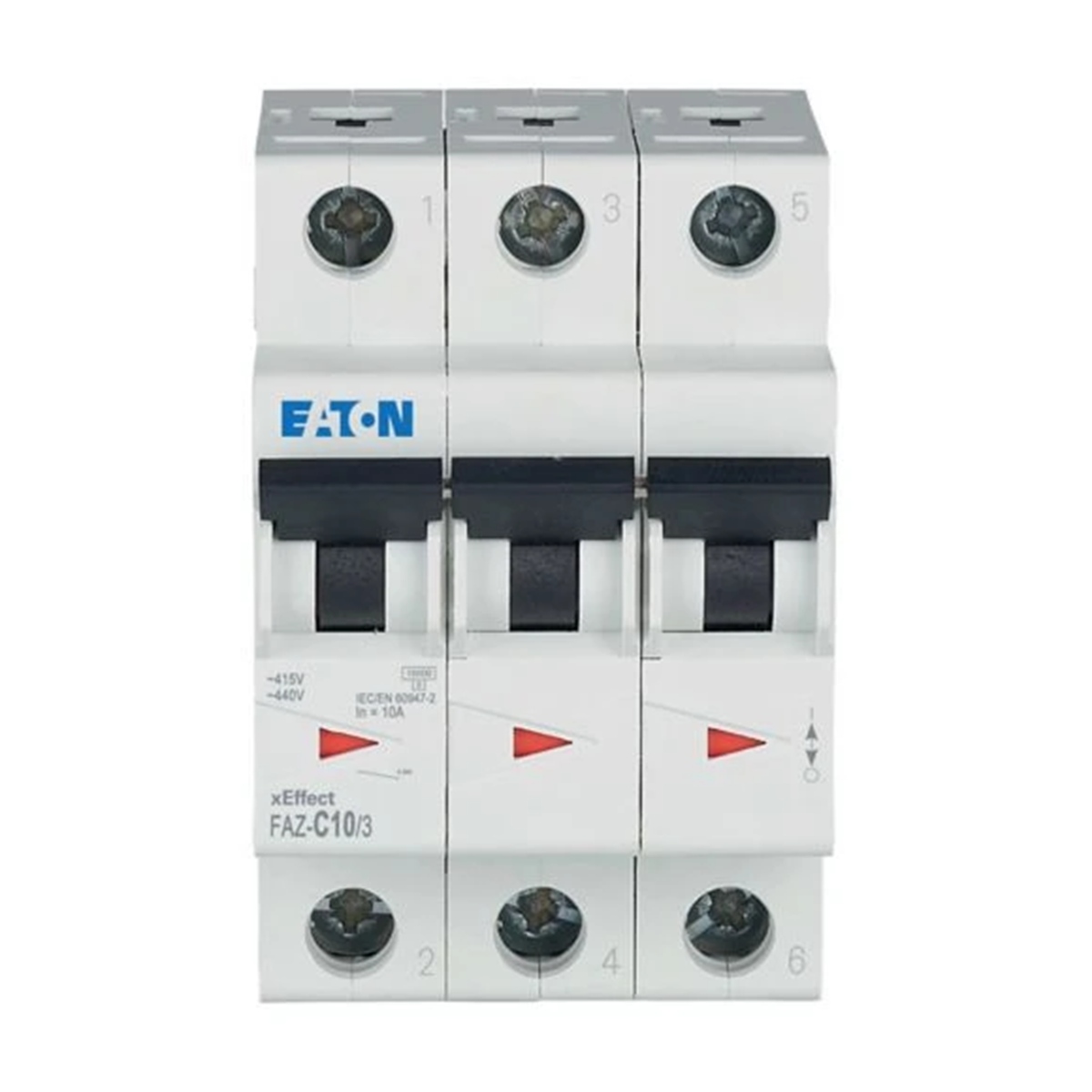

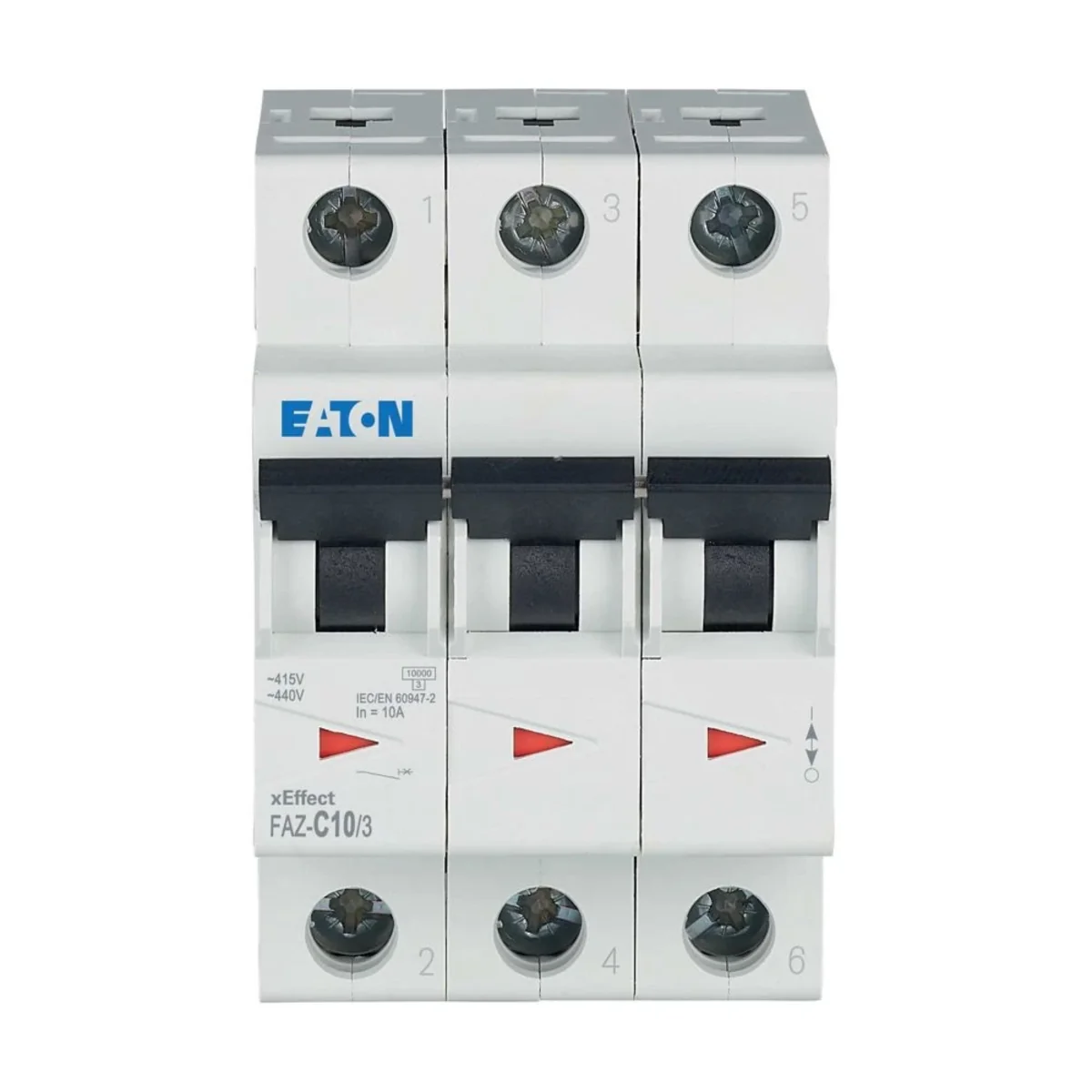

Circuit breaker, FAZ-C10/3 278869
local index:
ABC820MOEL
Catalog No:
278869
EAN code:
4015082788698
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
3
Rated current [A]:
10
See full description
Price:
38,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.
Technical data
Number of poles
3
Rated current [A]
10
Other technical data
Release characteristic
C
Number of protected poles
3
Rated voltage
400 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Pollution degree
2
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Number of poles (total)
3
Rated current
10 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Voltage type
AC
Current limiting class
3
Over voltage category
3
Additional equipment possible
Yes
Built-in depth
70.5 mm
Ambient temperature during operating
-25 ... 75 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
1 pcs.
40 pcs.
Weight (kg)
0,333
0,351
14,235
Volume (m3)
0,000
0,000
0,016
Width (m)
0,054
0,055
0,180
Length (m)
0,080
0,086
0,385
Depth (m)
0,075
0,075
0,230
