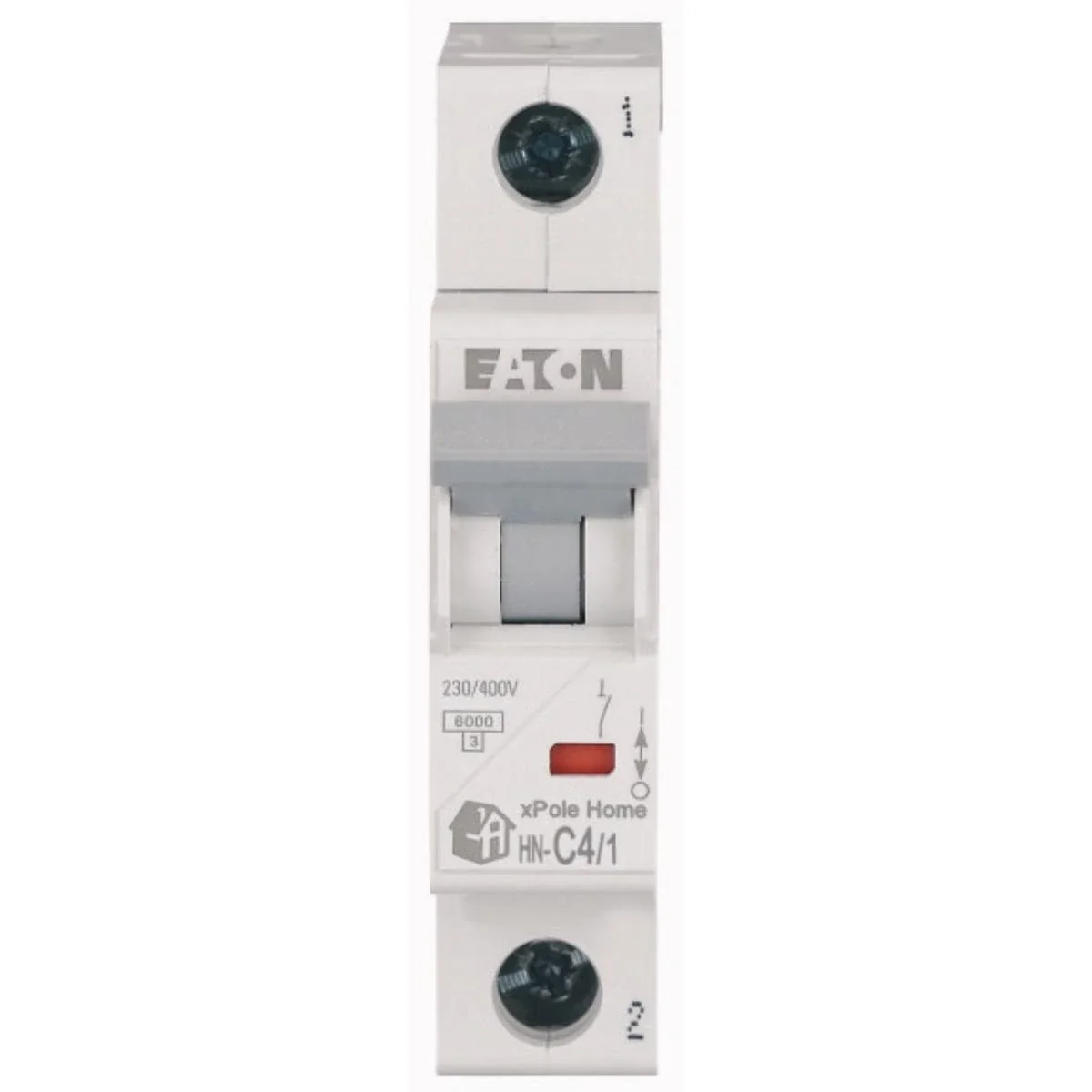

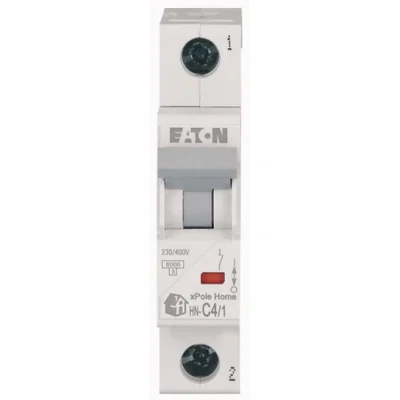

Circuit breaker 6kA HN-C4/1 EP-500763

local index:
ABC073MOEL
Catalog No:
EP-500763
EAN code:
9010653028192
Manufacturer: EATON
Frequency [Hz]: 51 | 60
Energy limitation class: 3
Number of poles: 1
Price:
10,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 124 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

6kA overcurrent circuit breaker, intended to work with DC voltage up to 48VDC, electric strength up to 20,000 operations. Sealable .

Technical data

  • Frequency [Hz]
    51 60
  • Number of poles
    1
  • Rated current [A]
    2
  • Level of security
    IP21
  • Working temperature [°C]
    from -25 to +75
  • Rated impulse voltage [kV]
    4
  • Installation depth [mm]
    49.5
  • Energy limitation class
    3
  • Rated voltage [V]
    230
  • Type of voltage
    AC
  • Width [number of modules]
    17.5
  • Trigger type
    c
  • Wire cross-section [mm²]
    25

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,137 1,640 16,400
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,218 0,180
Length (m) 0,087 0,086 0,385
Depth (m) 0,075 0,075 0,230
