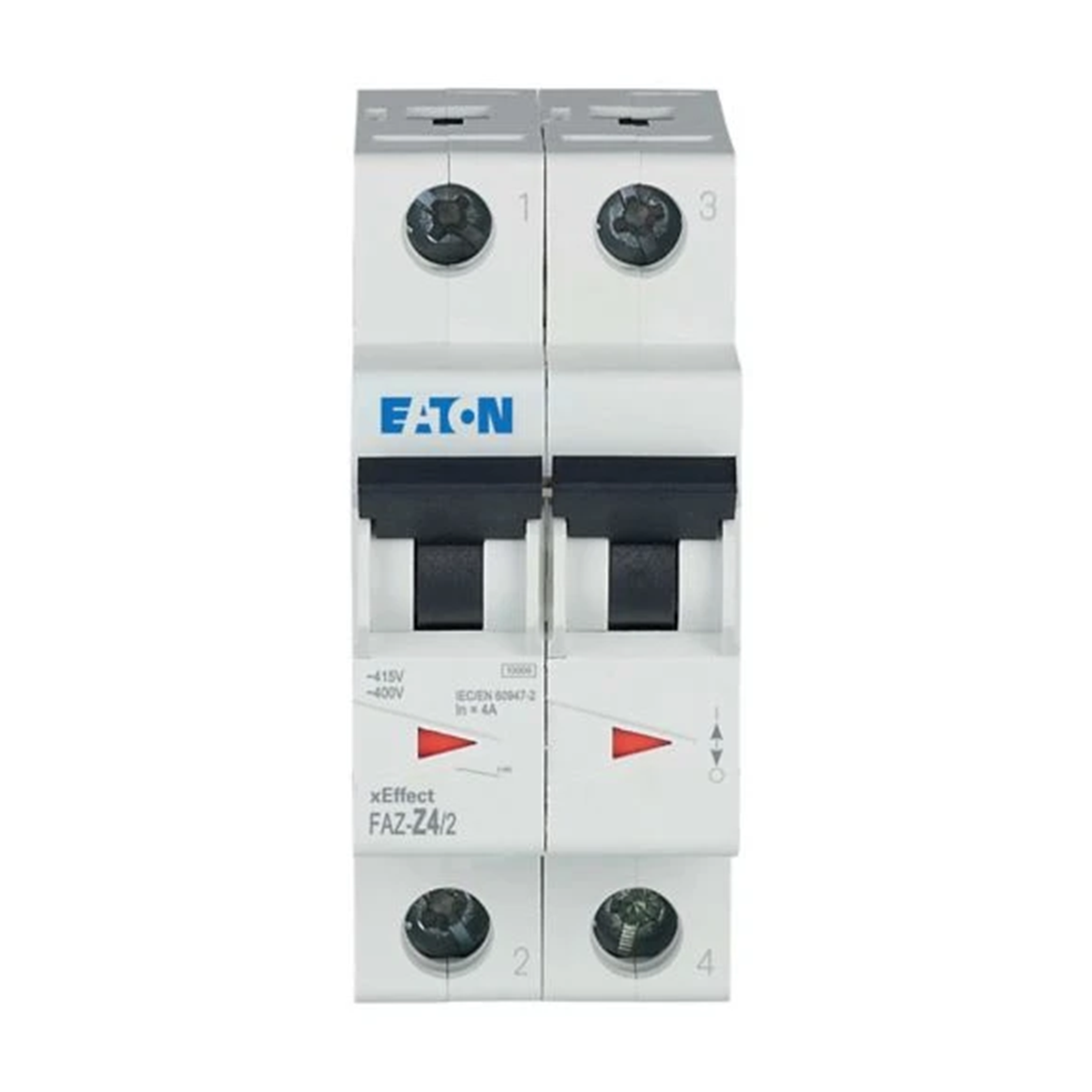

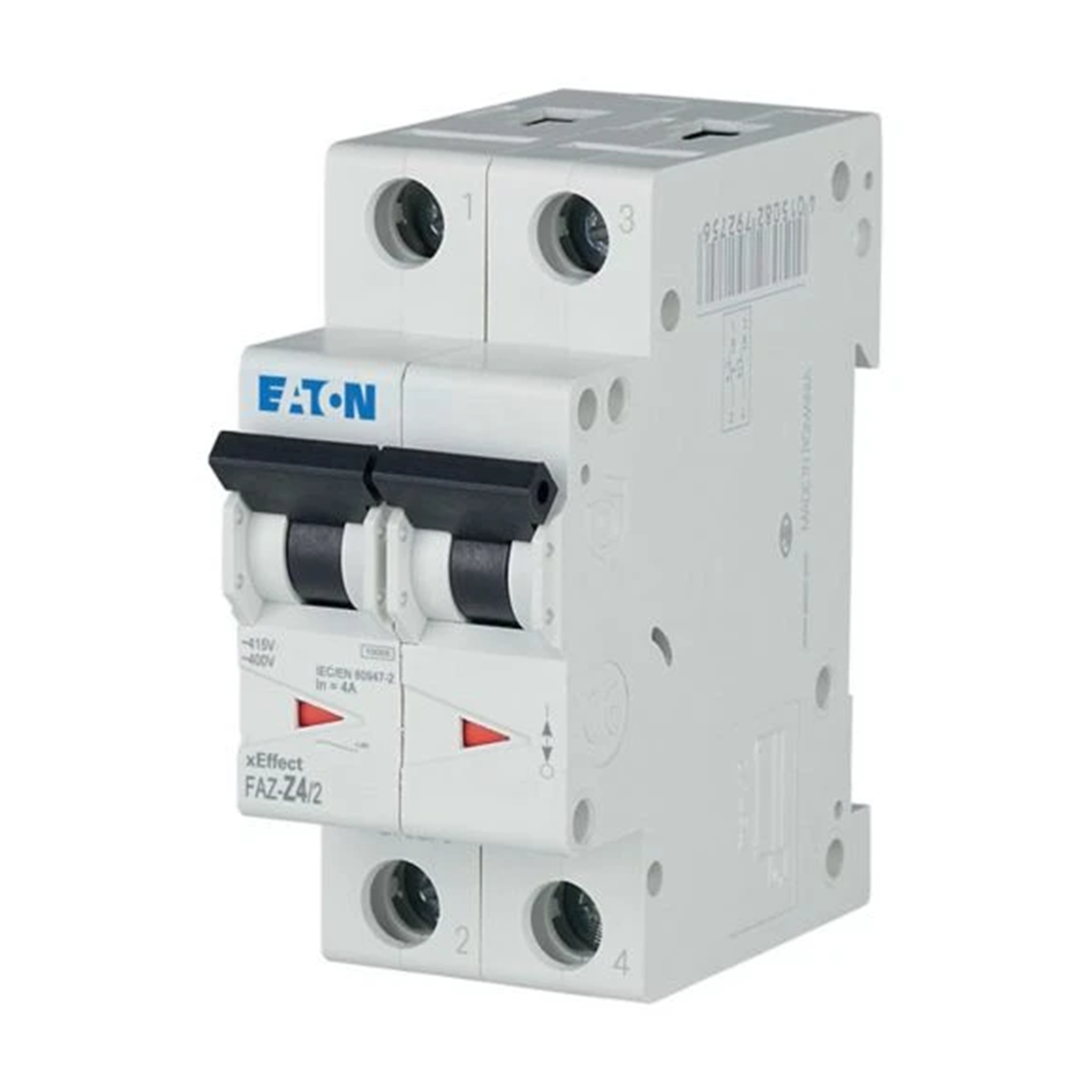

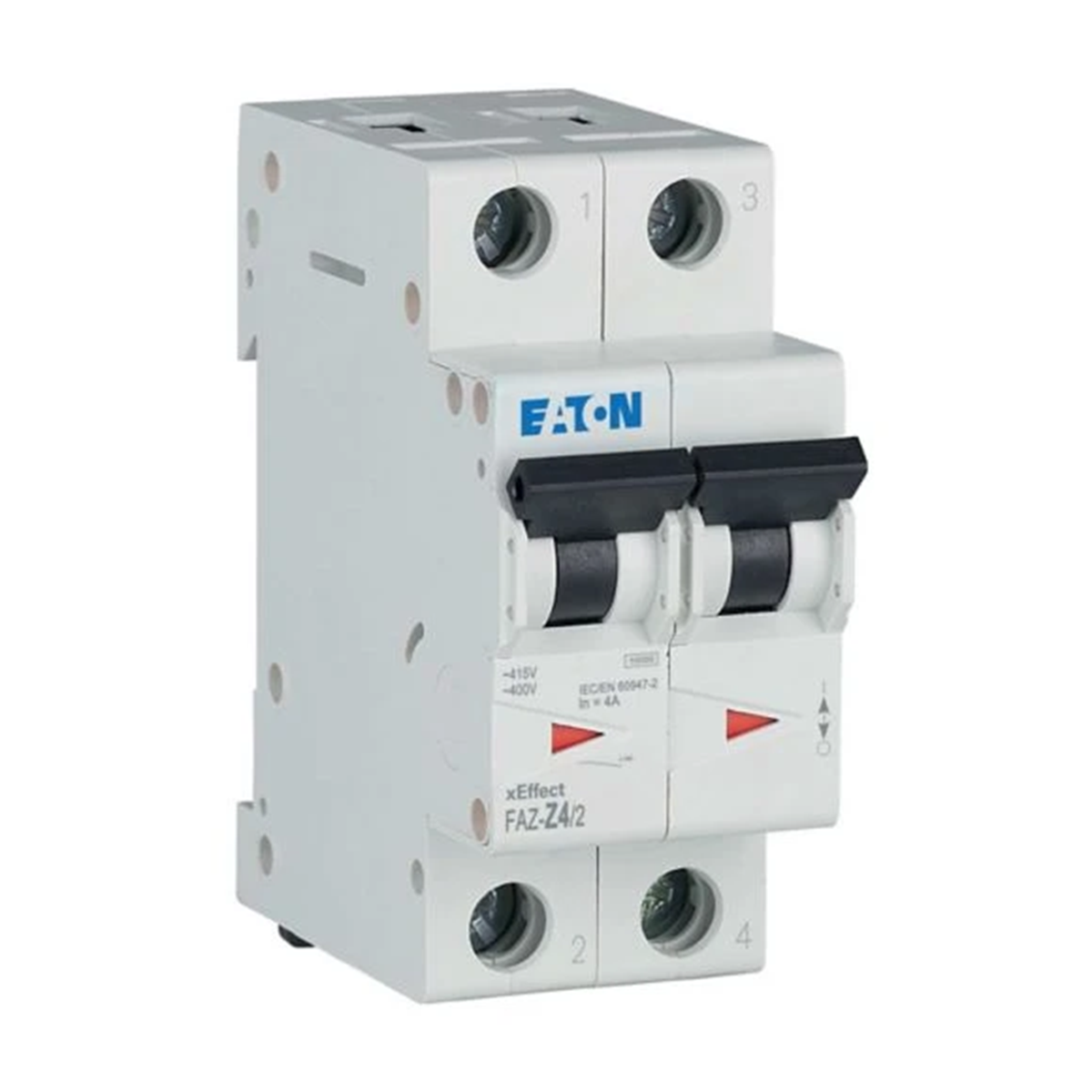

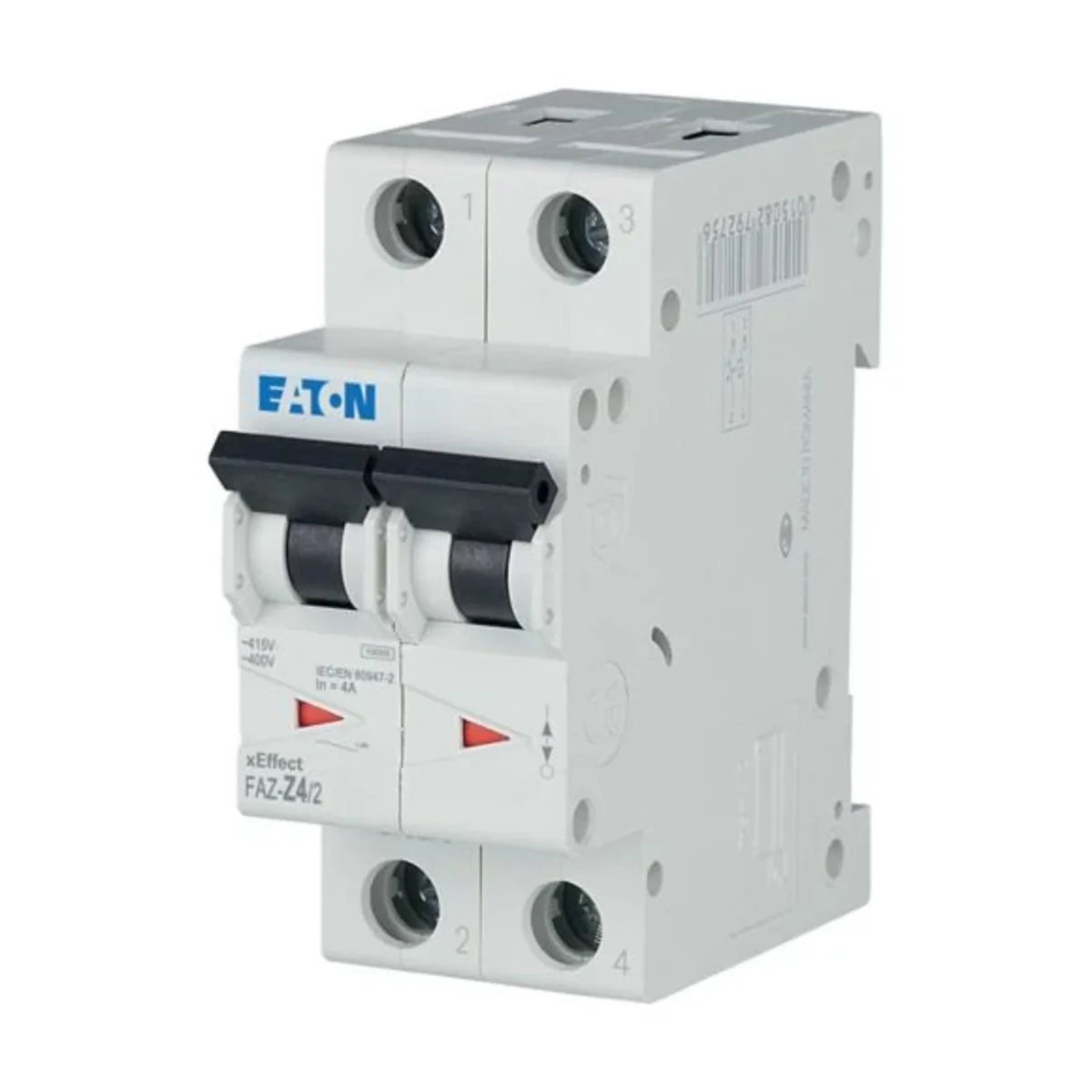

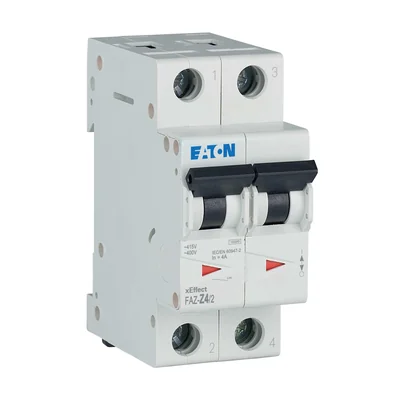

Circuit breaker, 4A, 2 poles, FAZ-Z4/2 278821

Indeks lokalny:
ABN004MOEL
Nr katalogowy:
278821
Kod EAN:
4015082788216
Producent: EATON
Number of poles: 2
Rated current [A]: 4
Cena:
57,48 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 2 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

FAZ overcurrent circuit breakers. Characteristic Z, rated short-circuit switching capacity 15 kA current, instantaneous release 2 – 3 x In.

Dane techniczne

  • Number of poles
    2
  • Rated current [A]
    4

Pozostałe dane techniczne

  • Release characteristic
    Z
  • Number of protected poles
    2
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    2
  • Rated current
    4 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Dane producenta

  • Producent
    EATON Electric Sp. z o.o.
  • Adres
    80-299 Gdańsk ul. Galaktyczna 30
  • NIP
    5841022327

Opakowania zbiorcze

Rodzaj opakowania Skrzynia Karton
Ilość 1 szt. 60 szt.
Waga (kg) 0,239 14,526
Objętość (m3) 0,000 0,016
Szerokość (m) 0,037 0,180
Długość (m) 0,086 0,385
Głębokość (m) 0,075 0,230
