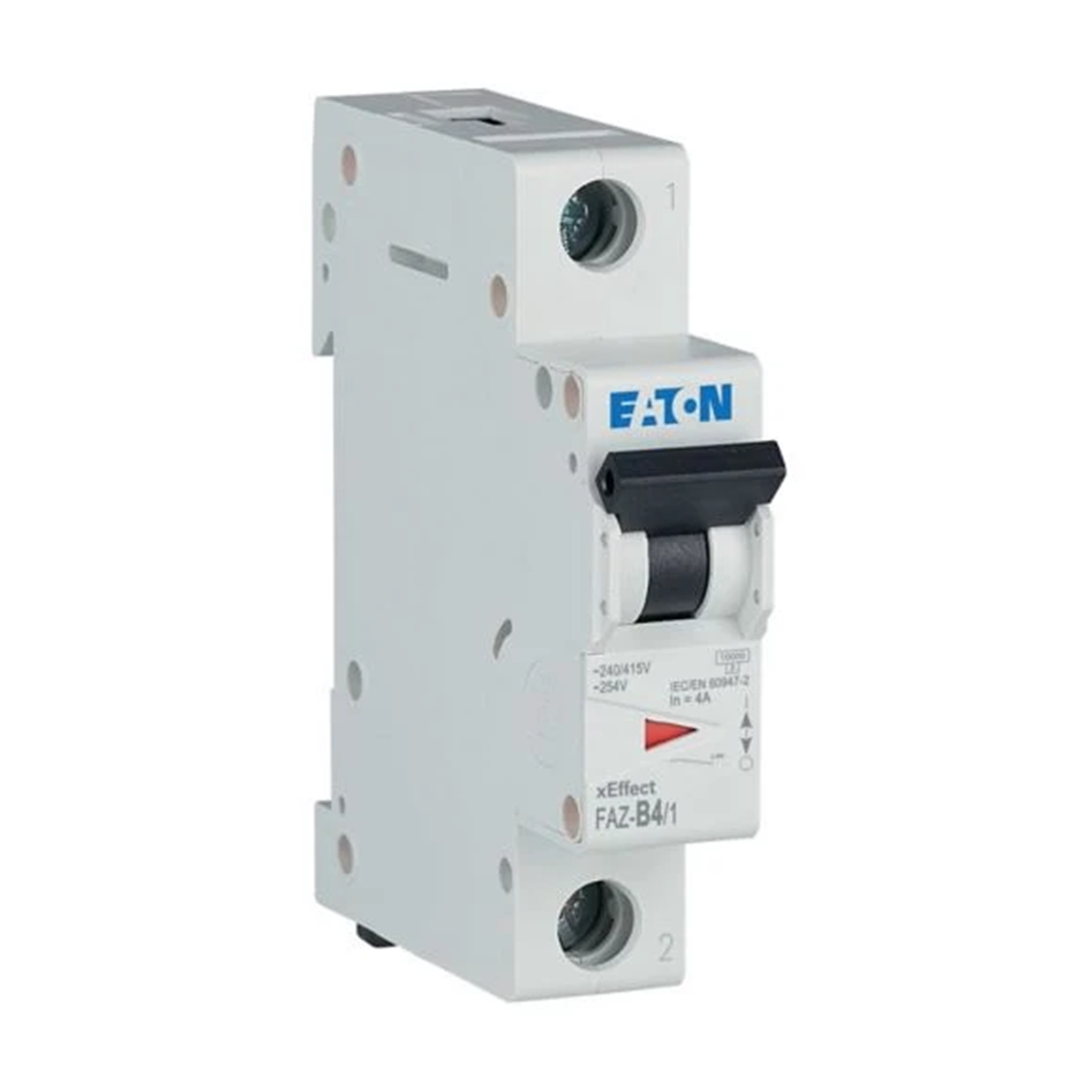

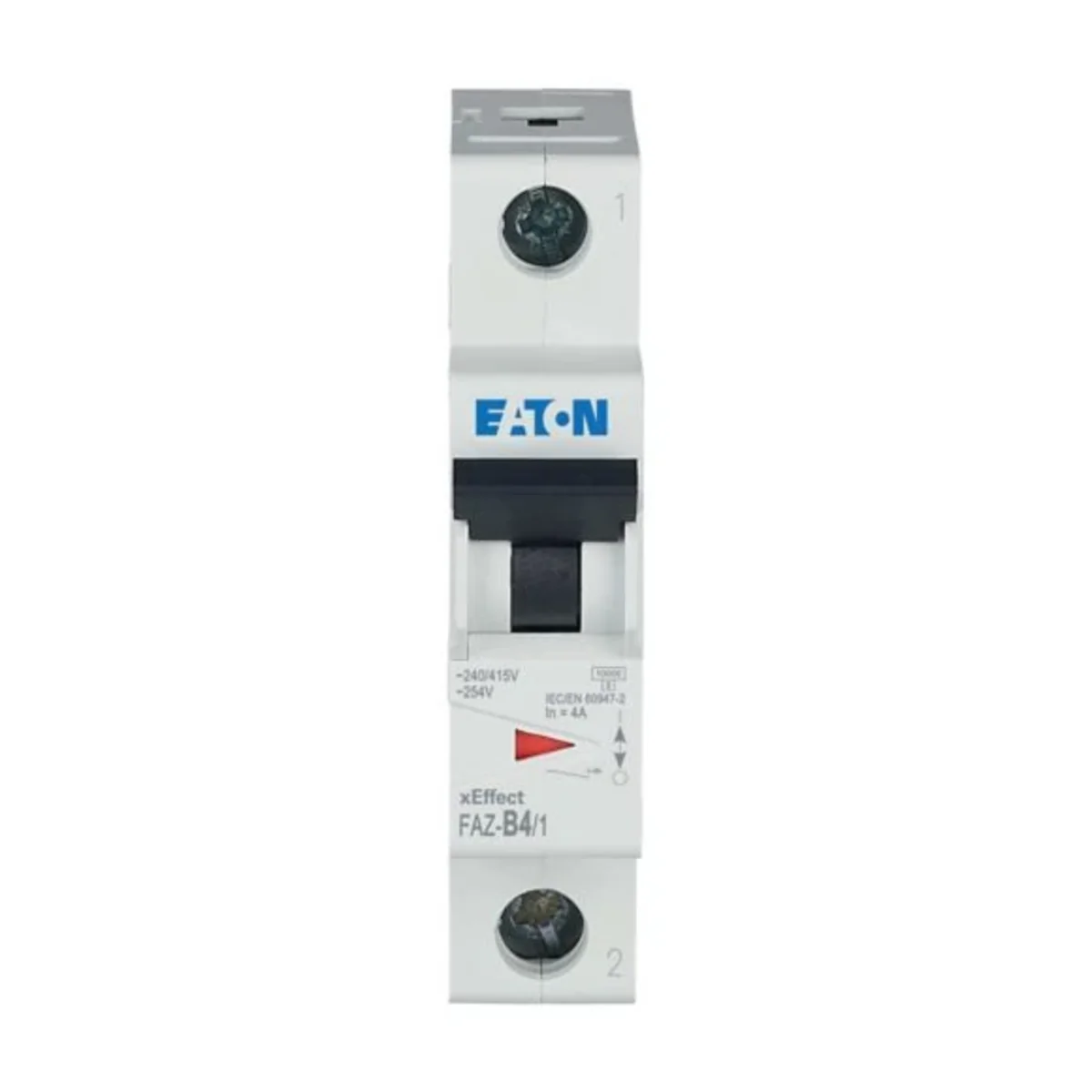

Circuit breaker, 4A, 1 pole, FAZ-B4/1 278527

Indeks lokalny:
ABB836MOEL
Nr katalogowy:
278527
Kod EAN:
4015082785277
Producent: EATON
Number of poles: 1
Rated current [A]: 4
Cena:
74,34 zł
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 2 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
12
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories

Dane techniczne

  • Number of poles
    1
  • Rated current [A]
    4

Pozostałe dane techniczne

  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    4 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Skrzynia Karton Karton Skrzynia Karton Karton
Ilość 1 szt. 12 szt. 120 szt. 1 szt. 12 szt. 120 szt.
Waga (kg) 0,116 1,389 14,086 0,116 1,389 14,086
Objętość (m3) 0,000 0,001 0,016 0,000 0,001 0,016
Szerokość (m) 0,020 0,218 0,180 0,020 0,218 0,180
Długość (m) 0,082 0,086 0,385 0,082 0,086 0,385
Głębokość (m) 0,078 0,075 0,230 0,078 0,075 0,230
