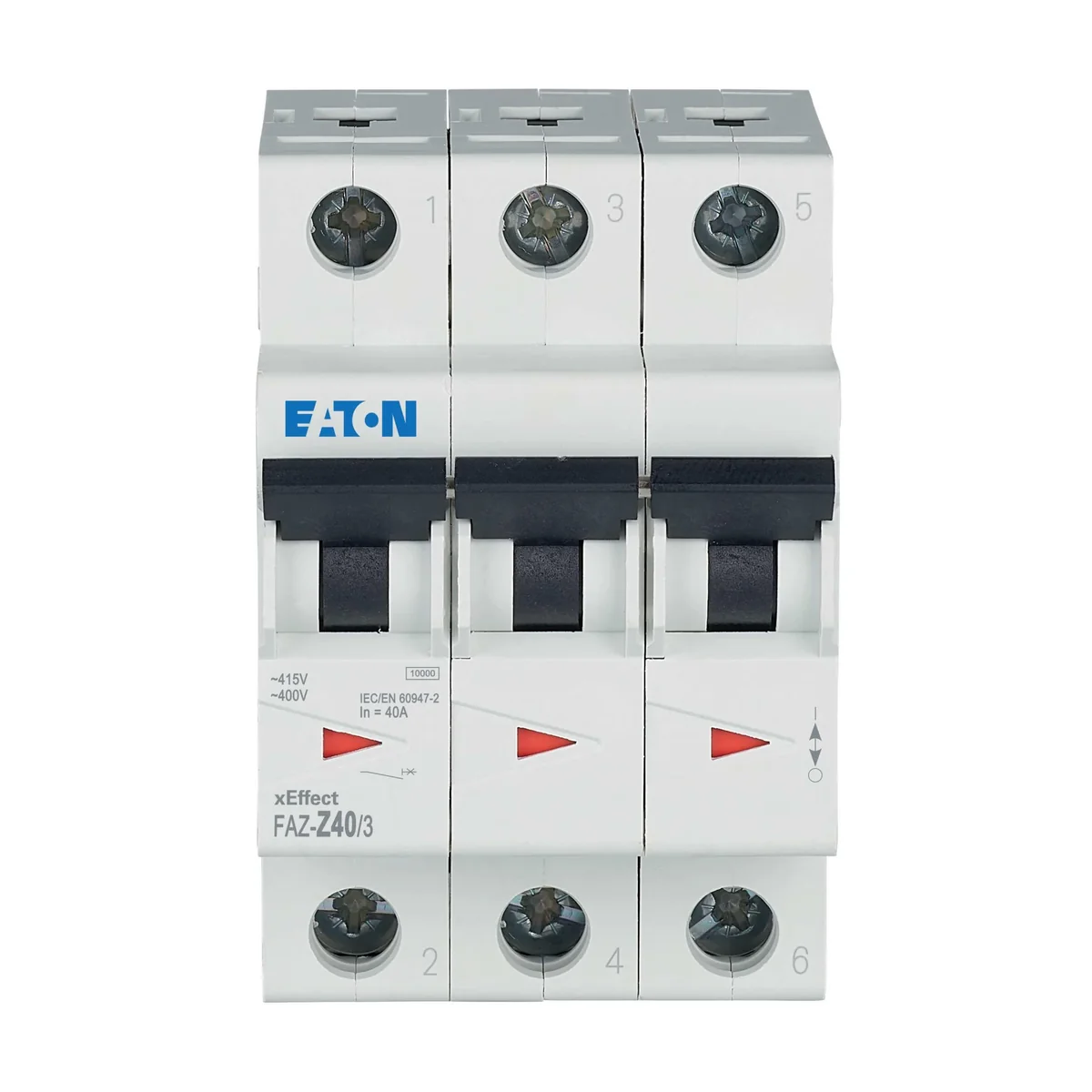

Name: Circuit breaker, 40A, 3 poles, FAZ-Z40/3
Brand: EATON
SKU: ABN017MOEL
Price: 57.20 PLN

FAZ circuit breakers. Characteristic Z, rated short-circuit switching capacity 15 kA current, instantaneous release 2 – 3 x In.

Release characteristic

Z
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

3
Rated current

40 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
