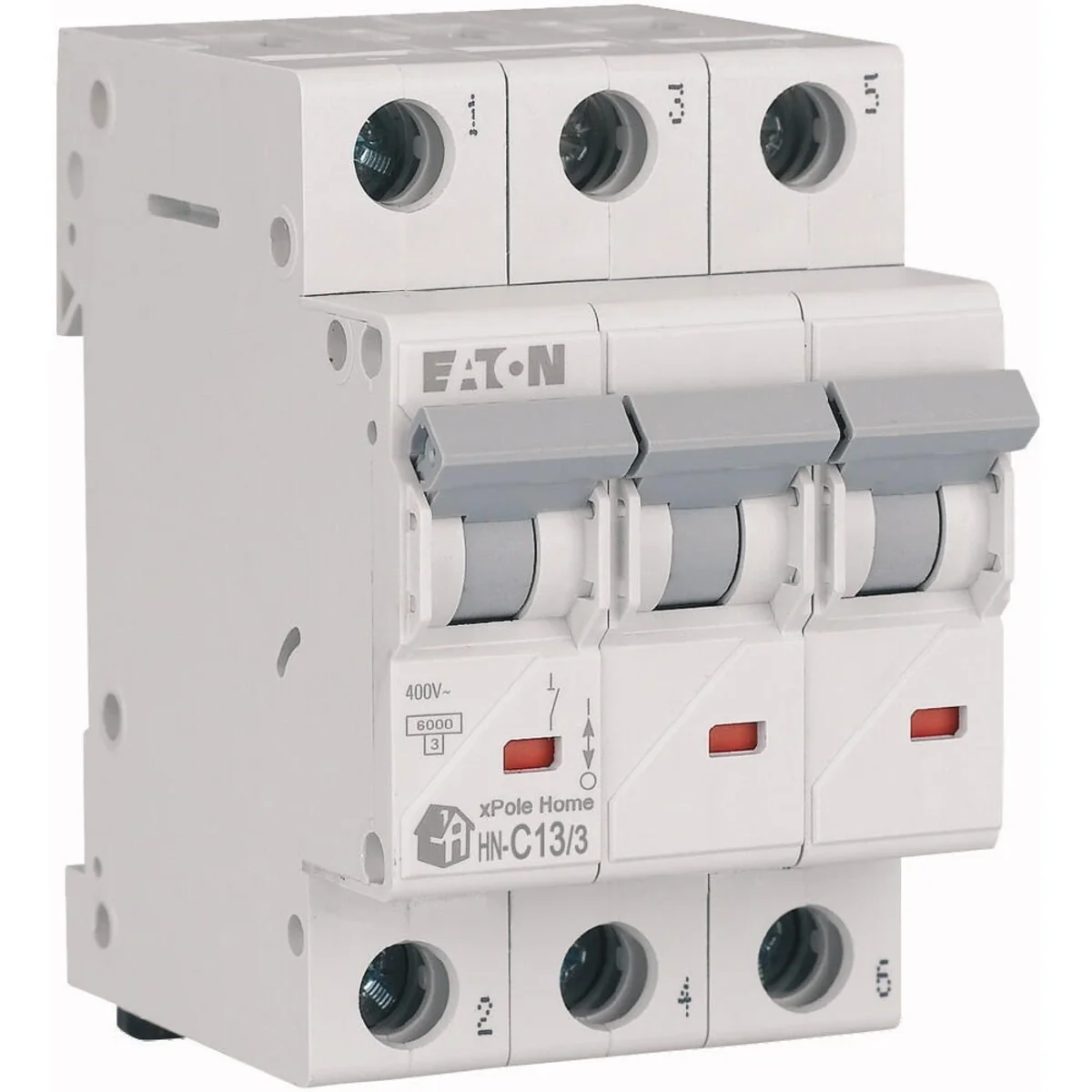

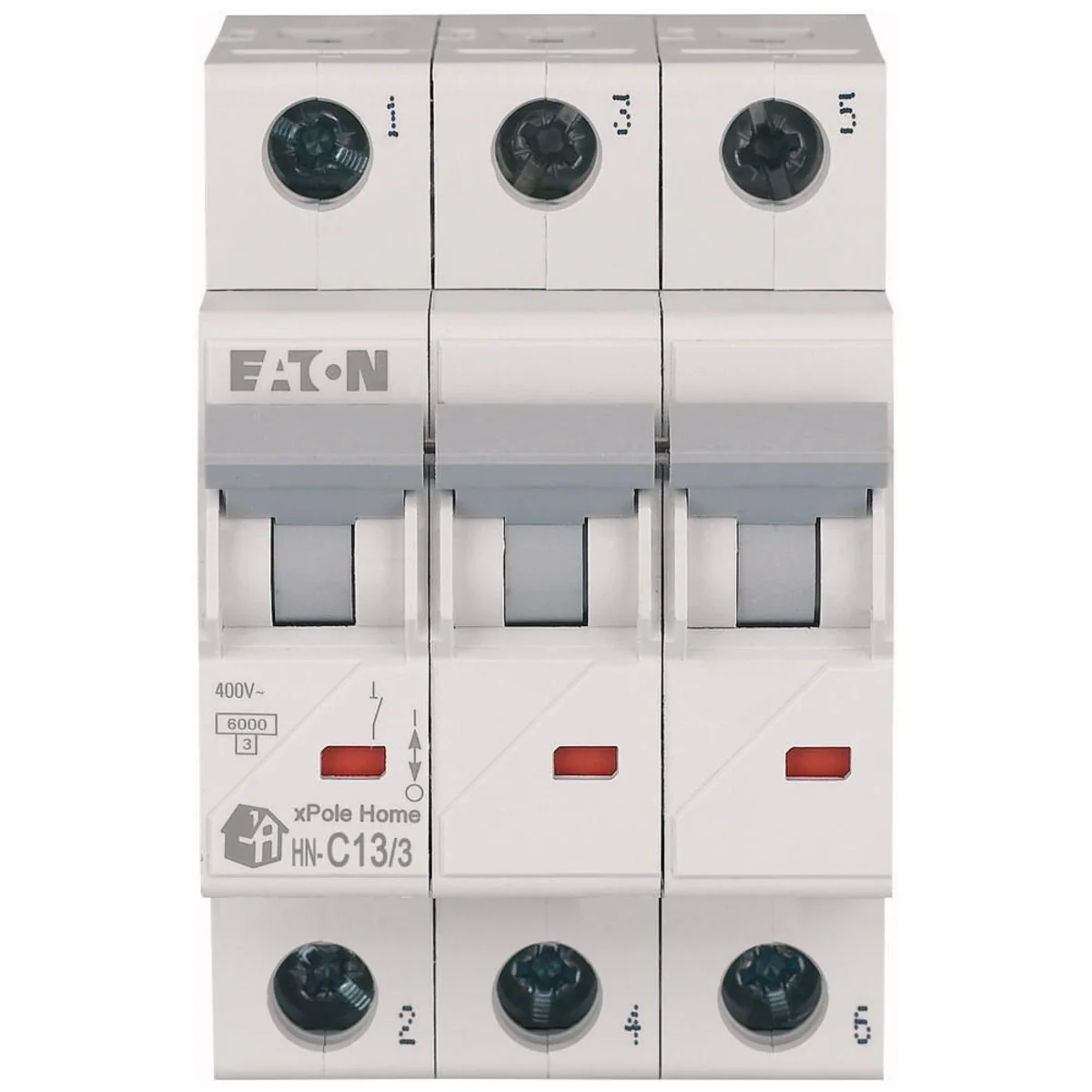

Circuit breaker 3P C 13A 6kA AC xPole Home HN-C13/3 194890

local index:
ABC199MOEL
Catalog No:
194890
EAN code:
9010238063747
Manufacturer: EATON
Characteristic: c
Number of poles: 3
Rated current [A]: 13
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
13,00 €
gross / pcs.
(including VAT 23%)
Last lowest price: 13,00 € gross
Base price: 47,61 € gross -73%
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Current circuit breaker 3P C 13A 6kA AC xPole Home HN-C13/3

Technical data

  • Characteristic
    c
  • Rated current [A]
    13
  • Number of poles
    3
  • Level of security
    IP20

Other technical data

  • Built-in depth
    44 mm
  • Number of poles (total)
    3
  • Rated current
    13 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 4 pcs. 40 pcs.
Weight (kg) 0,371 1,485 14,850
Volume (m3) 0,000 0,001 0,016
Width (m) 0,055 0,218 0,180
Length (m) 0,087 0,086 0,385
Depth (m) 0,075 0,075 0,230
