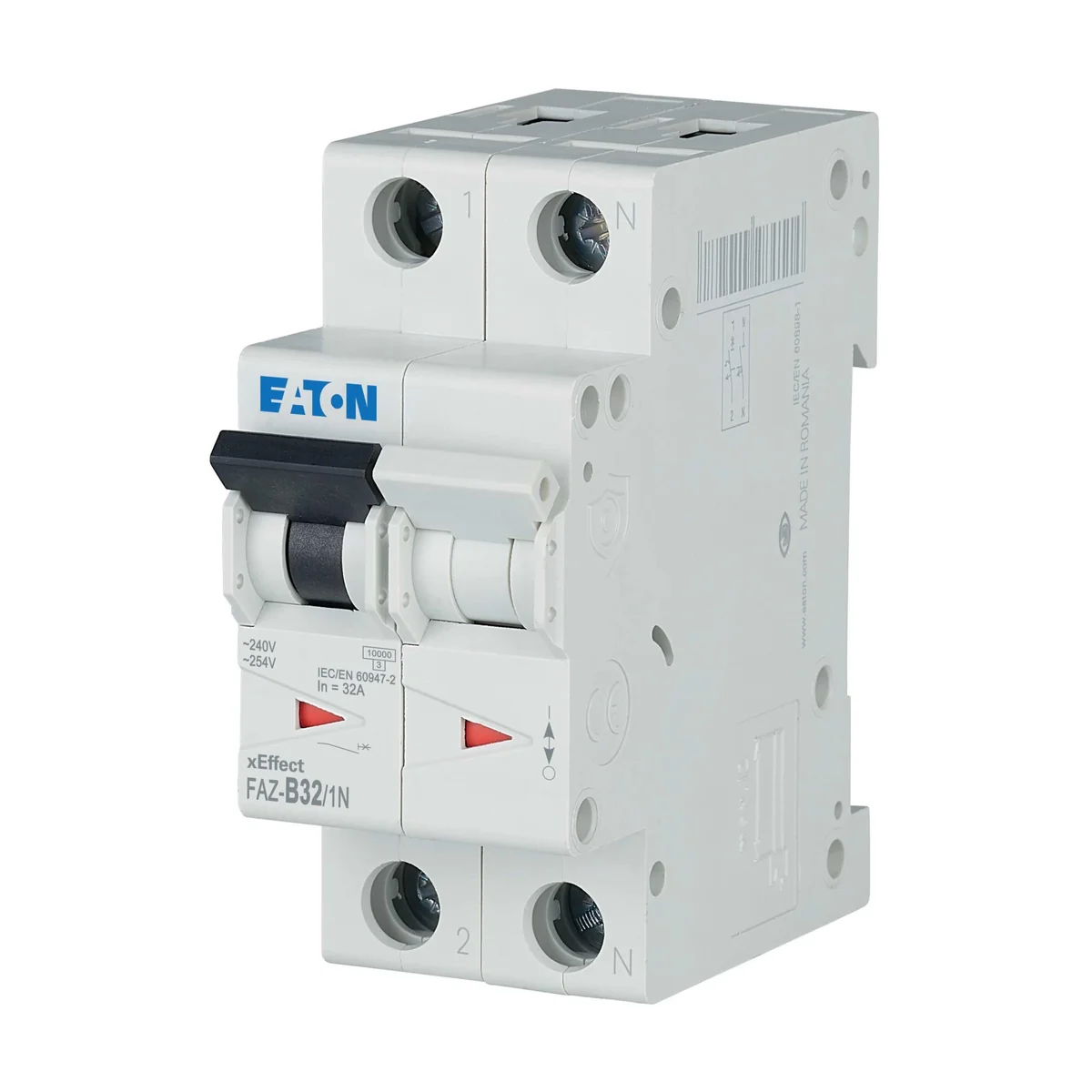

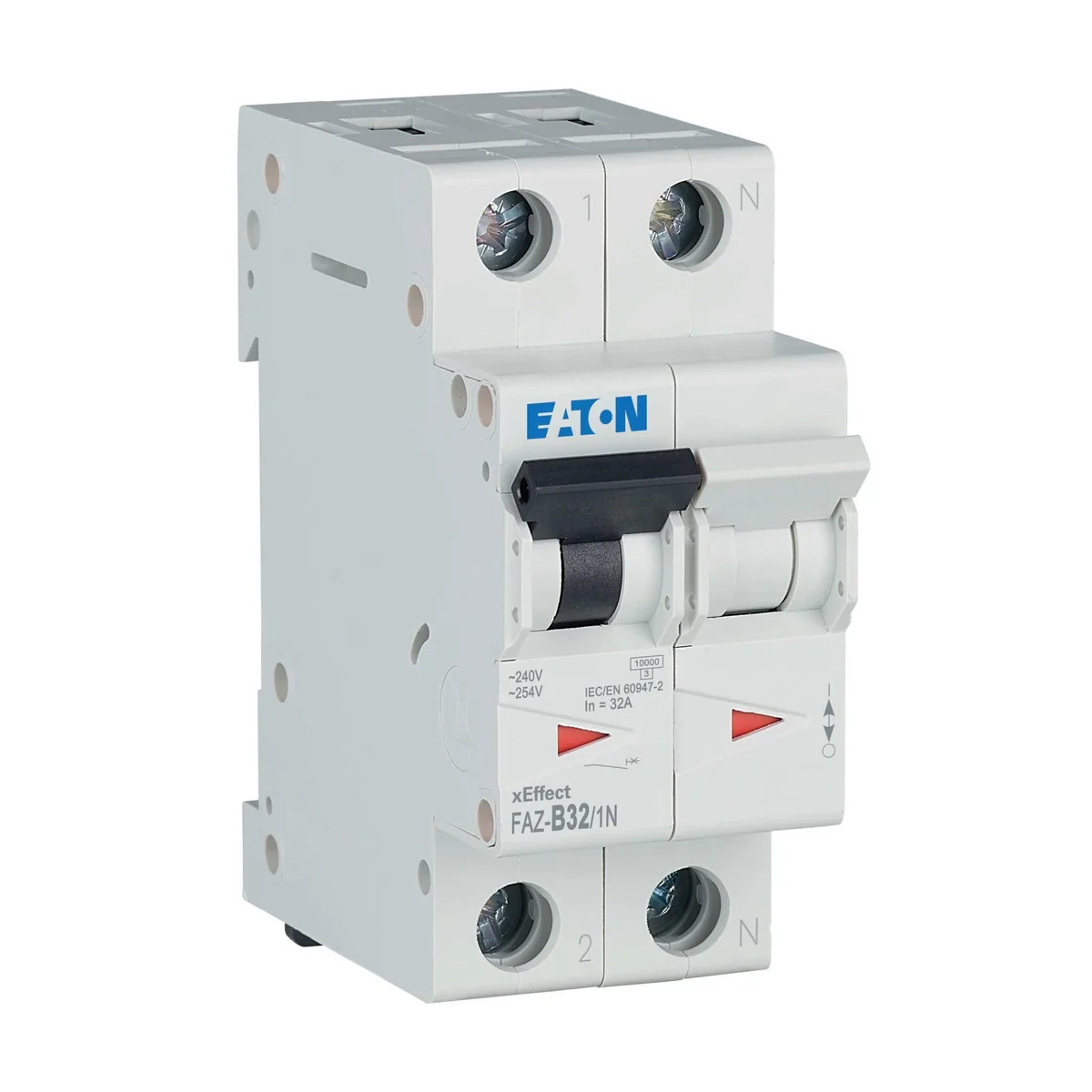

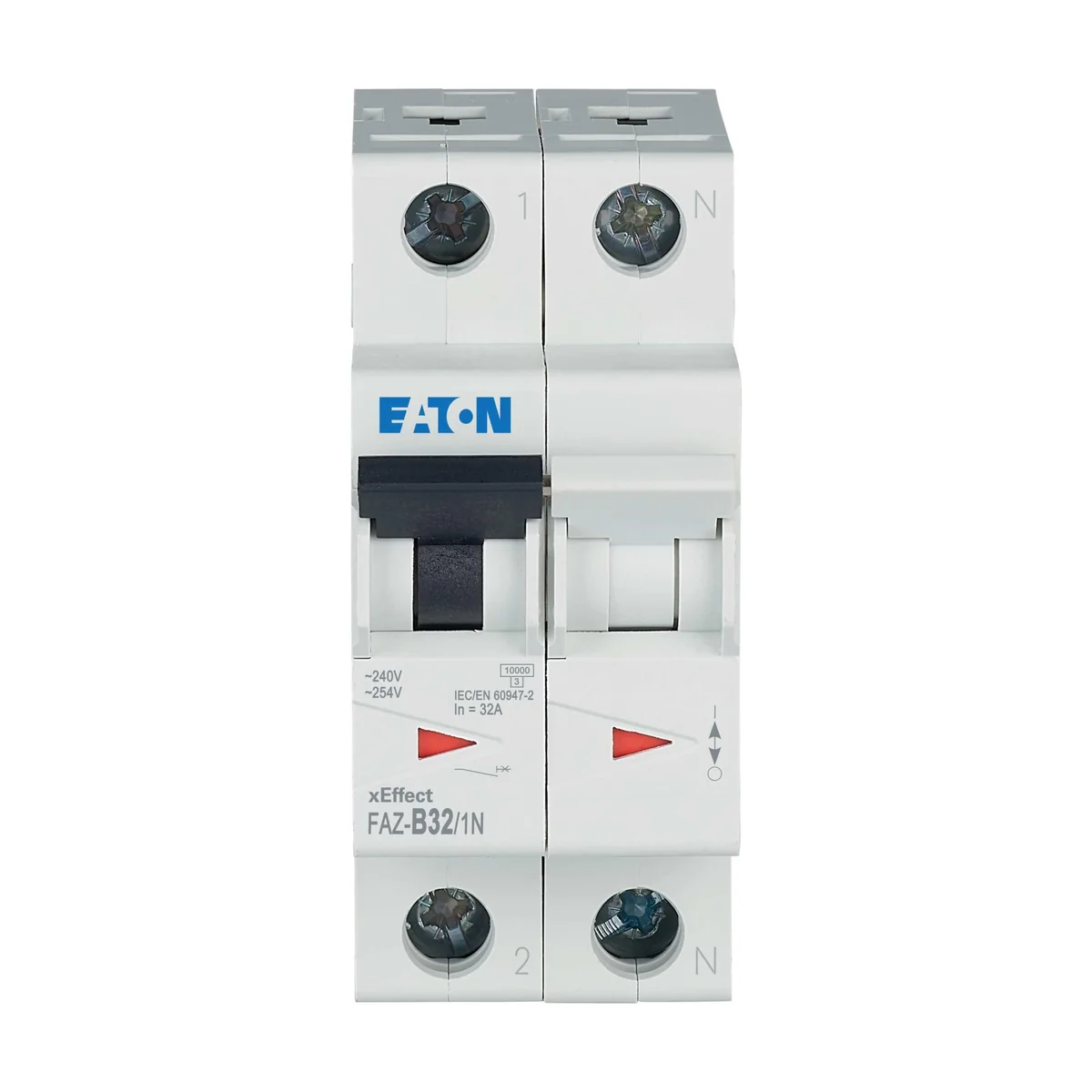

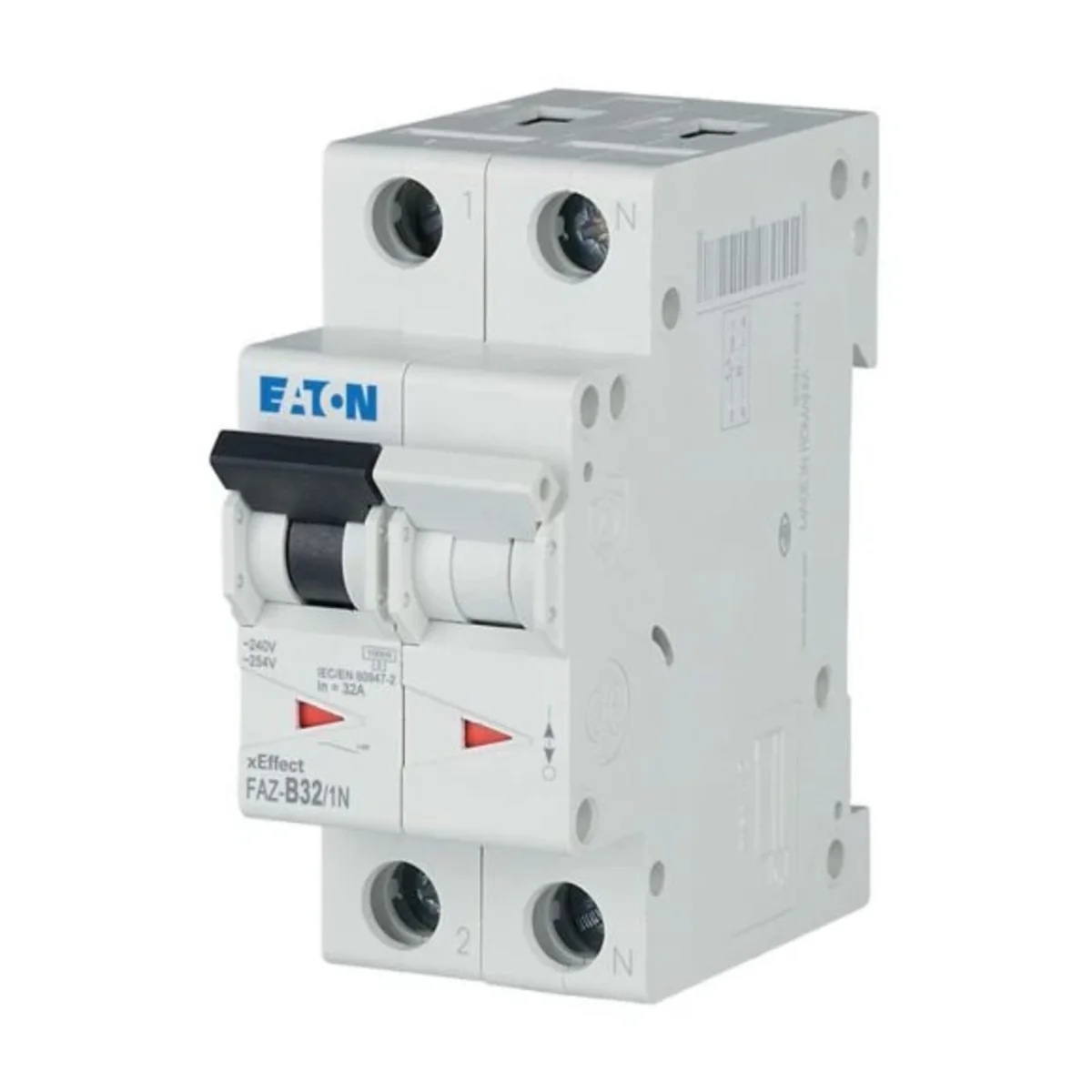

Circuit breaker, 32A, 1+N pole, FAZ-B32/1N 278651

Name: Circuit breaker, 32A, 1+N pole, FAZ-B32/1N
Brand: EATON
SKU: ABB838MOEL
Price: 22.07 PLN

Indeks lokalny:

ABB838MOEL

Nr katalogowy:

278651

Kod EAN:

4015082786519

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 2

Rated current [A]: 32

Zobacz cały opis

Cena:

22,07 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 2 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

Circuit breaker, 32A, 1+N pole, FAZ-B32/1N

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

2
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

2
Rated current

32 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
