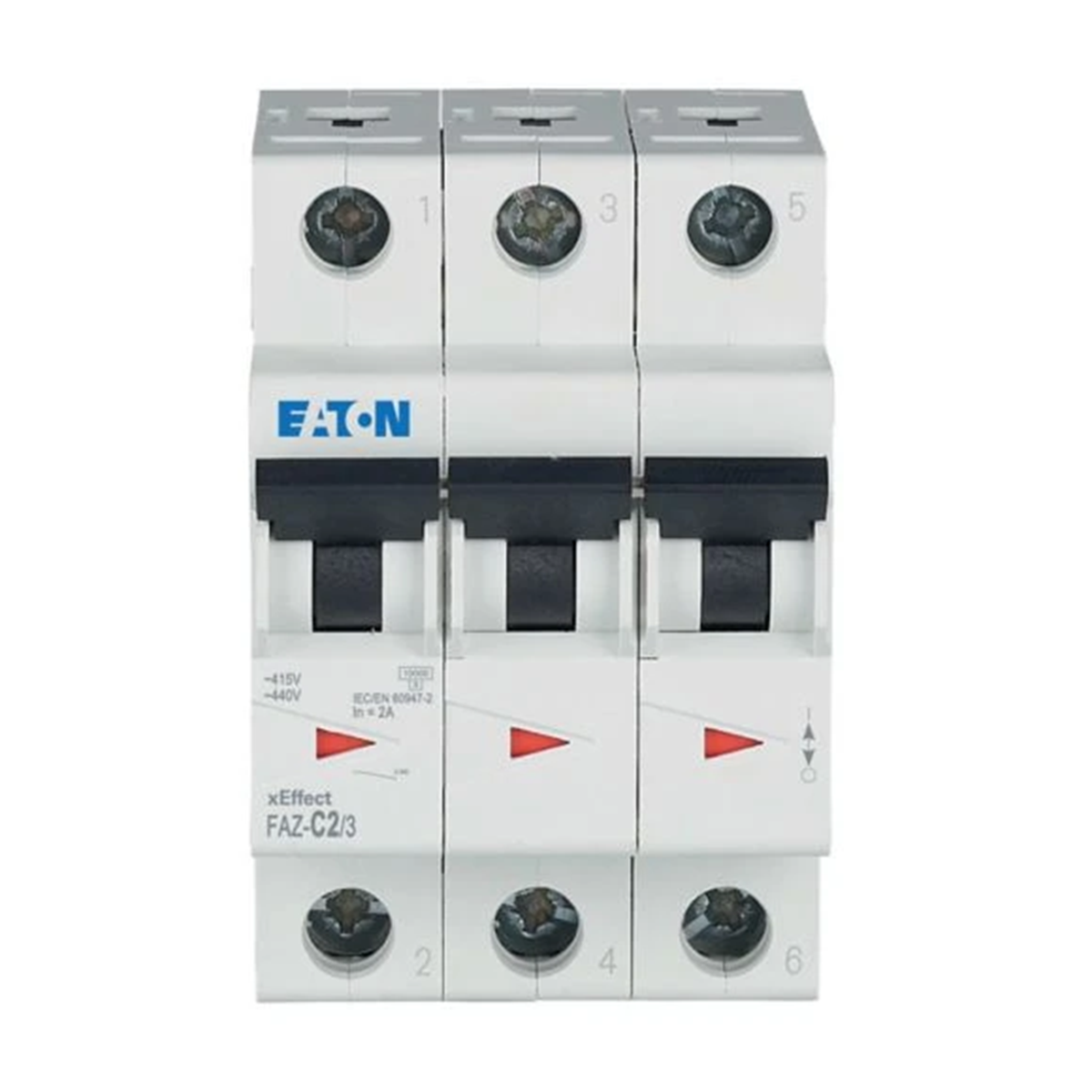

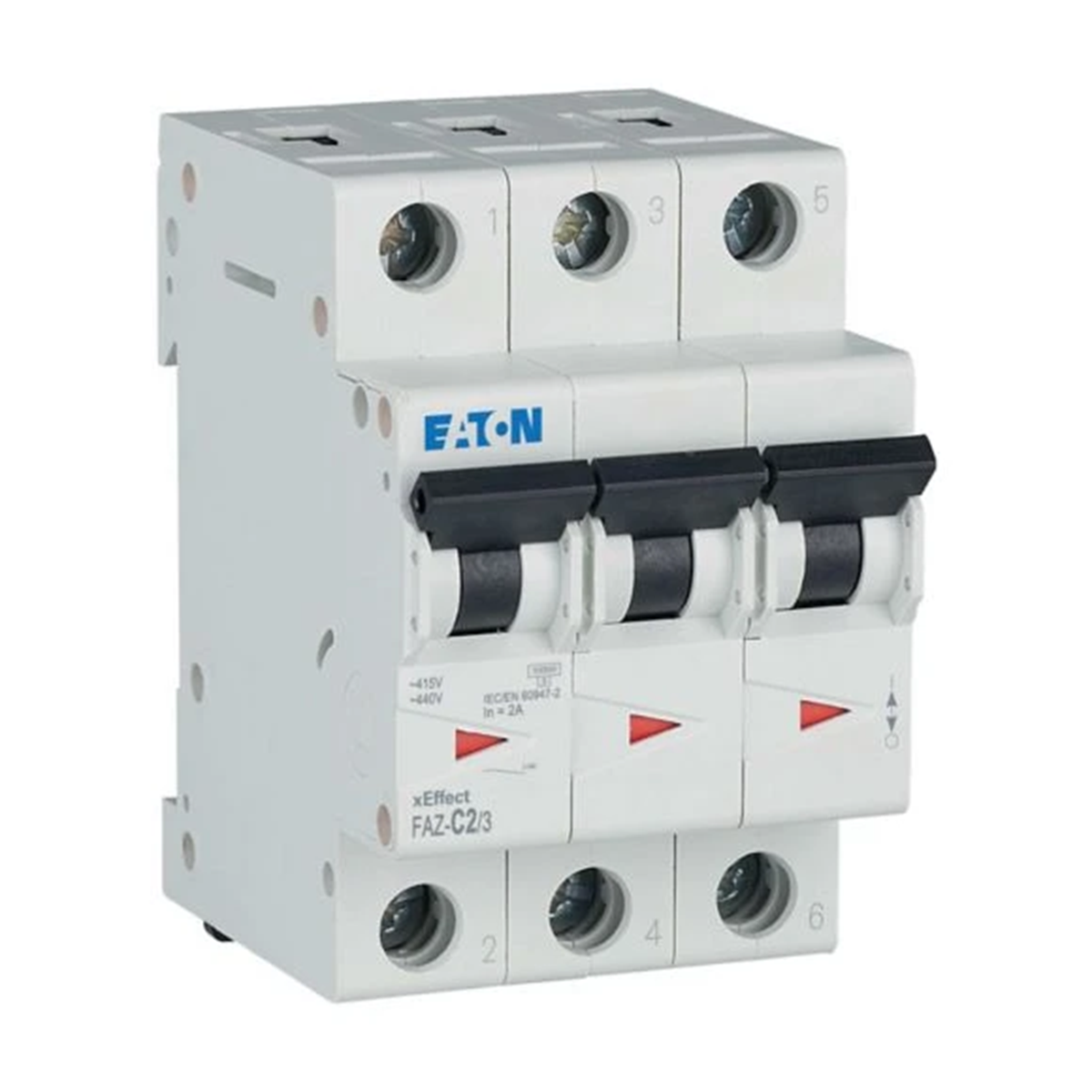

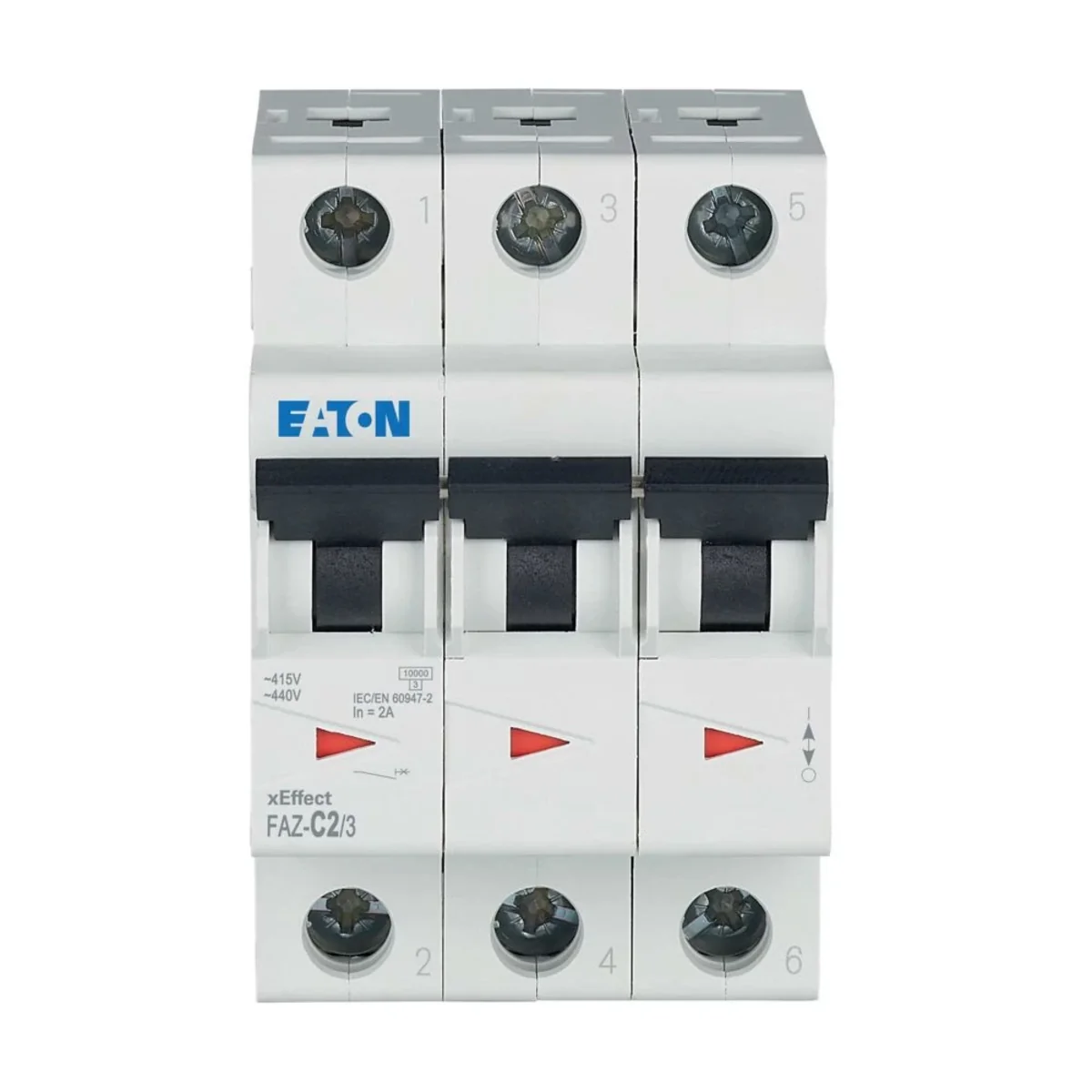

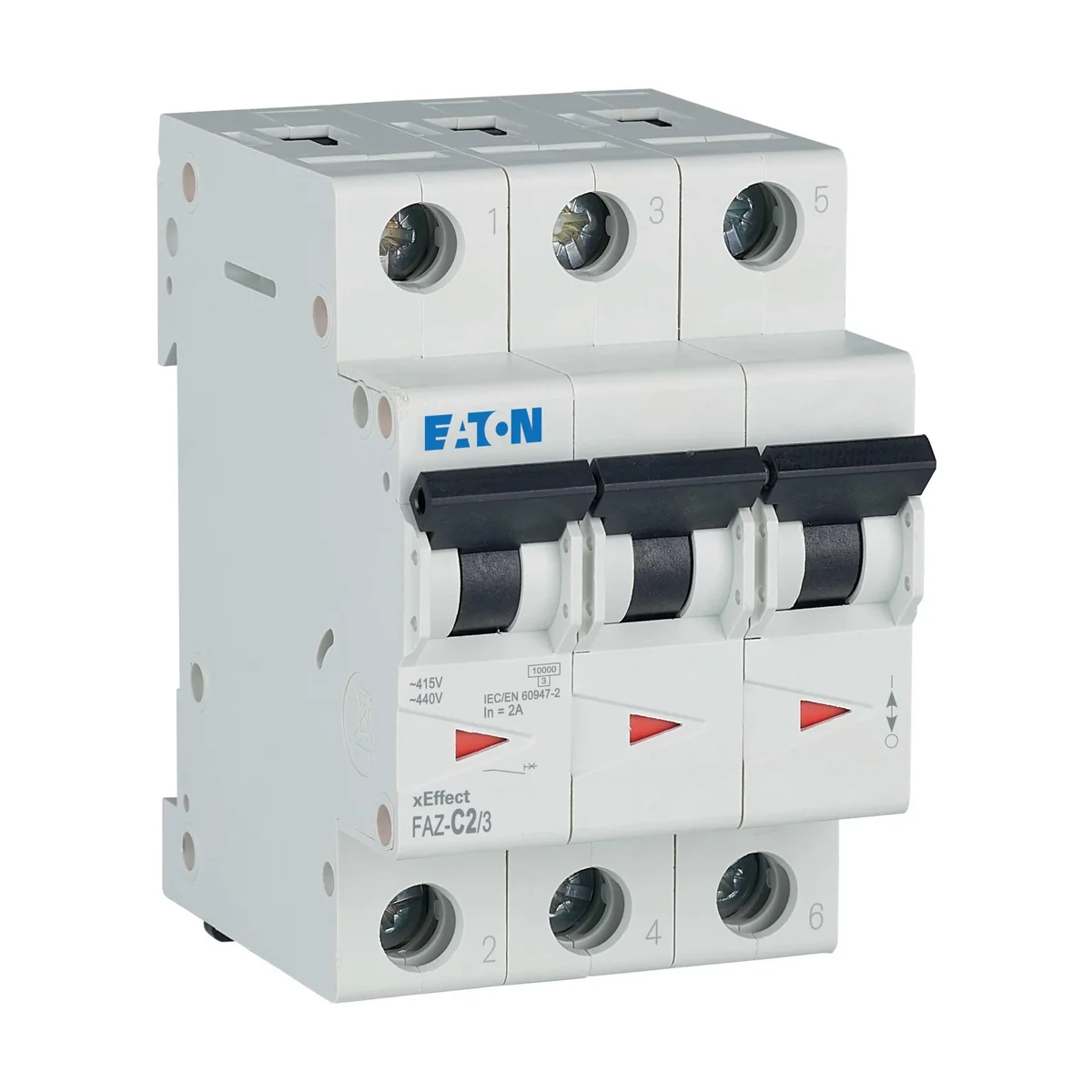

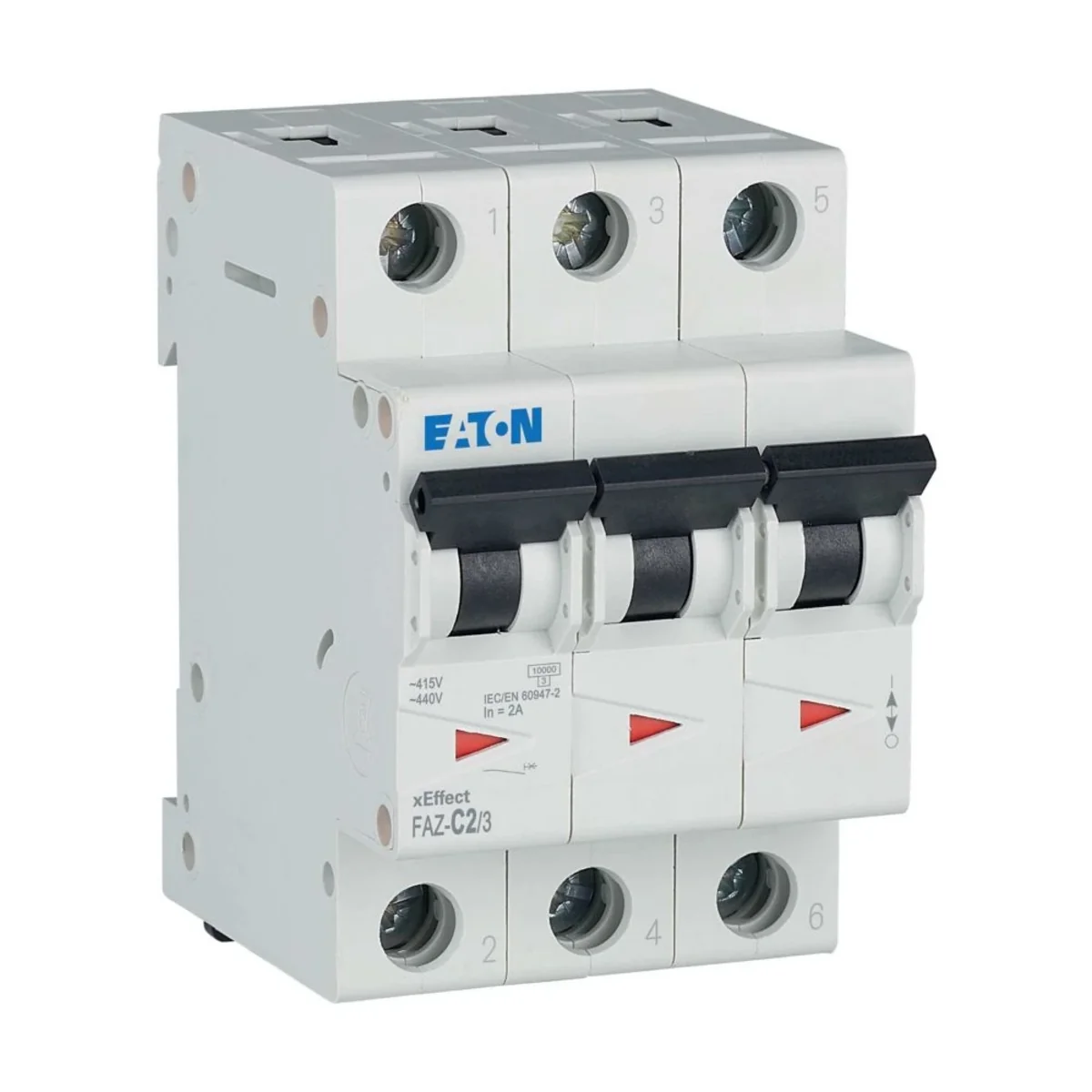

Circuit breaker, 2A, 3 poles, FAZ-C2/3 278861

Name: Circuit breaker, 2A, 3 poles, FAZ-C2/3
Brand: EATON
SKU: ABC064MOEL
Price: 68.92 PLN

Indice locale:

ABC064MOEL

Numero di catalogo:

278861

Codice EAN:

4015082788612

Clicca sulla foto per ingrandire

Produttore: EATON

Number of poles: 3

Rated current [A]: 2

Vedi la descrizione completa

Prezzo:

68,92 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 2 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

1

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

3
Rated current

2 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
