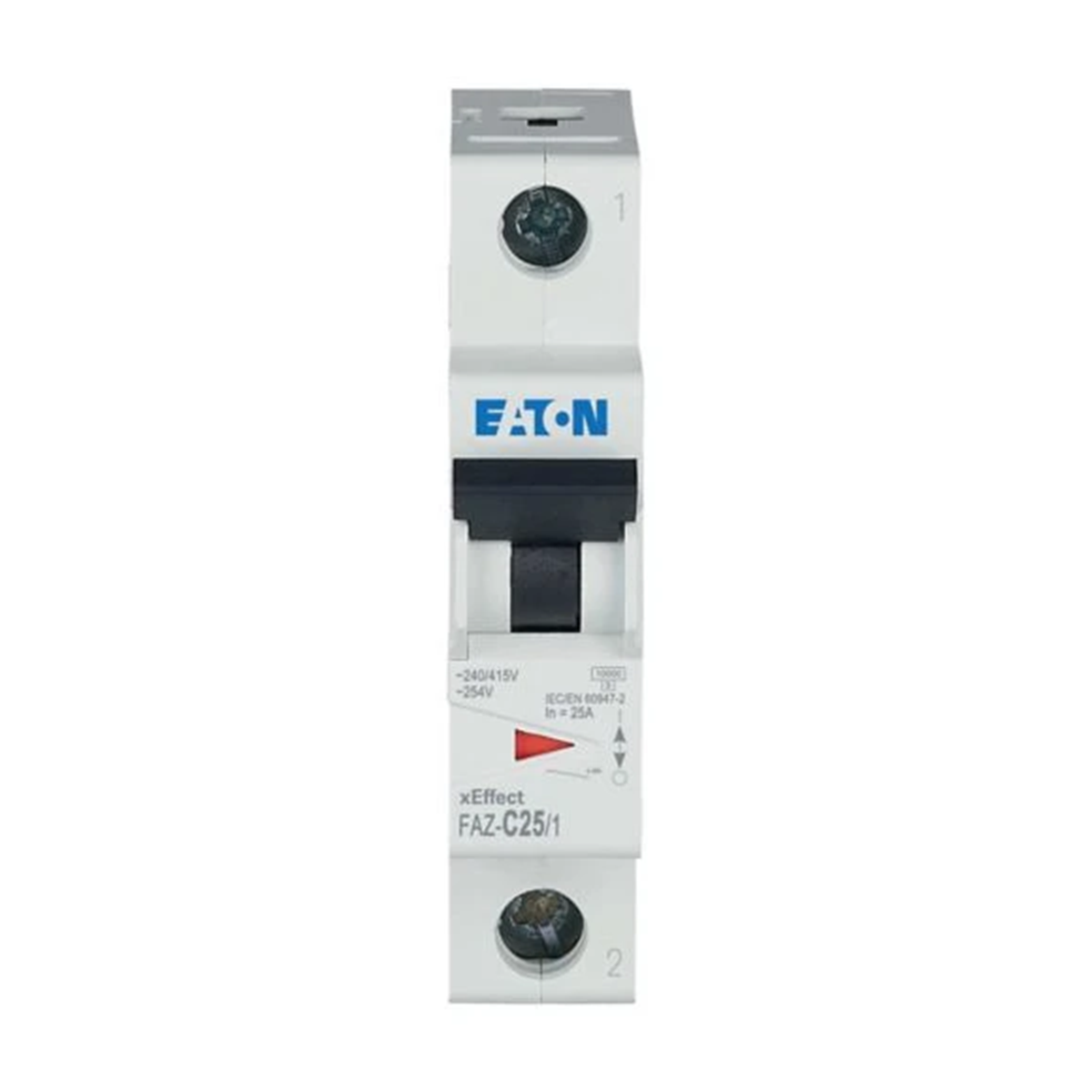

Circuit breaker, 25A, 1 pole, FAZ-C25/1 278563

Name: Circuit breaker, 25A, 1 pole, FAZ-C25/1
Brand: EATON
SKU: ABC846MOEL
Price: 13.04 PLN

Lokaler Index:

ABC846MOEL

Katalognummer:

278563

EAN-Code:

4015082785635

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Number of poles: 1

Rated current [A]: 25

Siehe vollständige Beschreibung

Preis:

13,04 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 2 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

25 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
