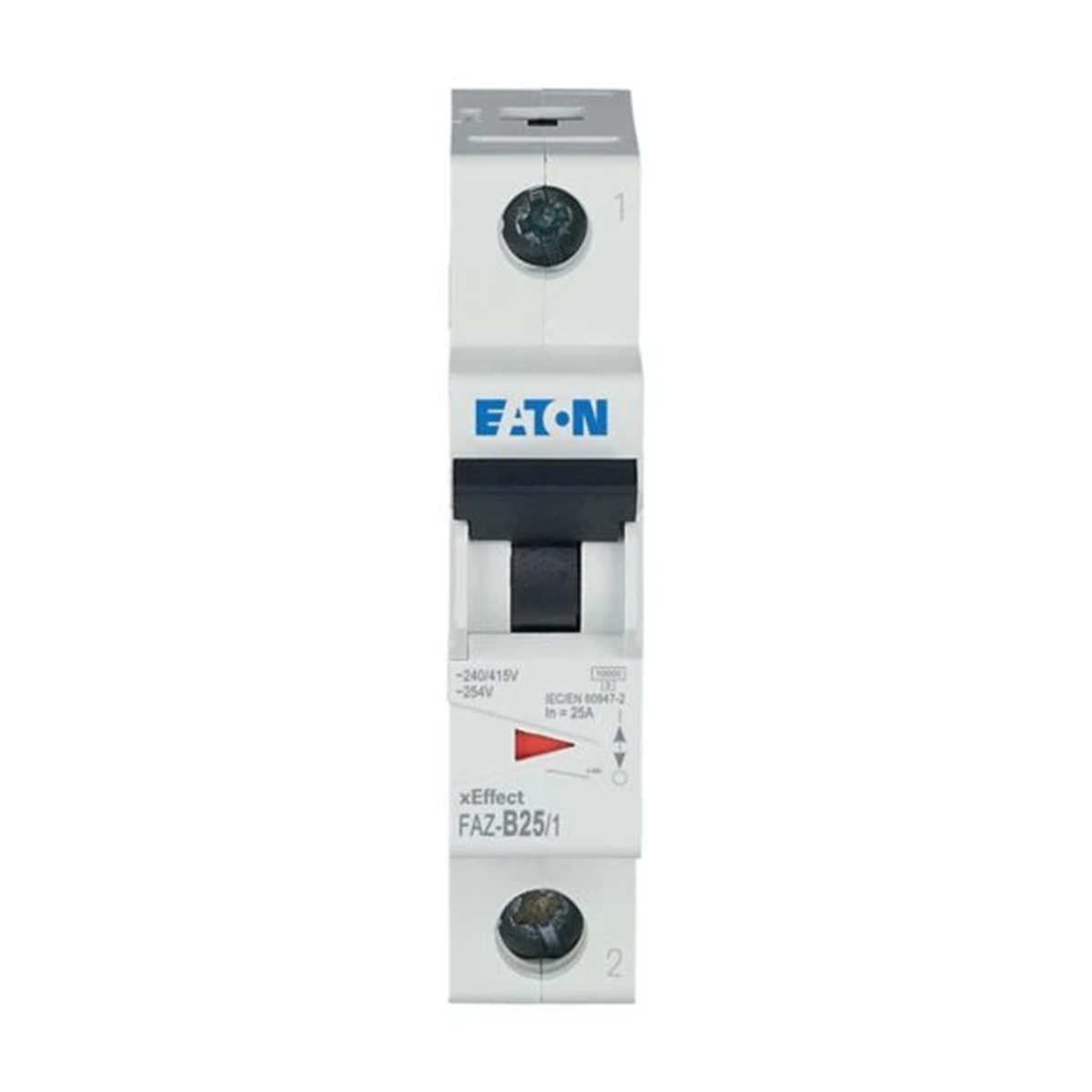

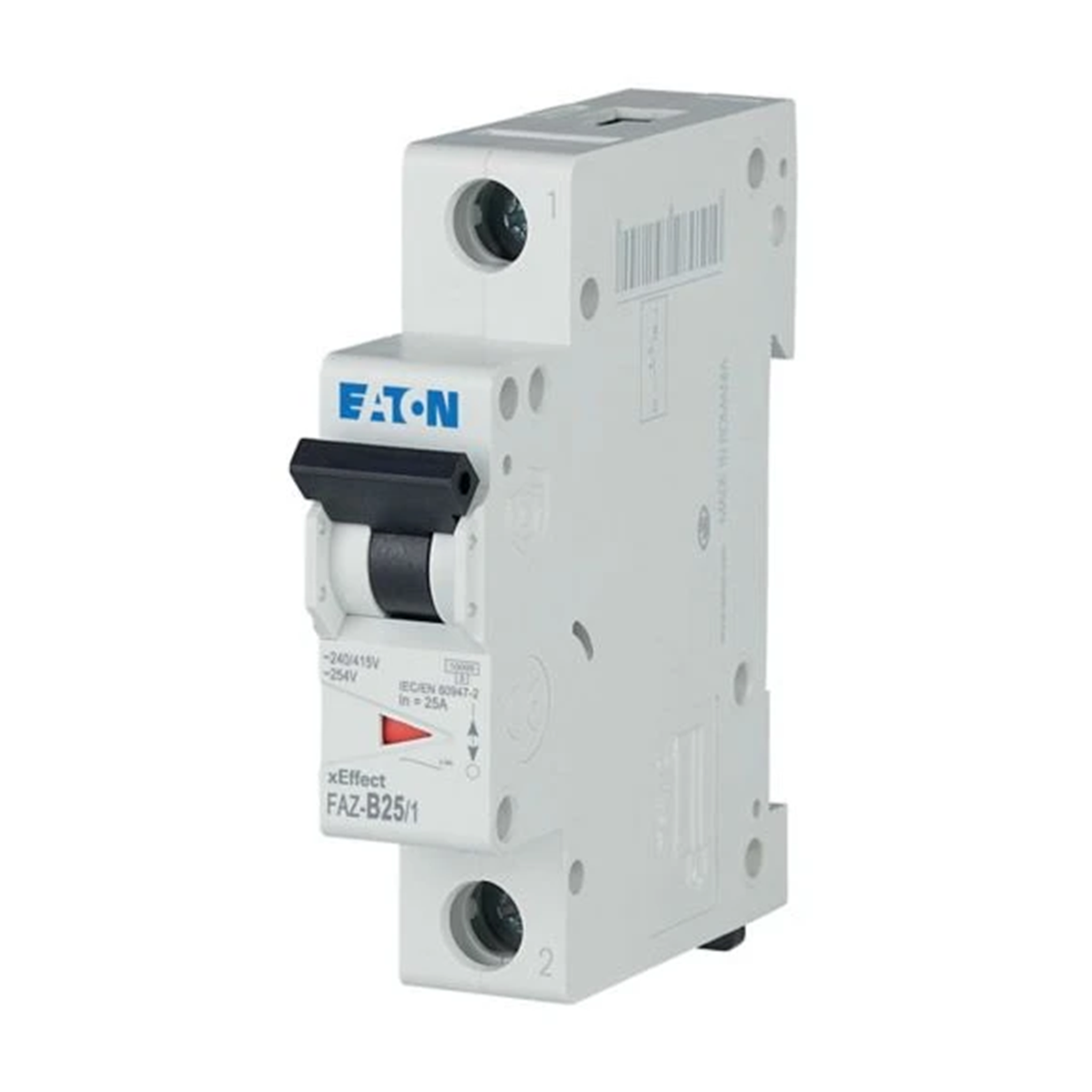

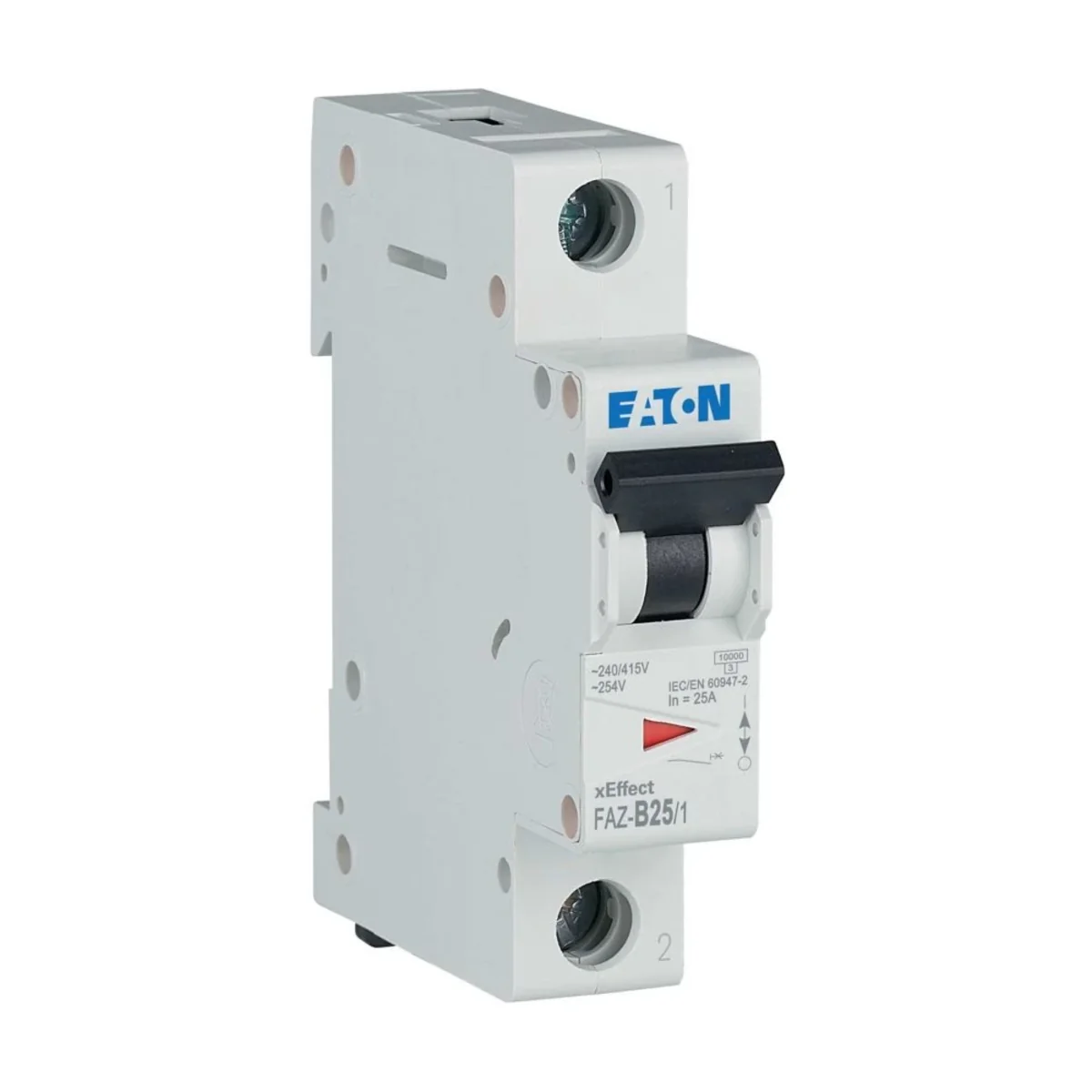

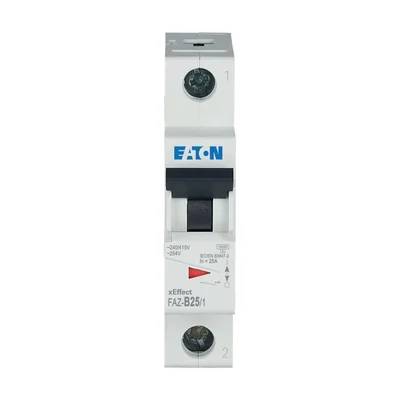

Circuit breaker, 25A, 1 pole, FAZ-B25/1 278537

Name: Circuit breaker, 25A, 1 pole, FAZ-B25/1
Brand: EATON
SKU: ABB794MOEL
Price: 13.12 PLN

Indice locale:

ABB794MOEL

Numero di catalogo:

278537

Codice EAN:

4015082785376

Clicca sulla foto per ingrandire

Produttore: EATON

Number of poles: 1

Rated current [A]: 25

Vedi la descrizione completa

Prezzo:

13,12 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 2 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

25 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
