Circuit breaker, 20A, 3 poles, FAZ-Z20/3 278928

Name: Circuit breaker, 20A, 3 poles, FAZ-Z20/3
Brand: EATON
SKU: ABN031MOEL
Price: 196.36 PLN

Lokaler Index:

ABN031MOEL

Katalognummer:

278928

EAN-Code:

4015082789282

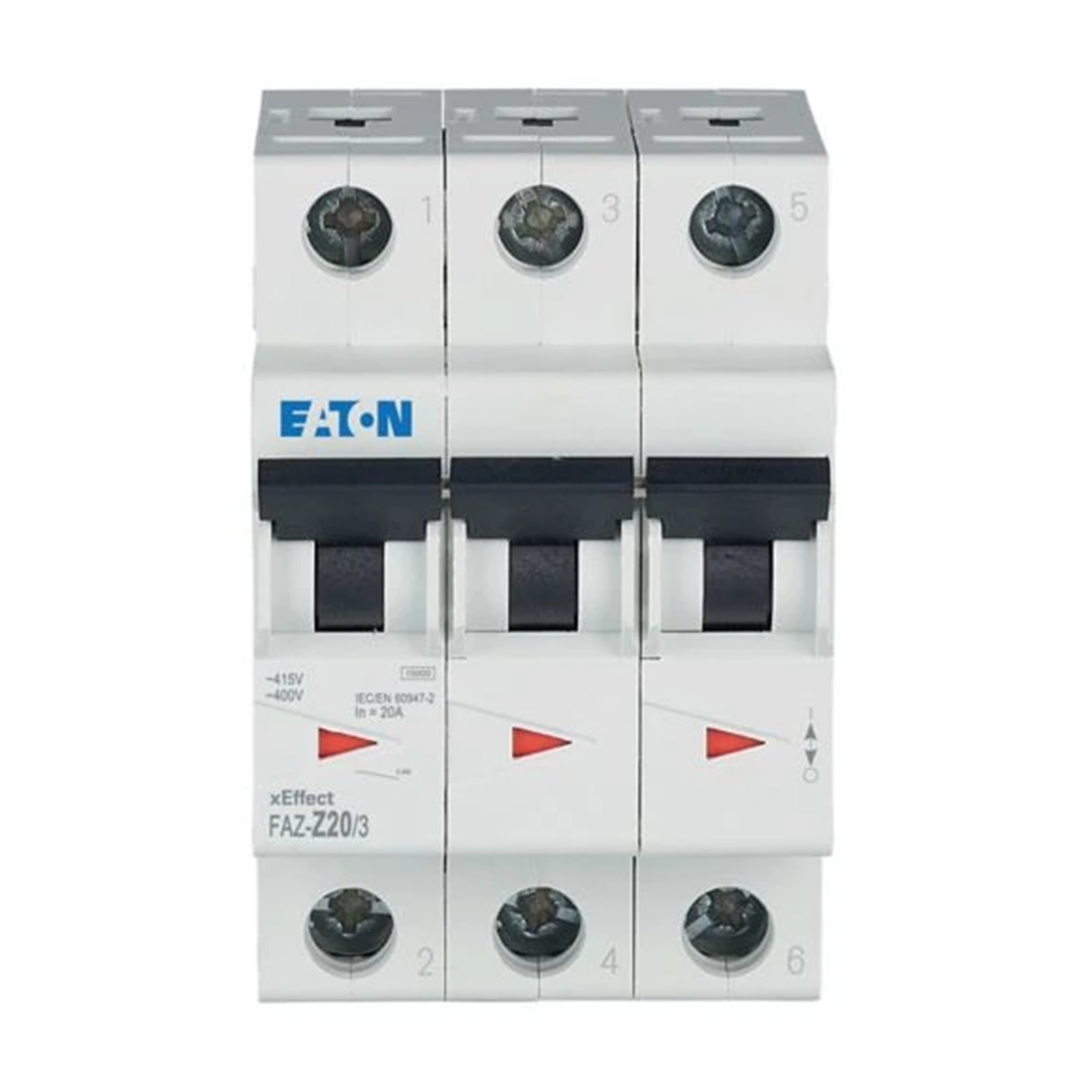

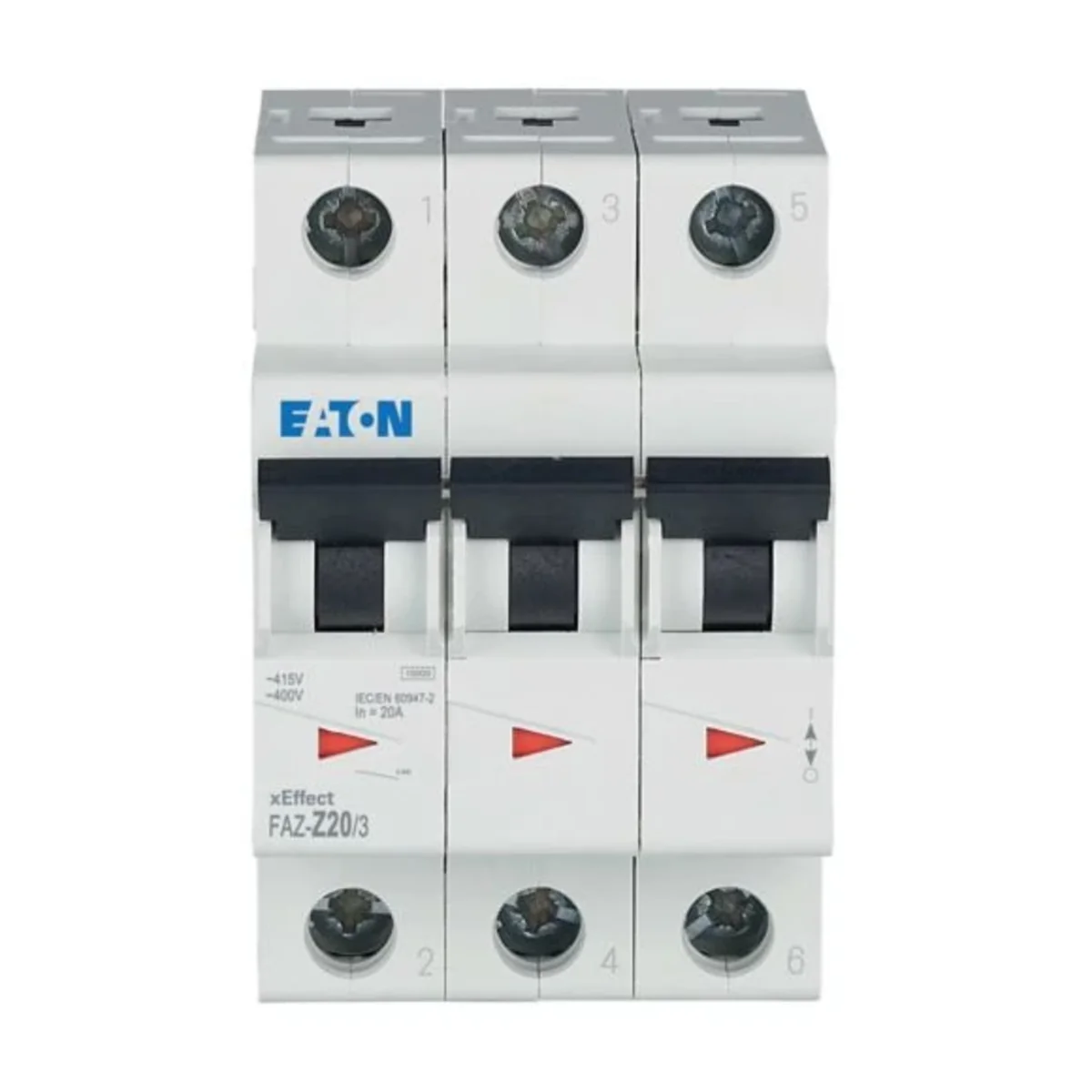

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Number of poles: 3

Rated current [A]: 20

Siehe vollständige Beschreibung

Preis:

196,36 zł

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 2 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

FAZ overcurrent circuit breakers. Characteristic Z, rated short-circuit switching capacity 15 kA current, instantaneous release 2 – 3 x In.

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

20 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1.5
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

20 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
