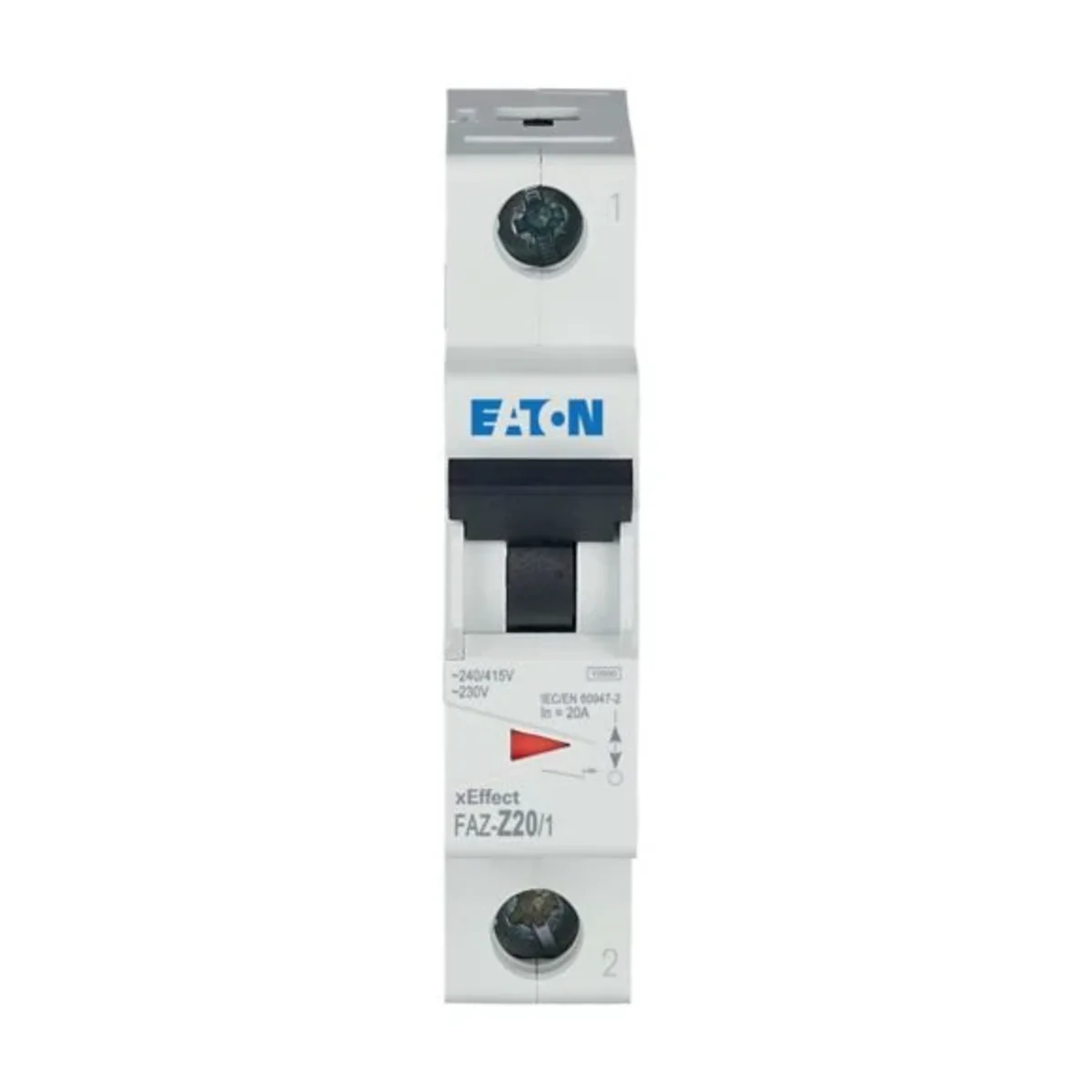

Name: Circuit breaker, 20A, 1 pole, FAZ-Z20/1
Brand: EATON
SKU: ABN002MOEL
Price: 16.00 PLN

Circuit breaker, 20A, 1 pole, FAZ-Z20/1. FAZ circuit breakers. Characteristic Z, rated short-circuit switching capacity 15 kA current, instantaneous release 2 – 3 x In.

Number of poles

1

Rated current [A]

20

Other technical data

Release characteristic

Z
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

2
Rated current

2 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	12 pcs.	120 pcs.
Weight (kg)	0,111	0,114	1,372	13,919
Volume (m3)	0,000	0,000	0,001	0,016
Width (m)	0,018	0,020	0,218	0,180
Length (m)	0,080	0,082	0,086	0,385
Depth (m)	0,075	0,078	0,075	0,230
