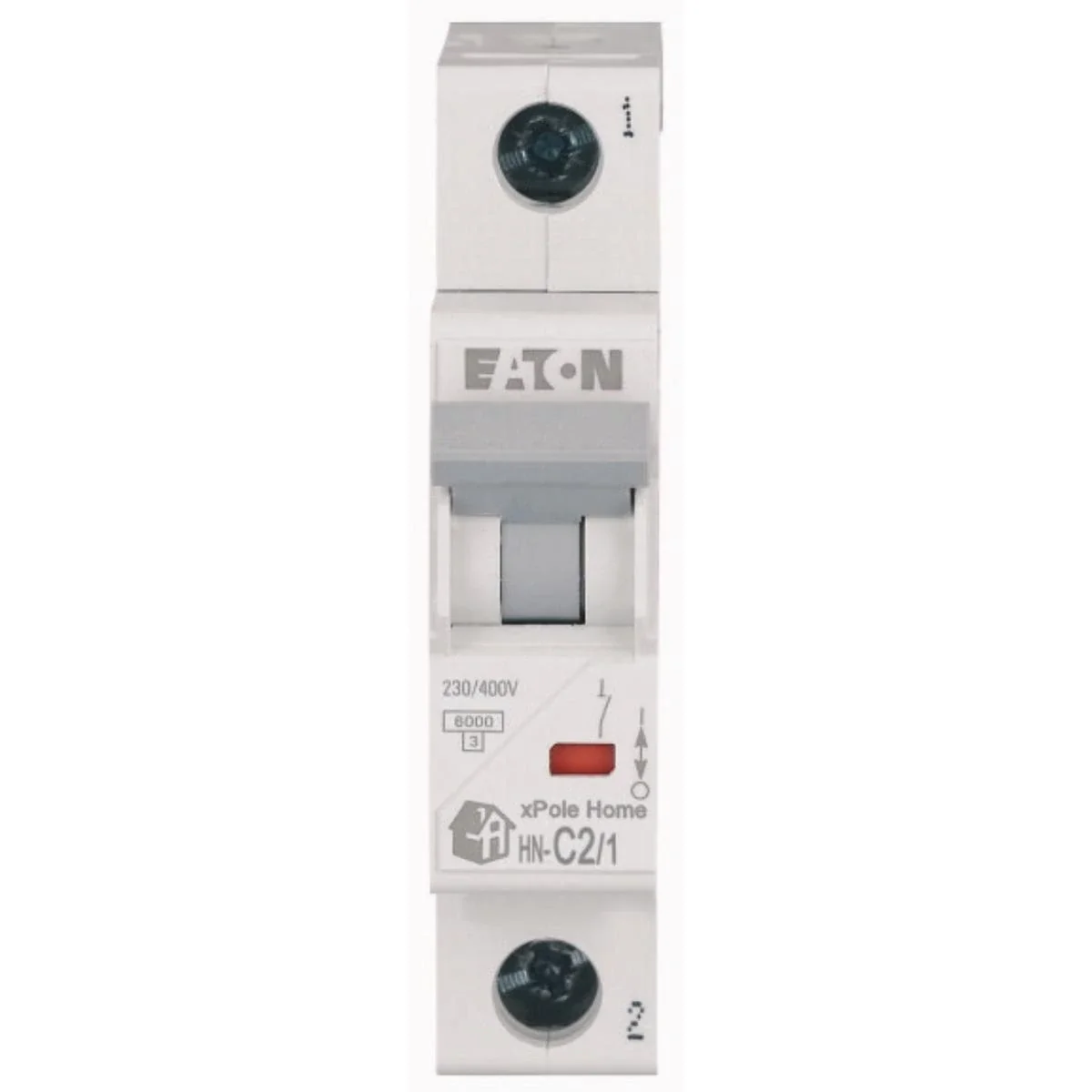

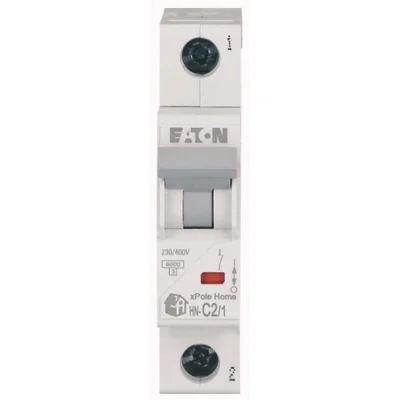

Circuit breaker 1P 2A 230V 6kA EP-500762

Índice local:
ABC248MOEL
Número de catálogo:
EP-500762
Código EAN:
9010653028222
Fabricante: EATON
Characteristic: c
Frequency [Hz]: 50-60
Number of modules: 1
Precio:
12,60 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Accesible 152 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

6kA circuit breakerwith electrical strength up to 10,000 operations, mechanical strength up to 20,000 operations.

  • Width expressed in the number of modules 17.5,
  • Cross-section of the connected multi-core cable 1 - 25 mm2.
  • Operating temperature from -25 to 75 C,
  • Frequency range 50 - 60 Hz.

Datos técnicos

  • Characteristic
    c
  • Number of modules
    1
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Number of modules
    1
  • Frequency [Hz]
    50-60
  • Number of poles
    1
  • Rated current [A]
    2
  • Rated short-circuit breaking capacity [kA]
    6

Otros datos técnicos

  • Built-in depth
    49.5 mm
  • Number of poles (total)
    1
  • Rated current
    2 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    17.5
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    No
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Detalles del fabricante

  • Fabricante
    EATON ELECTRIC SP. Z O.O.
  • Dirección
    80-299 UL. GALAKTYCZNA 30
  • NIF
    5841022327

Empaquetado a granel

una especie de paquete Skrzynia Karton Karton
Cantidad 1 uds. 1 uds. 12 uds. 120 uds.
Peso (kg) 0,120 0,137 1,640 16,400
Volumen (m3) 0,000 0,000 0,001 0,016
Ancho (m) 0,018 0,020 0,218 0,180
Longitud (m) 0,085 0,087 0,086 0,385
Profundidad (m) 0,073 0,075 0,075 0,230
