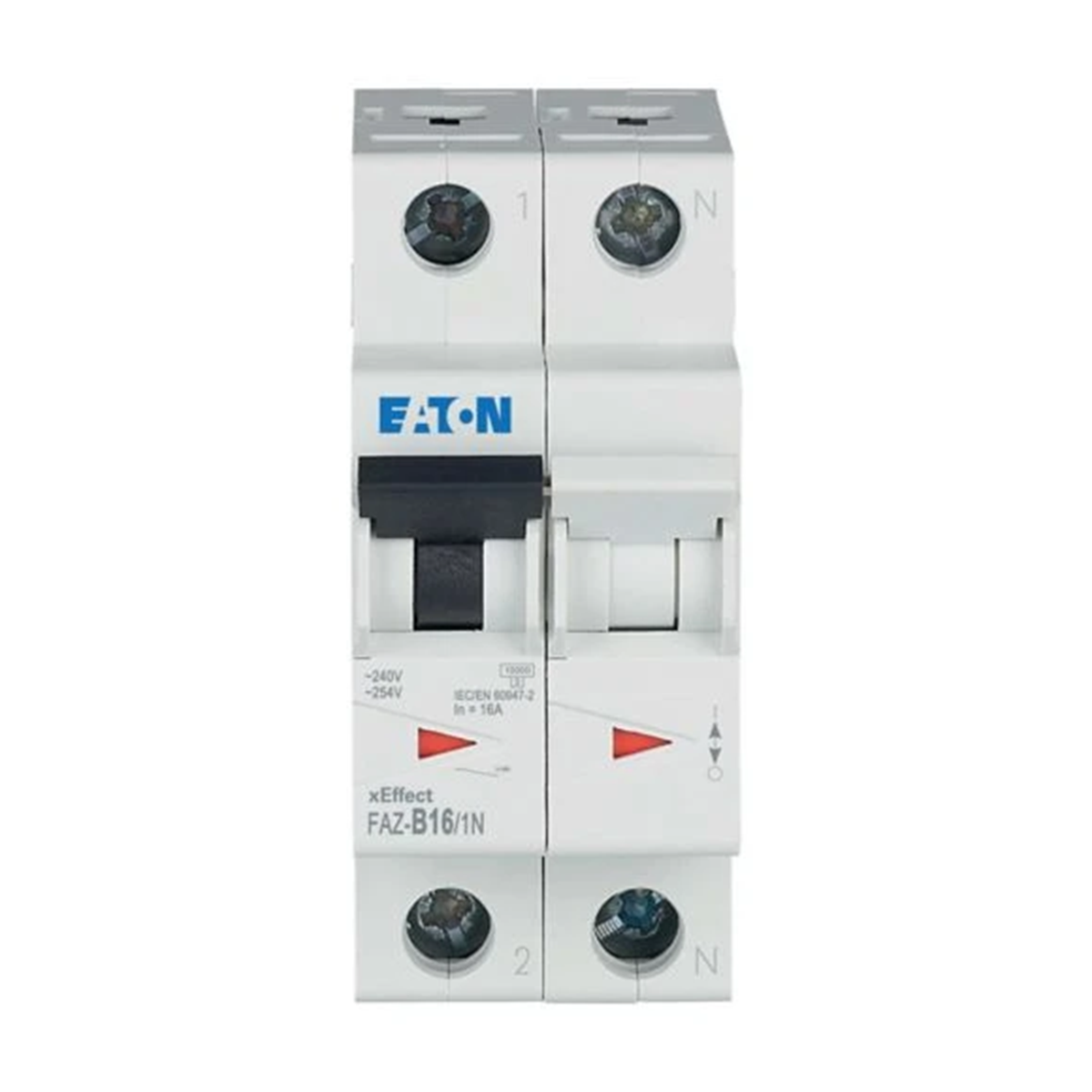

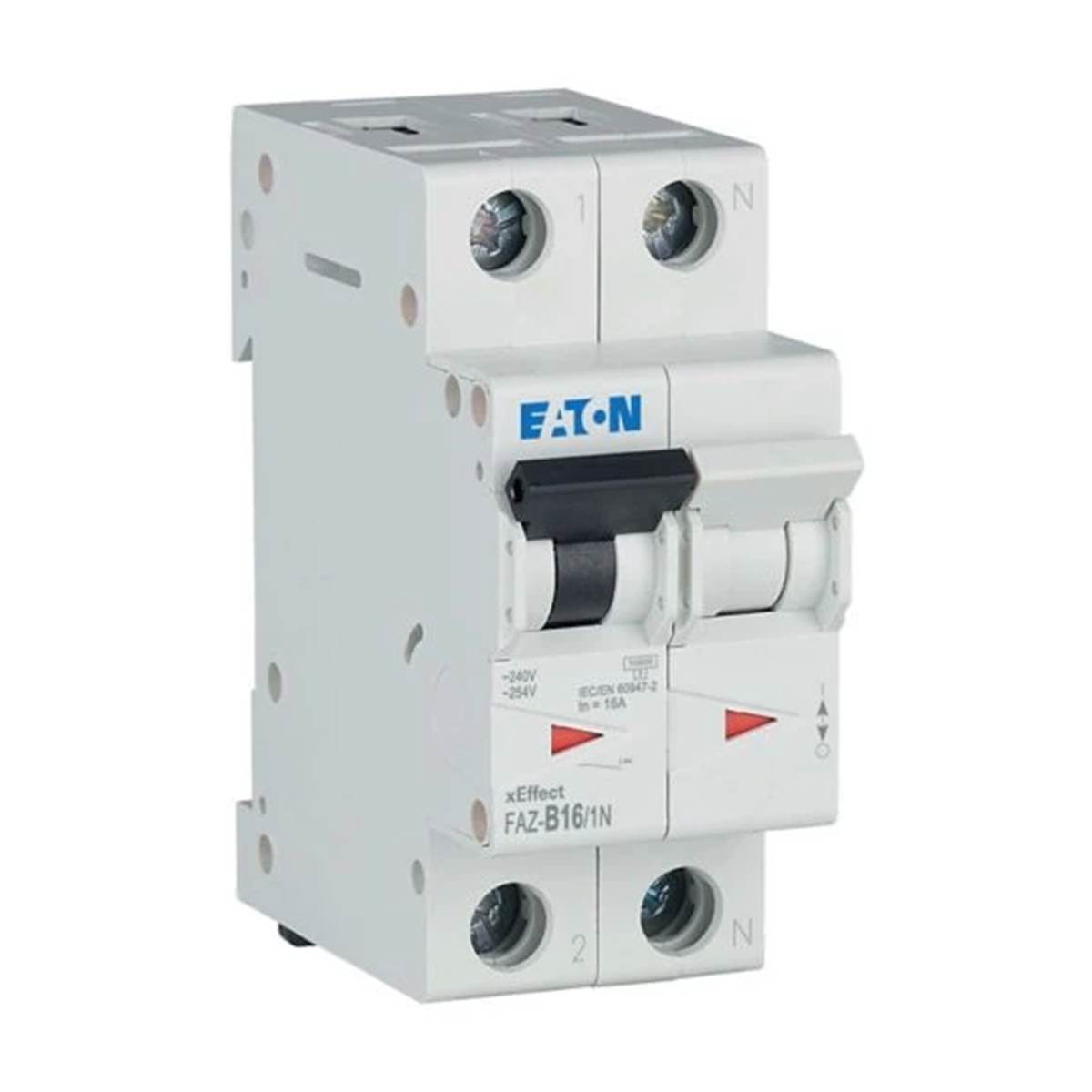

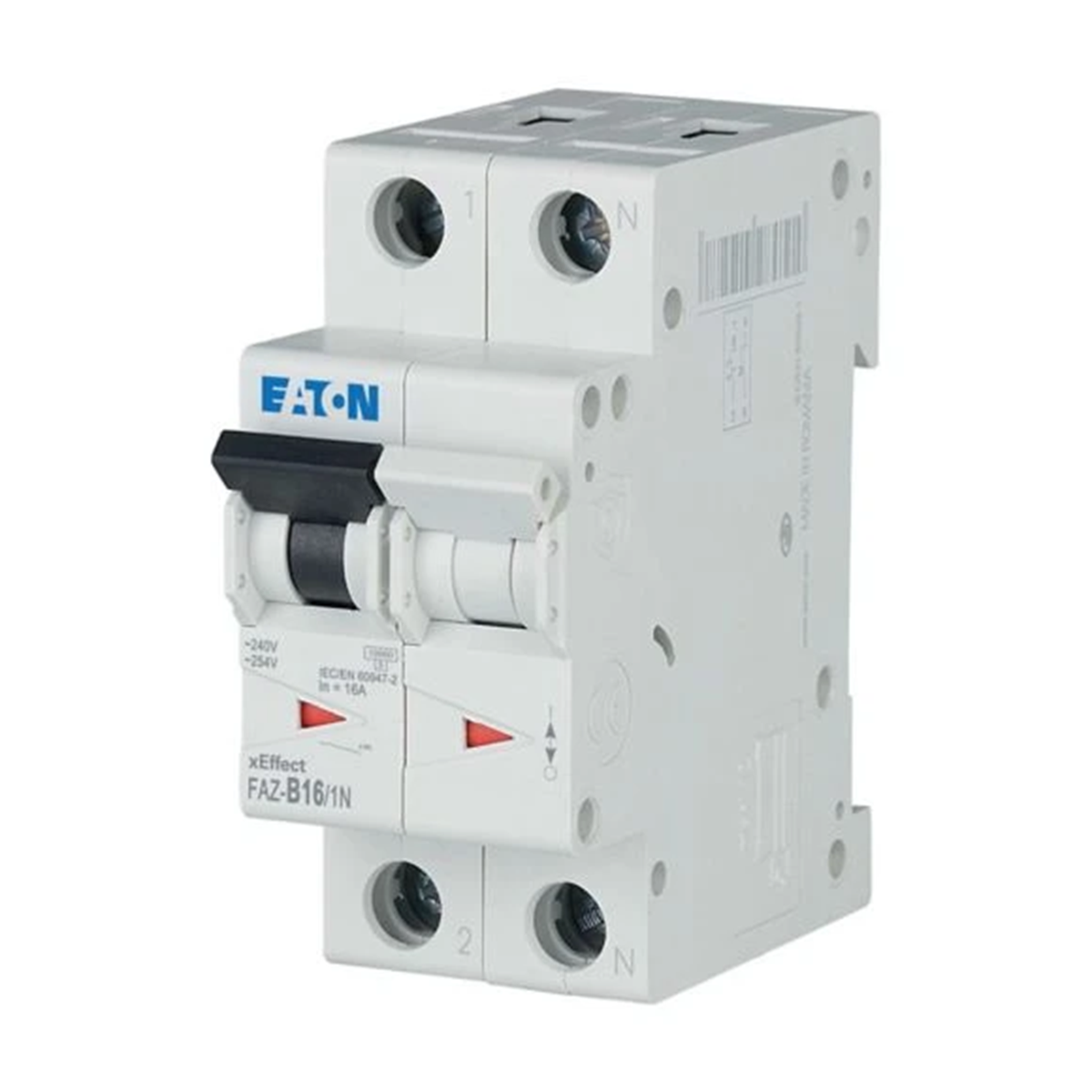

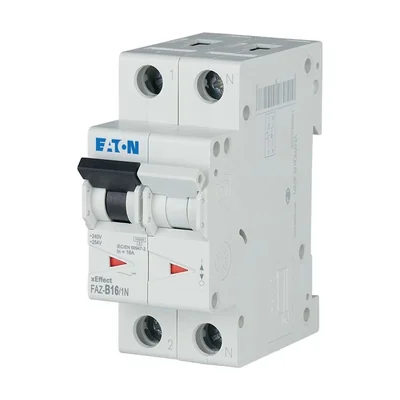

Circuit breaker, 16A, 1+N pole, FAZ-B16/1N 278648

Name: Circuit breaker, 16A, 1+N pole, FAZ-B16/1N
Brand: EATON
SKU: ABB803MOEL
Price: 20.80 PLN

Index local:

ABB803MOEL

Numéro de catalogue:

278648

Code EAN:

4015082786489

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of poles: 2

Rated current [A]: 16

Voir la description complète

Prix:

20,80 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 2 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

1

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

2
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

2
Rated current

16 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
