Electrical apparatus
fuses
Other fuses

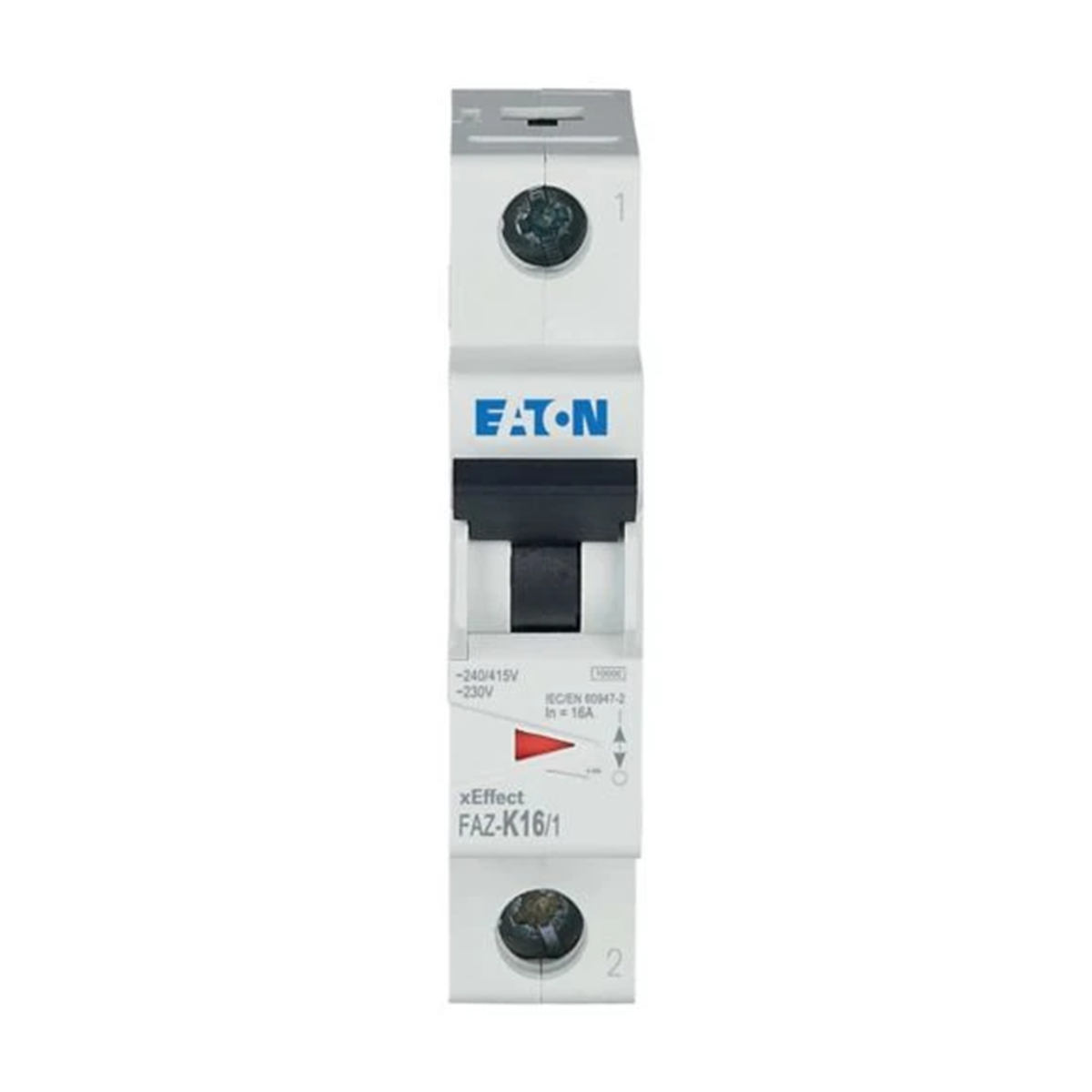

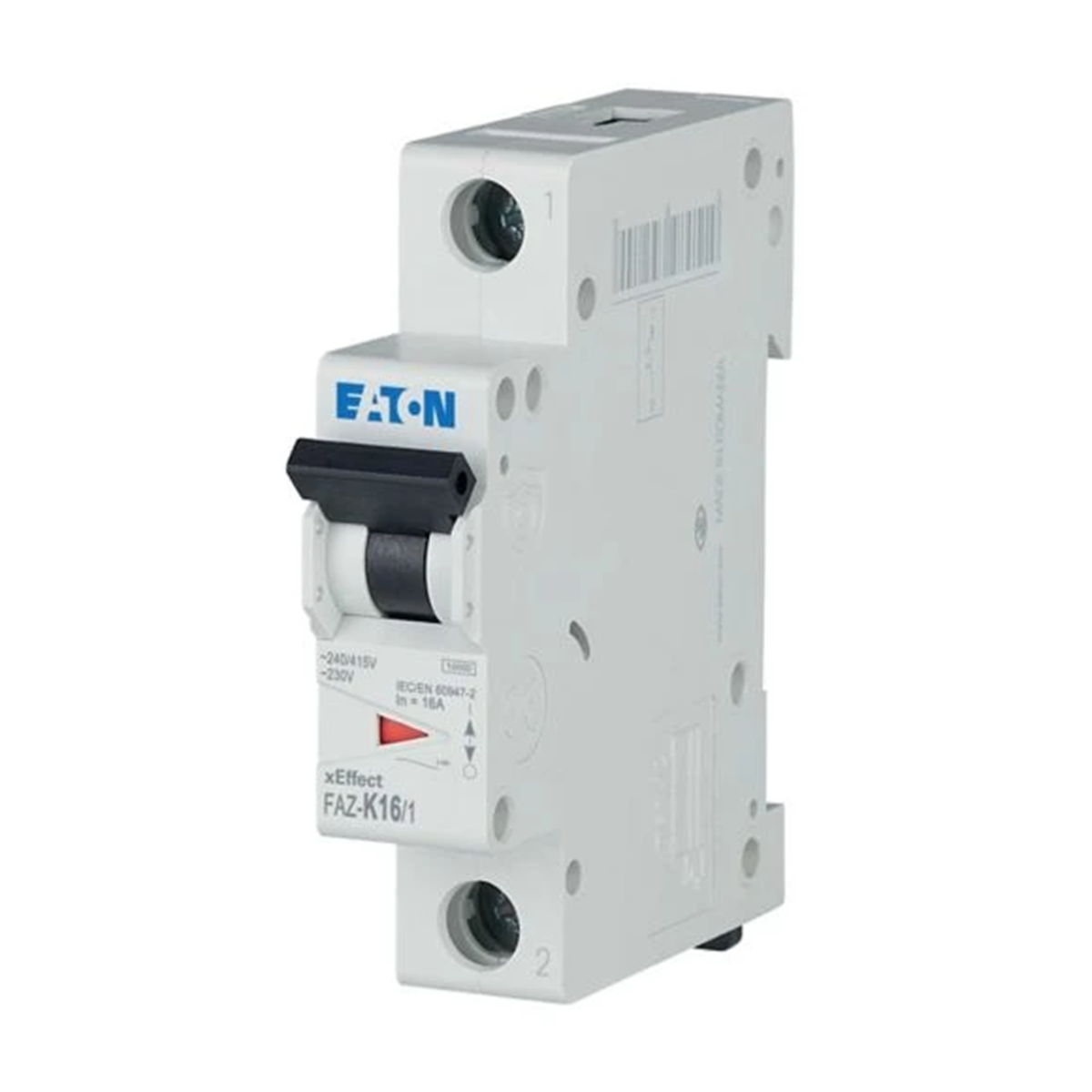

Circuit breaker, 16A, 1 pole, FAZ-K16/1 278599
local index:
ABN030MOEL
Catalog No:
278599
EAN code:
4015082785994
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
1
Rated current [A]:
16
See full description
Price:
16,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
12
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Files to download
Product description
FAZ circuit breakers. Characteristic K, rated short-circuit breaking capacity 15 kA, instantaneous release pick-up current 8 – 12 x In.
Expand full description ▼
Technical data
Number of poles
1
Rated current [A]
16
Other technical data
Release characteristic
K
Number of protected poles
1
Rated voltage
230 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Pollution degree
2
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Number of poles (total)
1
Rated current
16 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Voltage type
AC
Current limiting class
3
Over voltage category
3
Additional equipment possible
Yes
Built-in depth
70.5 mm
Ambient temperature during operating
-25 ... 75 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Expand Technical Data ▼
Manufacturer details
Manufacturer
EATON Electric Sp. z o.o.
Address
80-299 Gdańsk ul. Galaktyczna 30
Tax identification number
5841022327
Bulk packaging
A kind of package
Skrzynia
Karton
Karton
Quantity
1 pcs.
12 pcs.
120 pcs.
Weight (kg)
0,114
1,371
13,907
Volume (m3)
0,000
0,001
0,016
Width (m)
0,020
0,218
0,180
Length (m)
0,082
0,086
0,385
Depth (m)
0,078
0,075
0,230
Files to download
03_FAZ-B-C-D.pdf
