el12 Electrical apparatus fuses Circuit breakers with "D" characteristic Circuit breaker, 16A, 1 pole, FAZ-D16/1

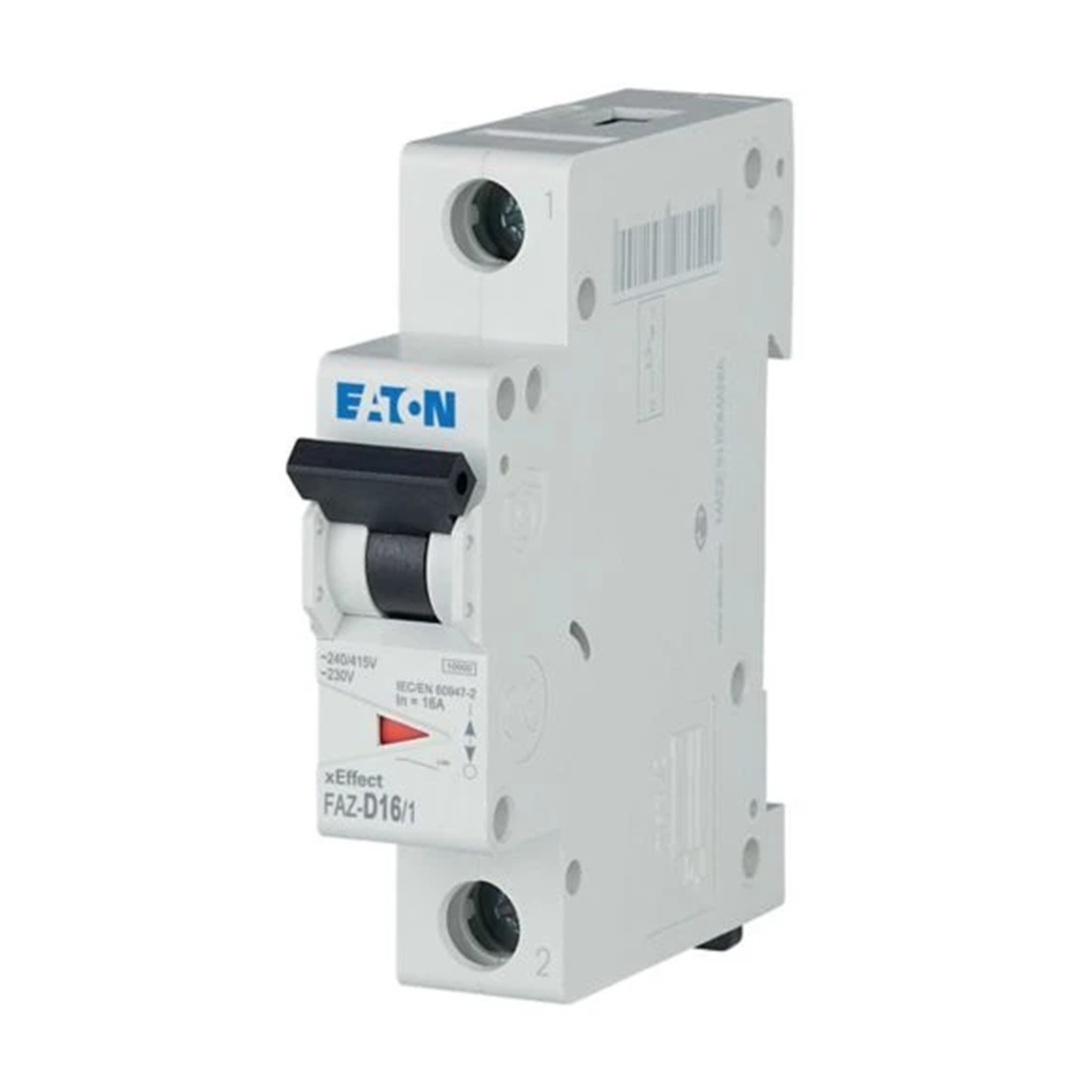

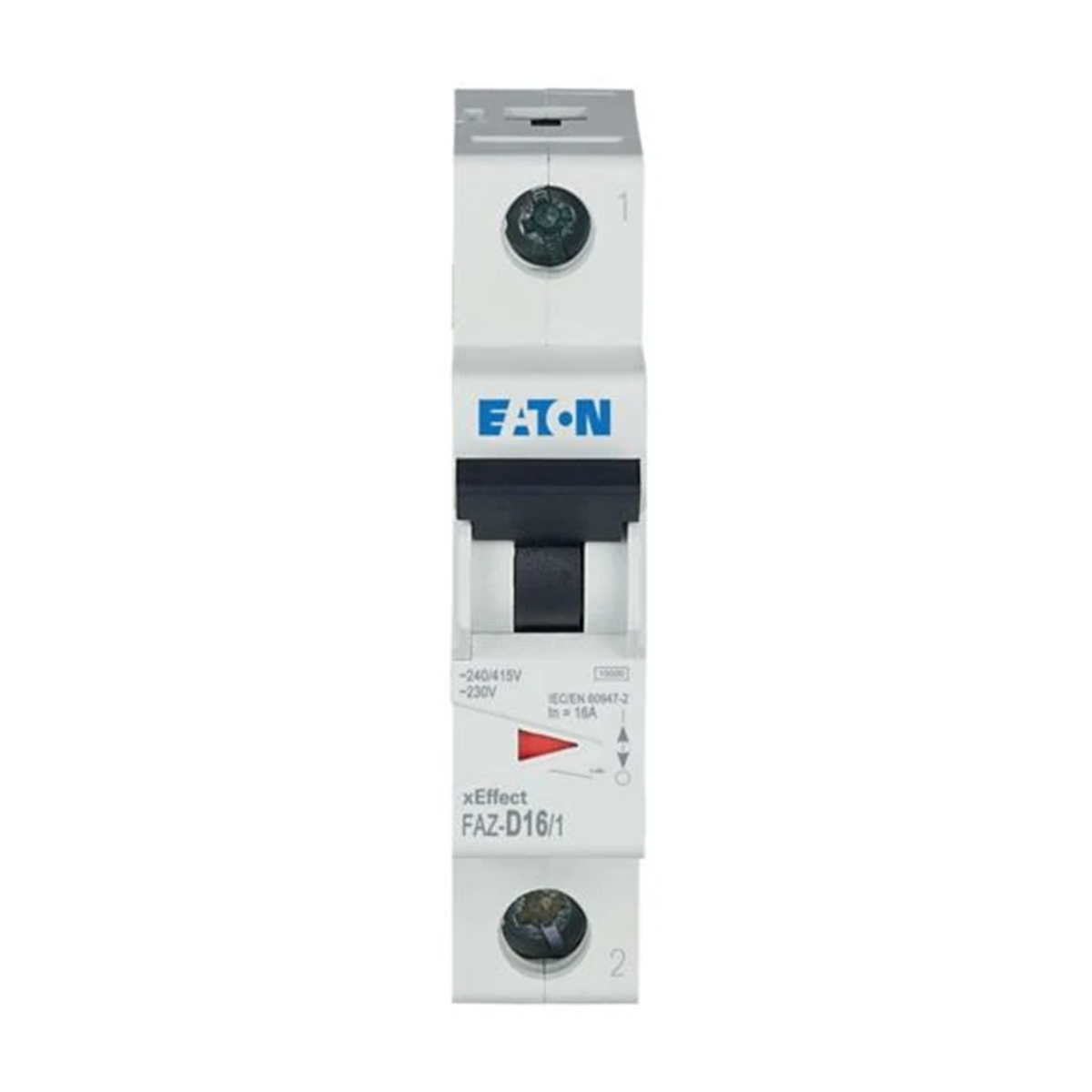

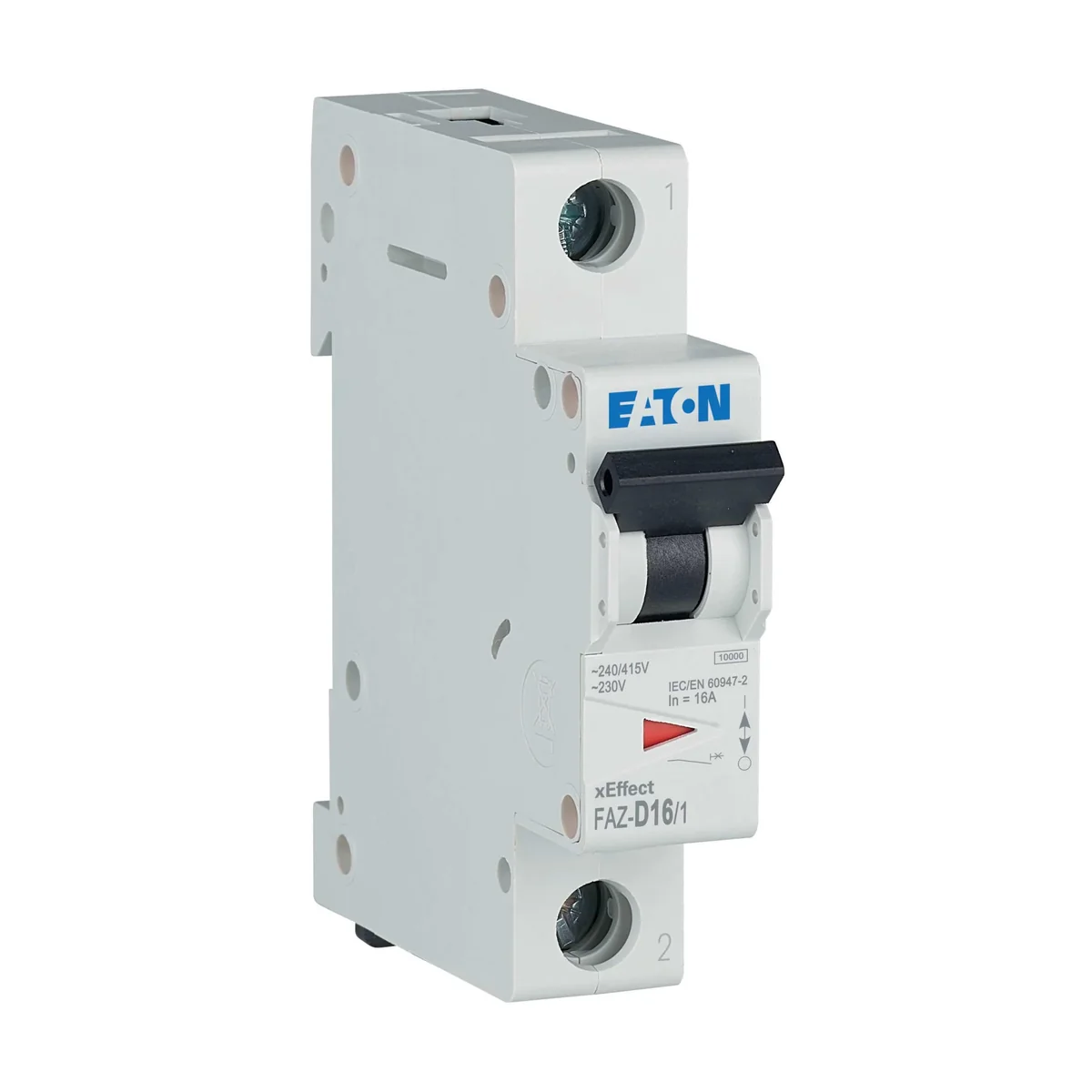

Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1

Click on the photo to enlarge

Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1
Circuit breaker, 16A, 1 pole, FAZ-D16/1
EATON

Circuit breaker, 16A, 1 pole, FAZ-D16/1 278584

local index:
ABD359MOEL
Catalog No:
278584
EAN code:
4015082785840
Price:
16,62 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

• Rated current up to 63 A
• Characteristics B, C, D
• Rated short-circuit breaking capacity 6 kA according to IEC/EN 60898-1
• Optical contact setting status indicator (red/green)
• Rich accessories

Print the product sheet Report an error

Technical data

  • Number of poles
    1
  • Rated current [A]
    16

Other technical data

  • Release characteristic
    D
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    no
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    16 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
