Circuit breaker, 16A, 1 pole, FAZ-C16/1 278561

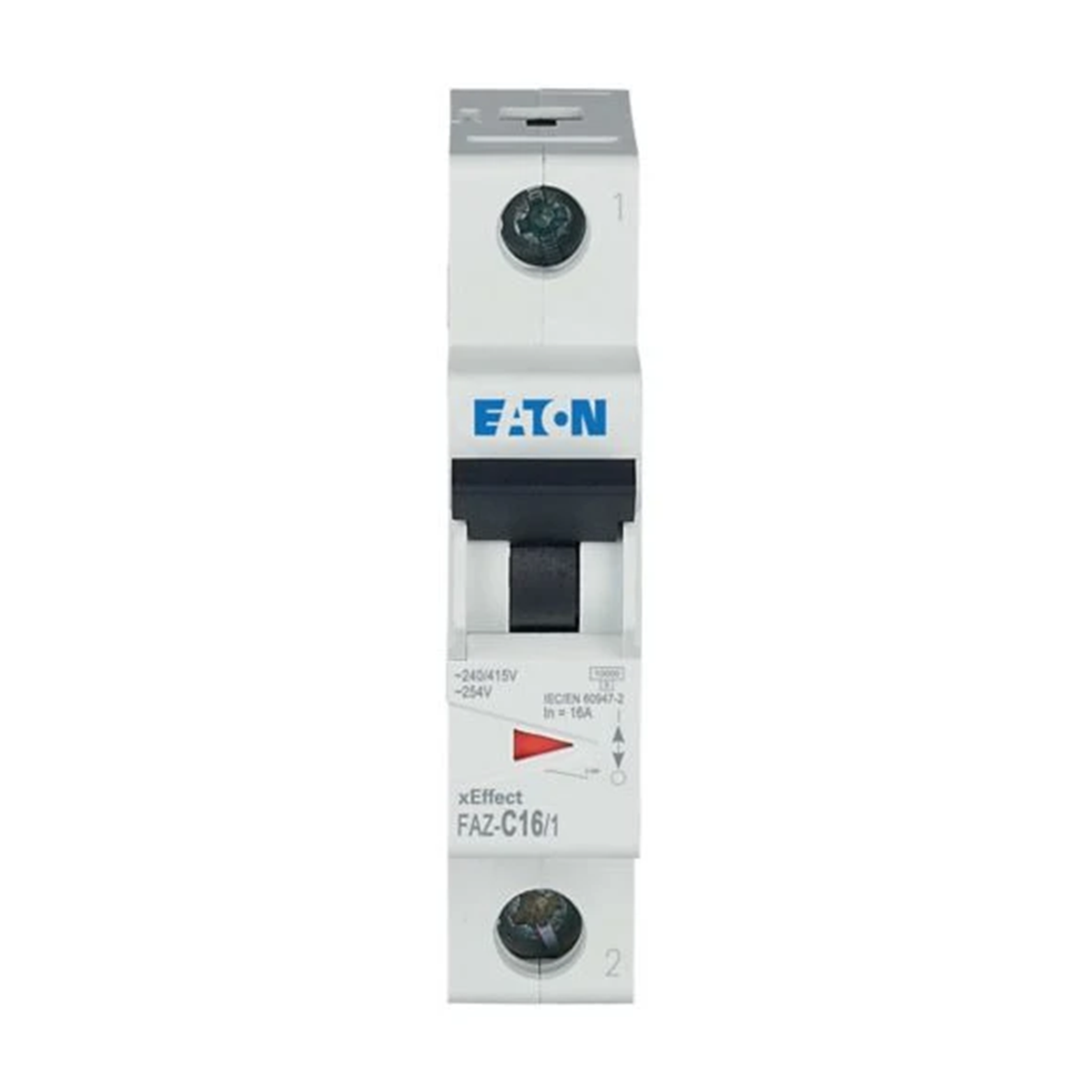

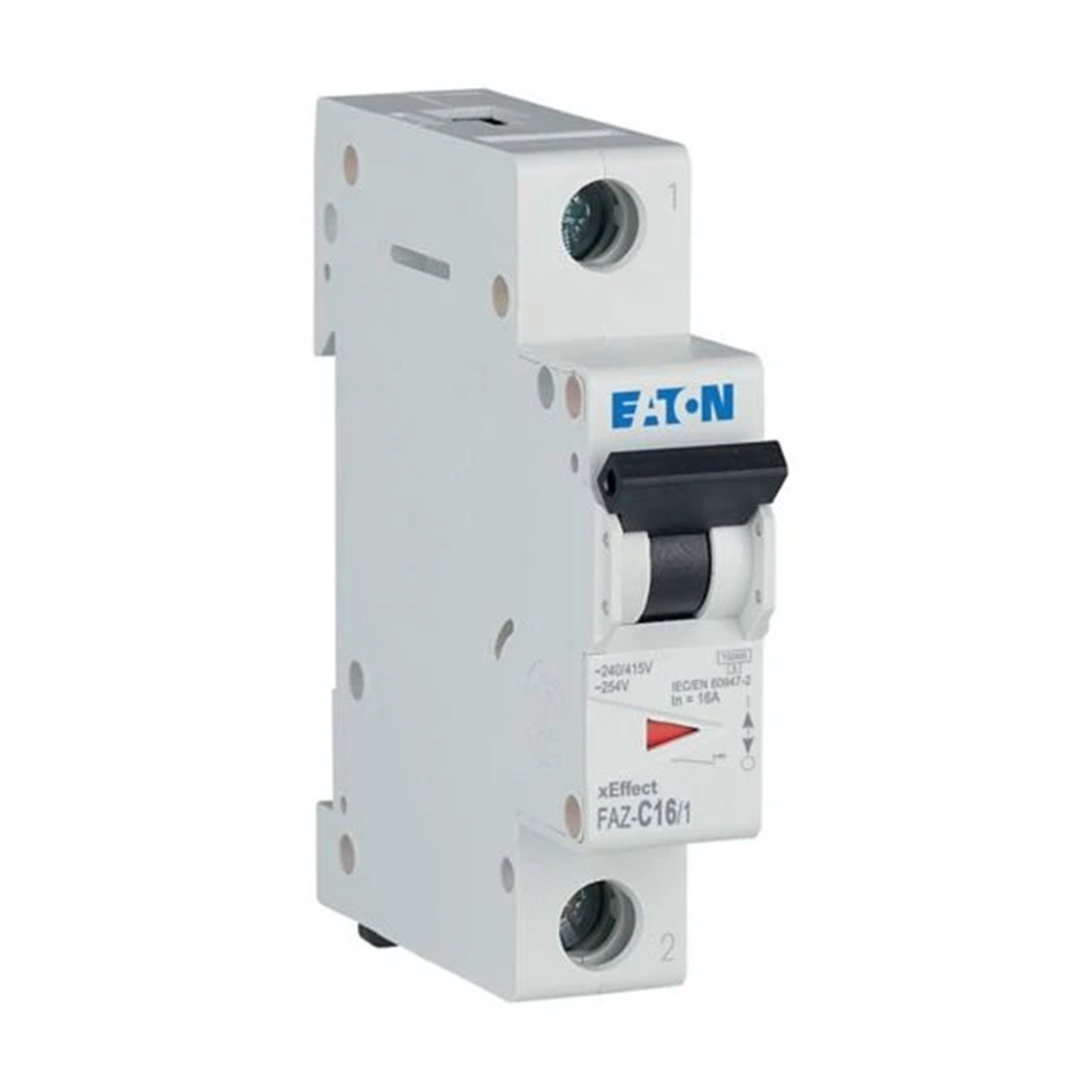

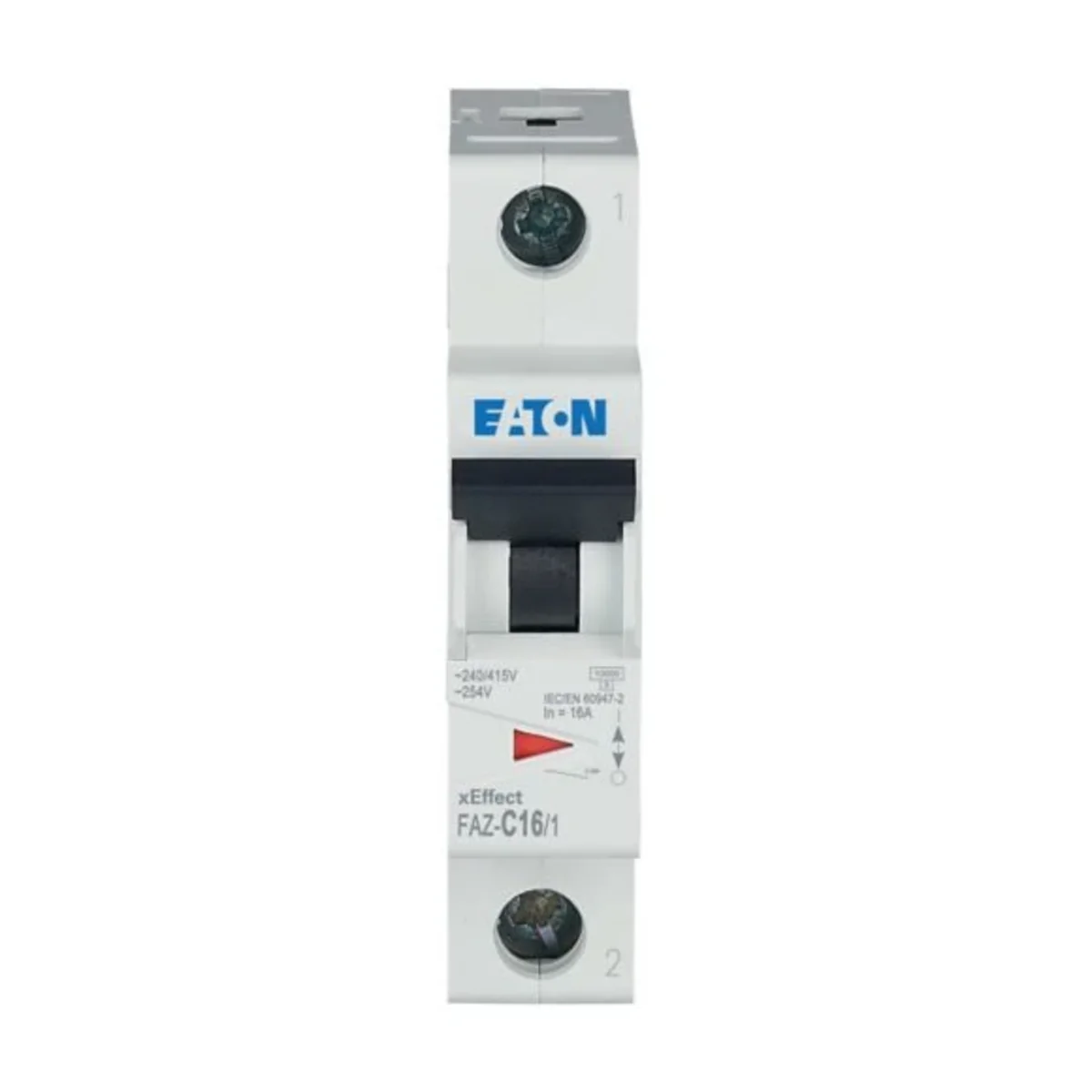

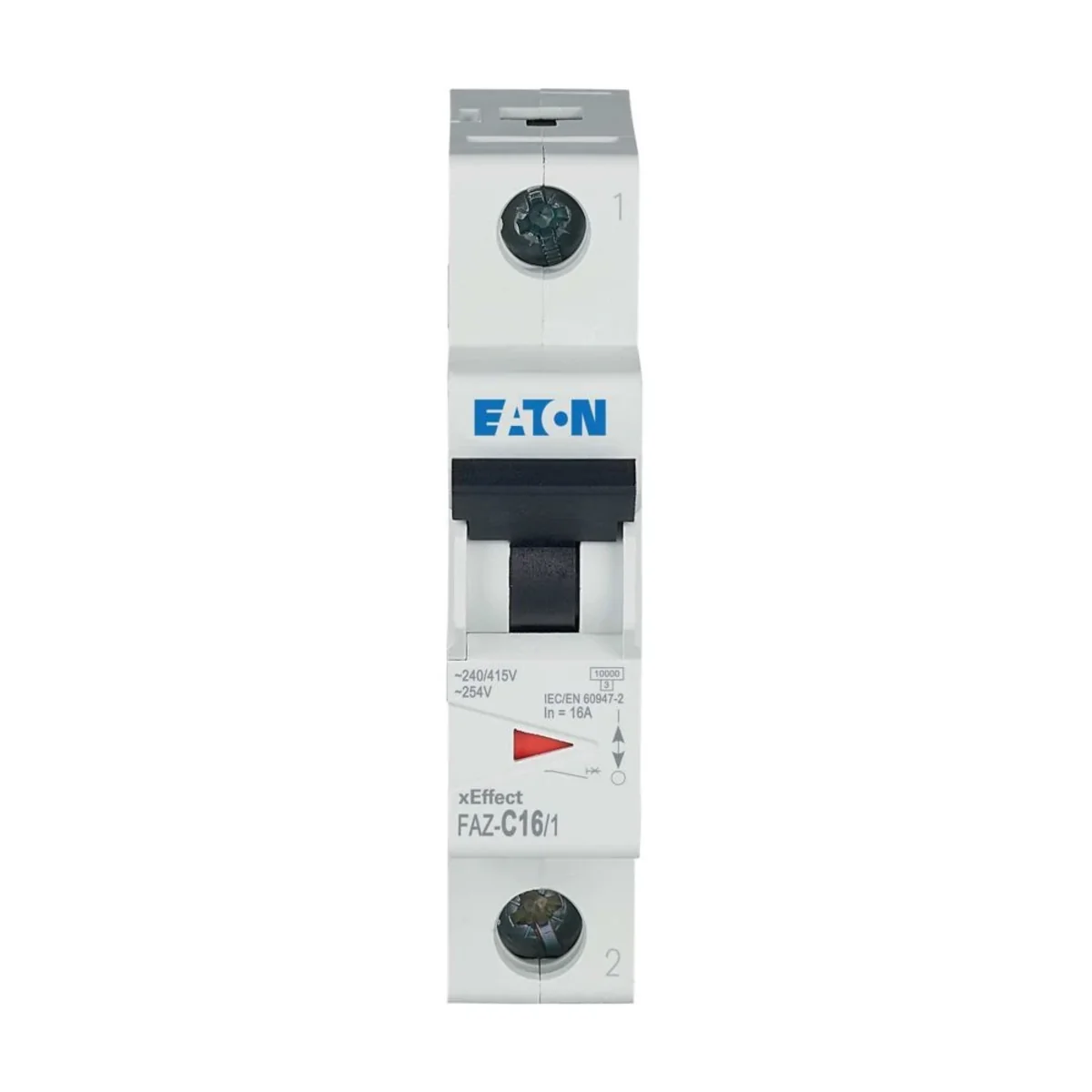

Name: Circuit breaker, 16A, 1 pole, FAZ-C16/1
Brand: EATON
SKU: ABC806MOEL
Price: 11.86 PLN

Indeks lokalny:

ABC806MOEL

Nr katalogowy:

278561

Kod EAN:

4015082785611

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 1

Rated current [A]: 16

Zobacz cały opis

Cena:

11,86 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 2 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

16 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
