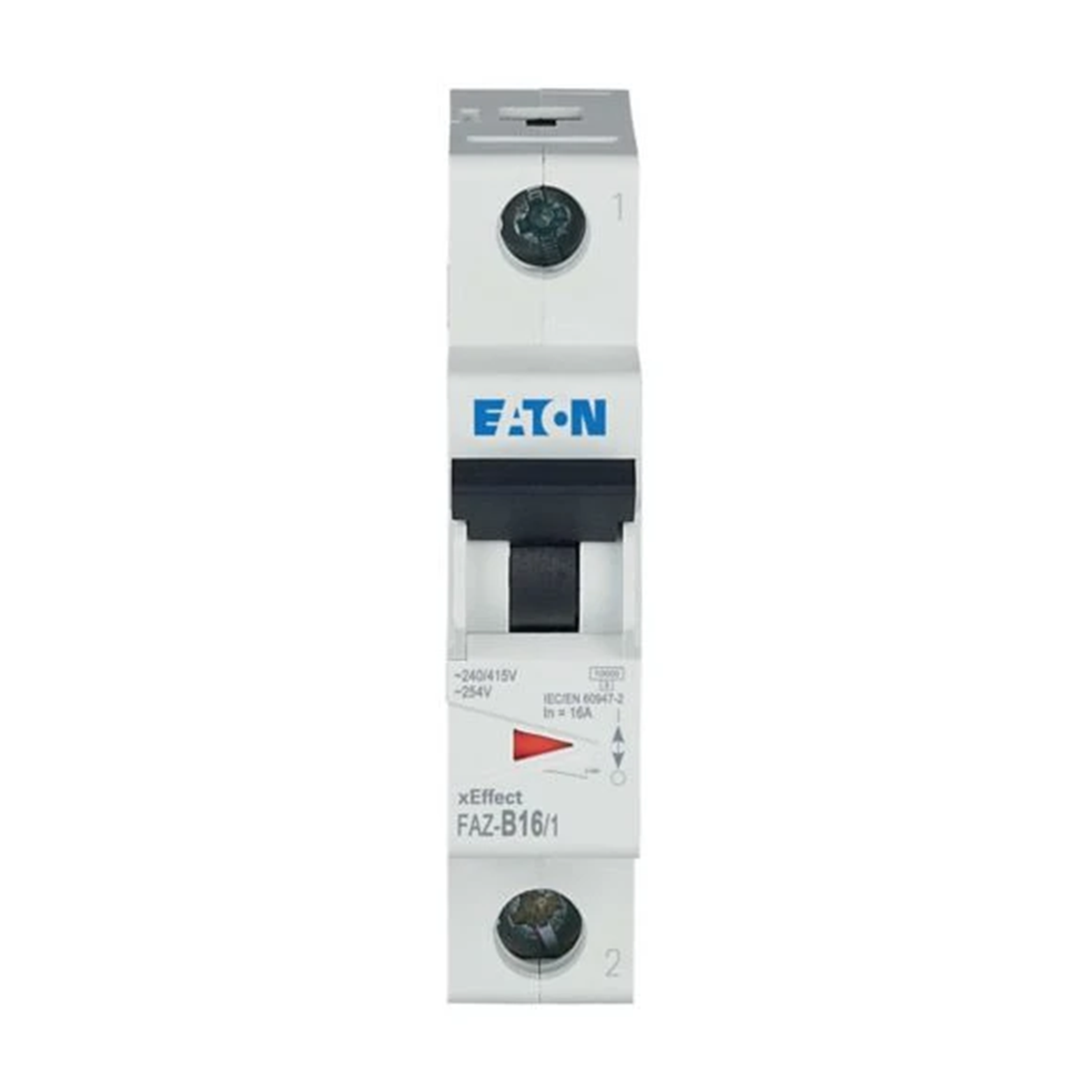

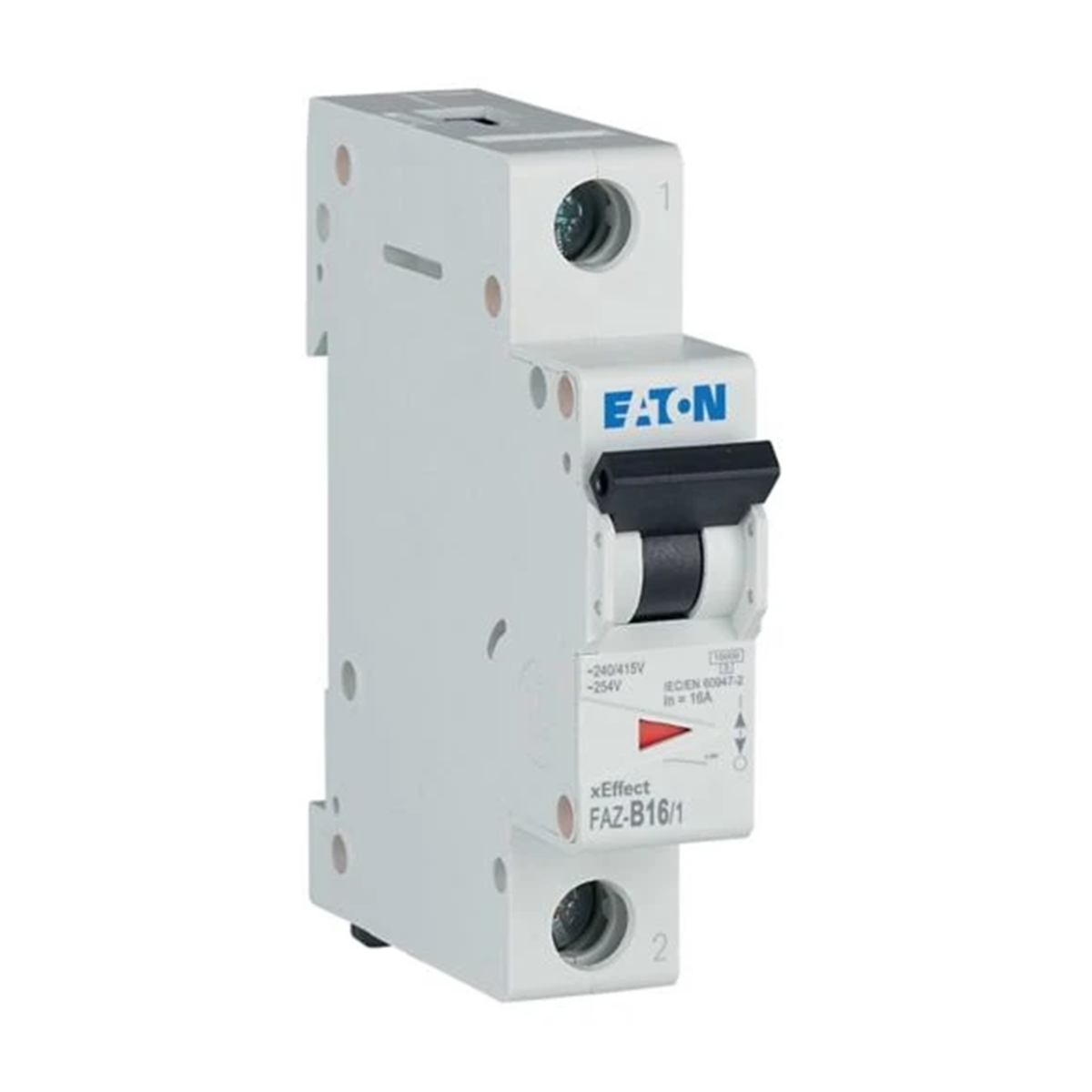

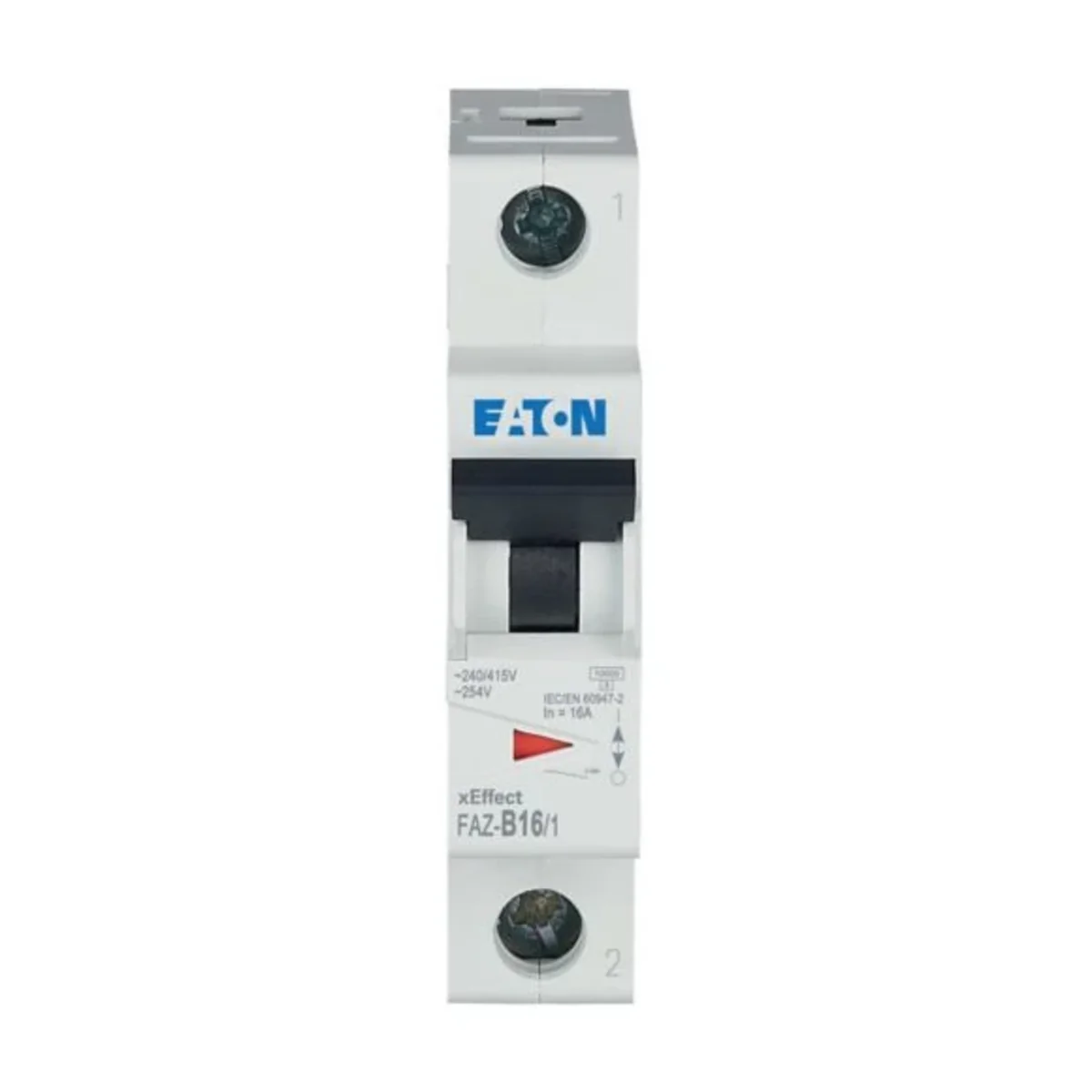

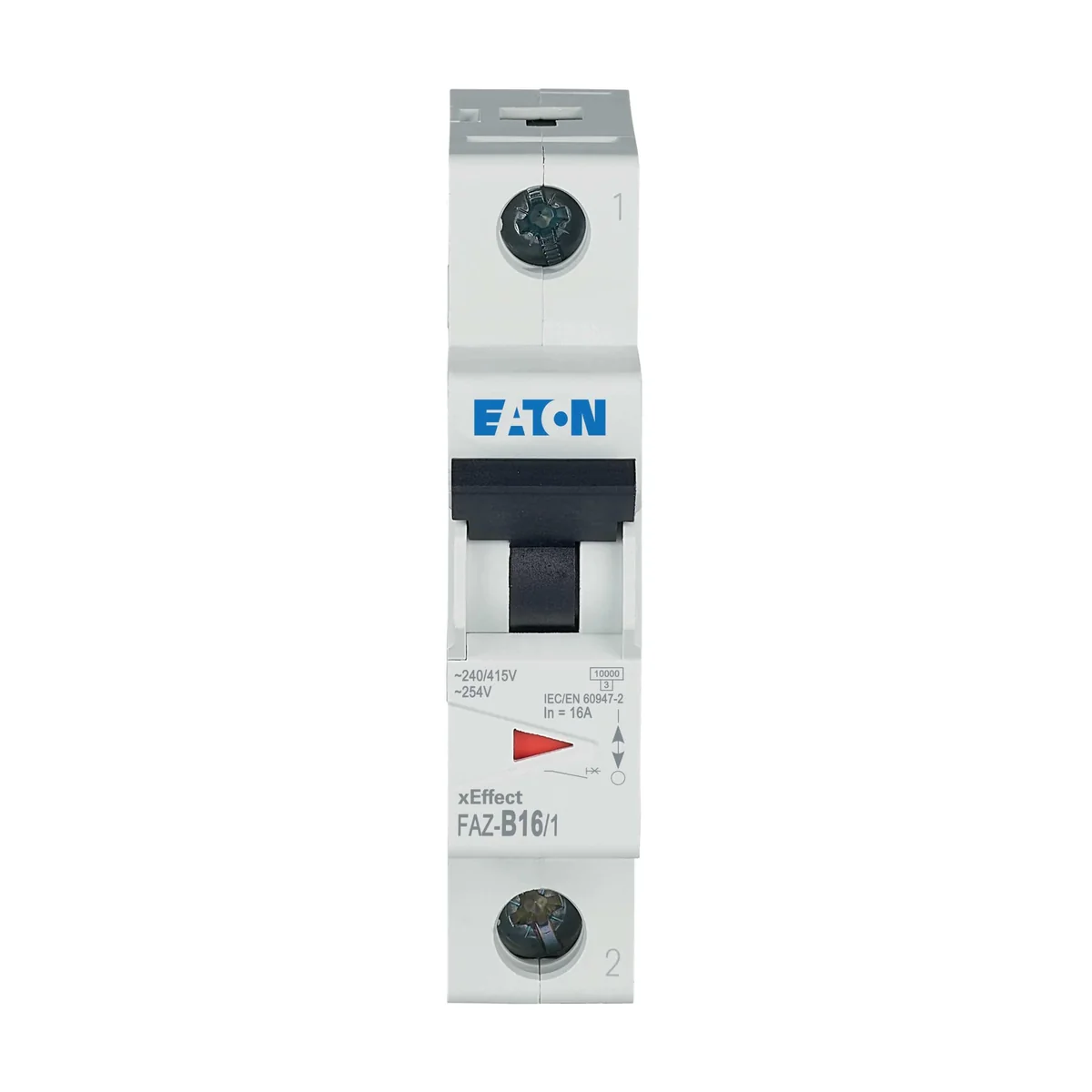

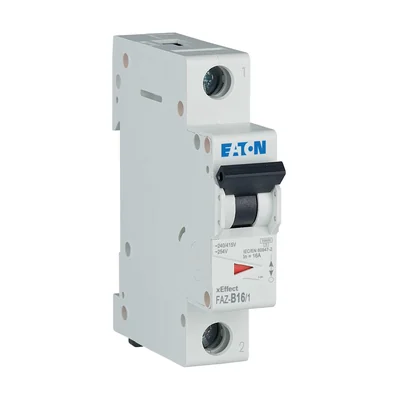

Circuit breaker, 16A, 1 pole, FAZ-B16/1 278535

Name: Circuit breaker, 16A, 1 pole, FAZ-B16/1
Brand: EATON
SKU: ABB805MOEL
Price: 47.27 PLN
Availability: InStock

local index:

ABB805MOEL

Catalog No:

278535

EAN code:

4015082785352

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 1

Rated current [A]: 16

See full description

Price:

47,27 zł

gross / pcs.

(including VAT 23%)

Accessible 9 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

16 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
