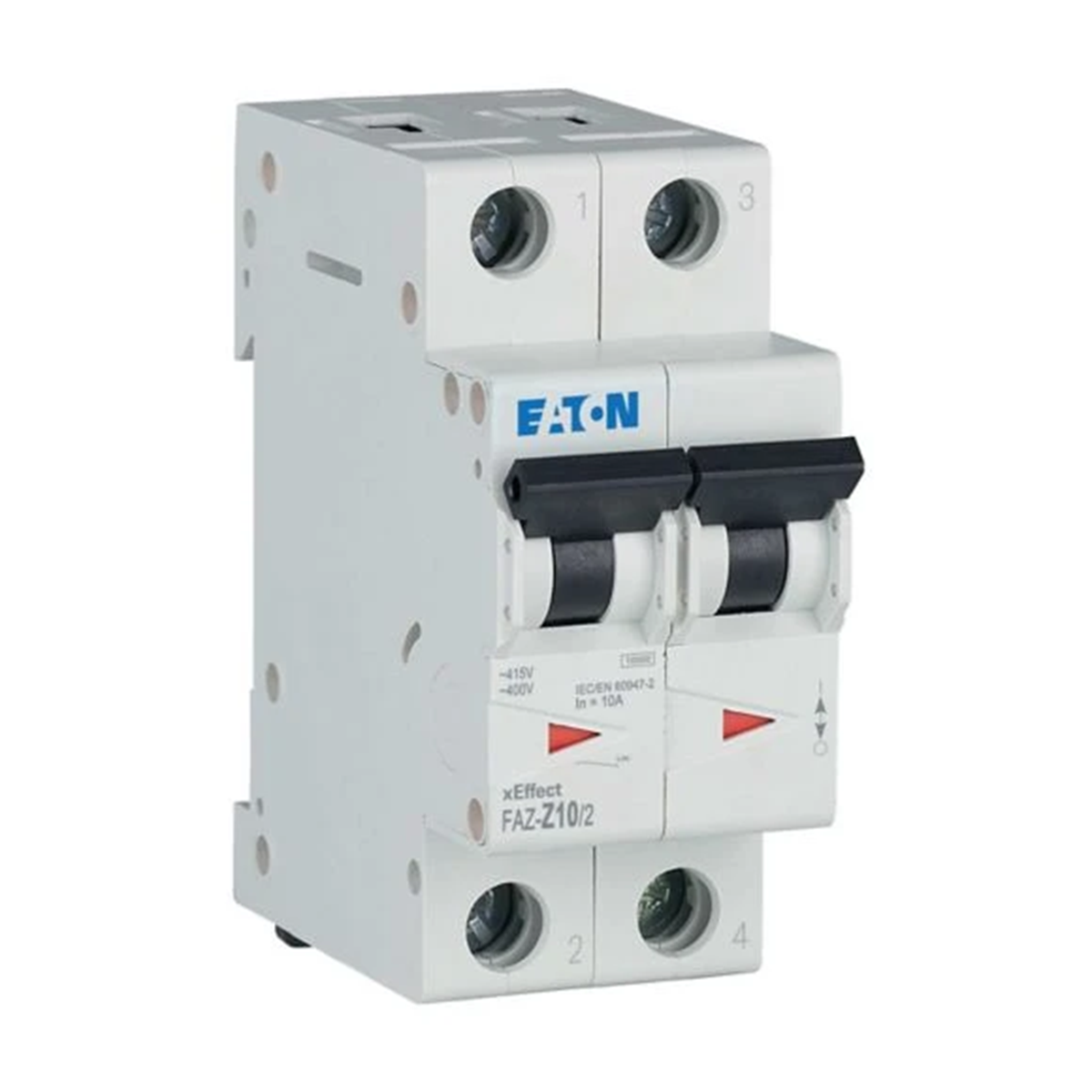

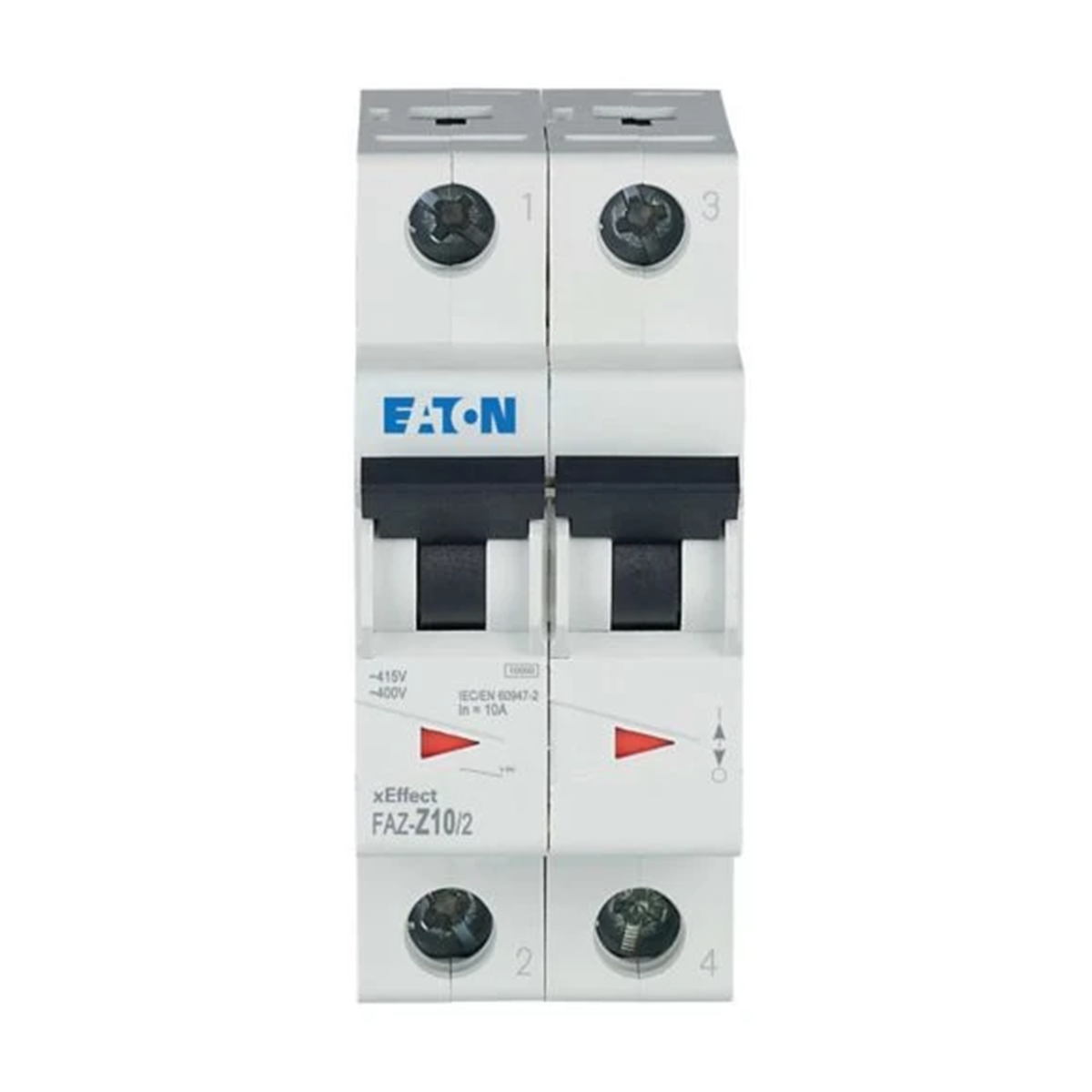

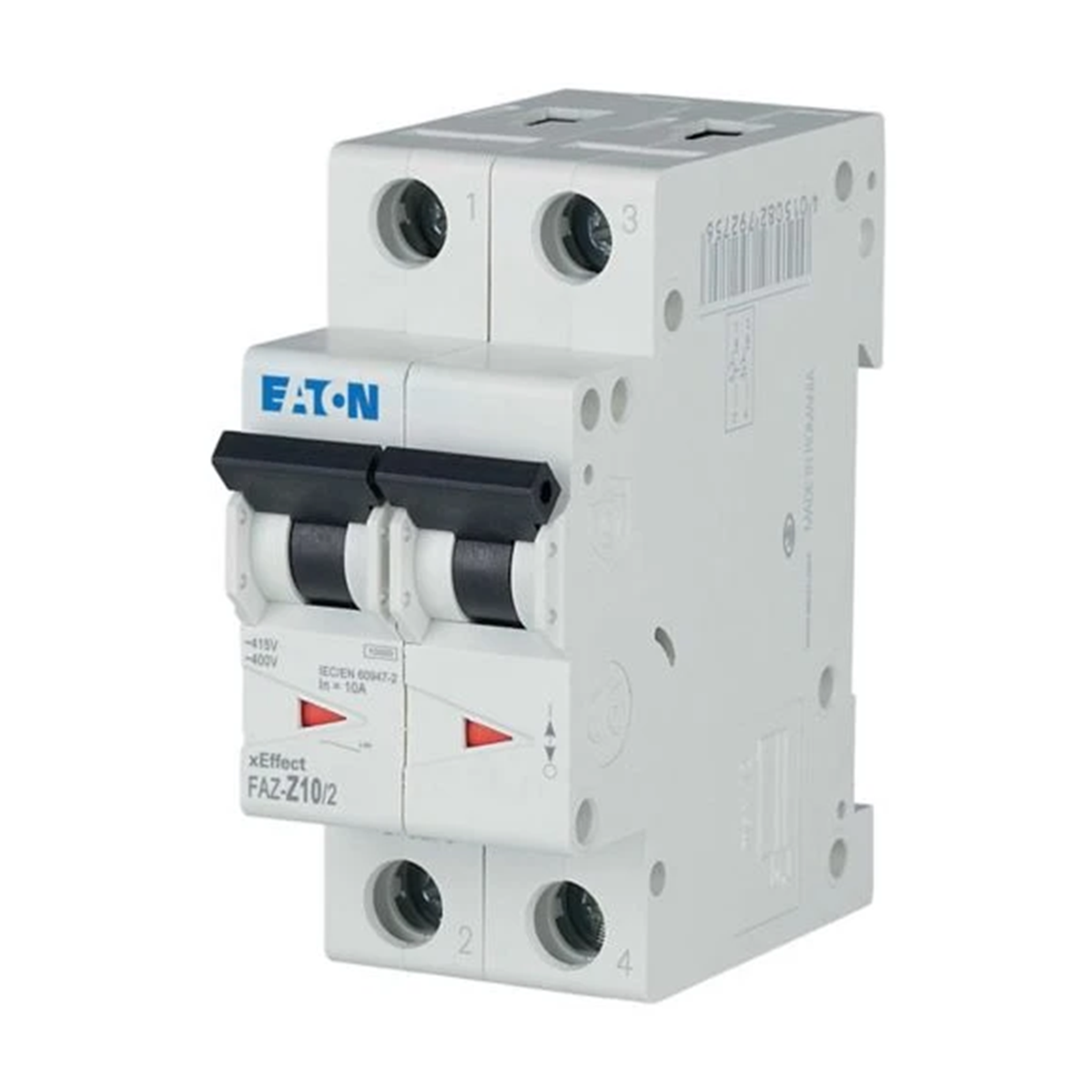

Name: Circuit breaker, 10A, 2 poles, FAZ-Z10/2
Brand: EATON
SKU: ABN006MOEL
Price: 31.73 PLN

Circuit breaker, 10A, 2 poles, FAZ-Z10/2. FAZ circuit breakers. Characteristic Z, rated short-circuit switching capacity 15 kA current, instantaneous release 2 – 3 x In.

Number of poles

2

Rated current [A]

10

Other technical data

Release characteristic

Z
Number of protected poles

2
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

2
Rated current

10 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	60 pcs.
Weight (kg)	0,222	0,236	14,335
Volume (m3)	0,000	0,000	0,016
Width (m)	0,036	0,037	0,180
Length (m)	0,080	0,086	0,385
Depth (m)	0,075	0,075	0,230
