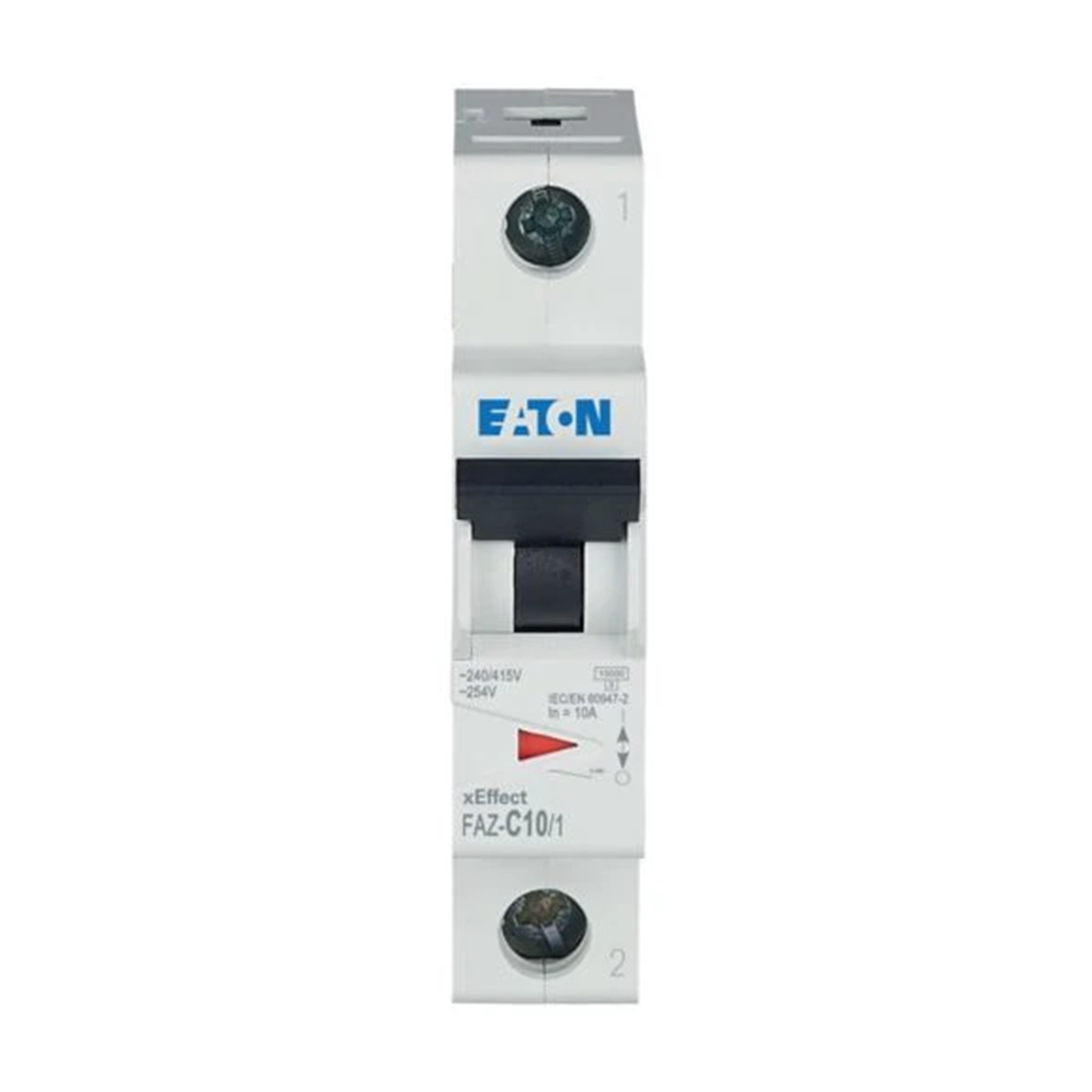

Circuit breaker, 10A, 1 pole, FAZ-C10/1 278557

Name: Circuit breaker, 10A, 1 pole, FAZ-C10/1
Brand: EATON
SKU: ABC069MOEL
Price: 10.81 PLN

Índice local:

ABC069MOEL

Número de catálogo:

278557

Código EAN:

4015082785574

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 1

Rated current [A]: 10

Ver descripción completa

Precio:

10,81 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 2 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

10 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
