Electrical apparatus
fuses
Circuit breakers with "C" characteristic

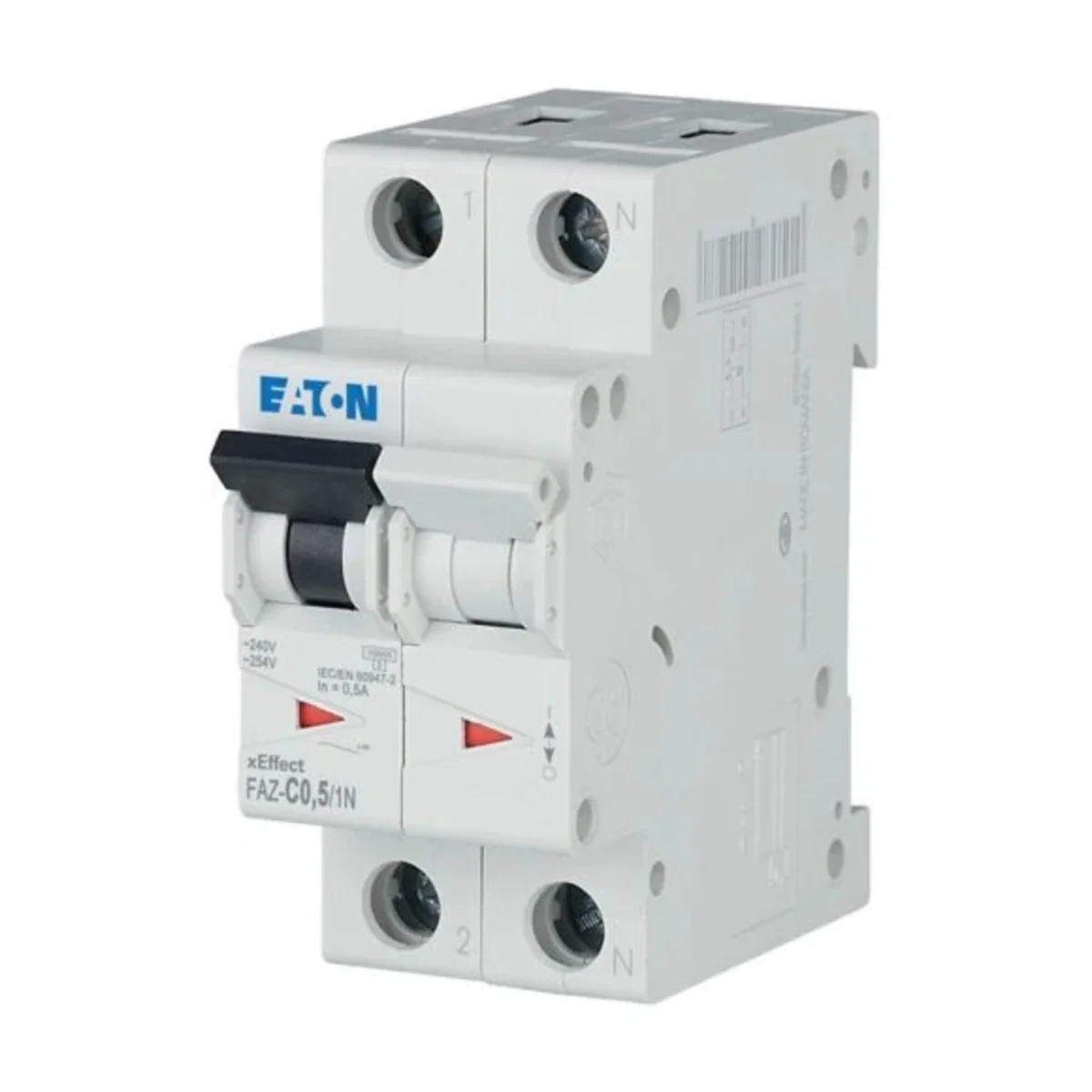

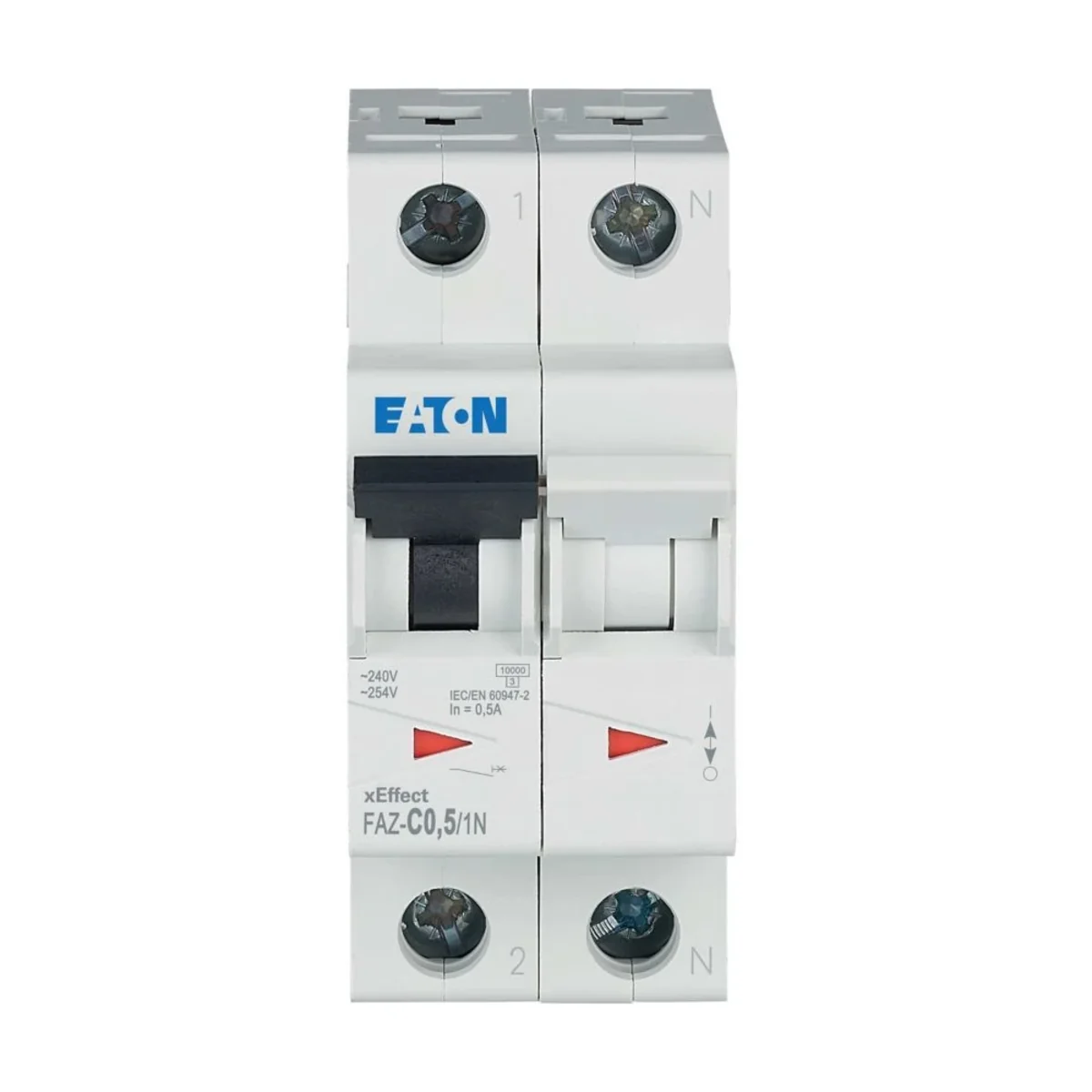

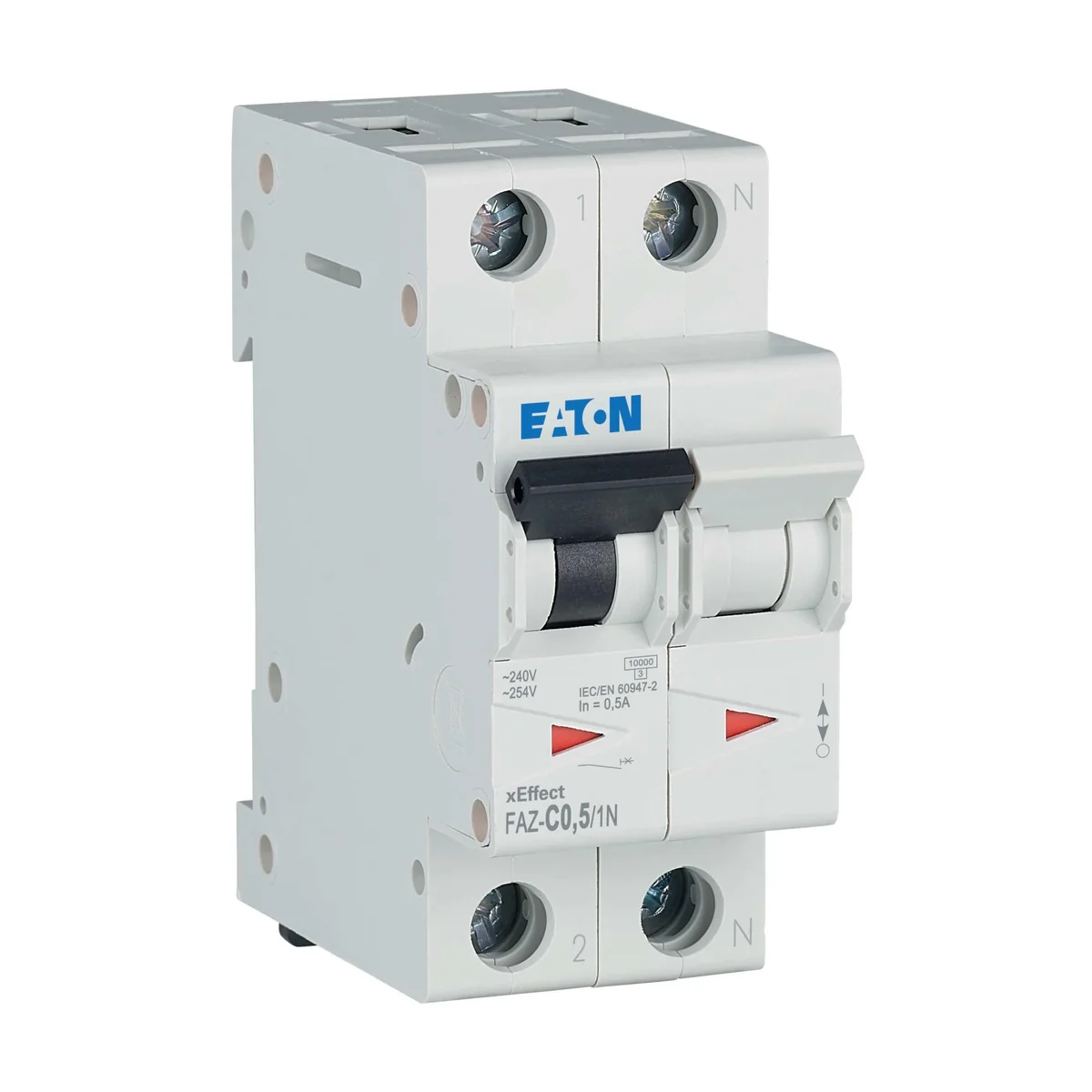

Circuit breaker, 0.5A, 1+N pole, FAZ-C0.5/1N 278657
local index:
ABC058MOEL
Catalog No:
278657
EAN code:
4015082786571
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
2
Rated current [A]:
0.5
See full description
Price:
40,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.
Technical data
Number of poles
2
Rated current [A]
0.5
Other technical data
Release characteristic
C
Number of protected poles
1
Rated voltage
230 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
Yes
Pollution degree
2
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Number of poles (total)
2
Rated current
0.5 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Voltage type
AC
Current limiting class
3
Over voltage category
3
Additional equipment possible
Yes
Built-in depth
70.5 mm
Ambient temperature during operating
-25 ... 75 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
60 pcs.
Weight (kg)
0,212
12,911
Volume (m3)
0,000
0,016
Width (m)
0,037
0,180
Length (m)
0,086
0,385
Depth (m)
0,075
0,230
