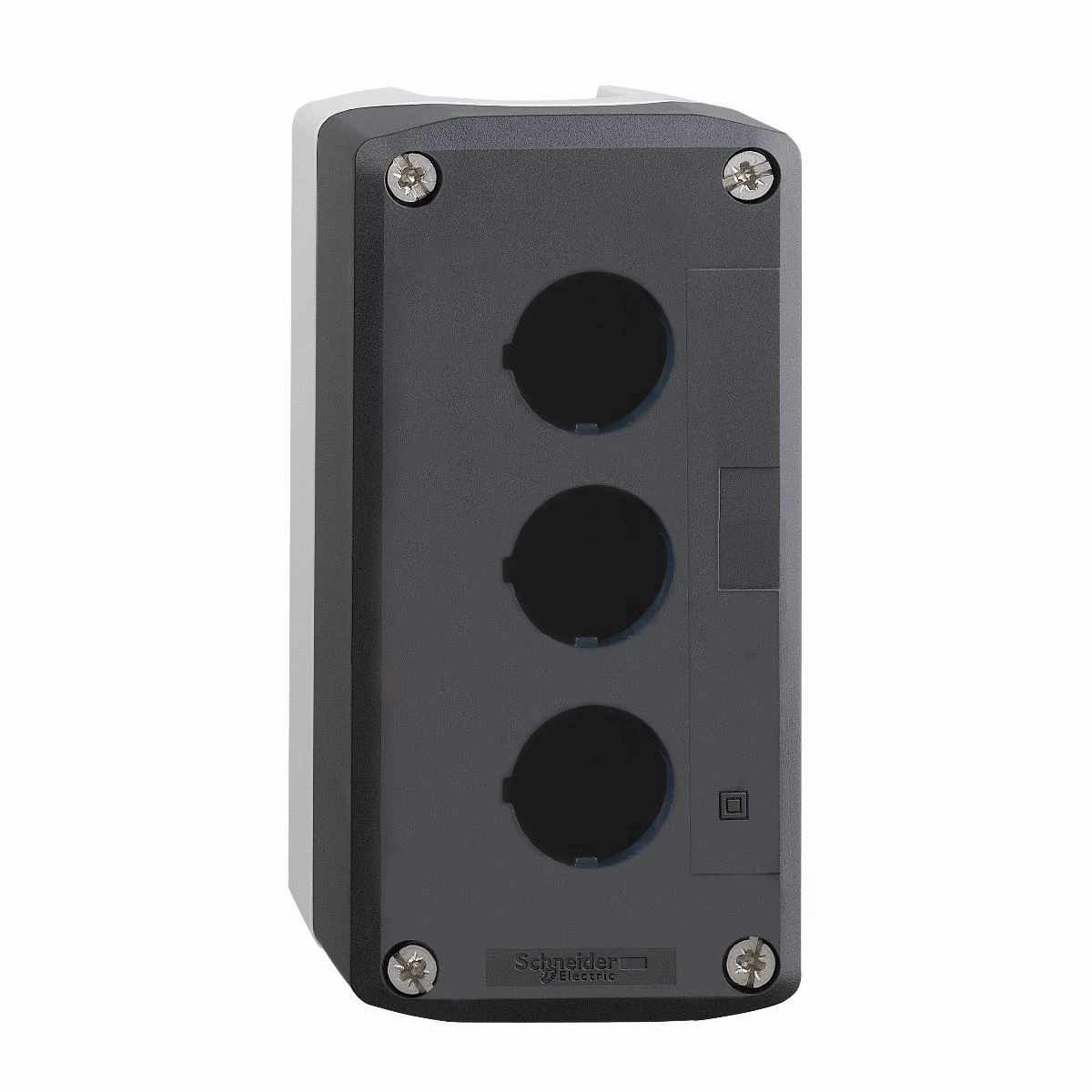

Cassette for 3 buttons XALD03

Schneider Electric's harmonious range of appliance and panel solutions includes push buttons, indicator lights, switches and other panel solutions for high performance without compromise. Offering a modern and stylish design, performance, durability in harsh environments, the Harmony series is one of the most versatile offerings.

Harmony XALK and XALD are multiple push button enclosures or control stations that are compatible with other Harmony devices such as push buttons, mushroom operators, legend boards and LEDs. It is great for many common functions such as start, stop, stop and emergency stop. They are specifically designed for simple installation and have a robust construction. The stations are complete and ready to assemble to meet your requirements. There are 1, 2, 3, 4, or 5 cutouts that are compatible with Harmony XB5 devices and buttons. These enclosures are IP65 and NEMA 4 rated and are moisture and dust resistant and compliant with IEC, UL and CSA standards.

XALD complete control stations come with 1, 2 or 3 Ø 22mm Harmony XB5 family control and sounder units

XALK complete control stations for emergency stop functions (mushroom buttons)

Characteristics and advantages:

• Flush-mounted bracket

• Protection against dust and moisture

• Lightweight construction
• XALD for control and signaling units Ø 22 mm

Protections and safety features:

• IEC 60536 class II overvoltage

• IP69, IP67, IP66 according to IEC 60529, IP69K and IK03 compliant with EN 50102

• NEMA 13 and NEMA 4X.

• EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947- 5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No. 14

Applications - Industry, service sector and infrastructure such as:

• Chemical industry

• Marine

• Distribution

• Panel building

• Car washing

• Food service

Type of housing for the remote control

Dimension X: 68mm

Dimension Y: 104mm

Dimension Z: 53mm
Housing material: polycarbonate

Housing color: light gray

Ingress protection: IP66

Number of holes: 3
< br/>Cover color: dark gray

Diameter of the mounting hole: 22mm

Switch standard:22mm

Operating temperature -25...70°C
