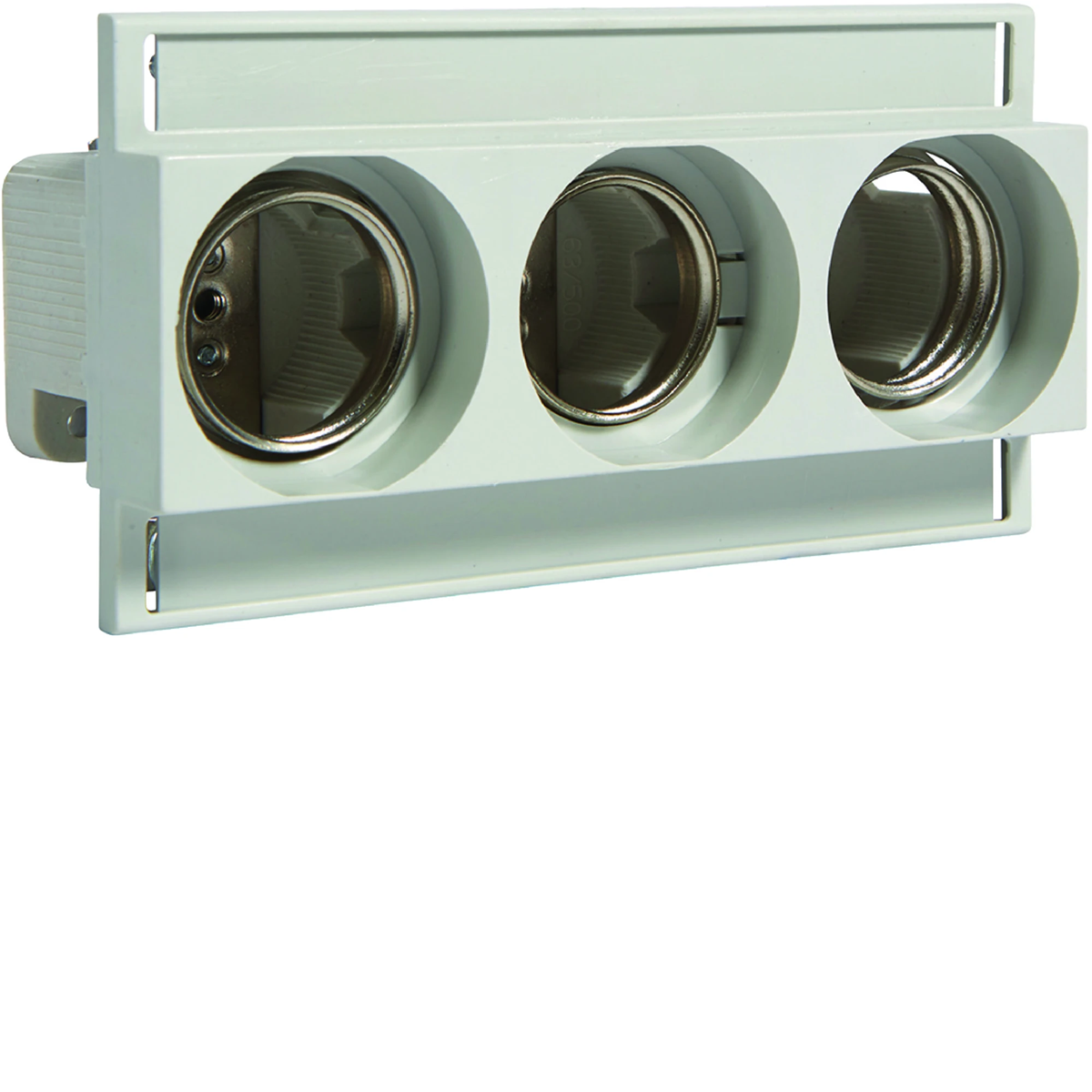

Basic direct D porcelain. E33 DIII 3P 63A LE33K-3
local index:
ABO083HAGE
Catalog No:
LE33K-3
EAN code:
3250614132094
Price:
46,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Basic direct D porcelain. E33 DIII 3P 63A
Technical data
-
Length [mm]148
-
FixingLatch
-
Fuse link sizeDIII
-
Fuse link rated current [A]35/50/63
-
PKWIU27.12.40.0
-
Number of poles3
-
Rated current [A]63
-
Rated switching voltage [V]550/0/550
-
Rated short-circuit breaking capacity Icn [A]63
Other technical data
-
Number of poles3
-
MaterialPorcelain
-
Version with coverYes
-
Rated voltage500 V
-
Construction sizeDIII
-
ModelFitted screw
-
Mounting methodSnap mounting
-
Rated current63 A
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 672 pcs. |
| Weight (kg) | 0,497 | 3,195 | 128,435 |
| Width (m) | 0,080 | 0,160 | 0,800 |
| Length (m) | 0,065 | 0,095 | 1,050 |
| Depth (m) | 0,150 | 0,380 | 1,200 |
