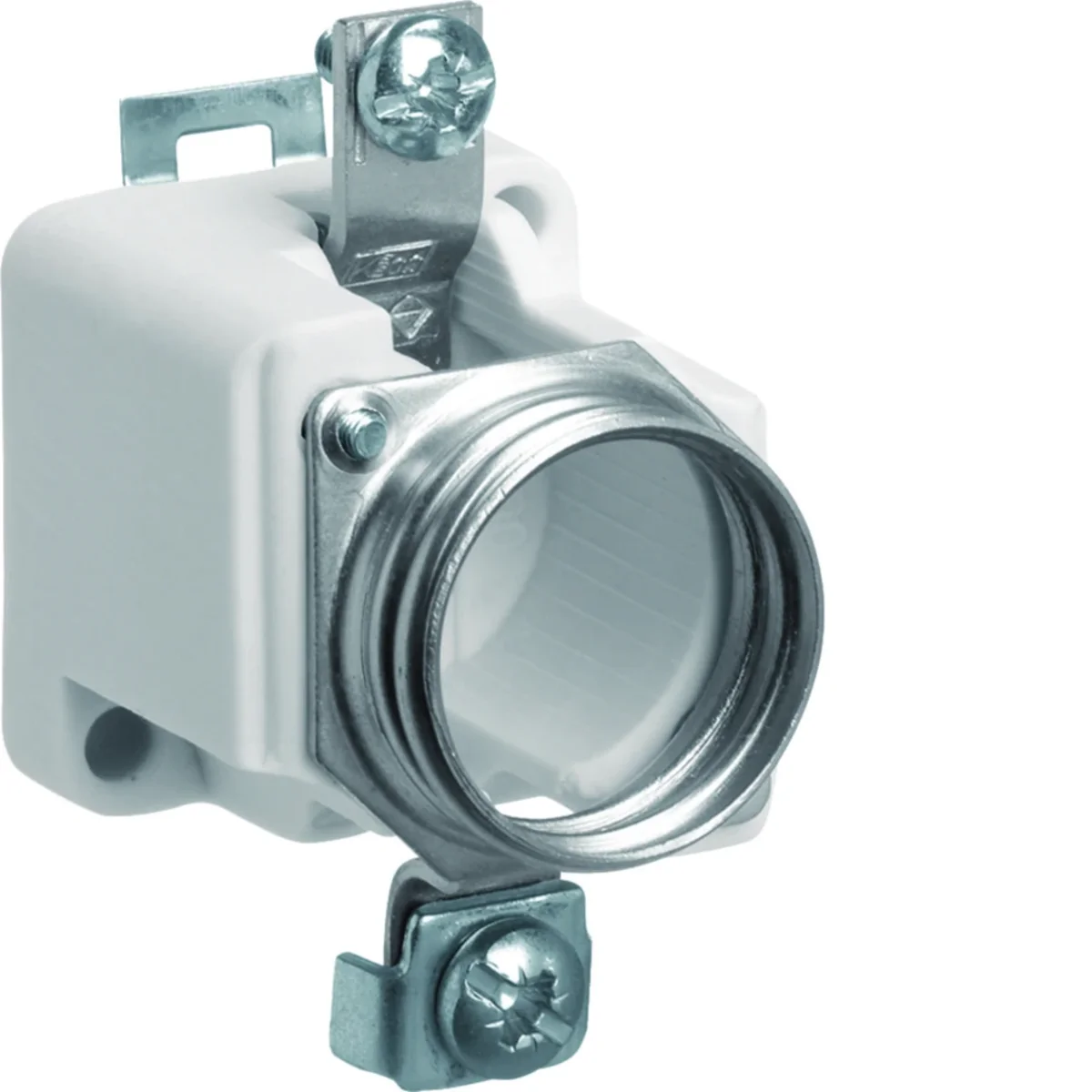

Basic direct D KS E27 DII 1P 25A LE27K-KS

local index:
ABO067HAGE
Catalog No:
LE27K-KS
EAN code:
3250614132001
Manufacturer: HAGER
Number of poles: 1
Rated current [A]: 25
Fuse link size: DII
Price:
7,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Basic direct D KS E27 DII 1P 25A

Technical data

  • Number of poles
    1
  • Fuse link size
    DII
  • Rated short-circuit breaking capacity Icn [kA]
    25
  • PKWIU
    27.12.40.0
  • Rated current [A]
    25
  • Rated switching voltage [V]
    550/0/550
  • Fuse link rated current [A]
    2/4/6/10/16/20/25

Other technical data

  • Number of poles
    1
  • Material
    Porcelain
  • Version with cover
    No
  • Rated voltage
    500 V
  • Construction size
    DII
  • Model
    Fitted screw
  • Mounting method
    DIN rail
  • Rated current
    25 A

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 100 pcs. 3600 pcs.
Weight (kg) 0,012 2,240 11,506 437,216
Width (m) 0,150 0,215 0,295 0,800
Length (m) 0,070 0,060 0,225 1,470
Depth (m) 0,270 0,280 0,310 1,200
