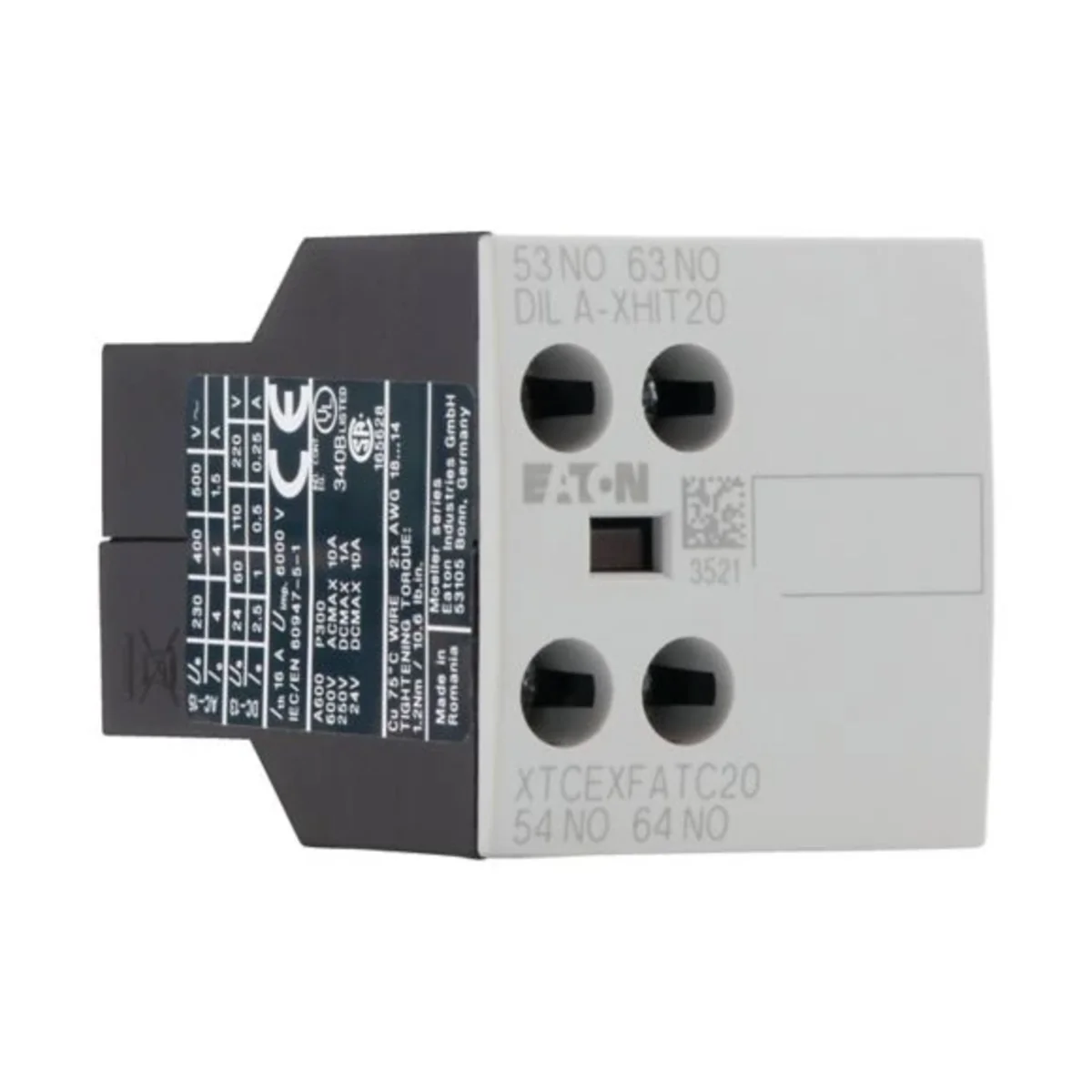

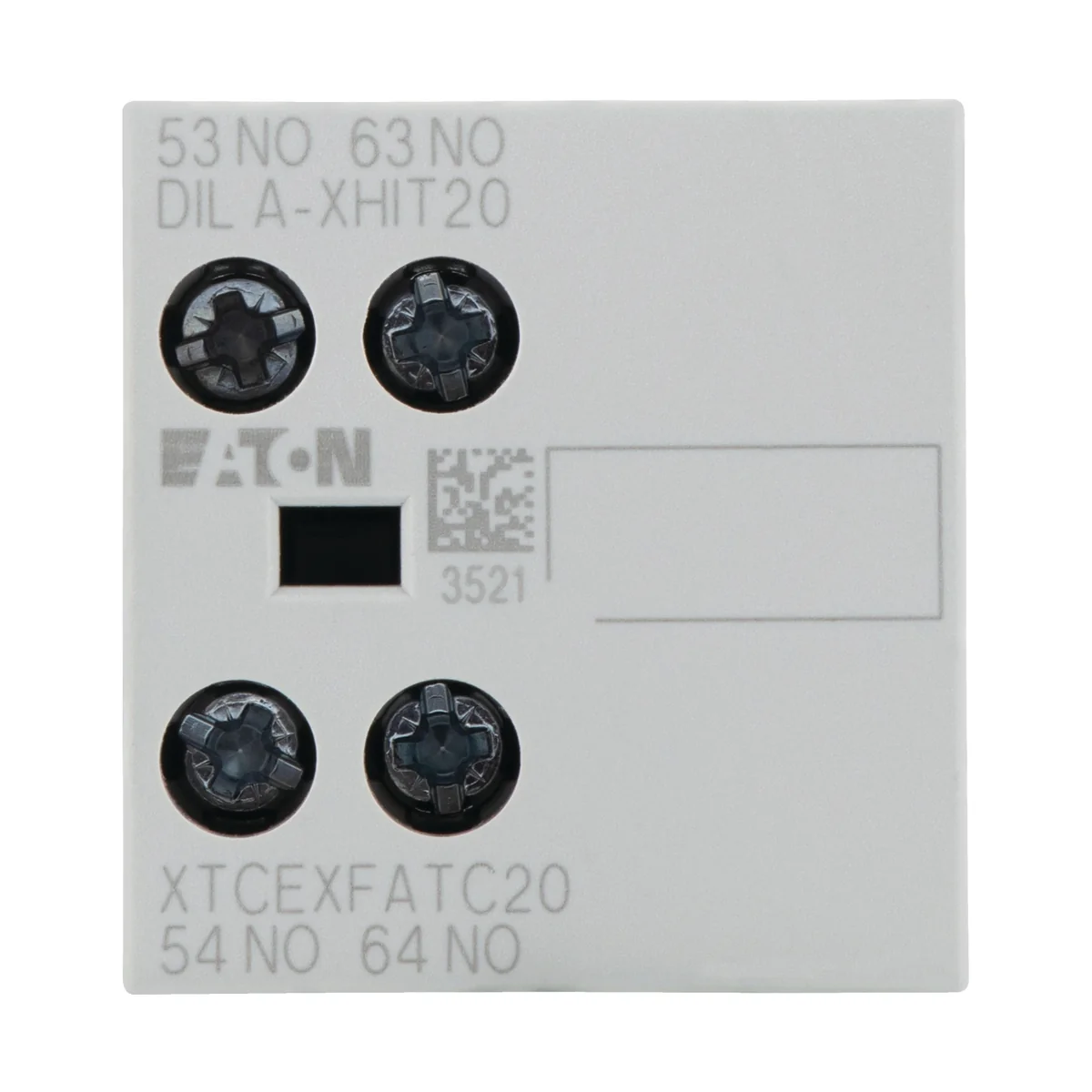

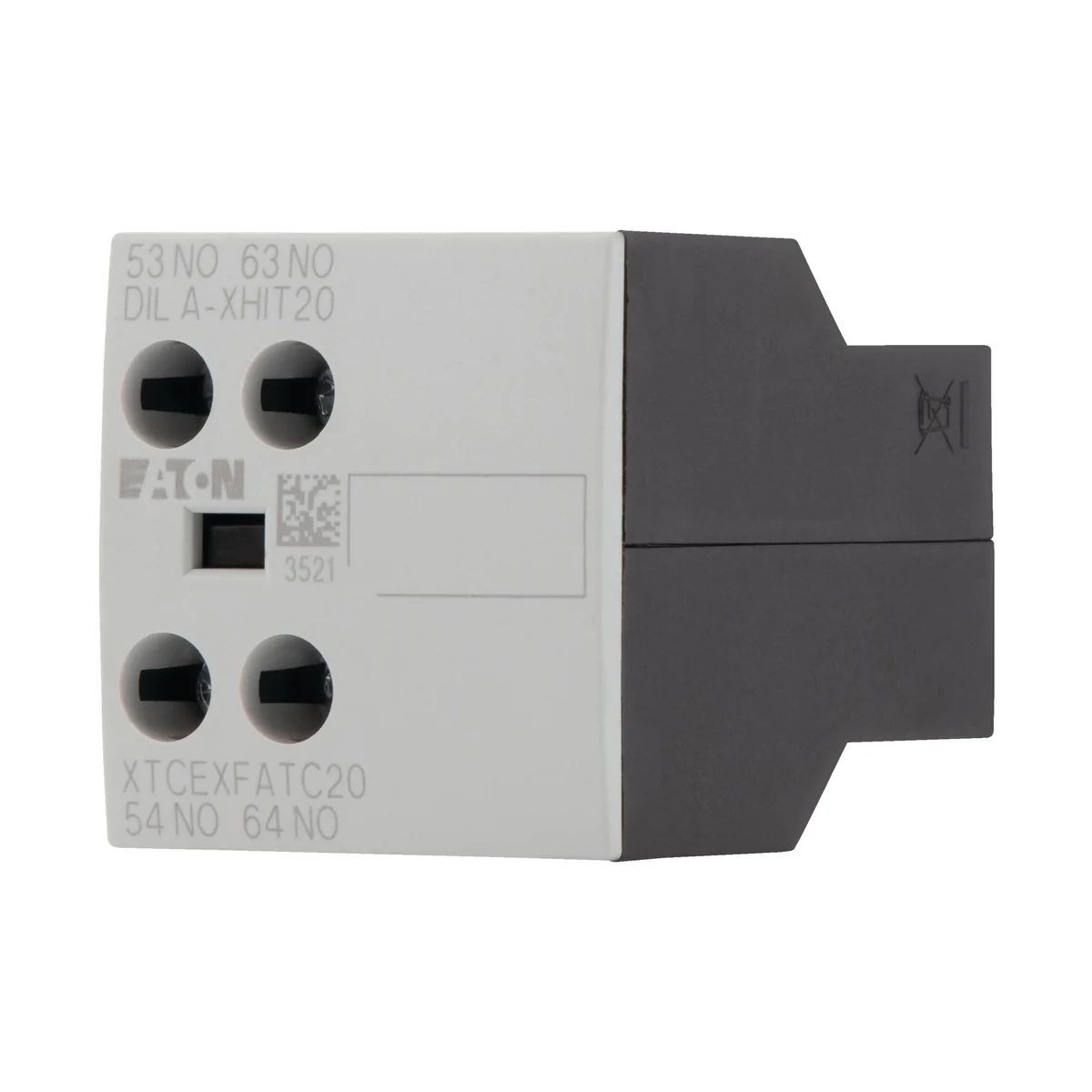

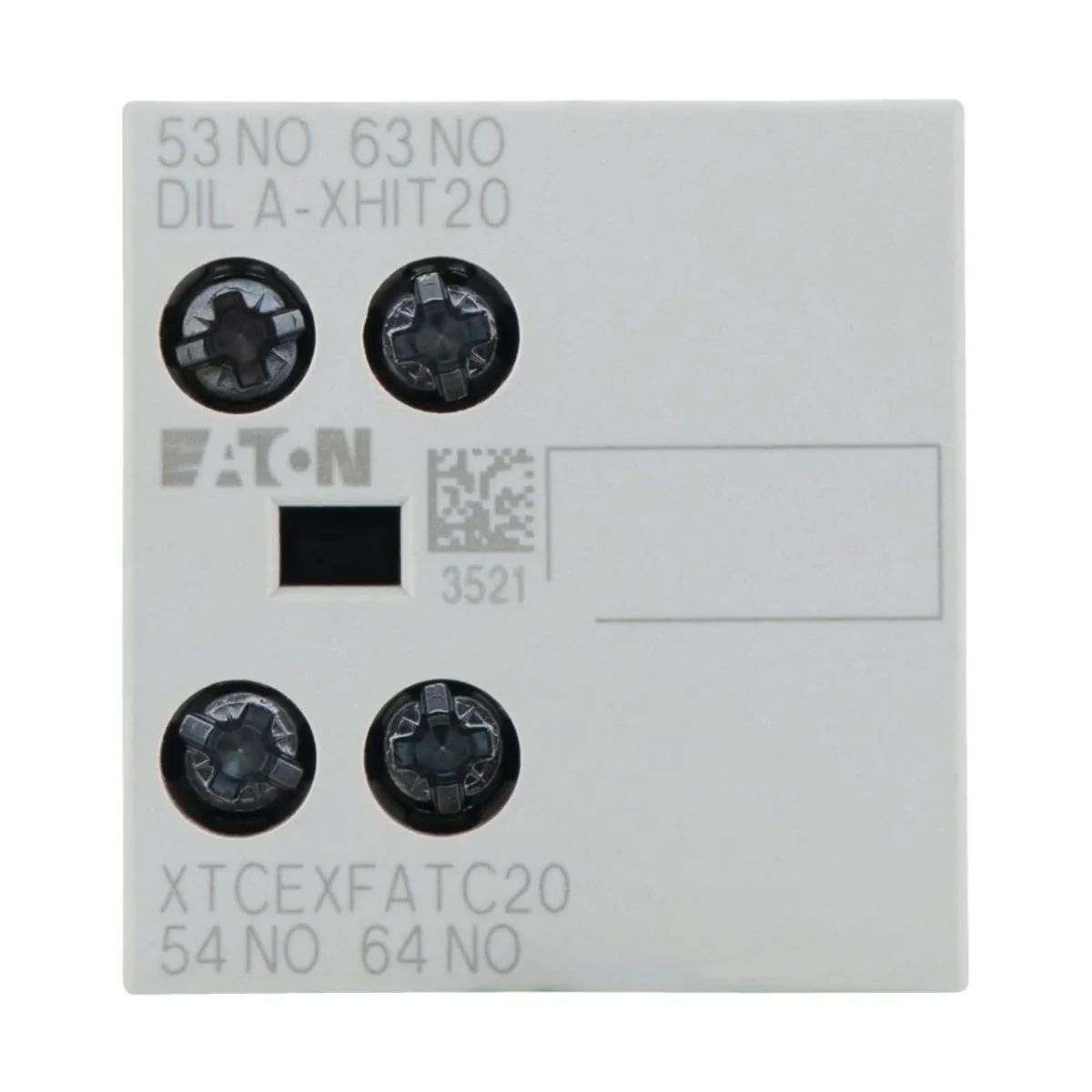

Auxiliary switch module, positive-contact, Switching elements according to EN 50005, Combinations in version E according to EN 50011 are recommended., DC-operated contact DILA(C)-22 must only be connected to double-pole contacts function: suitable for connecting to wiring bridges, 2-pole, Connection method: screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Equipped with contacts Z = NO contact: 2 NO contacts, Mounting type: Front mounting, For use with: DILM7…, DILM9…, DILM12…, DILM15…, DILL…, MSC-D …M7(9, 12, 15)…, MSC-R…M7(9, 12), Version: high version, Notes: Forcibly guided contacts, according to IEC/EN 60947-5-1 Annex L, within the module switch as well as for integrated auxiliary switch modules in DILM 7 - DILM32., Auxiliary NC contacts used as mirror contact according to IEC/EN 60947-4-1 Appendix F (non-delayed NC contact)

Number of NO contacts

2

Other technical data

Number of contacts as change-over contact

0
Number of contacts as normally closed contact

0
Rated operation current Ie at AC-15, 230 V

4 A
Model

Clip-on
Lamp holder

None

Number of contacts as normally open contact

2
Number of fault-signal switches

0
Type of electric connection

Screw connection
Mounting method

Front fastening

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	5 pcs.
Weight (kg)	0,039	0,043	0,213
Volume (m3)	0,000	0,000	0,000
Width (m)	0,036	0,038	0,038
Length (m)	0,055	0,057	0,170
Depth (m)	0,038	0,040	0,061
