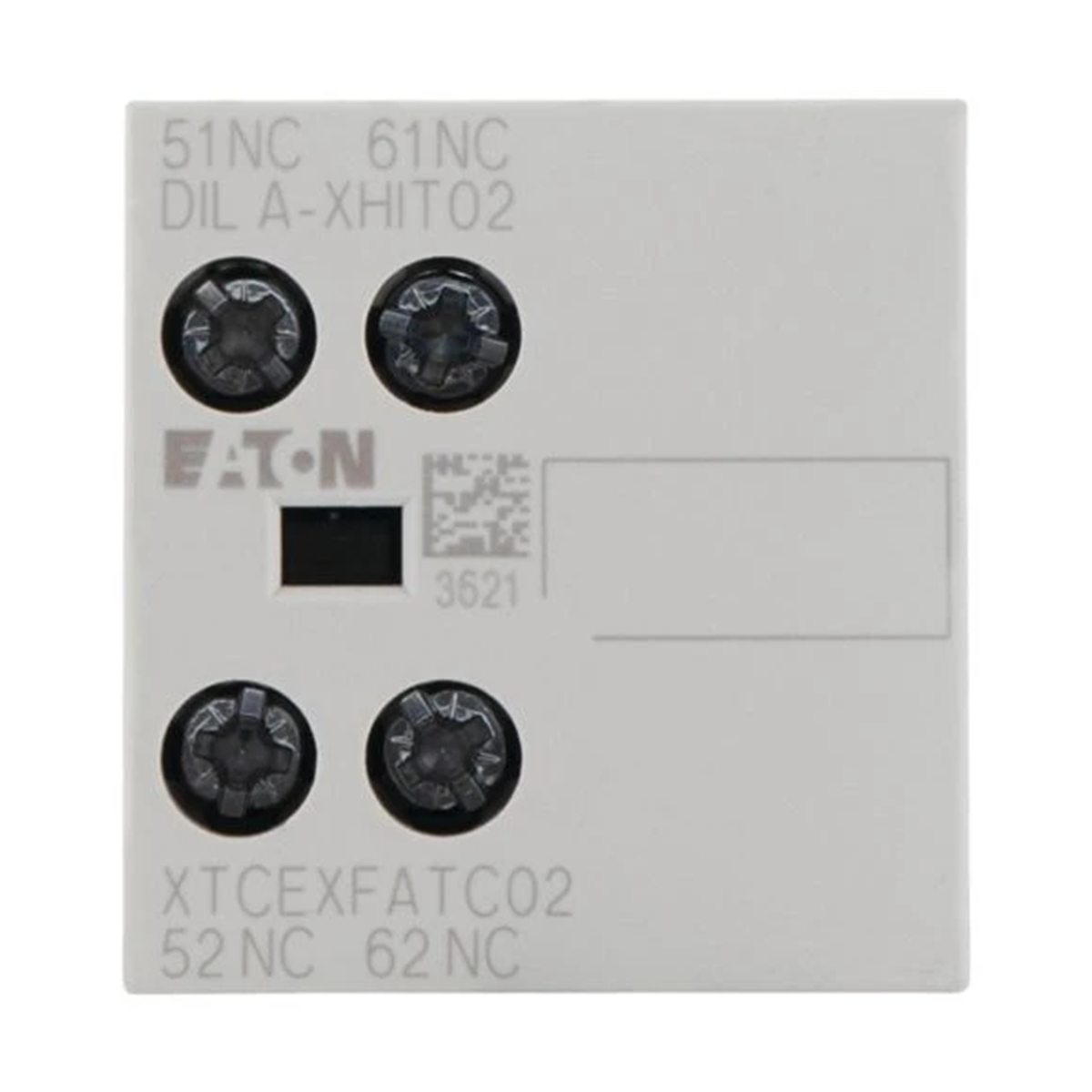

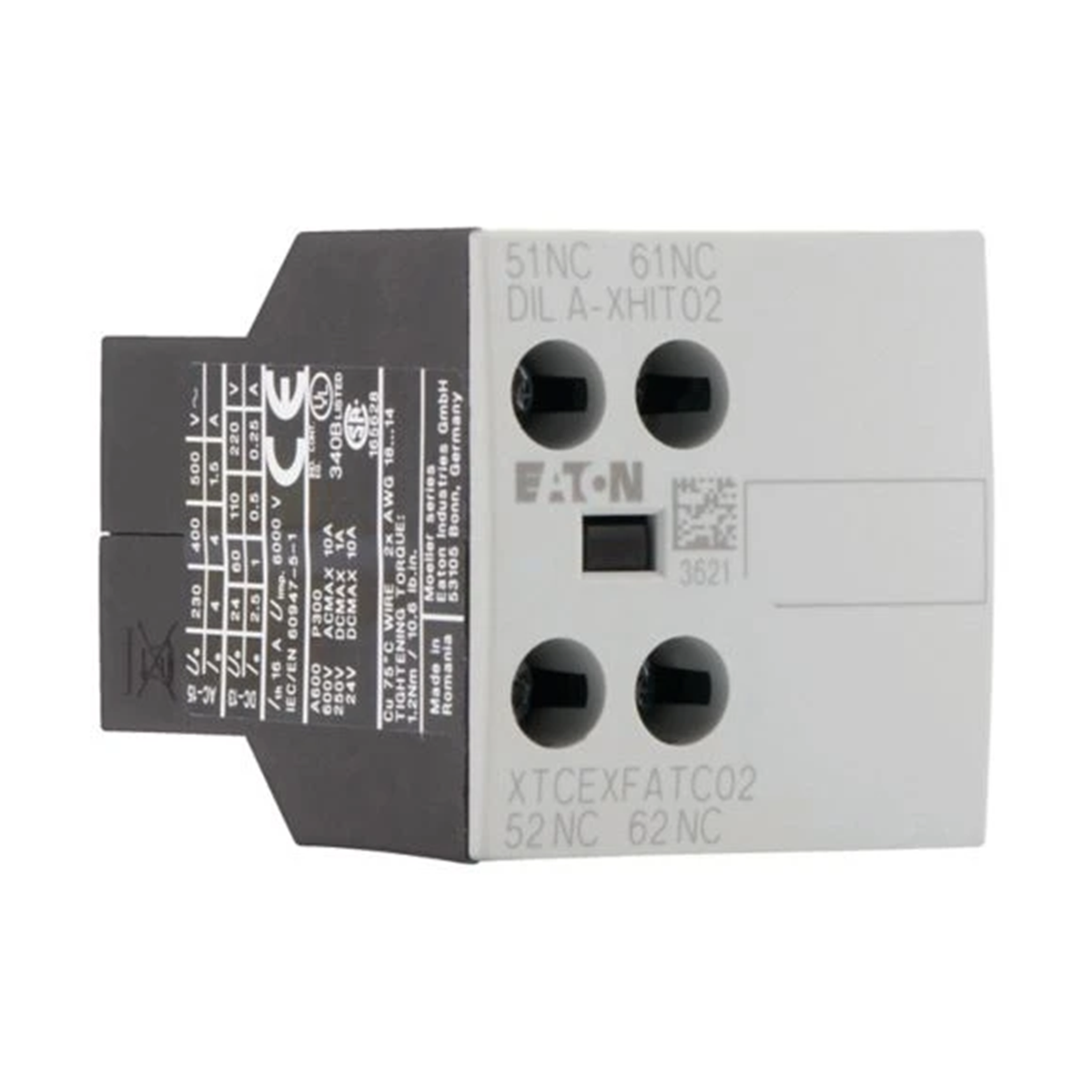

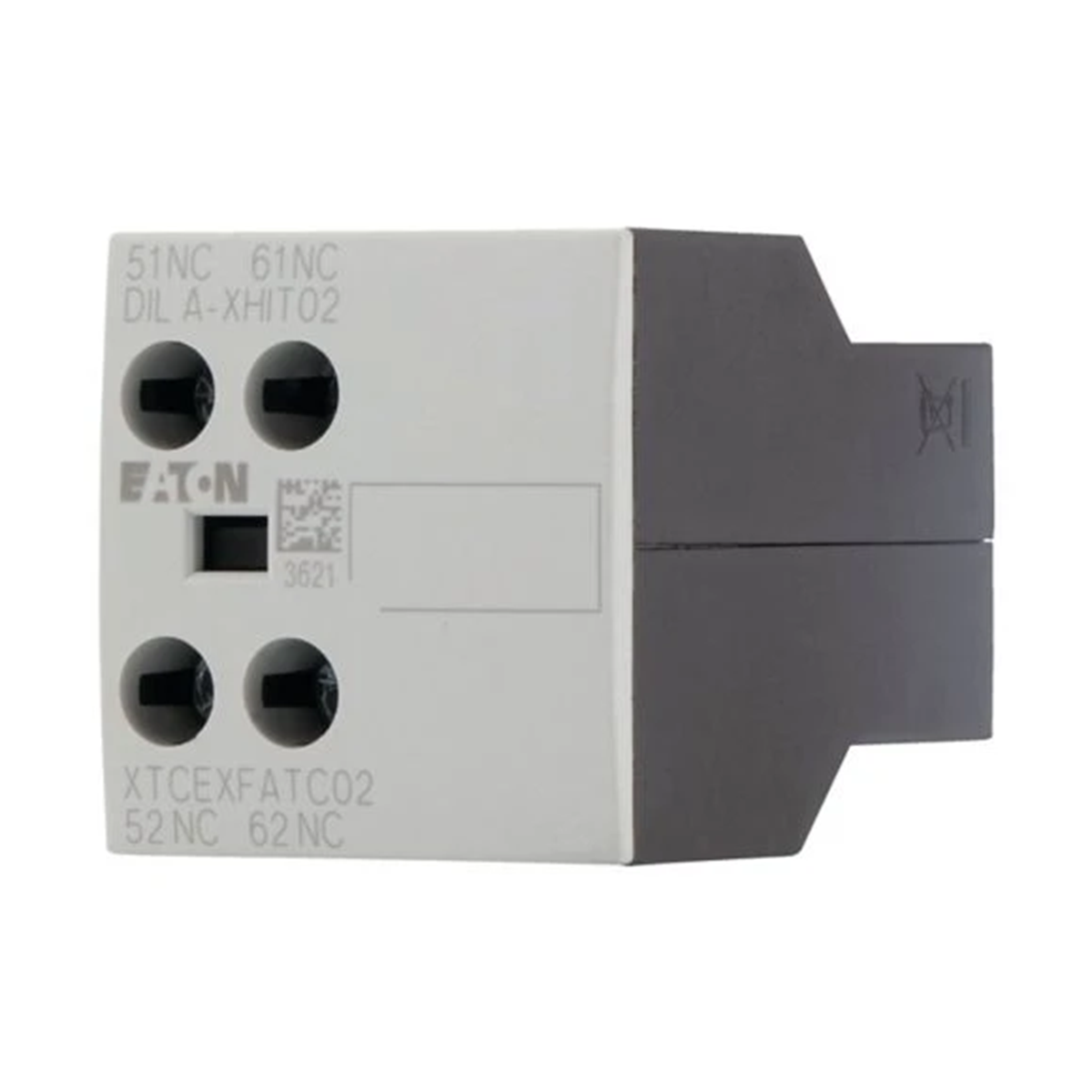

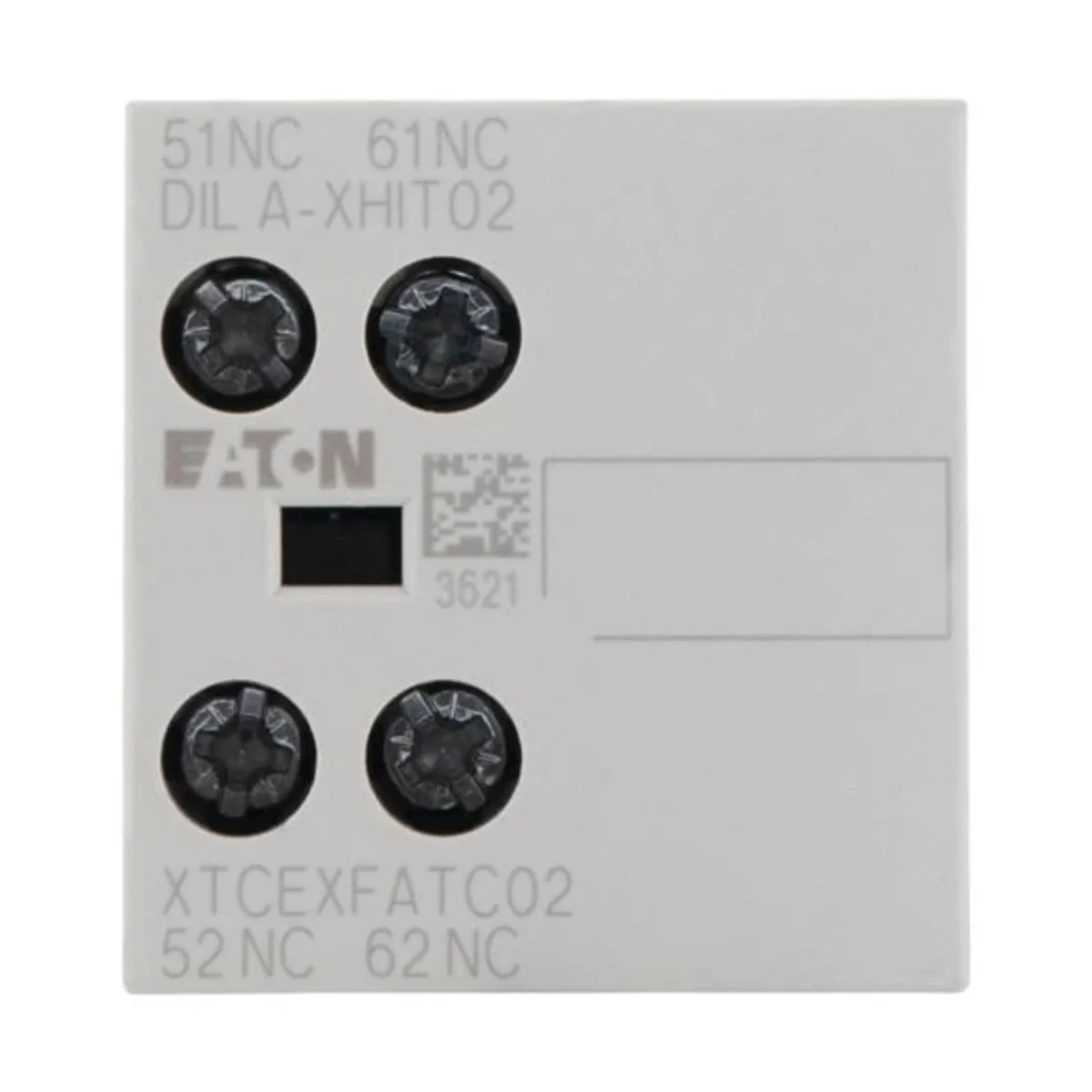

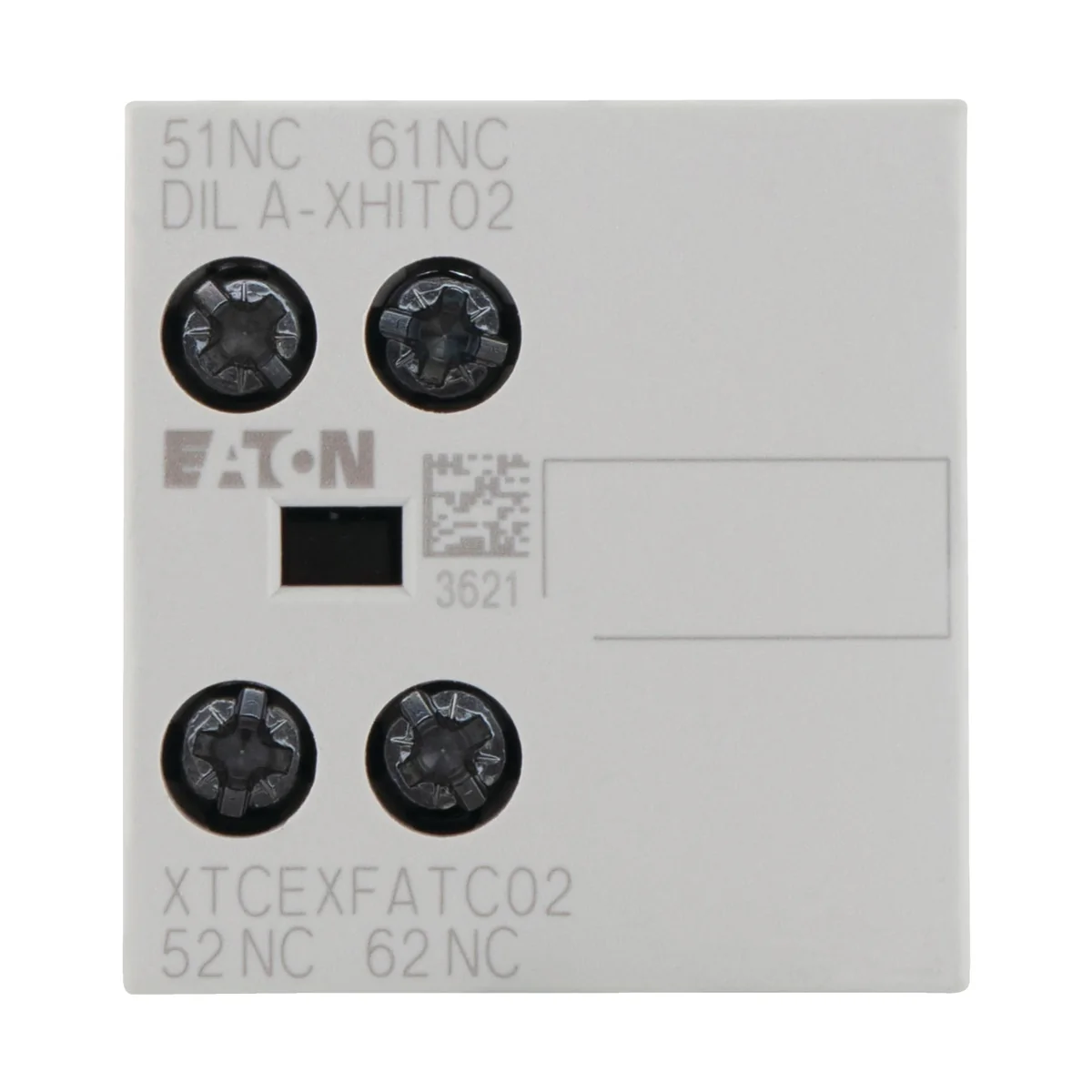

Auxiliary switch module, protruding, 2O, structure, screw connections 101041

Index local:
ATC039MOEL
Numéro de catalogue:
101041
Code EAN:
4015081009367
Producteur: EATON
Number of NC contacts: 2
Prix:
14,66 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
5
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Auxiliary switch module, positive-contact, Switching elements according to EN 50005, Combinations in version E according to EN 50011 are recommended., DC-operated contact DILA(C)-22 must only be connected to double-pole contacts function: suitable for connecting to wiring bridges, 2-pole, Connection method: screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Equipped with contacts R = NC contacts: 2 R, Mounting method: Front mounting, For use with: DILM7…, DILM9…, DILM12…, DILM15…, DILL…, MSC-D… M7(9, 12, 15)…, MSC-R…M7(9, 12), Version: high version, Notes: Positively guided contacts according to IEC/EN 60947-5-1 Appendix L, within the circuit-breaker module as well as for integrated auxiliary switch modules in DILM 7 - DILM32., Auxiliary NC contacts used as mirror contact according to IEC/EN 60947-4-1 Appendix F (non-delayed NC contact)

Données techniques

  • Number of NC contacts
    2

Autres données techniques

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    2
  • Rated operation current Ie at AC-15, 230 V
    4 A
  • Model
    Clip-on
  • Lamp holder
    None
  • Number of contacts as normally open contact
    0
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Front fastening

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Emballage en vrac

Une sorte de paquet Skrzynia Karton
Quantité 1 pcs. 5 pcs.
poids (kg) 0,043 0,213
Volume (m3) 0,000 0,000
Largeur (m) 0,038 0,038
Longueur (m) 0,057 0,170
Profondeur (m) 0,040 0,061
