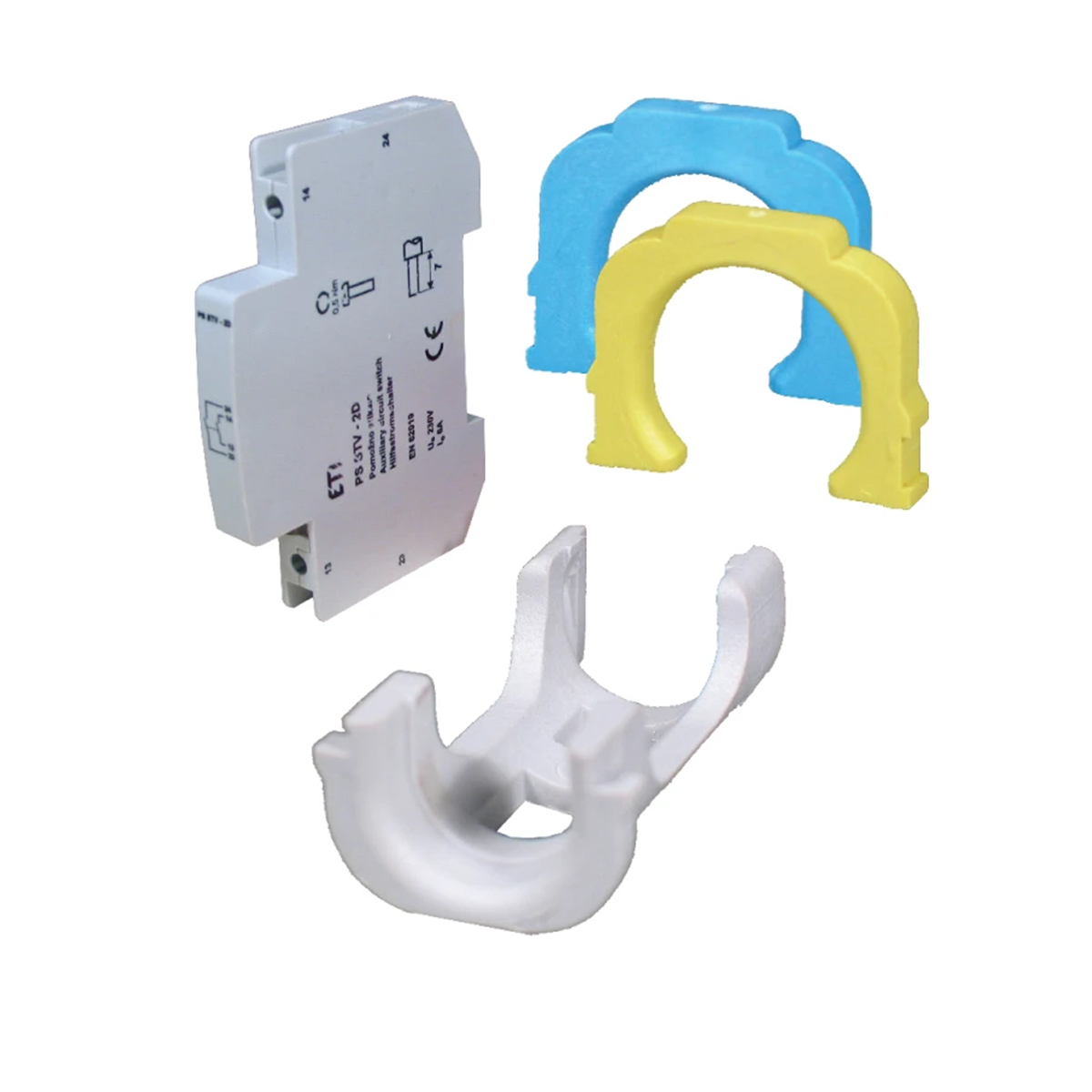

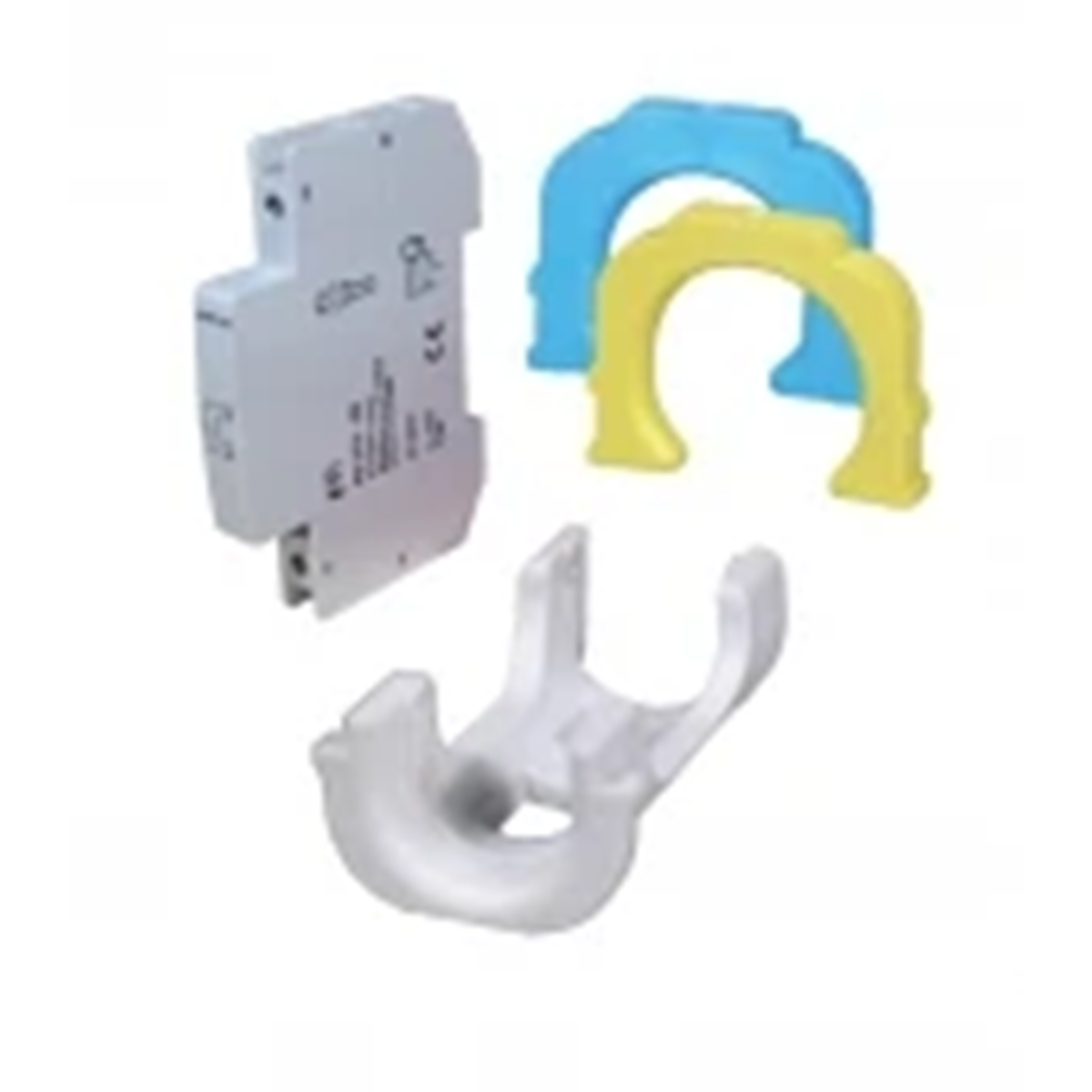

Auxiliary contacts for switch disconnector STV D02 PS STV - MD (NO+NC) 002279001

local index:
ABO002ETIP
Catalog No:
002279001
EAN code:
3838895177449
Manufacturer: ETI POLAM
Terminal capacity: 0.75 1.5mm2
Rated current [A]: 12
Contact: NO + NC
Price:
26,78 €
gross / pcs.
(including VAT 23%)
2678,00 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - PS STV auxiliary contacts are designed to be mounted on the side of the STV D02 switch disconnector. Auxiliary contacts are produced in various arrangements, which are given in the table below. They can be used, for example, for remote activation signaling or for the control circuit. The modular width of the device is 9mm, other dimensions are compatible with the STV switch-disconnector series.

Technical data

  • Terminal capacity
    0.75 1.5mm2
  • Contact
    NO + NC
  • Short-circuit capacity [kA]
    1 kA (20A - initial back-up)
  • PKWIU
    27.12.23.0
  • Rated current [A]
    12
  • Weight [g]
    10
  • Short-circuit capacity [kA]
    1 kA (20A - initial back-up)

Other technical data

  • Number of contacts as normally open contact
    1
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Mounting method
    Side mounting
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
