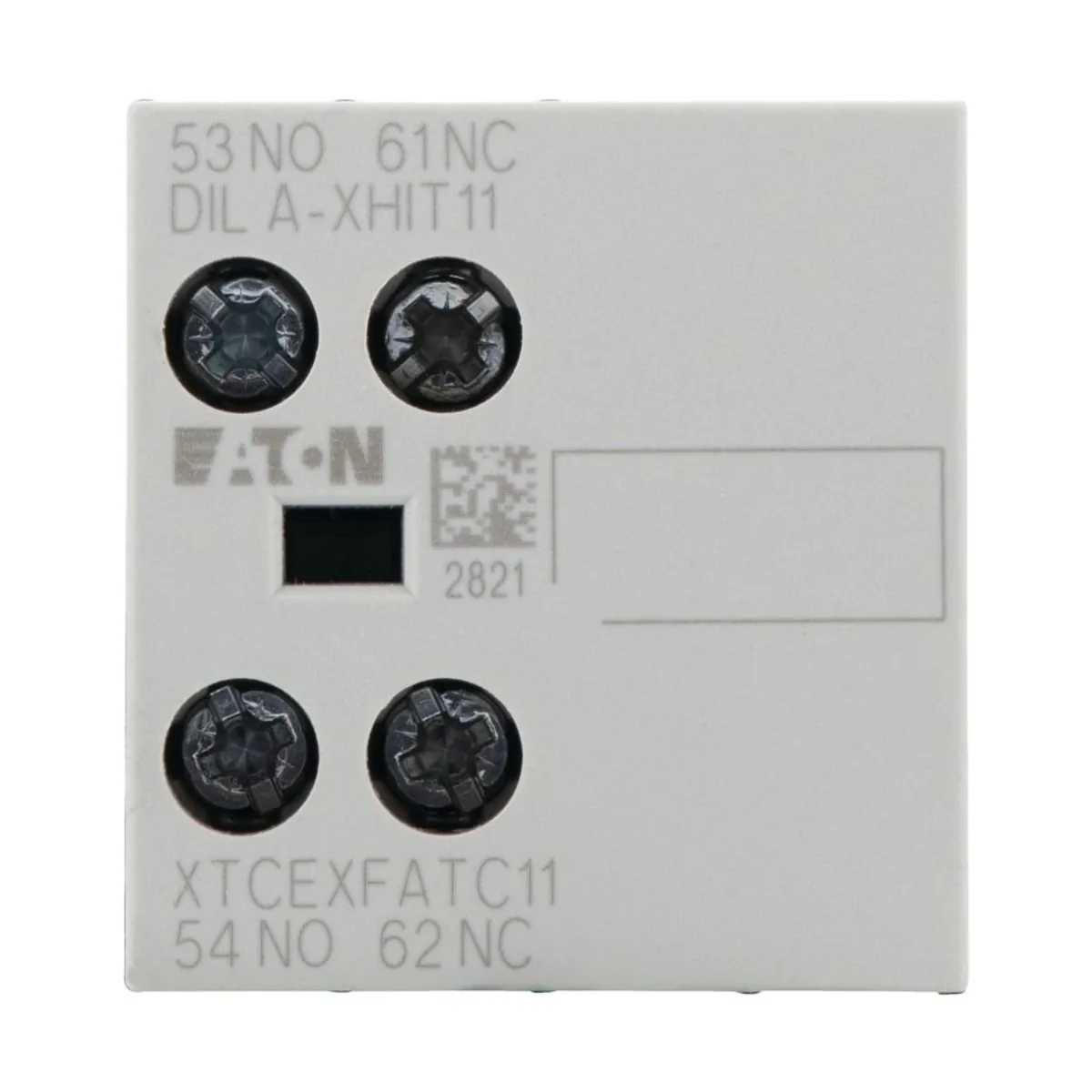

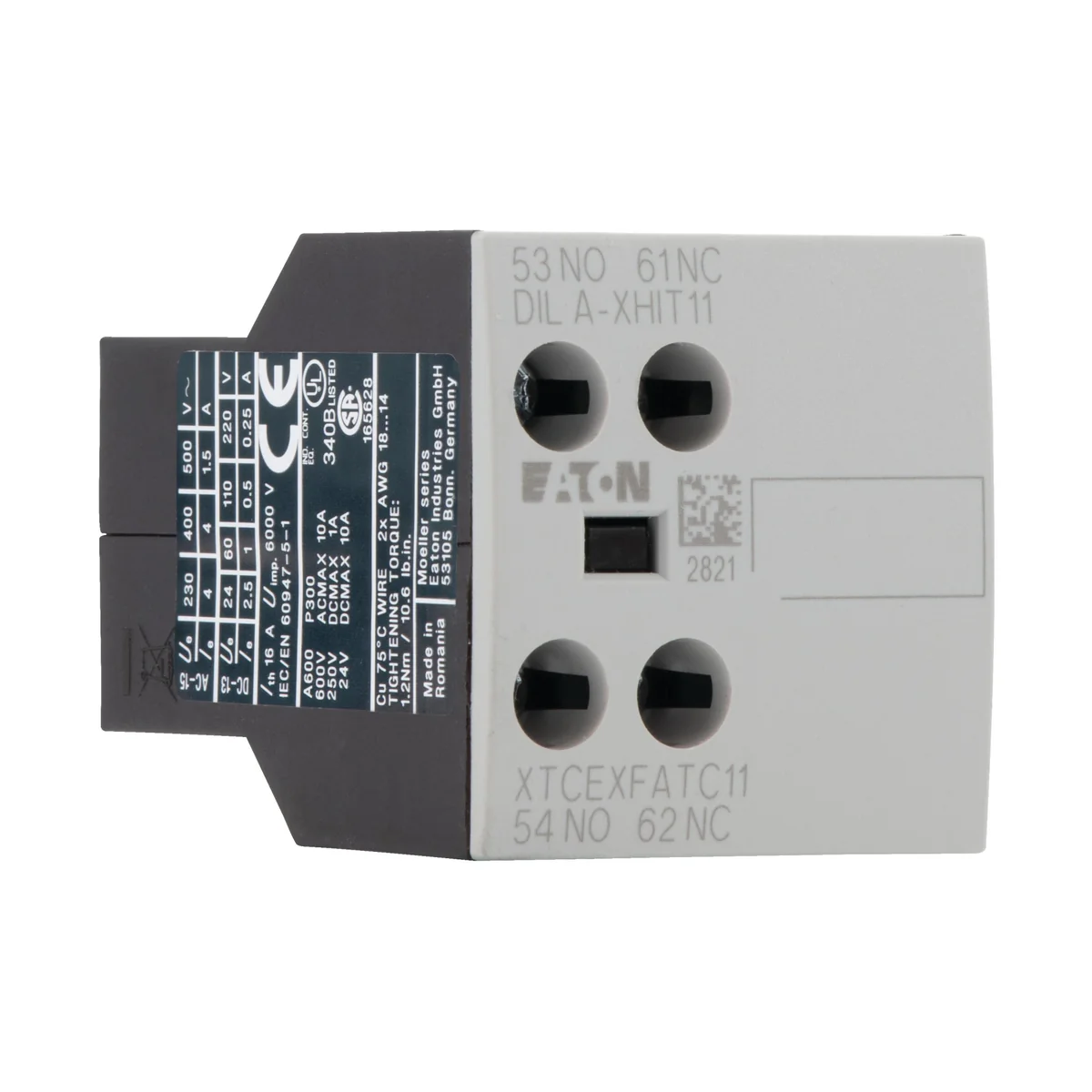

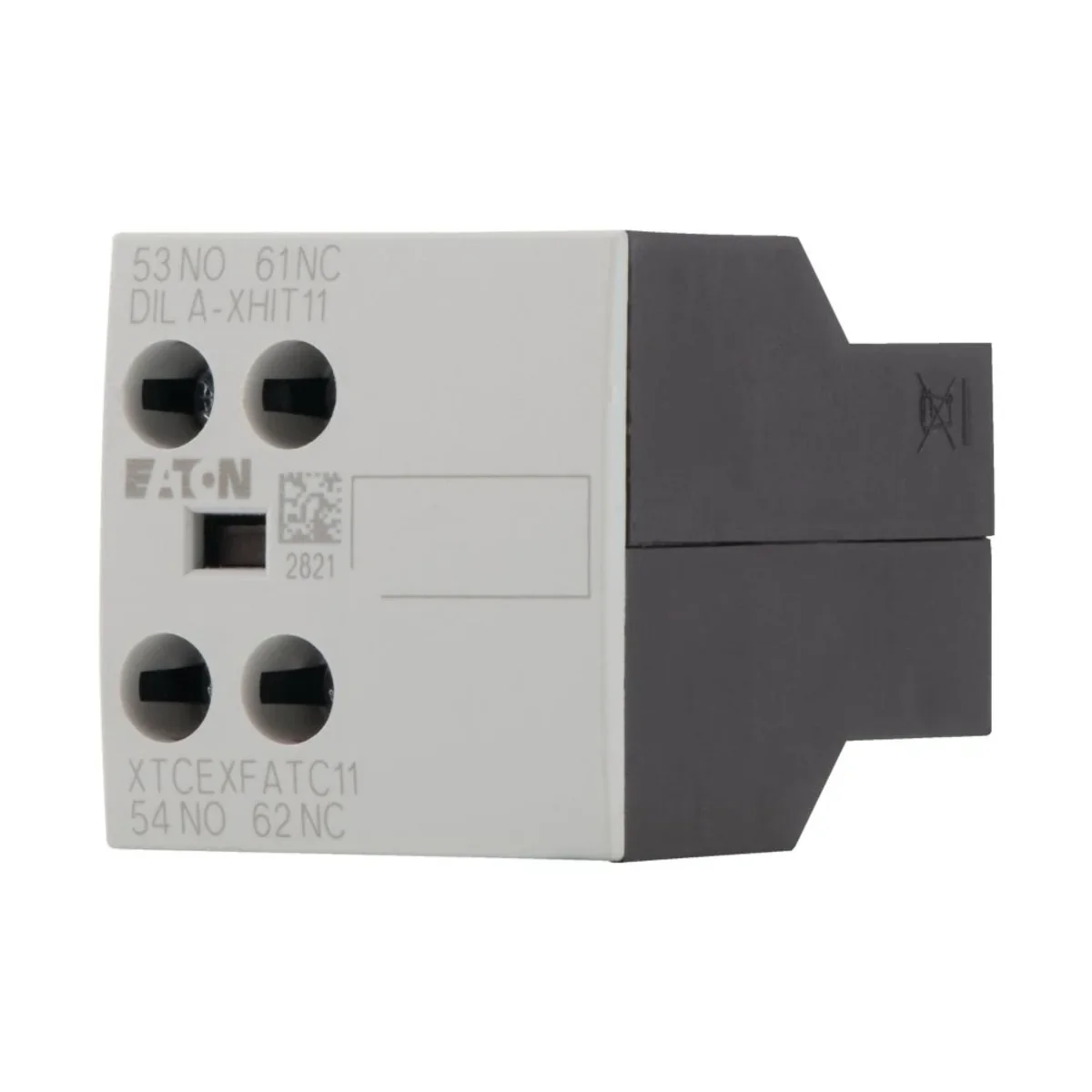

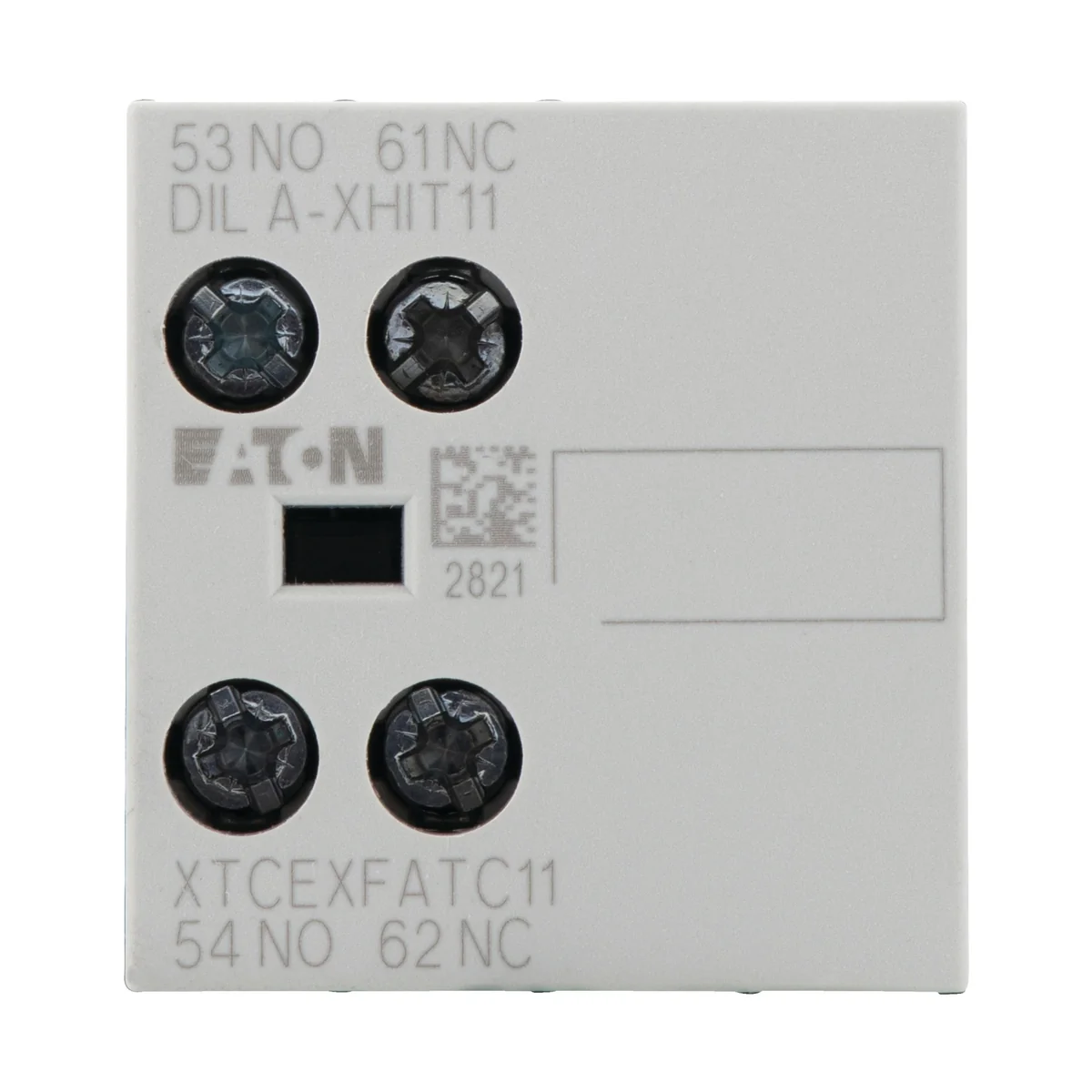

Auxiliary contacts 1NO 1NC high installation, DILA-XHIT11 101043

local index:
ATC110MOEL
Catalog No:
101043
EAN code:
4015081009381
Manufacturer: EATON
Number of NO contacts: 1
Price:
12,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

Auxiliary contacts 1NO 1NC high installation

Technical data

  • Number of NO contacts
    1

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    1
  • Rated operation current Ie at AC-15, 230 V
    4 A
  • Model
    Clip-on
  • Lamp holder
    None
  • Number of contacts as normally open contact
    1
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Front fastening

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,043 0,213
Volume (m3) 0,000 0,000
Width (m) 0,038 0,038
Length (m) 0,057 0,170
Depth (m) 0,040 0,061
