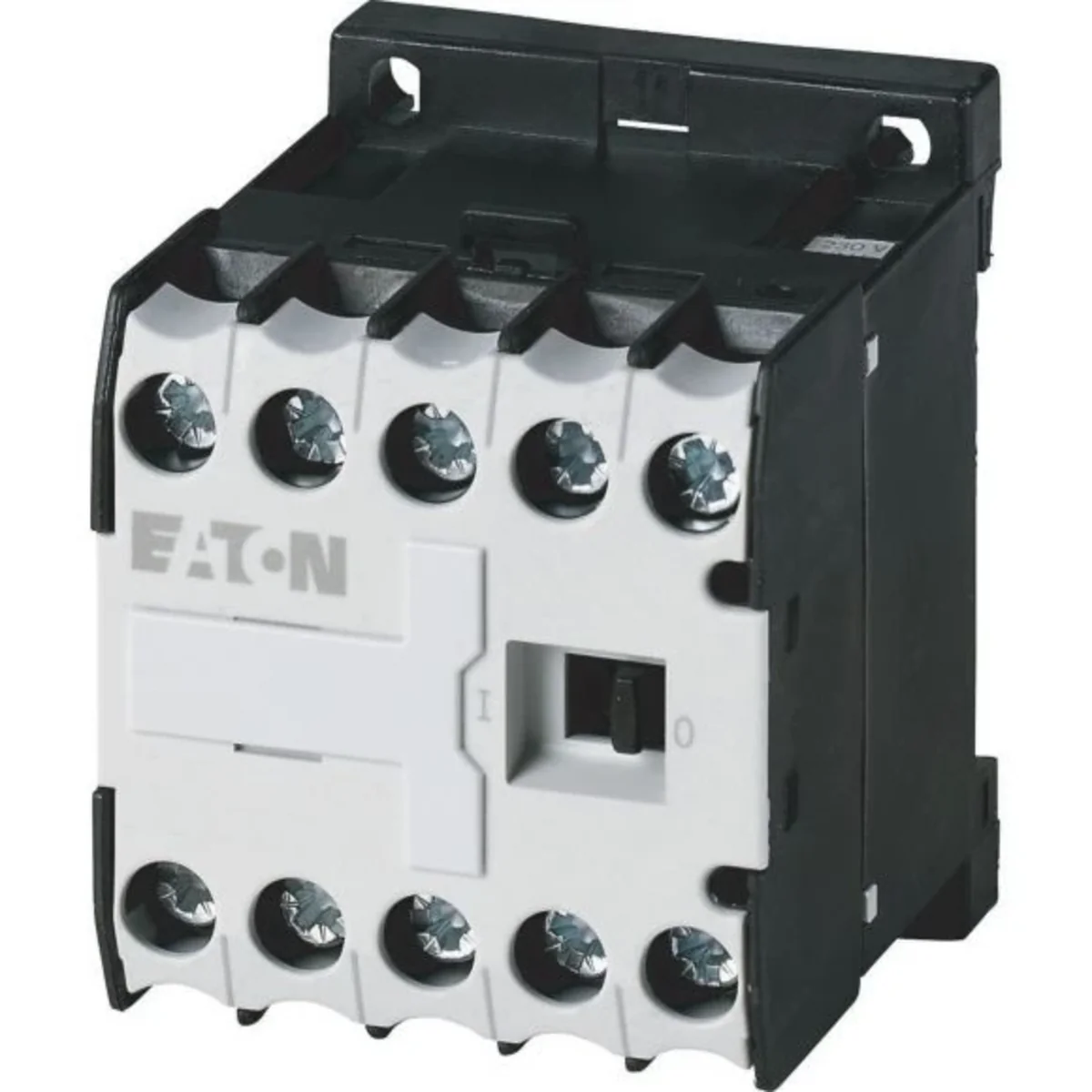

Auxiliary contactor DILER-31-G(110VDC) 010253

local index:
ATD153MOEL
Catalog No:
010253
EAN code:
4015080102533
Manufacturer: EATON
DC operating voltage [V]: 110
Rated current [A]: 3
Price:
75,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

DILER auxiliary contactors (small size)

Technical data

  • DC operating voltage [V]
    110
  • Rated current [A]
    3

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    110 ... 110 V
  • Rated operation current Ie, 400 V
    3 A
  • Mounting method
    DIN-rail/screw
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally closed contact, delayed switching
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for manual operation
    No
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Connection type auxiliary circuit
    Screw connection
  • Interface
    No
  • Number of auxiliary contacts as normally open contact
    3
  • Number of auxiliary contacts as normally open contact, leading
    0
  • With LED indication
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,220 1,100
Volume (m3) 0,000 0,001
Width (m) 0,047 0,055
Length (m) 0,056 0,240
Depth (m) 0,060 0,063
