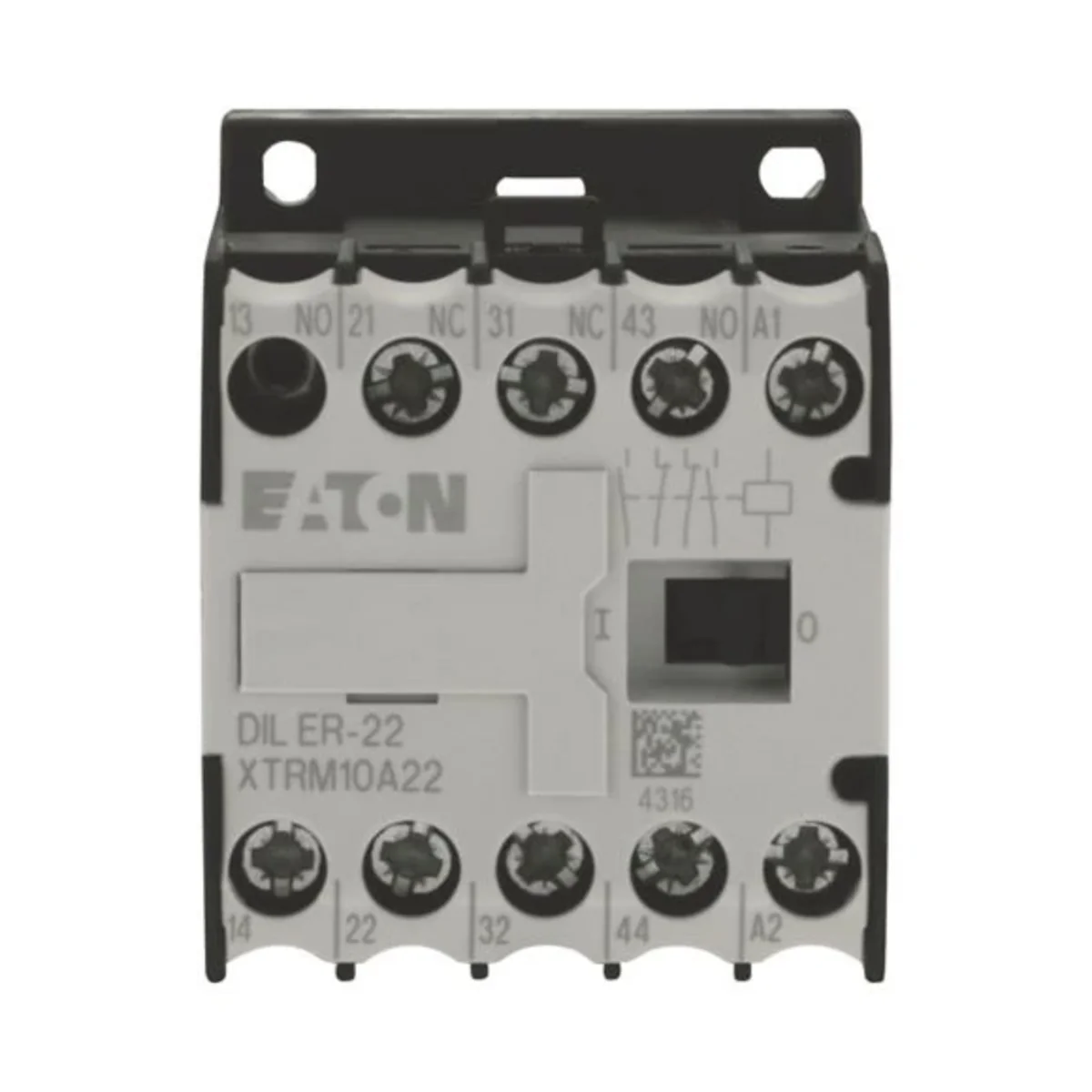

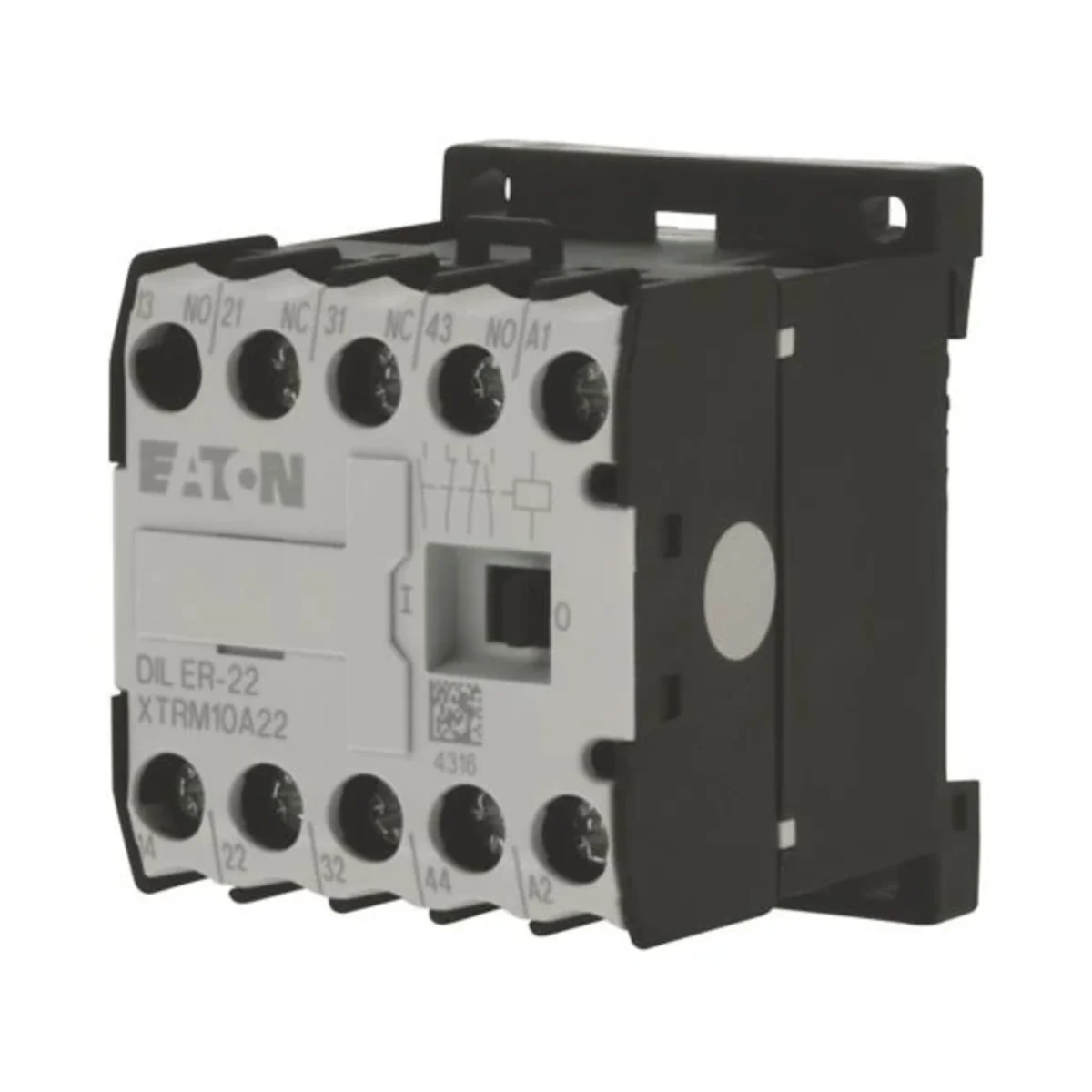

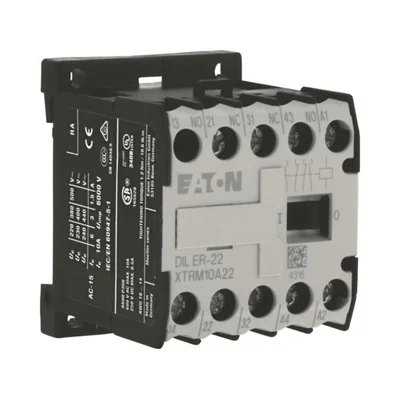

Auxiliary contactor DILER-22-G(110VDC) 010043
local index:
ATD011MOEL
Catalog No:
010043
EAN code:
4015080100430
Price:
75,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Ask about the product
Product description
DILER auxiliary contactors (small size)
Technical data
-
DC operating voltage [V]110
-
Rated current [A]3
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC110 ... 110 V
-
Rated operation current Ie, 400 V3 A
-
Mounting methodDIN-rail/screw
-
Number of auxiliary contacts as normally closed contact2
-
Number of auxiliary contacts as normally closed contact, delayed switching0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for manual operationNo
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Connection type auxiliary circuitScrew connection
-
InterfaceNo
-
Number of auxiliary contacts as normally open contact2
-
Number of auxiliary contacts as normally open contact, leading0
-
With LED indicationNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,206 | 0,220 | 1,100 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,045 | 0,047 | 0,055 |
| Length (m) | 0,054 | 0,056 | 0,240 |
| Depth (m) | 0,058 | 0,060 | 0,063 |
