Auxiliary contact, Z-AHK 248433

local index:
ATC132MOEL
Catalog No:
248433
EAN code:
4015082484330
Manufacturer: EATON
Frequency [Hz]: 50-60
Number of contacts: 1NO 1NC
Rated voltage [V]: 230
Price:
13,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 186 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

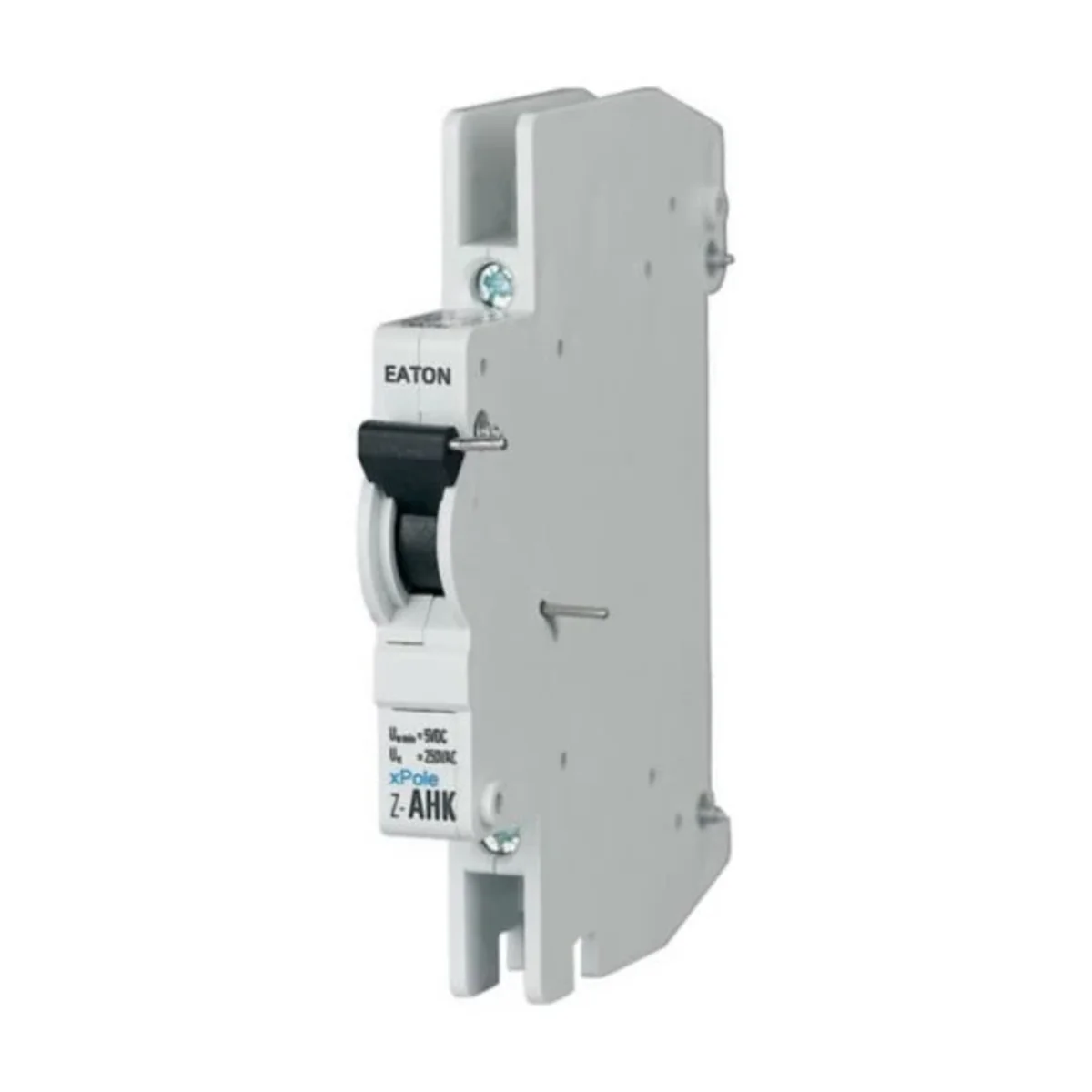

Auxiliary contact, Z-AHK

Technical data

  • Frequency [Hz]
    50-60
  • Rated voltage [V]
    230
  • Width [number of modules]
    0.5
  • Rated operational voltage (main circuit) AC [V]
    250
  • Type of control voltage
    AC

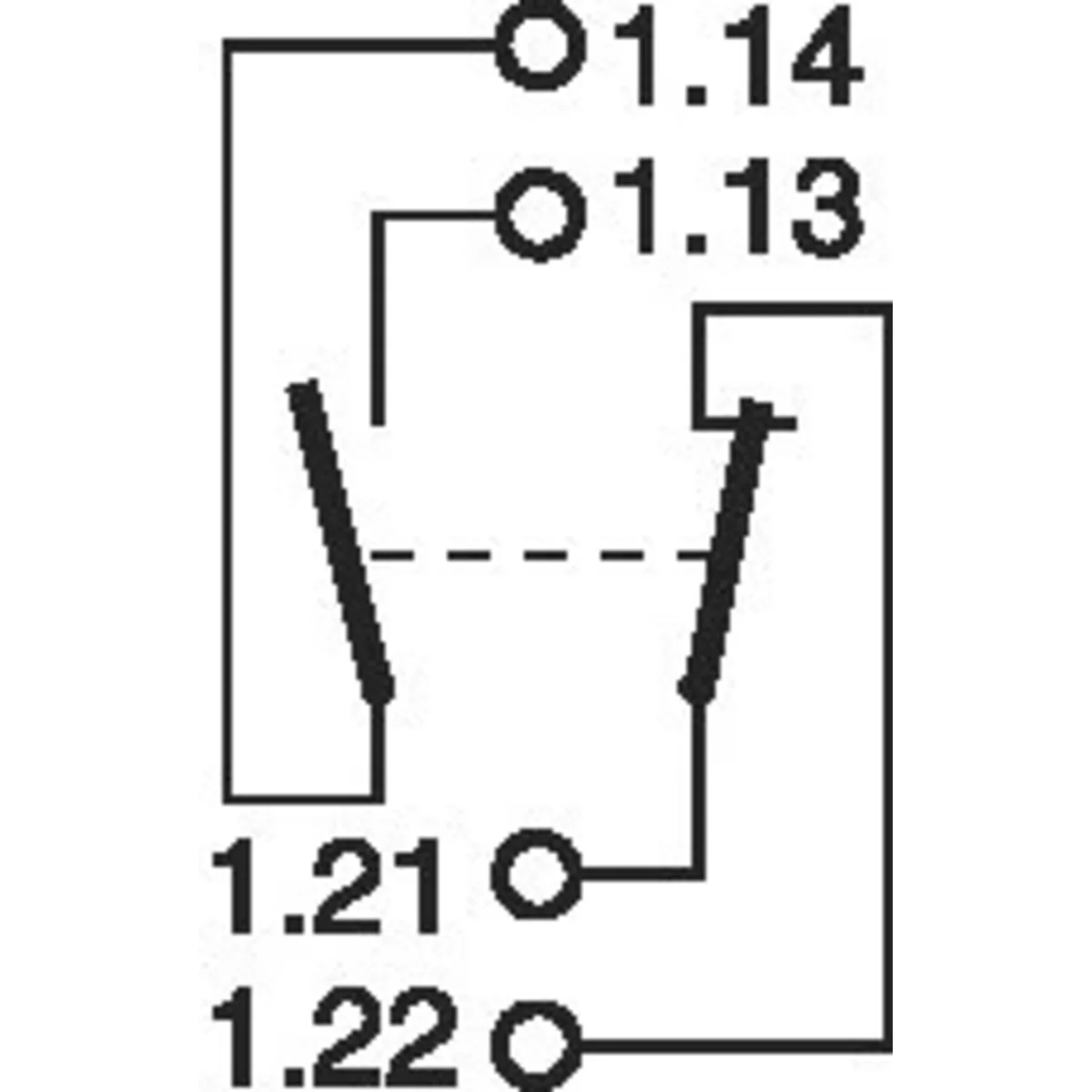

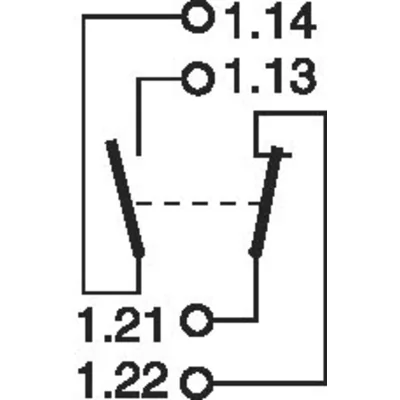

  • Number of contacts
    1NO 1NC
  • Rated current [A]
    4
  • Operating temperature range [°C]
    -5 to 40
  • Rated inrush current [A]
    3

Other technical data

  • Device fitting
    Universal
  • Montowane fabrycznie
    No
  • Number of contacts as normally closed contact
    1
  • Number of fault-signal switches
    0
  • Rated voltage
    230 V
  • With auto test for earth leakage function
    No
  • Suitable for max. current main contact unit
    4 A
  • Rodzaj wyposażenia dodatkowego
    Auxiliary switch
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Rated switch current
    3 A
  • Voltage type for actuating
    AC
  • Suitable for max. number of poles main contact unit (total)
    2

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 4 pcs. 120 pcs.
Weight (kg) 0,060 0,240 5,497
Volume (m3) 0,000 0,000 0,016
Width (m) 0,011 0,073 0,180
Length (m) 0,082 0,086 0,385
Depth (m) 0,077 0,075 0,230
