Auxiliary contact module 2NO 2NC, DILM32-XHI22 277377

Name: Auxiliary contact module 2NO 2NC, DILM32-XHI22
Brand: EATON
SKU: ATC318MOEL
Price: 11.86 PLN
Availability: InStock

local index:

ATC318MOEL

Catalog No:

277377

EAN code:

4015082773779

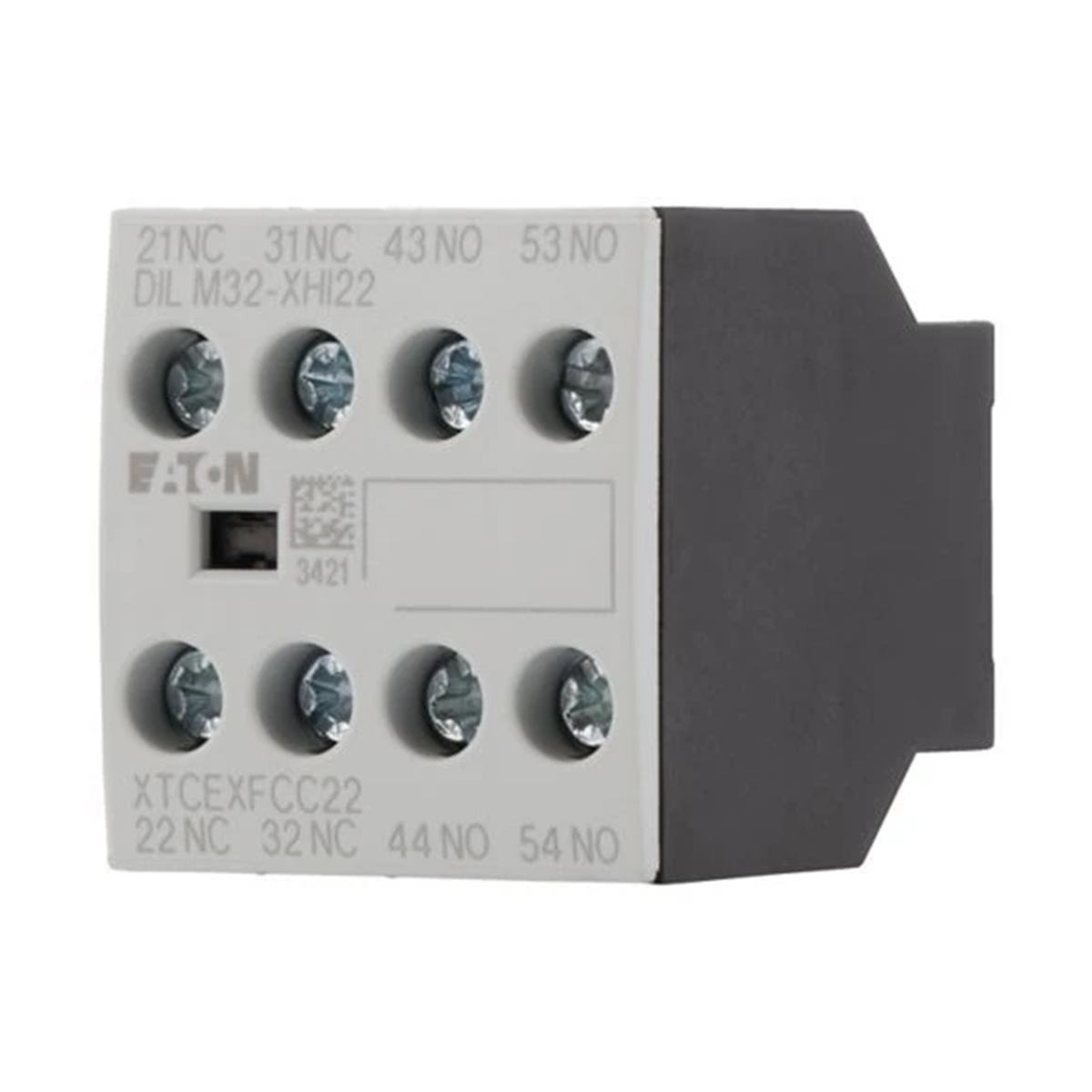

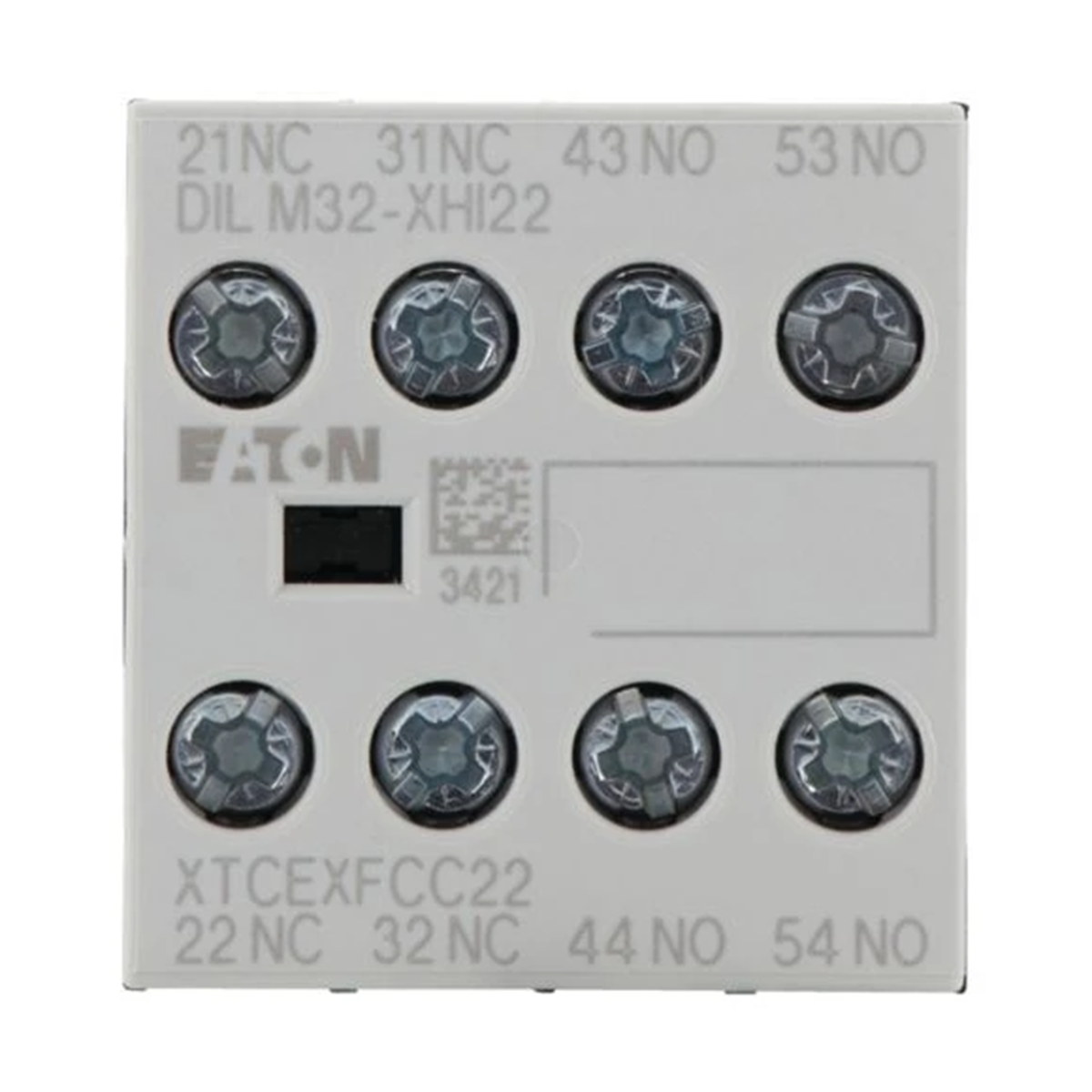

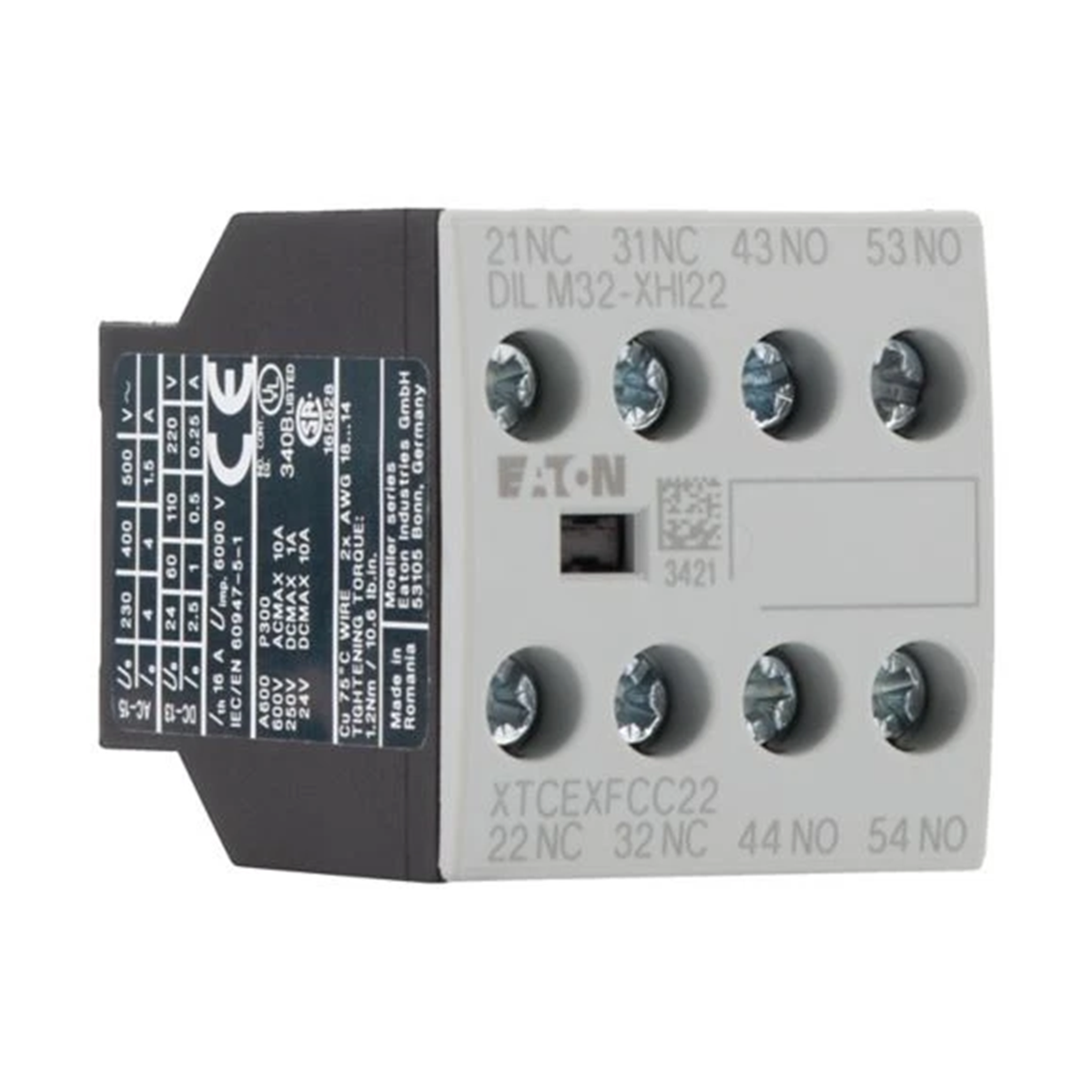

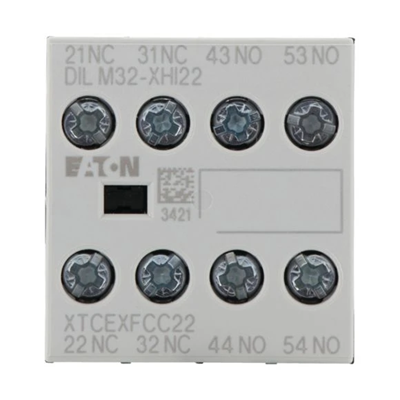

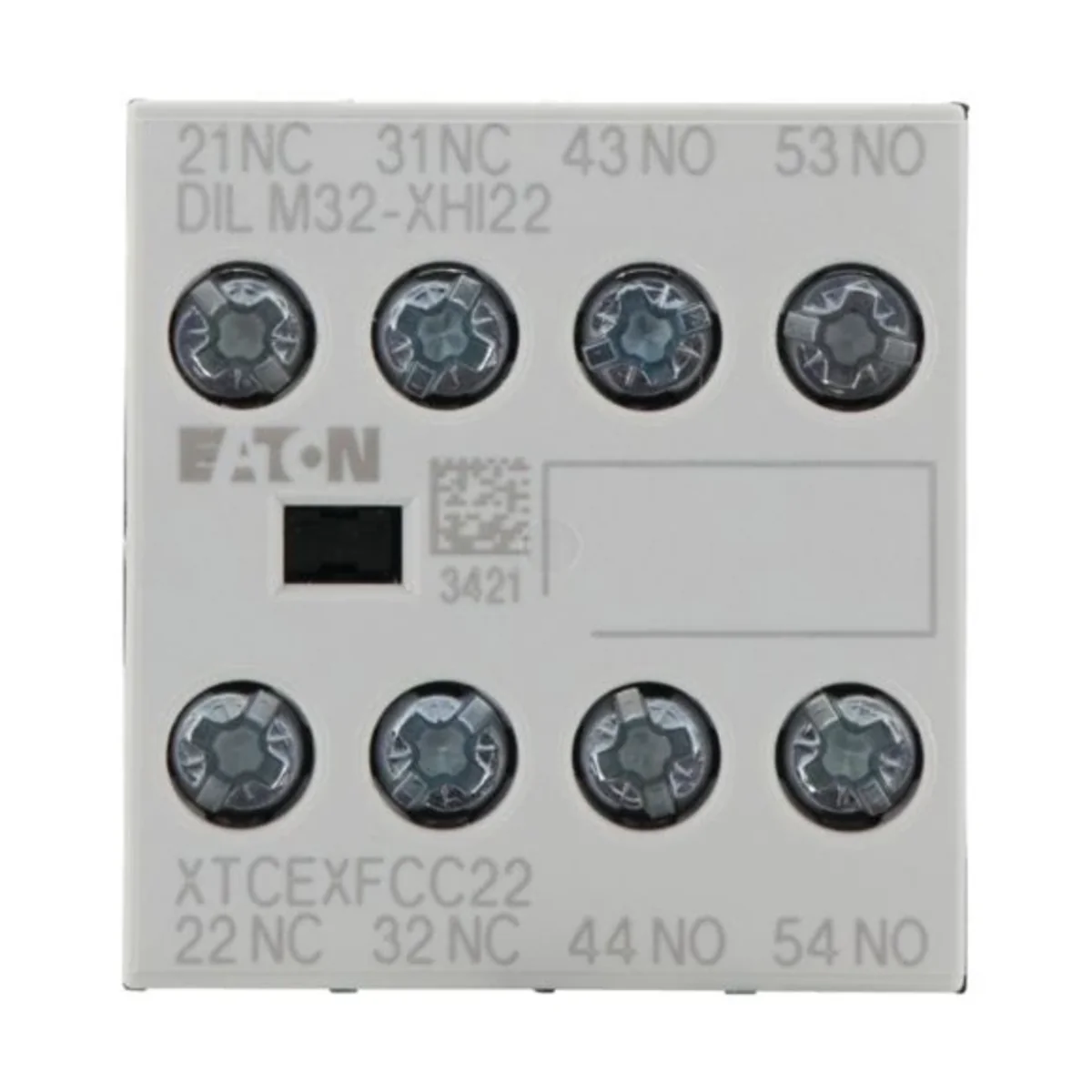

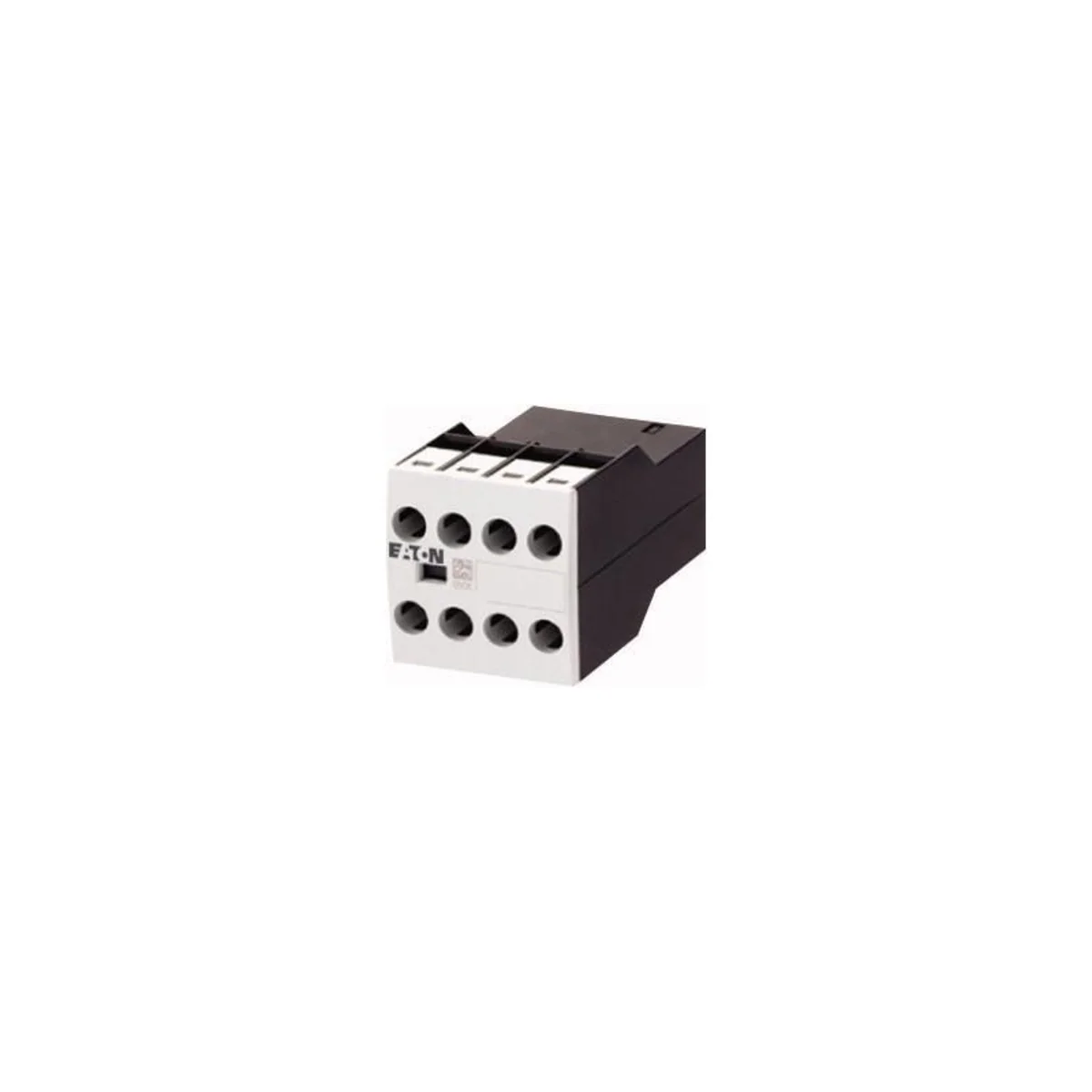

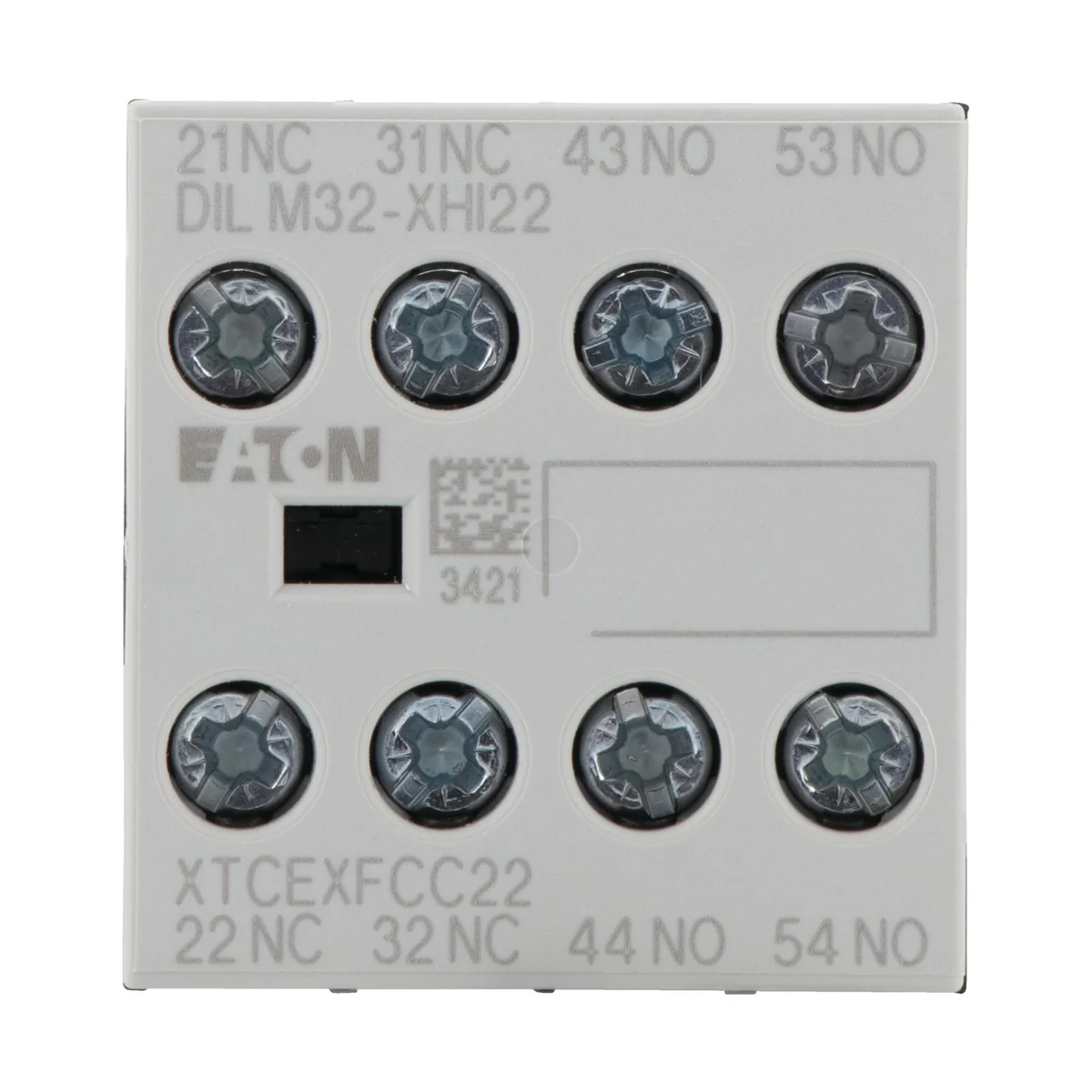

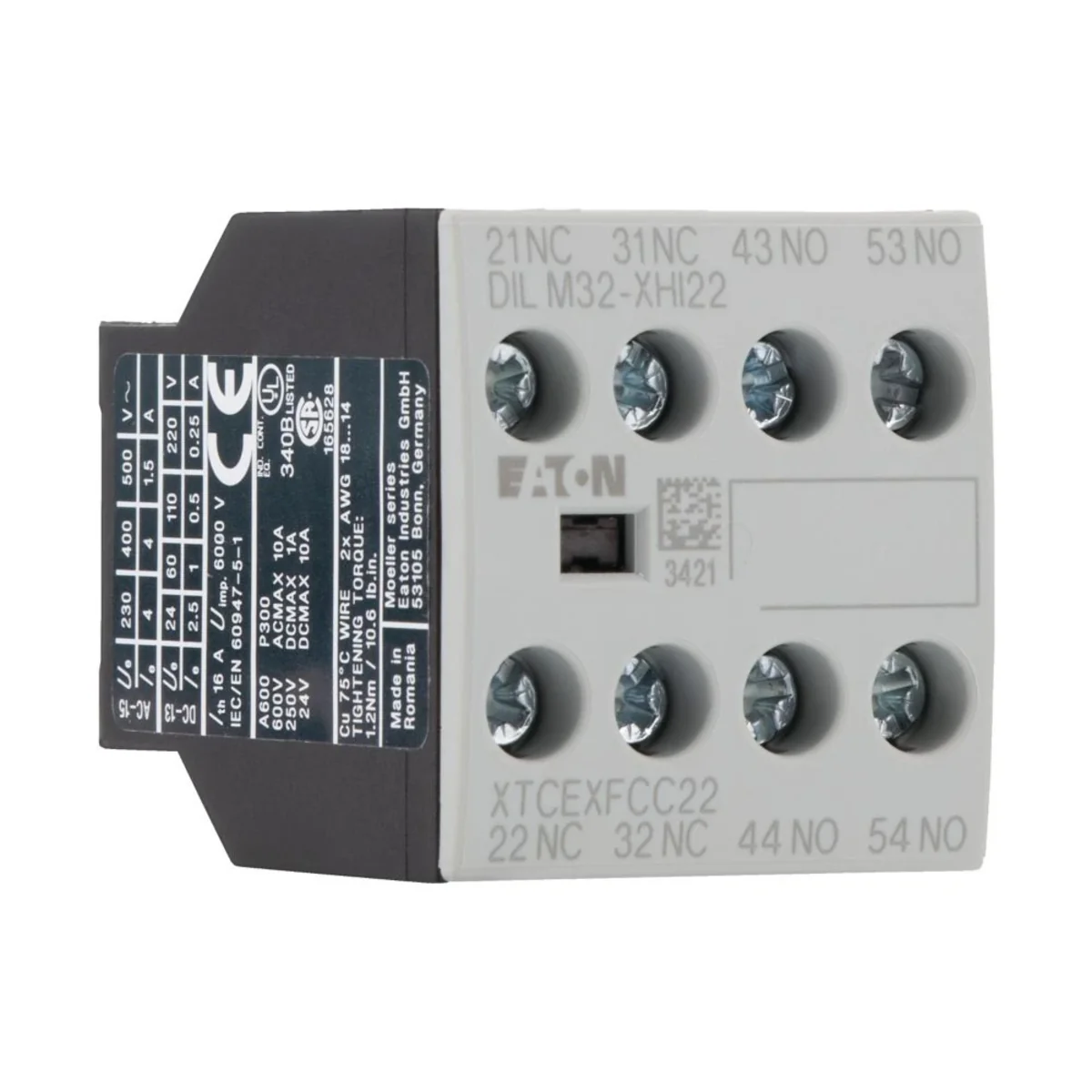

Auxiliary contact module 2NO 2NC, DILM32-XHI22

Click on the photo to enlarge

Manufacturer: EATON

Number of contacts: 2NO 2NC

Number of poles: 2

See full description

Price:

11,86 €

gross / pcs.

(including VAT 23%)

Accessible 84 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Auxiliary contact modules with positively guided contacts; except …XHI(C)V. Surface-mounted auxiliary contacts.
• Auxiliary NC contact used as mirror contact according to IEC/EN 60947-4-1 appendix F
• Positive opening contacts according to IEC/EN 60947-5-1 Appendix L, among auxiliary contact modules and for built-in auxiliary contacts of DILM7 contactors – DILM32

Technical data

Number of contacts

2NO 2NC

Number of poles

2

Other technical data

Number of contacts as change-over contact

0
Number of contacts as normally closed contact

2
Rated operation current Ie at AC-15, 230 V

6 A
Model

Clip-on
Lamp holder

None

Number of contacts as normally open contact

2
Number of fault-signal switches

0
Type of electric connection

Screw connection
Mounting method

Front fastening

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
Tax identification number

5841022327

Bulk packaging

A kind of package	Skrzynia	Karton	Skrzynia	Karton
Quantity	1 pcs.	5 pcs.	1 pcs.	5 pcs.
Weight (kg)	0,052	0,260	0,052	0,260
Volume (m3)	0,000	0,000	0,000	0,000
Width (m)	0,038	0,041	0,038	0,041
Length (m)	0,047	0,200	0,047	0,200
Depth (m)	0,040	0,052	0,040	0,052
