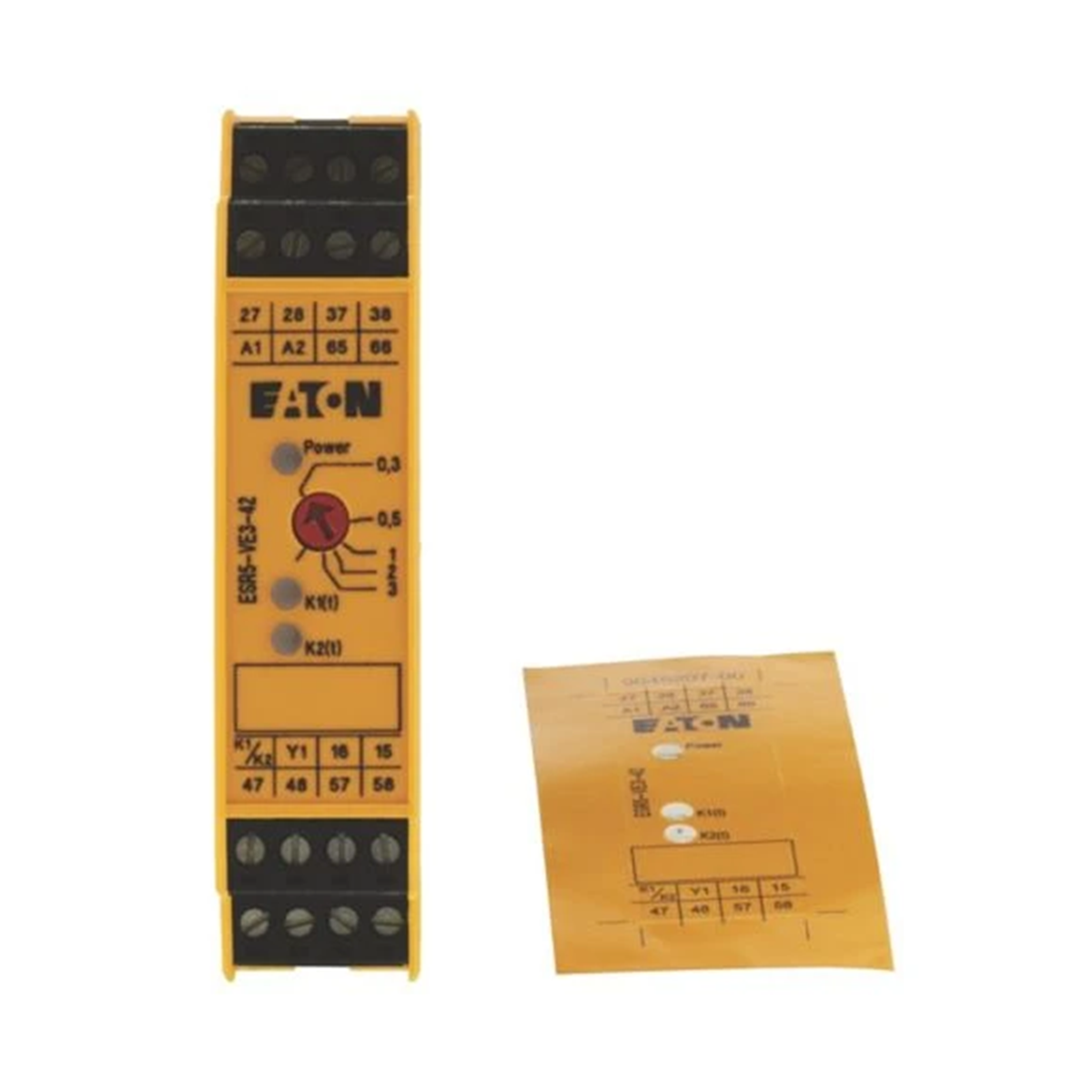

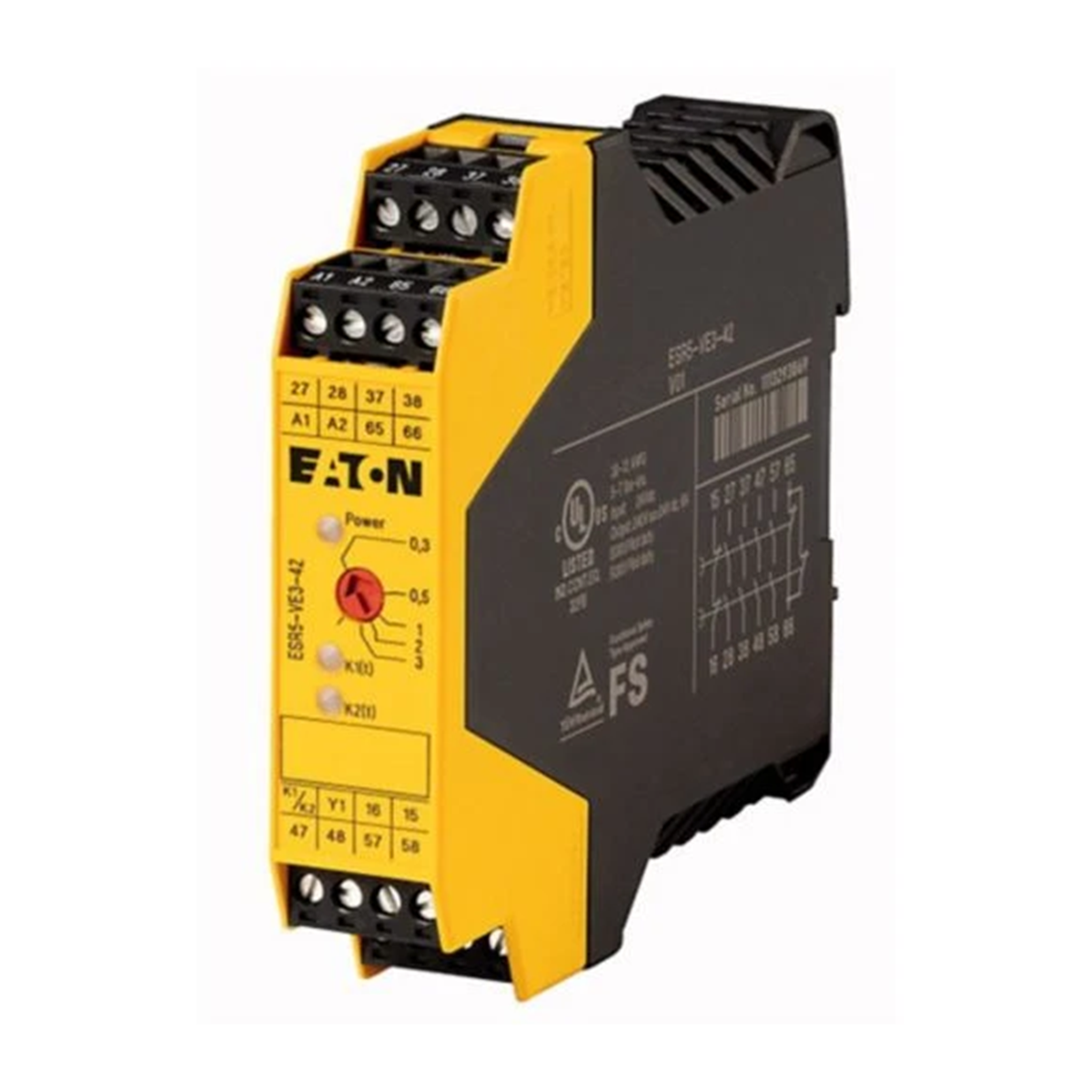

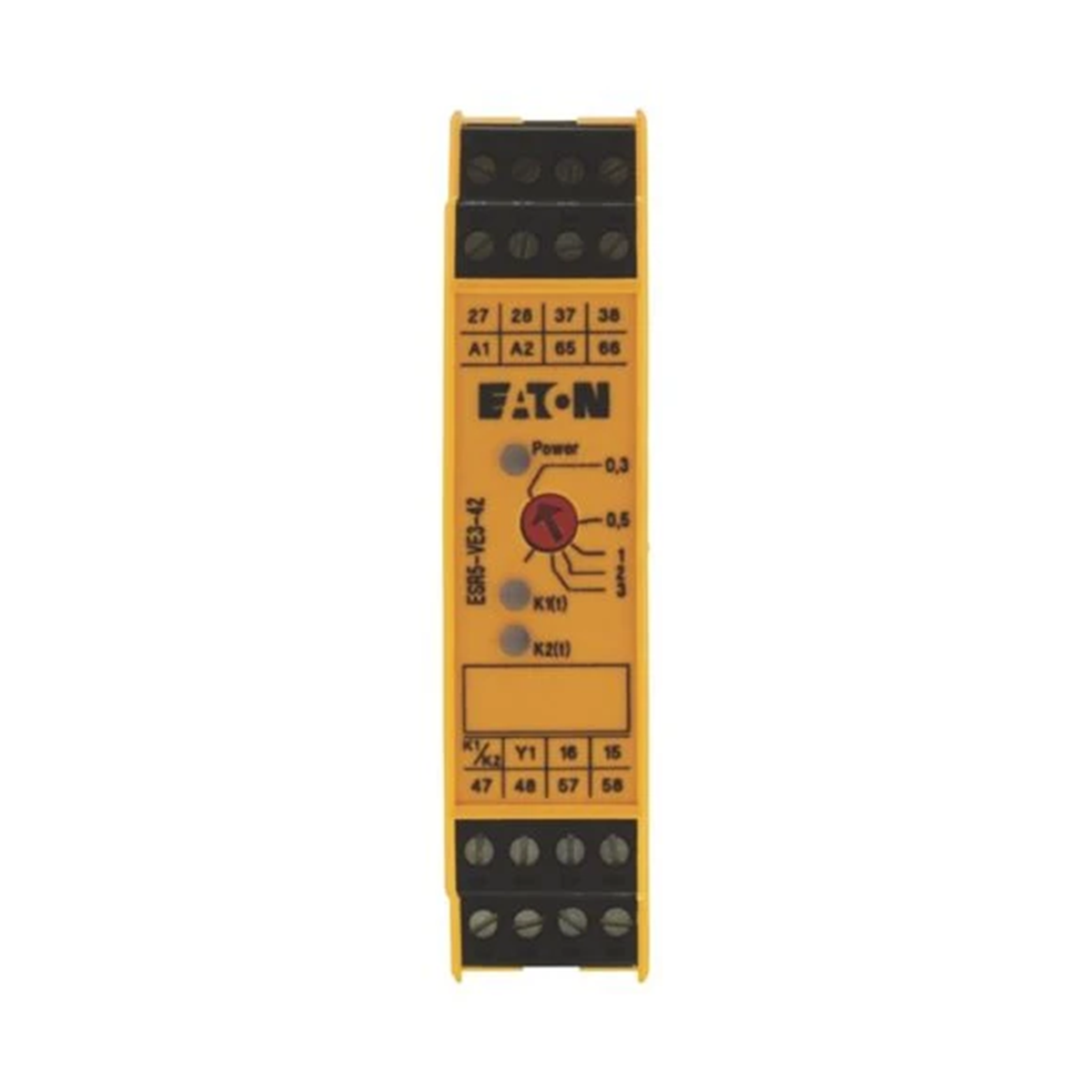

Auxiliary contact module, 24VDC/AC, 4 release delayed release paths 118706

Auxiliary contact module, late-breaking, for contact expansion in safety logic and time function modules, supply voltage 24 VDC, 4 enabling current paths (IEC/EN 60204 stop category 1) - the maximum stop category of the basic device according to IEC 61508 is achieved and IEC 60204, 2 signaling current paths, finger protection according to EN 50274 for vertical front actuation, suitable for Cat. 3 according to EN 954-1 / PL d according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 per IEC61508, degree of protection IP20, mounting location min IP54, TüV approved, 4 kV surge voltage / base insulation (safe disconnection, reinforced insulation and 6 kV between input circuit / NC contacts and release current paths.)
