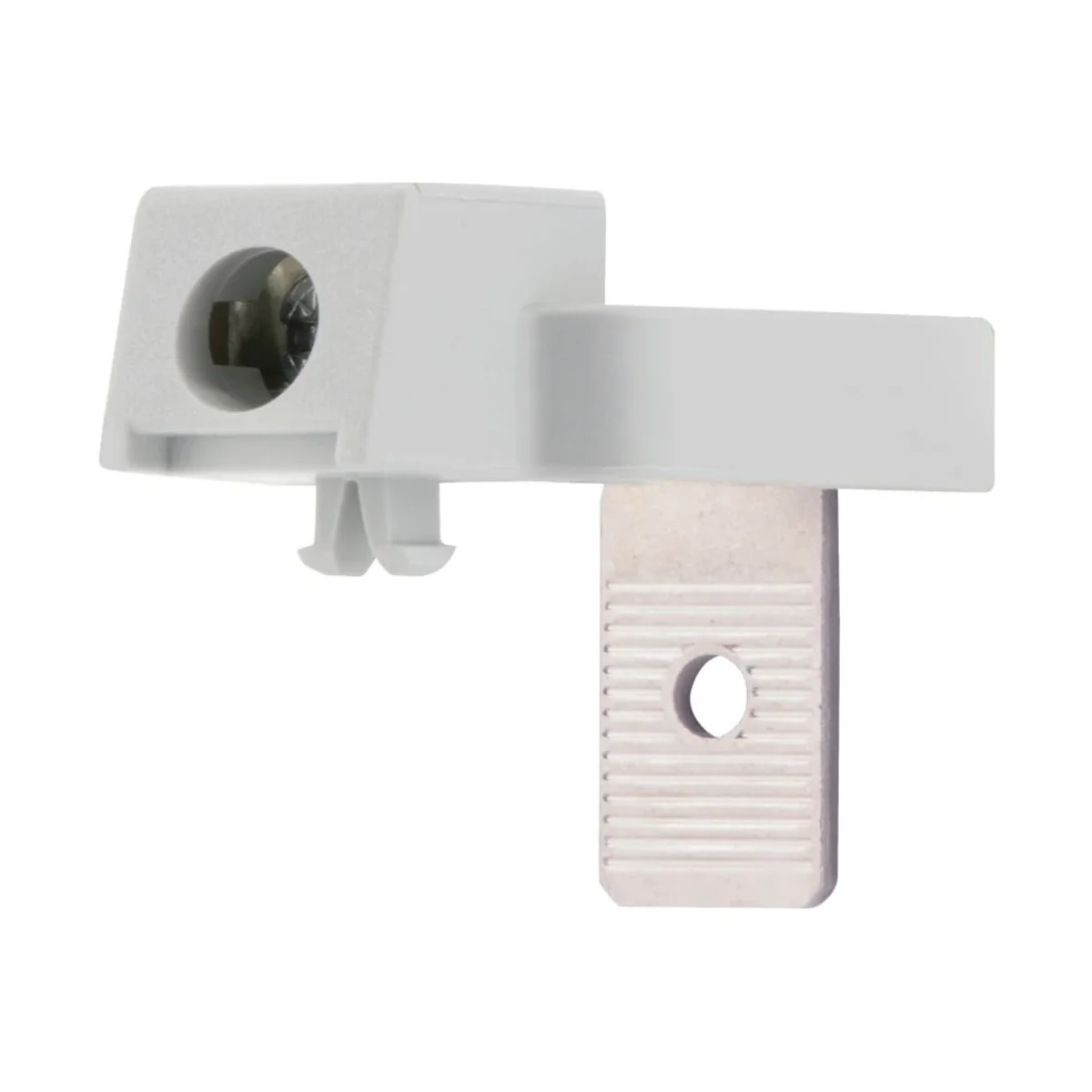

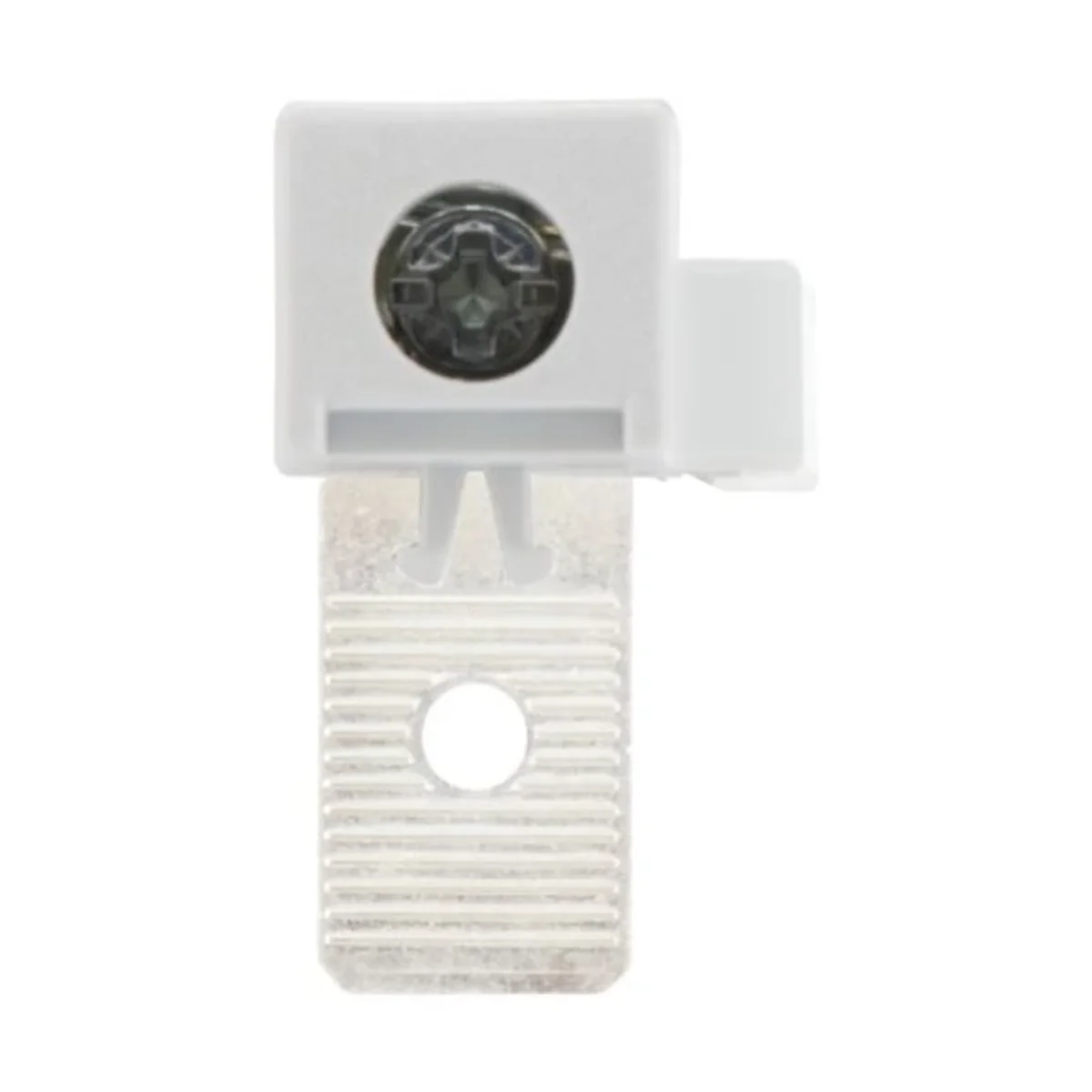

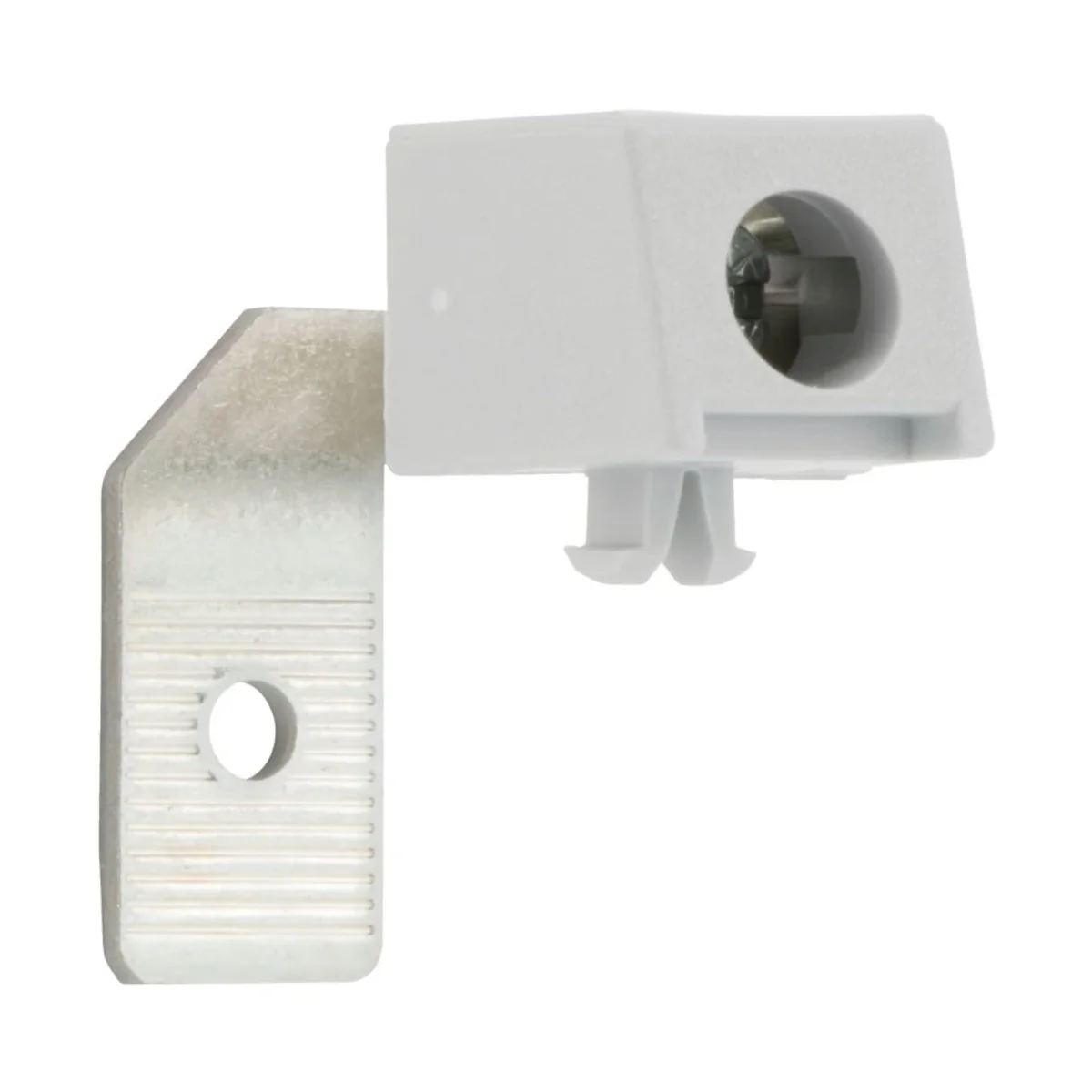

Additional clamp, for DILM80-150 104486

local index:
ATC041MOEL
Catalog No:
104486
EAN code:
4015081043033
Manufacturer: EATON
Number of poles: 2
Price:
7,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Easy implementation of voltage discharge. Possibility of installation on any main current terminal of the contactor. Connection capacity: maximum 2 x 4 mm² solid and maximum 2 x 2.5 mm² fine-wire with wire end ferrule.

Used for
DILM80, DILM95
DILM115, DILM150
DILM170, DILMF80
DILMF95, DILMF115
DILMF150

Technical data

  • Number of poles
    2

Other technical data

  • Core cross section
    4 mm²
  • With seal head
    No
  • Number of poles
    2

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,009 0,095
Volume (m3) 0,000 0,000
Width (m) 0,016 0,065
Length (m) 0,021 0,068
Depth (m) 0,014 0,075
