Accessories CI-K2-PKZ0, CI-K2-PKZ0-GR 219655

local index:
ASA034MOEL
Catalog No:
219655
EAN code:
4015082196554
Manufacturer: EATON
Level of security: IP65
Price:
17,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

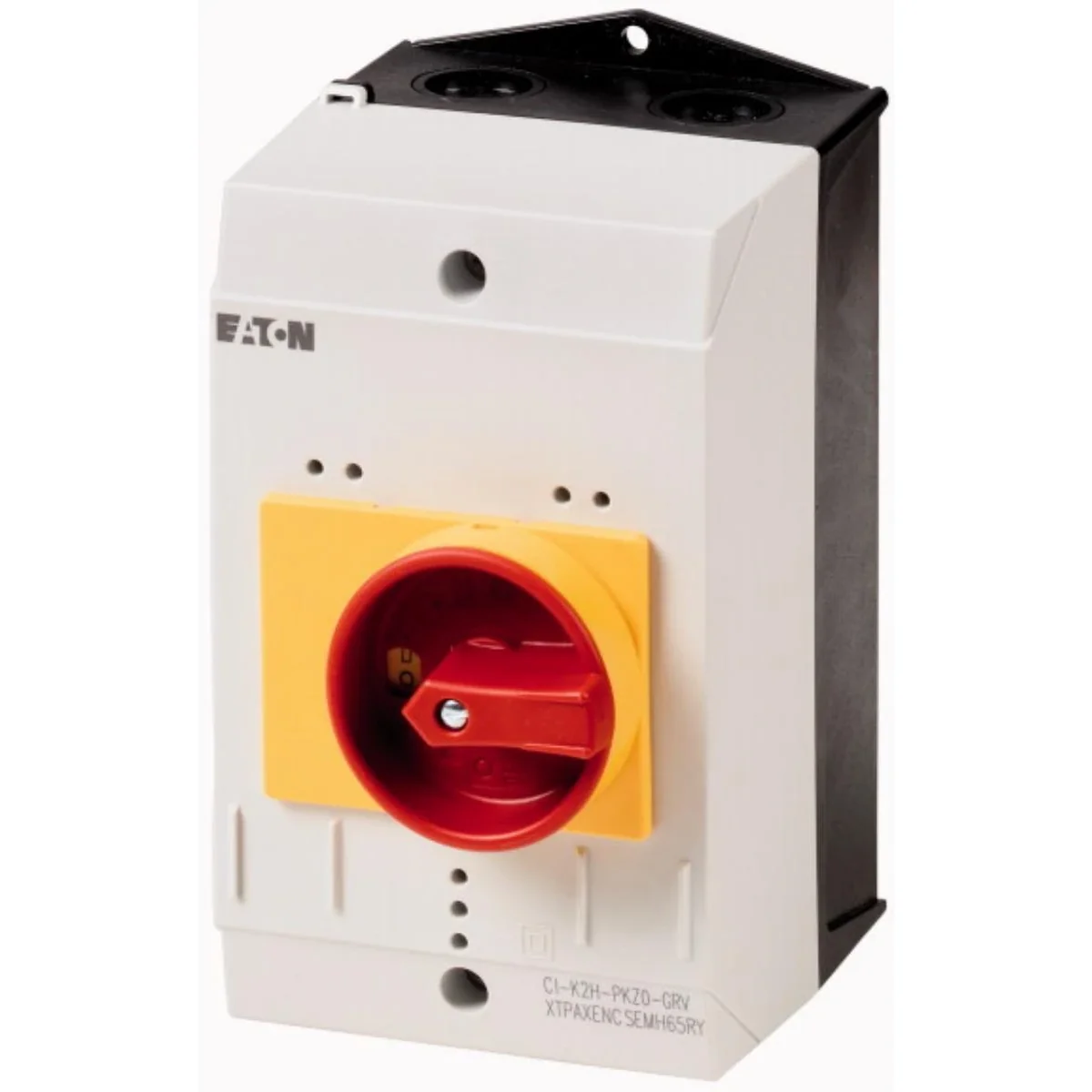

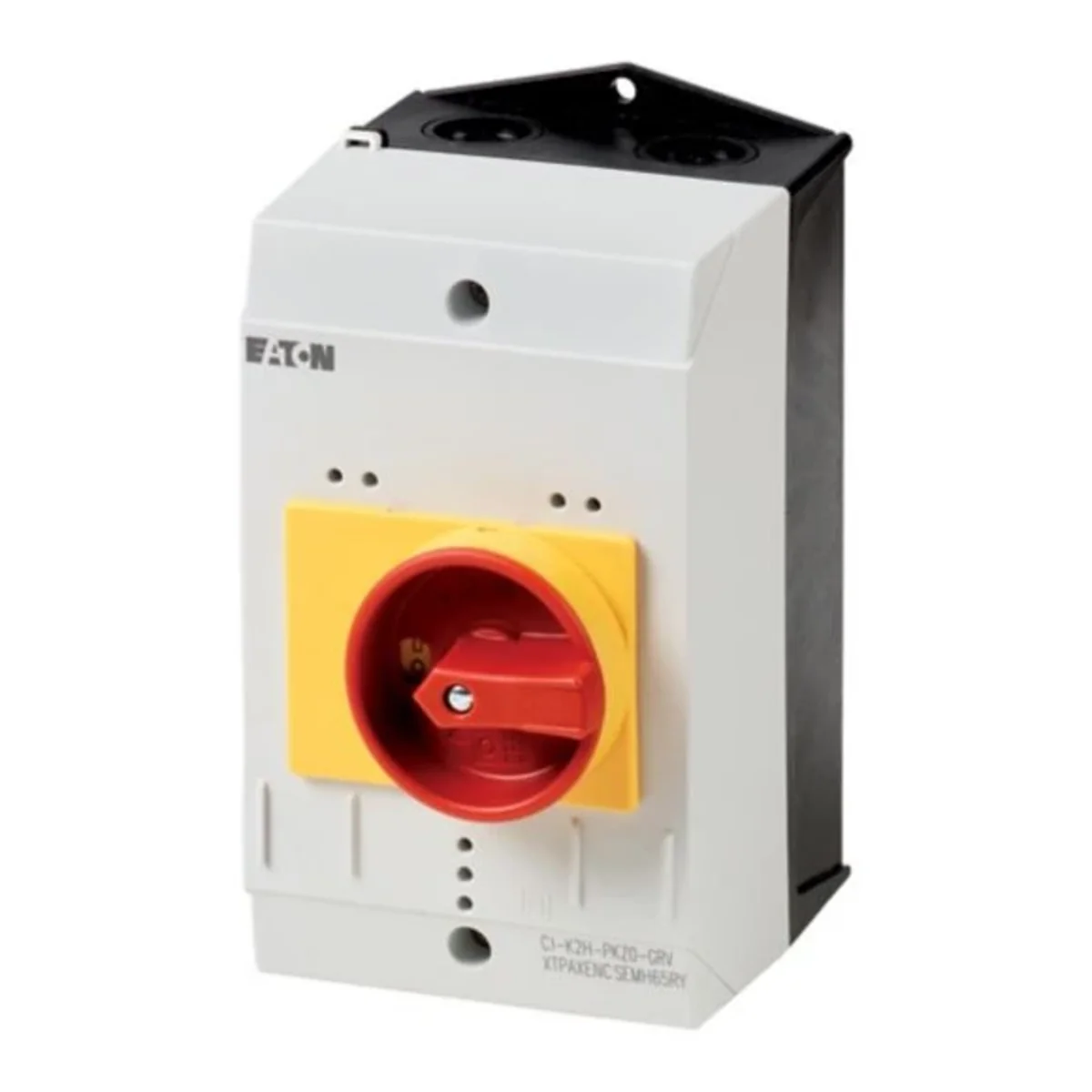

Plastic insulating enclosures for mounting. For PKZM0 motor-protective circuit-breakers - with red/yellow handle for use as an emergency switch in accordance with EN 60204. M25 metric pre-punching on top and bottom. At the top, bottom, in the rear wall, there is a pierced membrane for power cables and control cables. The CI-K2 insulating enclosure has N and PE terminals.

Technical data

  • Level of security
    IP65

Other technical data

  • Housing material
    Plastic
  • Height
    180 mm
  • With transparent cover
    No
  • Model
    Surface mounting
  • Degree of protection (NEMA)
    Other
  • Width
    100 mm
  • Depth
    132 mm
  • Suitable for emergency stop
    Yes
  • Degree of protection (IP)
    IP65

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,504
Volume (m3) 0,002
Width (m) 0,101
Length (m) 0,183
Depth (m) 0,120
